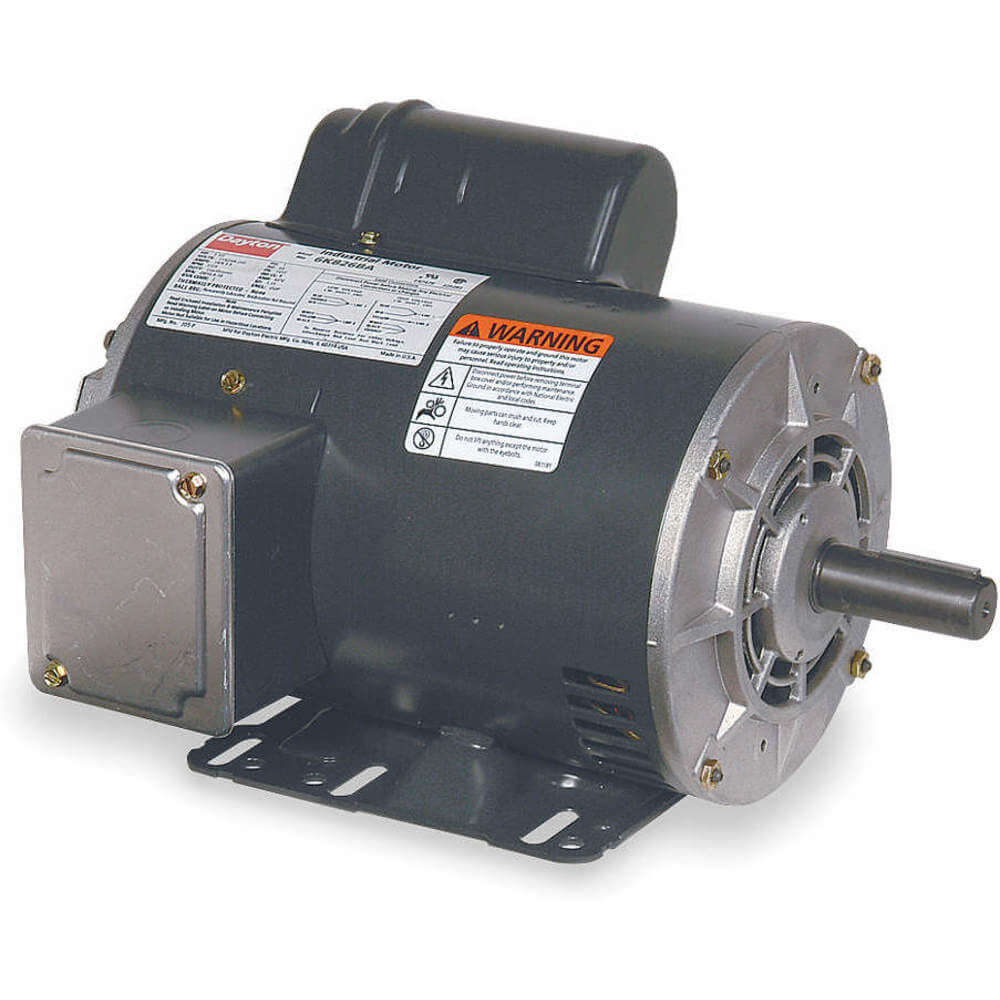

DAYTON 6K630 General Purpose Motor Carbon Steel Odp 1-1/2 Hp 3450 Rpm 143t
70%
Get it by Tuesday, Feb 17
10.00% off
€567.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Frame | 143T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 18.6/9.8-9.3A |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 3/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Number Of Speeds | 1 |
| Overall Length | 12 1/4" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Standards | Csa (225293), Ul (E47479) |
| Thermal Protection | None |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 26.42 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 26.42 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Frequency | Full Load Amps | Service Factor | Phase | Nameplate Rpm | Motor Type | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11W342 | 60 Hz | 8.3/4.2A | 1.15 | 3 | 1750 RPM | Three Phase | 3 hp | Face | €693.46 | |
 |
02018OT3E256TC-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | €2,318.06 | |
|
02518OT3E284TC-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | €2,987.15 | |
|
03018OT3E286TC-W40 | 60 Hz | 69.8/34.9A | 1.25 | 3 | - | - | - | - | €3,468.72 | |
 |
02018OT3E256T-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | €1,996.98 | |
|
02036OT3E254T-W40 | 60 Hz | 48.6/24.3A | 1.25 | 3 | 3535 RPM | Three Phase | 20 hp | Rigid Base | €2,075.40 | |
 |
02518OT3E284T-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | €2,031.73 |
