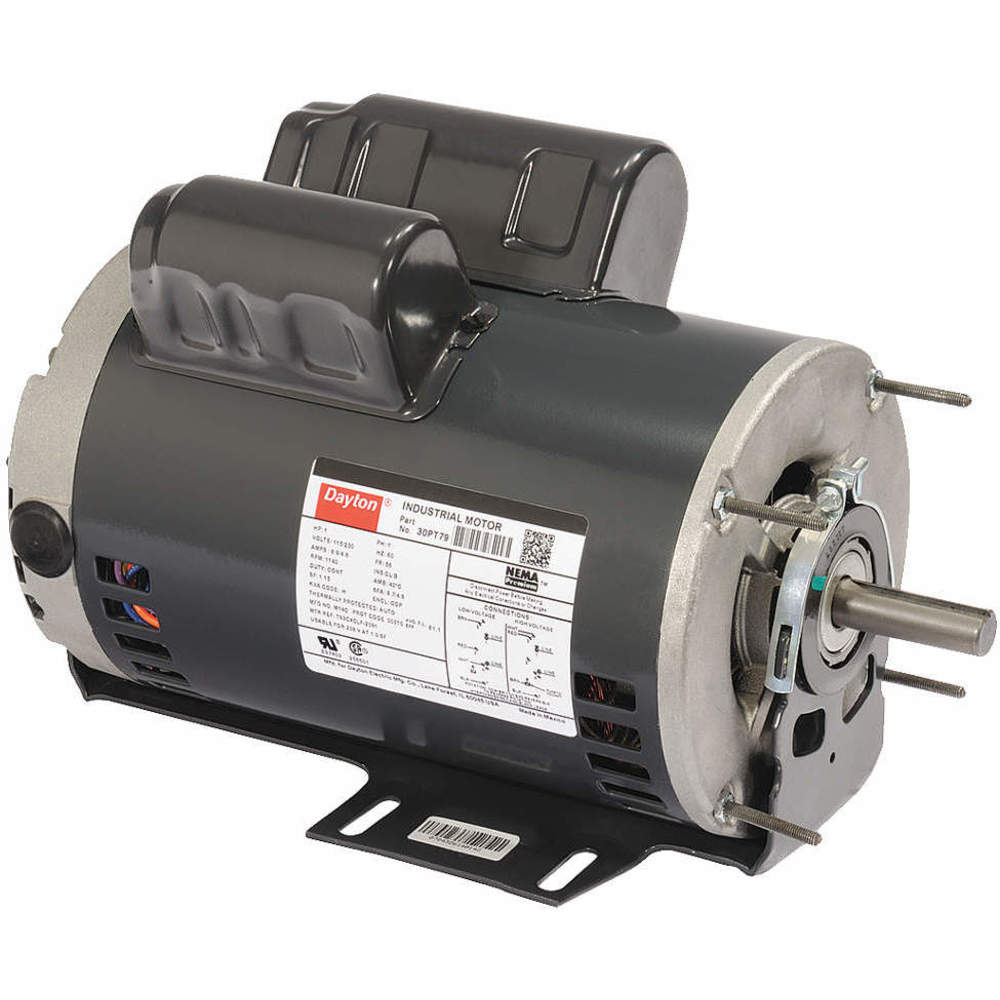

DAYTON 30PT72 General Purpose Motor Cap Start/Run Open Drip-proof 3/4hp 1140 56 Eff 80.2
Get it by Tuesday, Dec 23
10.00% off
€1,095.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 80.2% |
| Efficiency Group | Premium |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7.4/3.7A |
| Green Certification Or Other Recognition | Energy Aware |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hp | 3/4 hp |
| Includes | Start Cap 495MFD @ 165V |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 11 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Efficiency Group | Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1140 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80.2% |
| Number Of Speeds | 1 |
| Overall Length | 13 13/16" |
| Phase | 1 |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 18.5 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 24.38 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Model | Nameplate Rpm | Hp | Full Load Amps | Frame | Thermal Protection | Efficiency | Overall Length | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 30PT73 | 1140 RPM | 3/4 hp | 6.6/3.4A | 56 | Automatic | 80.2% | 13 13/16" | 11 7/8" | €1,209.29 | |
| 30PT86 | 1725 RPM | 2 hp | 17/8.5A | 56H | Automatic | 84.5% | 13 9/16" | 11 5/8" | €1,269.79 | |
| 30PT87 | 1725 RPM | 2 hp | 17/8.5A | 56H | None | 84.5% | 13 9/16" | 12 3/8" | €1,186.61 |
