50 / 60 hz brake motors featuring Stearns high-cycle brakes to stop the motor instantly; ideal for applications requiring quick response holding & breaking operations. Come equipped with TENV / TEFC / DP enclosure to prevent the ingress of contaminants

Filter

Leeson brake motors are electric motors equipped with integral brakes for precise control of motor movement & safety mechanisms. These motors are used in conveyor systems, material handling...Read more
LEESON -

Brakemotors, Three Phase, TENV/TEFC, Rigid Base

LEESON 114147.00A
LEESON 122246.00B
LEESON 122247.00C
LEESON 140636.00D
LEESON 119561.00E
LEESON 122245.00F
StyleModelVoltageHpNameplate RpmDesignFrameInsulation ClassPower FactorRpmPrice
A114147.00208-230/460V3/4 hp1800 RPMB, K56Class B651700-1800 RPM€1,273.35
B122246.00208-230/460V1 1/2 hp1800 RPMB, L145TClass B67.71700-1800 RPM€3,017.83
C122247.00208-230/460V2 hp1745 RPMB, L145Class F75.61700-1800 RPM€1,747.62
D140636.00230/460V10 hp1800 RPMB, H215TClass F771700-1800 RPM€4,072.87
E119561.00230/460V1 hp1800 RPMB, N56Class B68.51700-1800 RPM€1,516.15
F122245.00230/460V1 hp1200 RPMB, K145TClass F601100-1200 RPM€2,139.33
LEESON -

Brake Motors, Three Phase, Totally Enclosed, C Face Footless

LEESON 5K49KN4563A
LEESON 5K49PN4565B
StyleModelVoltageHpBrake RatingMotor Thermal ProtectionFull Load AmpsOverall LengthPowerNominal EfficiencyPrice

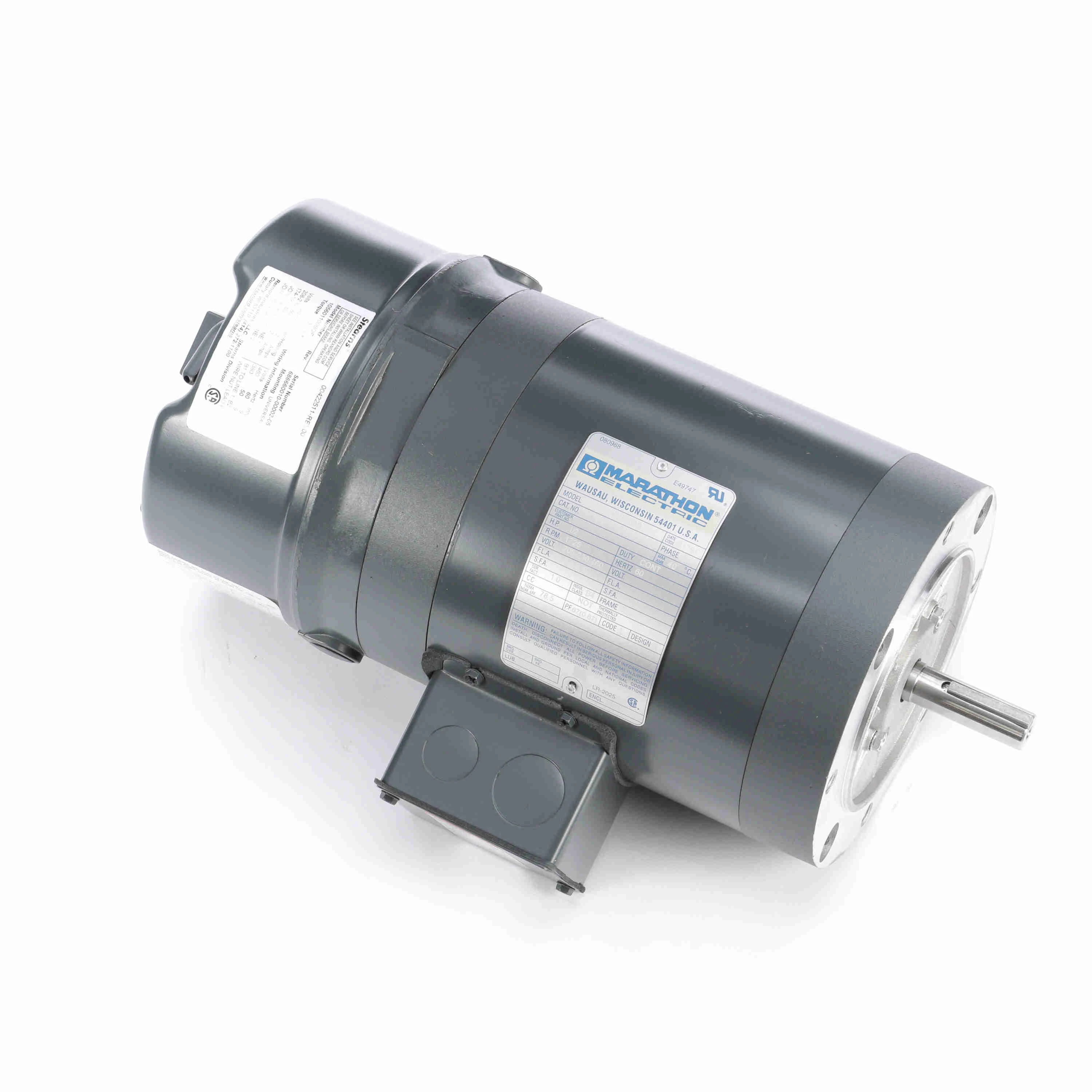

A5K49KN4563208-230/460V AC1/2 hp3 lbs.-ft.Thermostat0.9A14 1/16"0.37 kW78.5%€1,451.38
B5K49PN4565230/460V AC3/4 hp6 lbs.-ft.No1.25A14 9/16"0.55 kW80%€1,644.54
LEESON -

Brake Motors, Three Phase, C Face Footed

LEESON 056T17F5349A
LEESON 056T17F5348B
StyleModelHpFull Load AmpsOverall LengthNominal EfficiencyLength Less ShaftVoltageRpm RangeNameplate RpmPrice
A056T17F53491/2 hp2.3-2.4/1.2A16 1/4"72.1%14 3/16"208-230/460V AC1701-1800 RPM1725 RPM€1,180.37
B056T17F53481/3 hp1.5-1.6/0.8A15 3/4"68%13 11/16"208-230/460V AC1701-1800 RPM1725 RPM€1,209.15
LEESON -

Brakemotors, Three Phase, TEFC, C Face Less Base

LEESON 114158.00A
LEESON 114159.00B
LEESON 114160.00C
LEESON 119564.00D
LEESON 119565.00E
LEESON 122252.00F
LEESON 122253.00G
LEESON 122251.00H
LEESON 141308.00I
LEESON 141309.00J
StyleModelVoltageHpNameplate RpmDesignFrameBrake RatingMotor Thermal ProtectionInsulation ClassPrice
A114158.00208-230/460V33/100 hp1800 RPML56C--Class B€1,690.25
B114159.00208-230/460V1/2 hp1800 RPMB, K56C--Class B€1,108.25
C114160.00208-230/460V3/4 hp1725 RPMB, K56C6 lbs.-ft.-Class B€1,694.67
D119564.00208-230/460V1 hp1760 RPMB, N56C6 lbs.-ft.T StatClass F€1,564.17
E119565.00208-230/460V1 1/2 hp1750 RPMC, L56C10 lbs.-ft.ThermostatClass F€1,754.64
F122252.00208-230/460V1 1/2 hp1750 RPMC, L145TC10 lbs.-ft.T StatClass F€1,767.04
G122253.00208-230/460V2 hp1745 RPMB, L145TC10 lbs.-ft.T StatClass F€3,180.09
H122251.00208-230/460V1 hp1760 RPMB, N143TC6 lbs.-ft.ThermostatClass F€2,470.27
I141308.00230/460V7 1/2 hp1800 RPMA, H213TC--Class F€3,768.34
J141309.00230/460V10 hp1800 RPMB, H215TC--Class F€4,773.39
LEESON -

Brakemotors, Three Phase, Drip Proof, C Face Less Base

LEESON 114157.00A
LEESON 114166.00B
LEESON 116766.00C
LEESON 122241.00D
StyleModelVoltageHpDesignFrameInsulation ClassPower FactorService FactorFull Load AmpsPrice
A114157.00208-230/460V3/4 hpB, K56CClass B651.252.8/1.4A€1,224.24
B114166.00208-230/460V1 hpB, K56CClass B581.154.2/2.1A€1,321.91
C116766.00230/460V1 1/2 hpC, L56CClass B641.155.6/2.8A€2,608.20
D122241.00230/460V2 hpB, L145TCClass F75.61.155.8/3.2A€1,846.35
LEESON -

Brakemotors, Three Phase, TEFC, C Face With Base

LEESON 122250.00A
LEESON 110669.00B
LEESON 110670.00C
LEESON 110671.00D
LEESON 114155.00E
LEESON 119563.00F
LEESON 122249.00G
LEESON 140639.00H
LEESON 122248.00I
StyleModelVoltageHpNameplate RpmDesignFrameBrake RatingInsulation ClassPower FactorPrice
A122250.00208-230/460V2 hp1745 RPMB, L145TC10 lbs.-ft.Class F75.6€1,840.96
B110669.00208-230/460V33/100 hp1800 RPMLC56C-Class B66€1,004.12
C110670.00208-230/460V1/2 hp1800 RPMB, L56C-Class B67€2,104.76
D110671.00208-230/460V3/4 hp1800 RPMB, L56C-Class F70€1,318.13
E114155.00208-230/460V3/4 hp1725 RPMB, K56C-Class B65€1,318.13
F119563.00208-230/460V1 hp1760 RPMB, N56C6 lbs.-ft.Class F68.5€1,610.03
G122249.00230/460V1 1/2 hp1750 RPMB, L145TC10 lbs.-ft.Class B67.7€2,764.47
H140639.00230/460V10 hp1800 RPMB, H215TC-Class F77€4,805.32
I122248.00230/460V1 hp1800 RPMB, N143TC-Class F68.5€2,864.62
LEESON -

Brakemotors, Single Phase, TENV/TEFC, C Face With Base

LEESON 111951.00A
LEESON 111950.00B
LEESON 121816.00C
LEESON 114167.00D
LEESON 114165.00E
StyleModelHpNameplate RpmFrameDesignBrake RatingMotor Thermal ProtectionInsulation ClassPower FactorPrice
A111951.001 hp1725 RPM56CJ, N6 lbs.-ft.No ProtectionClass B81€1,798.91
B111950.001/2 hp1725 RPM56CL, N3 lbs.-ft.ManualClass B58€1,171.53
C121816.002 hp1740 RPM145TC---Class F86€3,118.66
D114167.003/4 hp1725 RPM56CL, N6 lbs.-ft.No ProtectionClass B64€1,745.90
E114165.0033/100 hp1800 RPM56CL, N--Class B54€1,764.37
LEESON -

White Duck Washguard Brakemotors, TENV/TEFC, C Face Less Base

LEESON 122194.00A
LEESON 119485.00B
LEESON 116463.00C
LEESON 122196.00D
StyleModelHpNameplate RpmDesignFramePower FactorTypeFull Load AmpsOverall LengthPrice
A122194.001 1/2 hp1750 RPMB145TC67.7TF2.4A18 1/2"€4,494.01
B119485.001 hp1750 RPMB56C77.7TN2.8-3/1.4A17"€2,578.70
C116463.001/2 hp1725 RPMB56C67TN1.8A14 1/2"€2,095.06
D122196.002 hp1745 RPMC145TC75.6TF2A19"€2,499.16
LEESON -

White Duck Washguard Brakemotors, TENV/TEFC, C Face With Base

LEESON 122195.00A
LEESON 122193.00B
LEESON 119486.00C
StyleModelHpFramePower FactorTypeFull Load AmpsOverall LengthShaft Dia.PowerPrice
A122195.001 1/2 hp145TC67.7TF2.4A18 1/2"7/8"1.1 kW€4,185.32
B122193.001 hp143TC77.7TN1.3A17"7/8"0.75 kW€3,163.95
C119486.001 hp56HC77.7TN2.8-3/1.4A17"5/8"0.75 kW€2,947.97
LEESON -

Premium Duck Washguard Brakemotors, Three Phase, TENV, C Face With Base

LEESON 119785.00A
LEESON 116483.00B
StyleModelHpNameplate RpmMotor ApplicationPower FactorFull Load AmpsOverall LengthPowerCodePrice
A119785.001 hp1750 RPMFarm Duty77.72.8-3/1.4A18"0.75 kWL€9,840.71
B116483.001/2 hp1725 RPMWashdown741.6A16 1/2"0.37 kWK€5,204.83
LEESON -

Brake Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Brake Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
ModelItemPrice (ex. VAT)
114164.00AJ2QMW€1,298.71
LEESON -

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 5.50 HP

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 5.50 HP
ModelItemPrice (ex. VAT)
194227.00EC3LLV€3,250.27
LEESON -

Brake Motor, Totally Enclosed Non-Ventilated, 1 HP, 1725 RPM, 208-230/460V AC

Brake Motor, Totally Enclosed Non-Ventilated, 1 HP, 1725 RPM, 208-230/460V AC
ModelItemPrice (ex. VAT)
113793.00EA7TZE€2,721.50
LEESON -

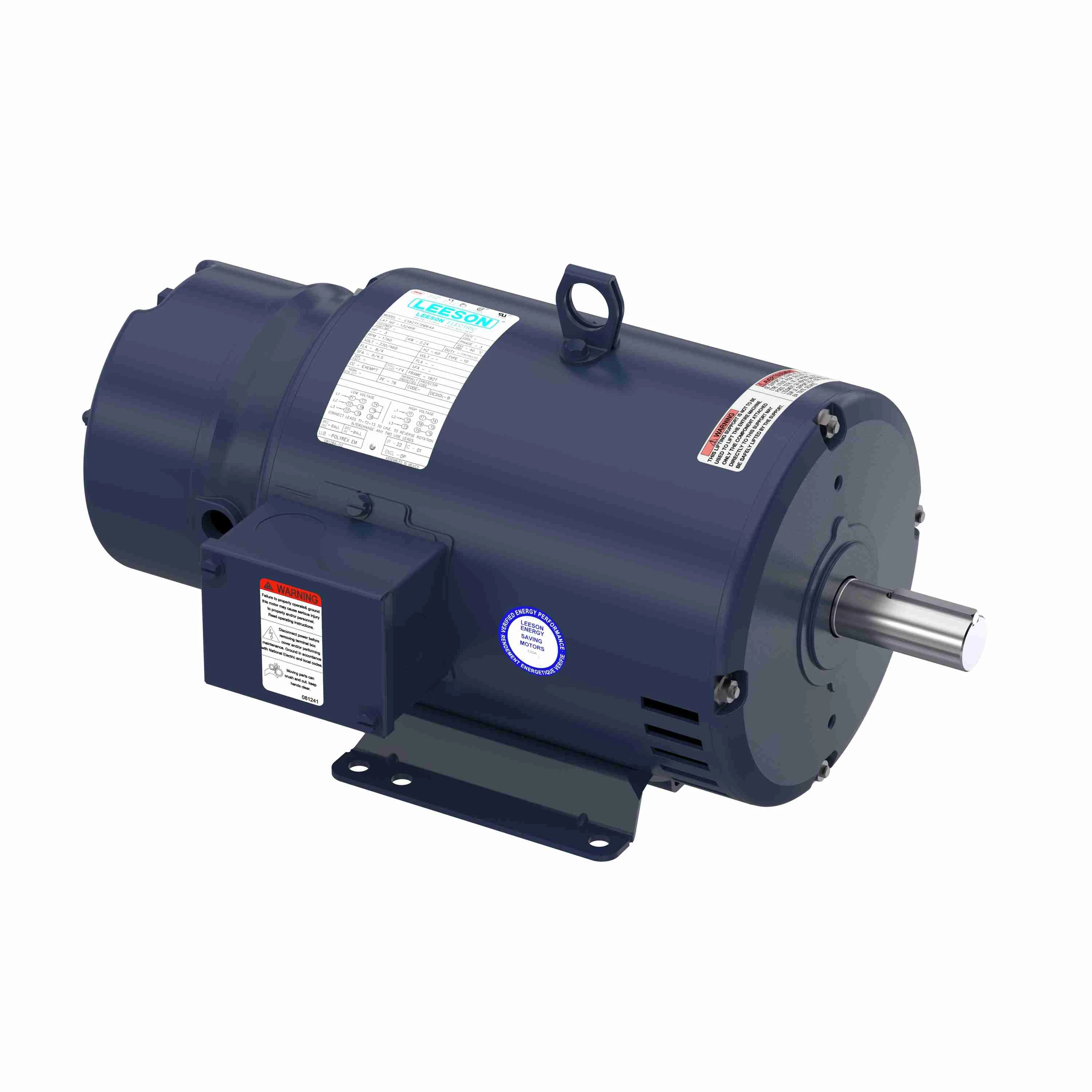

Brake Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Brake Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
ModelItemPrice (ex. VAT)
132468.00EC3LHC€2,102.43
LEESON -

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 3 HP

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 3 HP
ModelItemPrice (ex. VAT)
194225.00EC3LYV€2,084.31
LEESON -

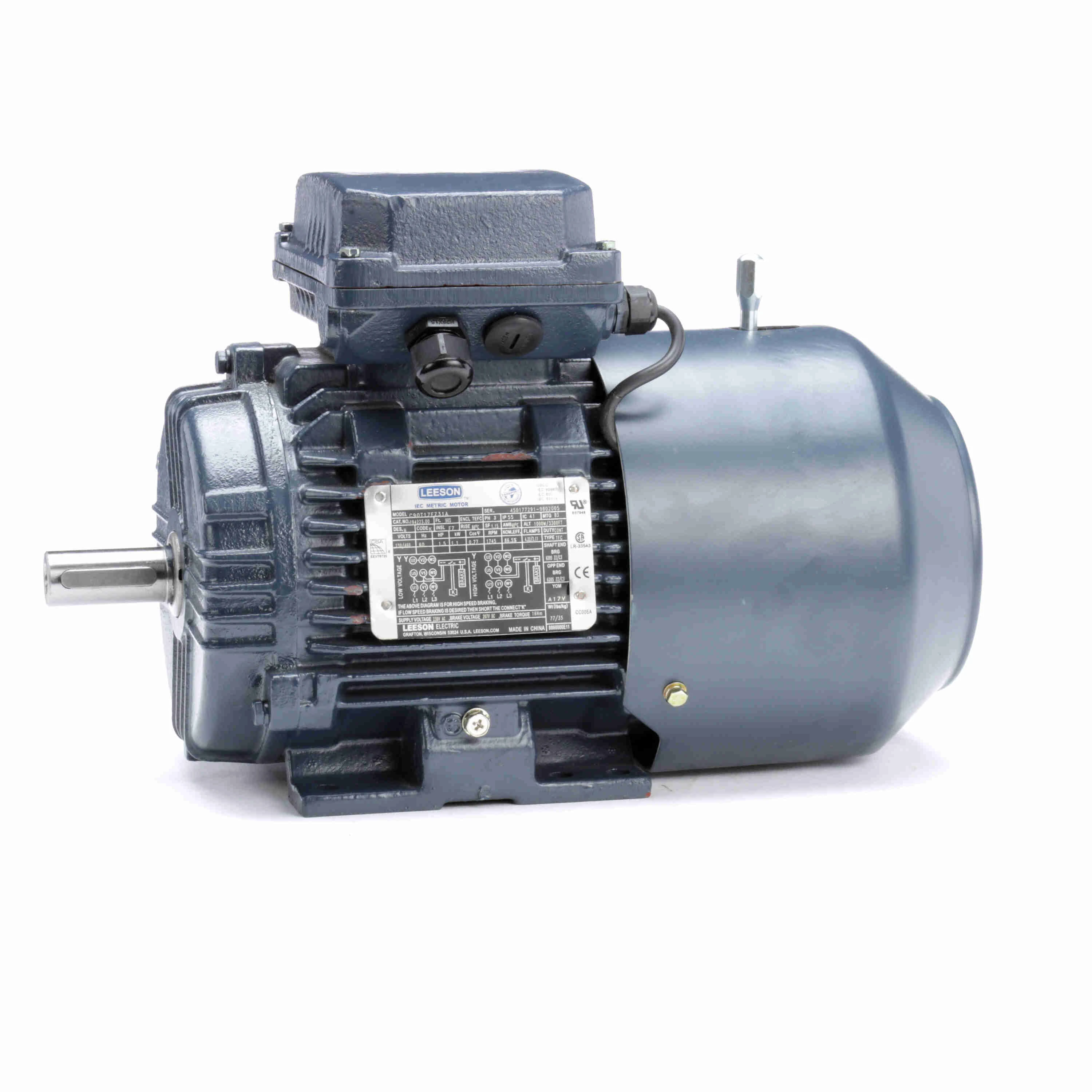

Brake Motor, 1.5HP, 1800 RPM, 230/460V, 3Phase

Brake Motor, 1.5HP, 1800 RPM, 230/460V, 3Phase
ModelItemPrice (ex. VAT)
194223.00EC3LLR€1,462.19
LEESON -

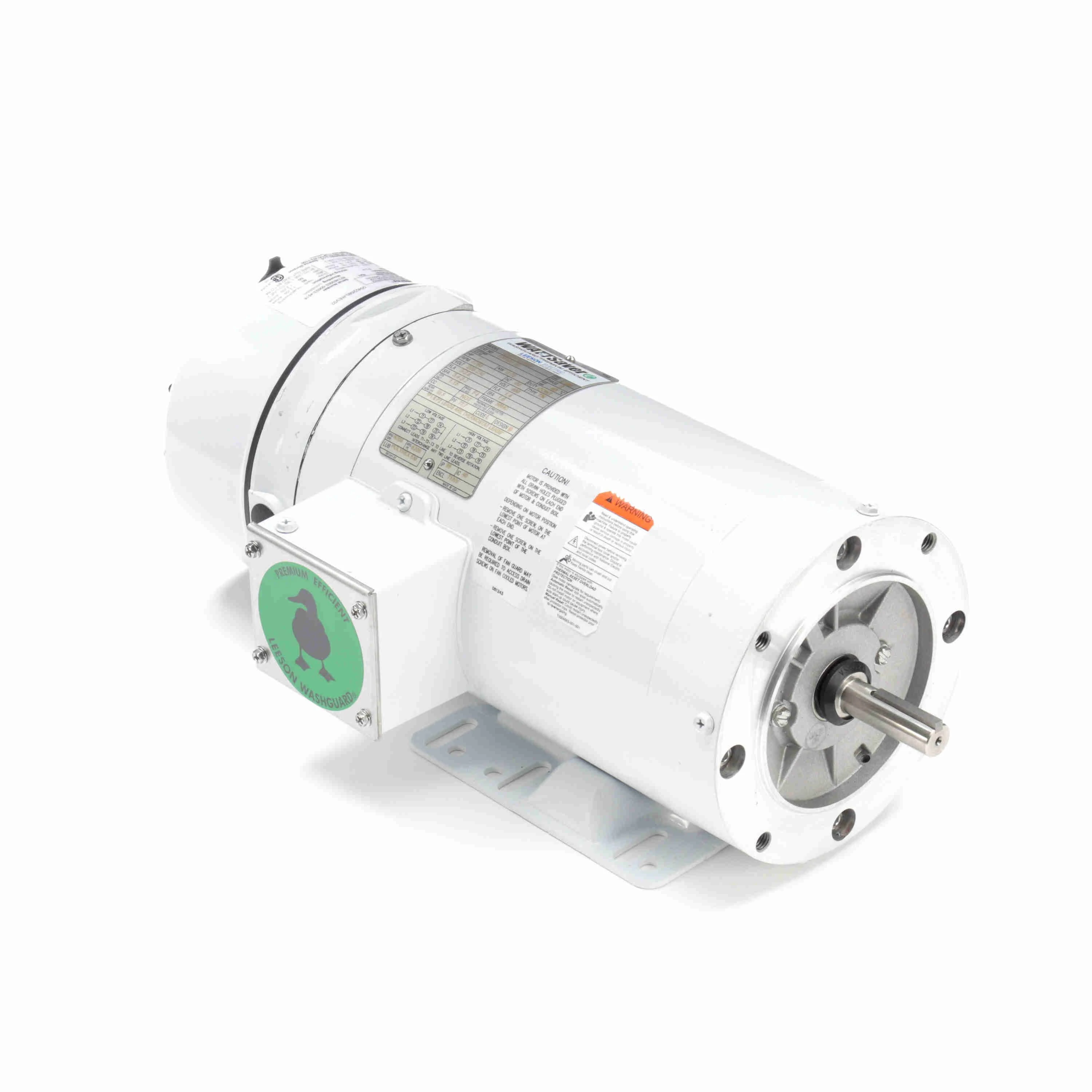

Brake Motor, 0.75 HP, 60 Hz, 230/460V, 1800 RPM

Brake Motor, 0.75 HP, 60 Hz, 230/460V, 1800 RPM
ModelItemPrice (ex. VAT)
116468.00EC3KXN€1,596.86
LEESON -

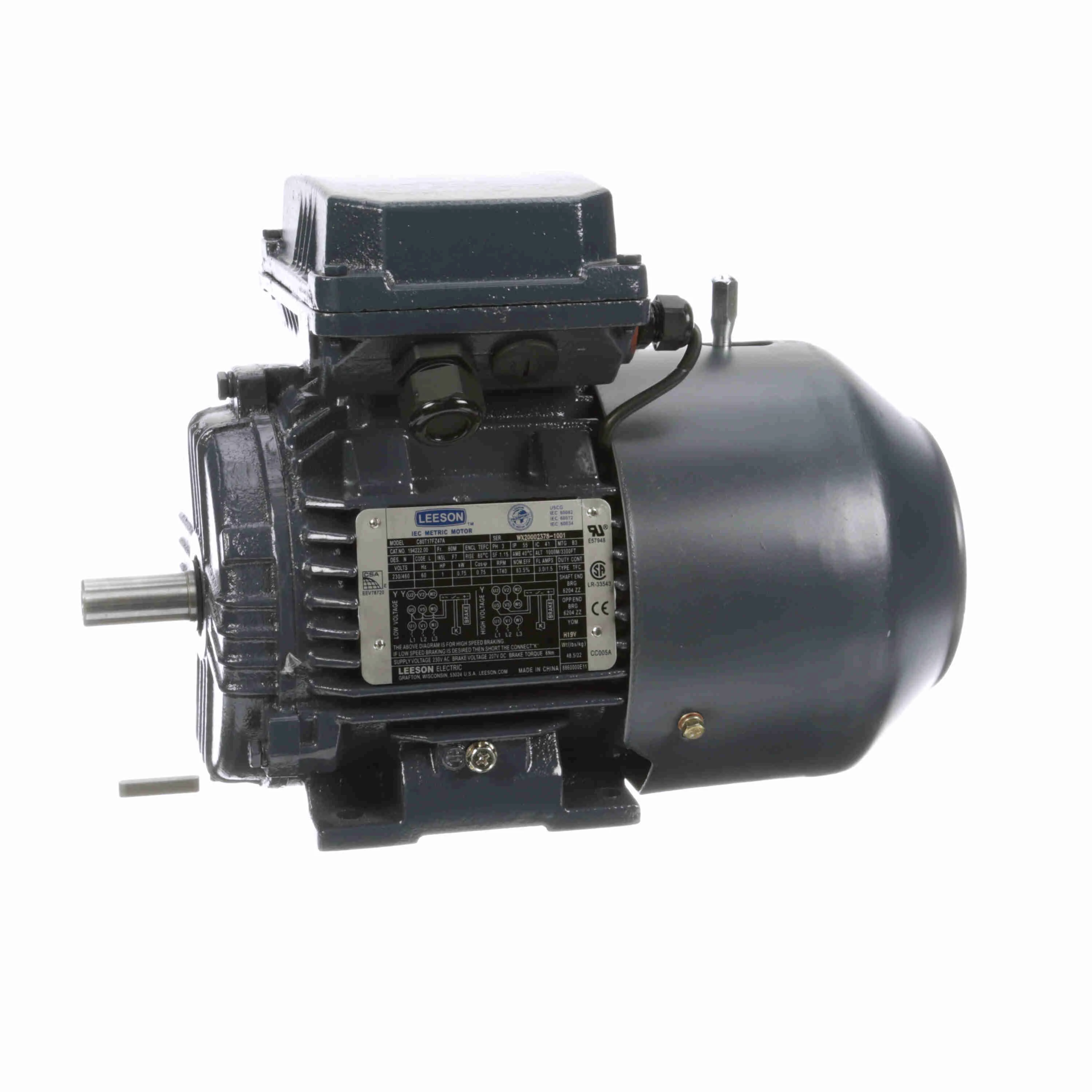

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 1 HP

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 1 HP
ModelItemPrice (ex. VAT)
194222.00EC3LYU€1,327.30
LEESON -

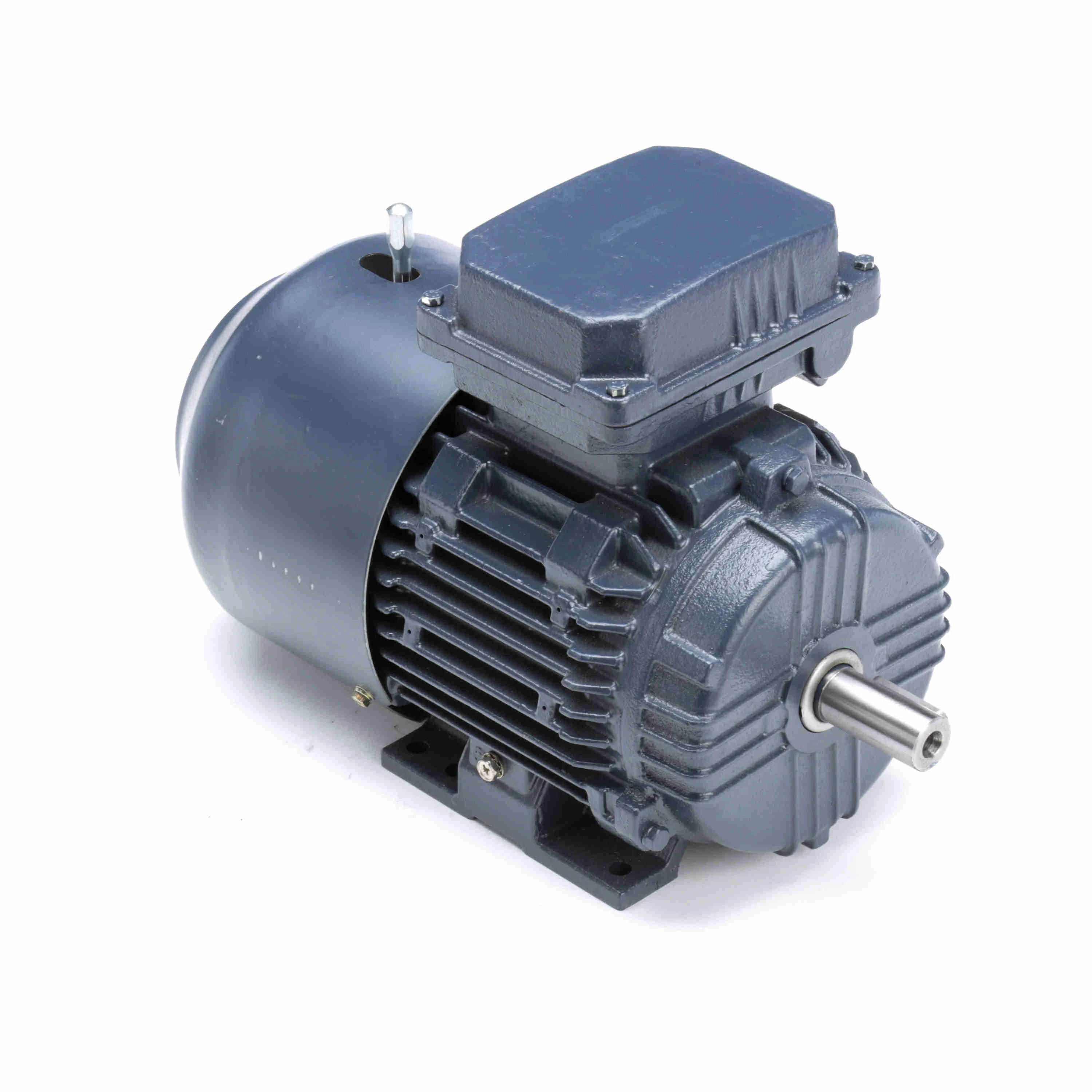

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 4 HP

Brake Motor, 3 Phase, 1800 RPM, 230/460V, 4 HP
ModelItemPrice (ex. VAT)
194226.00EC3LLU€2,966.47
LEESON -

Brake Motor Capacitor-Start Rigid

Brake Motor Capacitor-Start Rigid
ModelItemPrice (ex. VAT)
117496.00EA7TZF€929.81
LEESON -

Brake Motor, Drip Proof, 7.5 HP, 3 Phase, 60 Hz, 230/460V, 1765 RPM

Brake Motor, Drip Proof, 7.5 HP, 3 Phase, 60 Hz, 230/460V, 1765 RPM
ModelItemPrice (ex. VAT)
140610.00EC3LHN€3,394.78
12

Features

  • These brake motors feature Stearns high-cycle brakes to stop the motor instantly.
  • They come equipped with TENV / TEFC / DP enclosures to prevent the ingress of contaminants.
  • Leeson 3-phase drip-proof brake motors have a power-off manual release for user convenience in case of power failure. Their drip-proof enclosures ensure protection from dust, water & air-borne contaminants. These NEMA Design B units offer premium Class B / F insulation for temperature control. They feature continuous duty operation at speeds up to 1800 rpm.
  • Leeson washguard brake motors feature a C face with a base design for easy installation and alignment with the driven equipment. The base provides stability and support during mounting. They offer Polyrex EM lubrication to resist oil & water leakage at temperatures up to 40 degrees C.

Working Mechanism

  • When the motor is powered, the brake is disengaged, allowing the motor to operate as usual.
  • When the power is cut or reduced, an electromagnetic coil within the motor activates, creating a magnetic field that attracts the brake armature, effectively engaging the brake.
  • This action generates friction between the brake pads and the rotor, bringing the motor to a quick stop.
  • This braking system enhances safety and precision in machinery & equipment where controlled stopping & holding of loads is critical.

Frequently Asked Questions

Do these motors come with motor thermal protection?

Leeson brake motors feature thermal protection to prevent overheating, enhancing the motor's lifespan and safety.

How do I select the right Leeson brake motor for my application?

Major factors include horsepower, frame size, voltage and specific requirements.

How to maintain these Leeson brake motors?

  • Perform regular visual inspections to identify wear or damage.
  • Keep the motor and surroundings clean to prevent overheating.
  • Check and adjust the brake mechanism for proper function.
  • Monitor the motor's operating temperature to prevent overheating.
  • Inspect and tighten electrical connections to prevent faults.
  • Operate the motor within specified environmental conditions.
  • Check for excessive vibration and ensure proper alignment.
