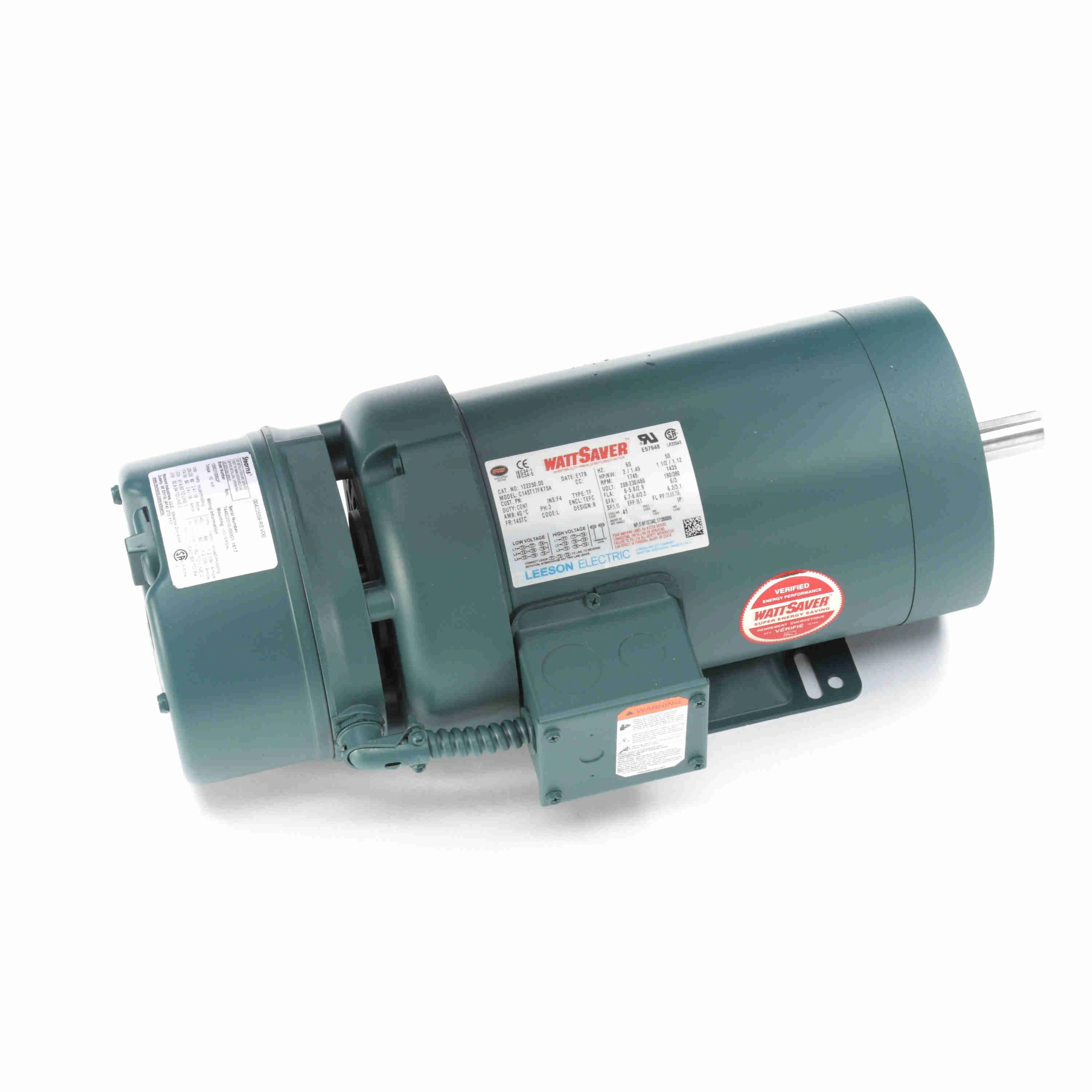

LEESON 122250.00 C145T17FK75A Brake Motor, 2 and 1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Wednesday, Dec 24
€1,840.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Amps | 5.8/2.9A |
| Application | Brake Motor |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Brake Model/series | Series 56000 |
| Brake Rating | 10 lbs.-ft. |
| Break-down Torque | 28.8 lbs.-ft. |
| Code | L |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B, L |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Grease Type | Polyrex EM |
| Height | 9 22/25" |
| Hp | 2 hp |
| Hz | 50/60 Hz |
| Includes | Key |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | No |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 22 22/25" |
| Length Less Shaft | 16 7/16" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1745 RPM |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Thermostat |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 18 5/8" |
| Packaging | B |
| Phase | 3 |
| Power | 1.5 kW |
| Power Factor | 75.6 |
| Resistance Main | 6 ohms |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Series | Series 56000 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Standards | Ce, Csa, Ul Recognized |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 54 lbs. |
| Width | 10 14/25" |
Shipping Info:
| Ship weight (kg) | 24.08 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 58.12 |
| Ship width (cm) | 26.82 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - G121052.00 / C145T17FK42D
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T634340
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 6.7-6.4 / 3.2
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Design | Frame | Brake Rating | Insulation Class | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

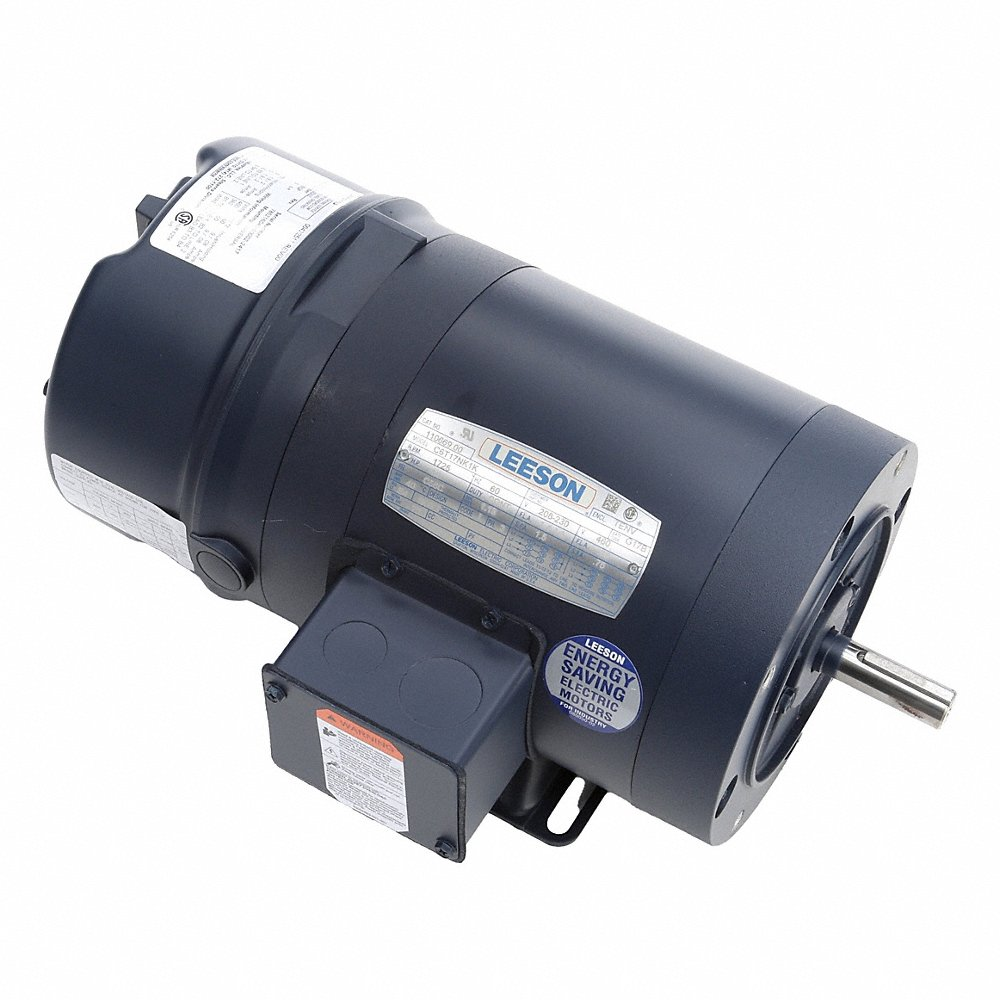

110669.00 | 208-230/460V | 33/100 hp | 1800 RPM | L | C56C | - | Class B | 66 | €1,004.12 | |
 |

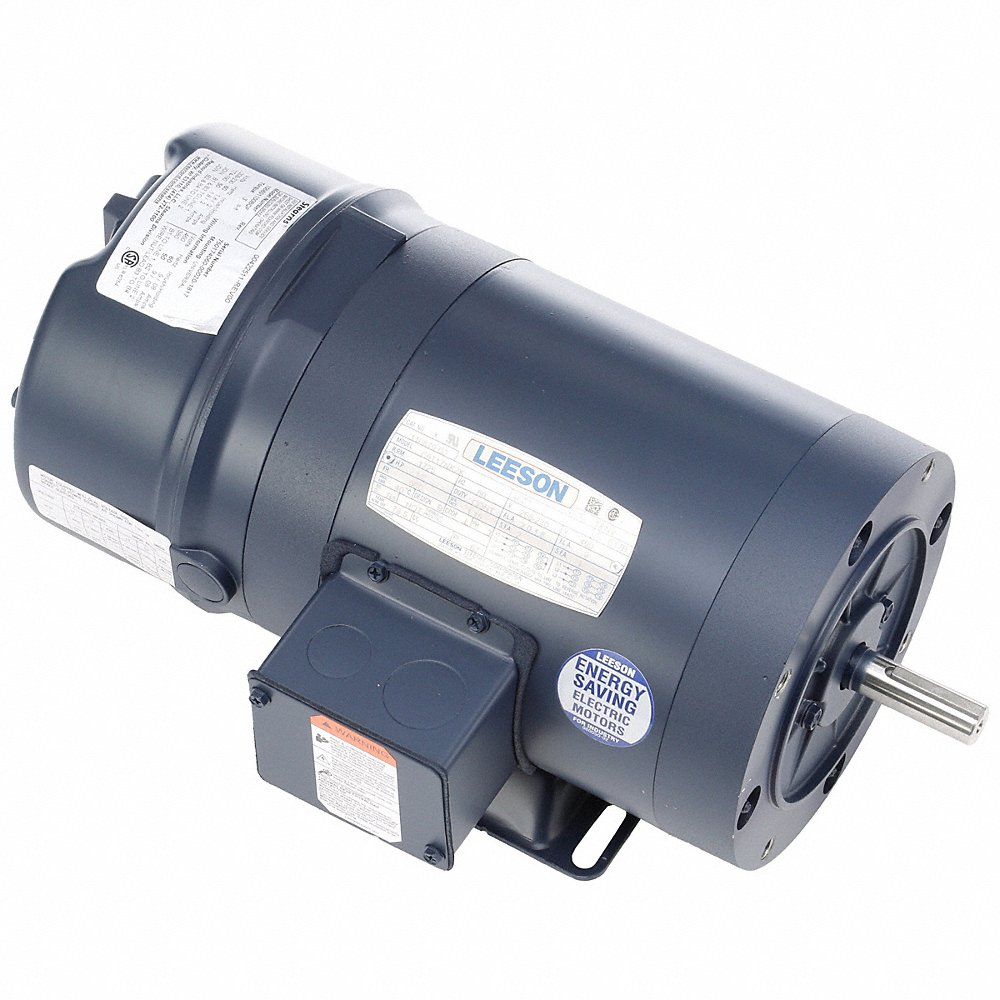

110670.00 | 208-230/460V | 1/2 hp | 1800 RPM | B, L | 56C | - | Class B | 67 | €2,104.76 | |
 |

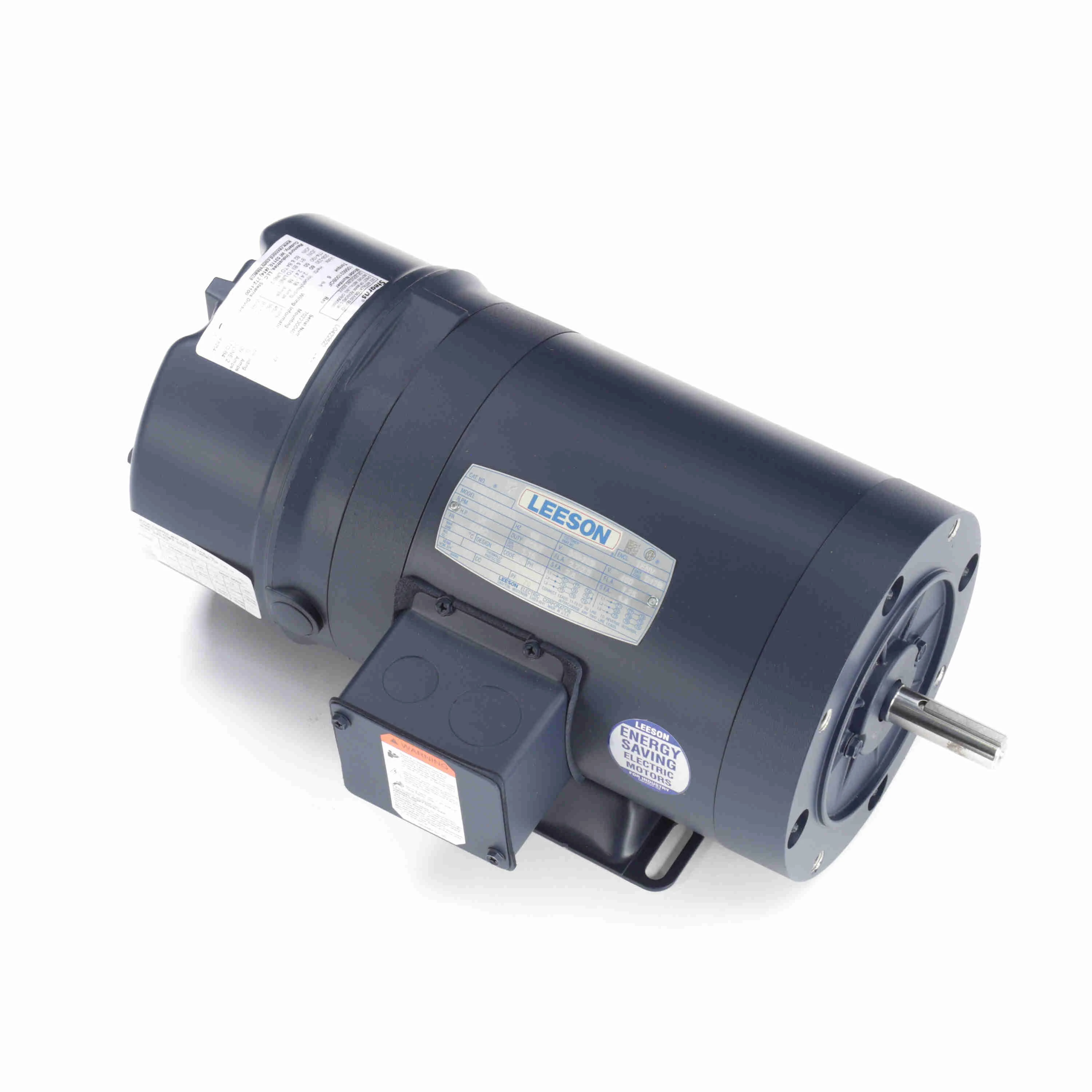

110671.00 | 208-230/460V | 3/4 hp | 1800 RPM | B, L | 56C | - | Class F | 70 | €1,318.13 | |
 |

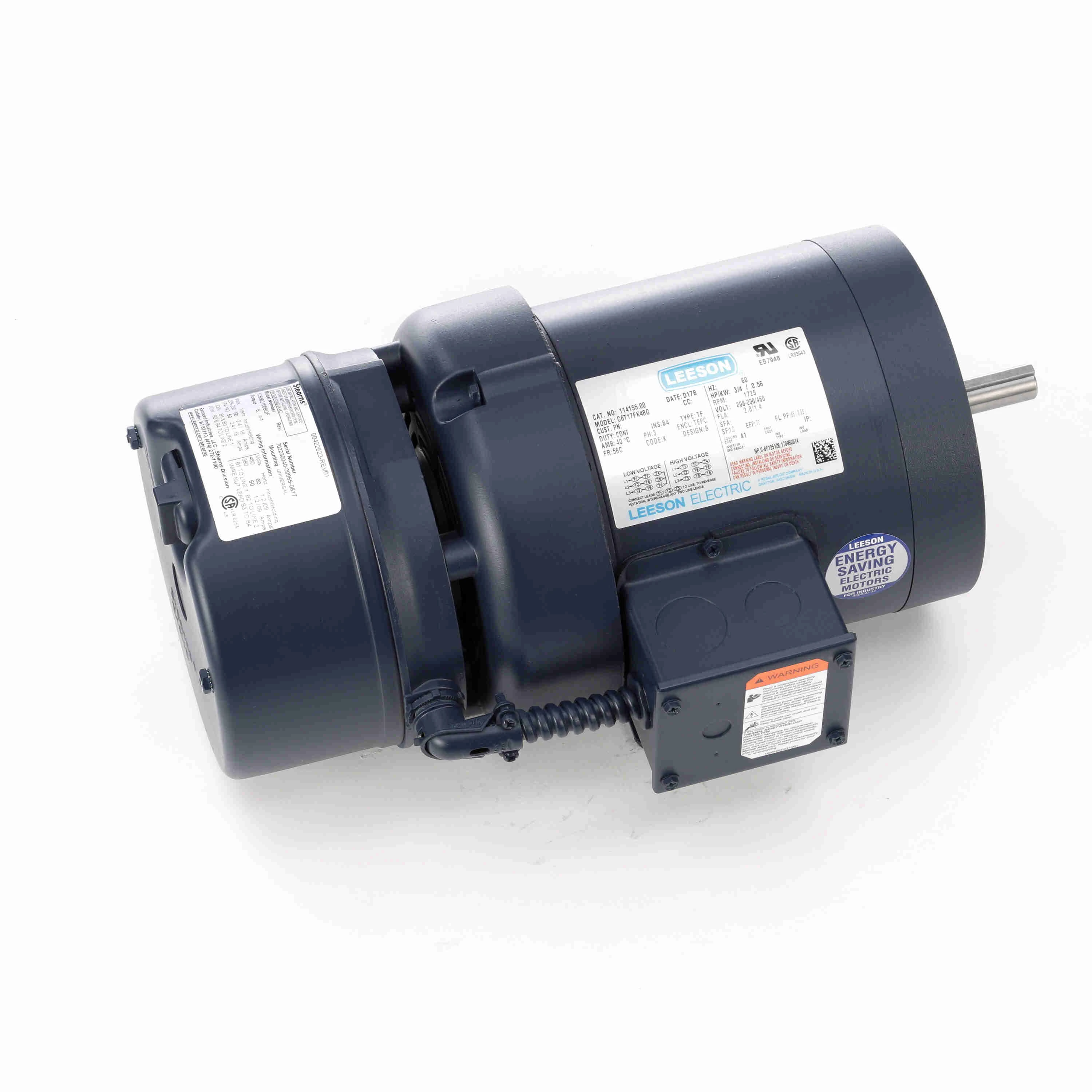

114155.00 | 208-230/460V | 3/4 hp | 1725 RPM | B, K | 56C | - | Class B | 65 | €1,318.13 | |
 |

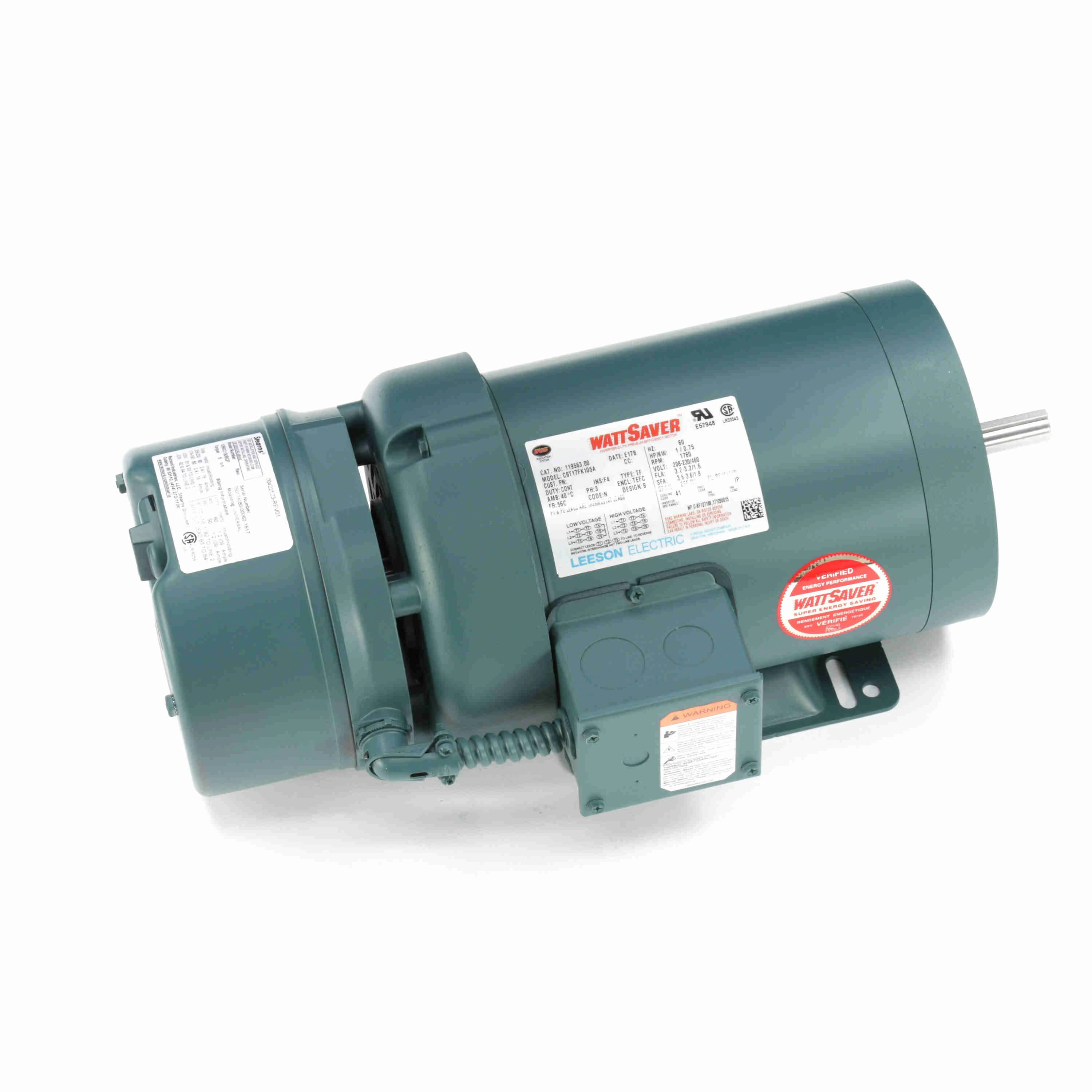

119563.00 | 208-230/460V | 1 hp | 1760 RPM | B, N | 56C | 6 lbs.-ft. | Class F | 68.5 | €1,610.03 | |
 |

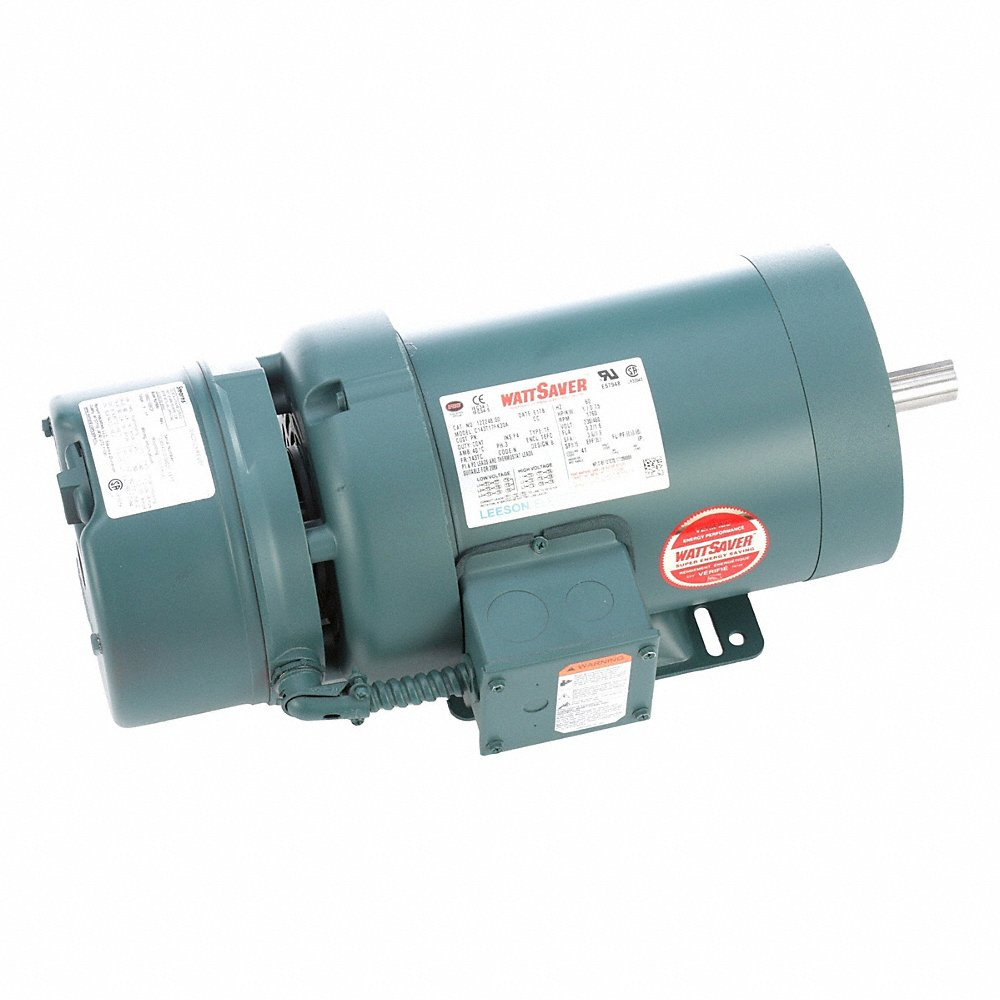

122248.00 | 230/460V | 1 hp | 1800 RPM | B, N | 143TC | - | Class F | 68.5 | €2,864.62 | |
 |

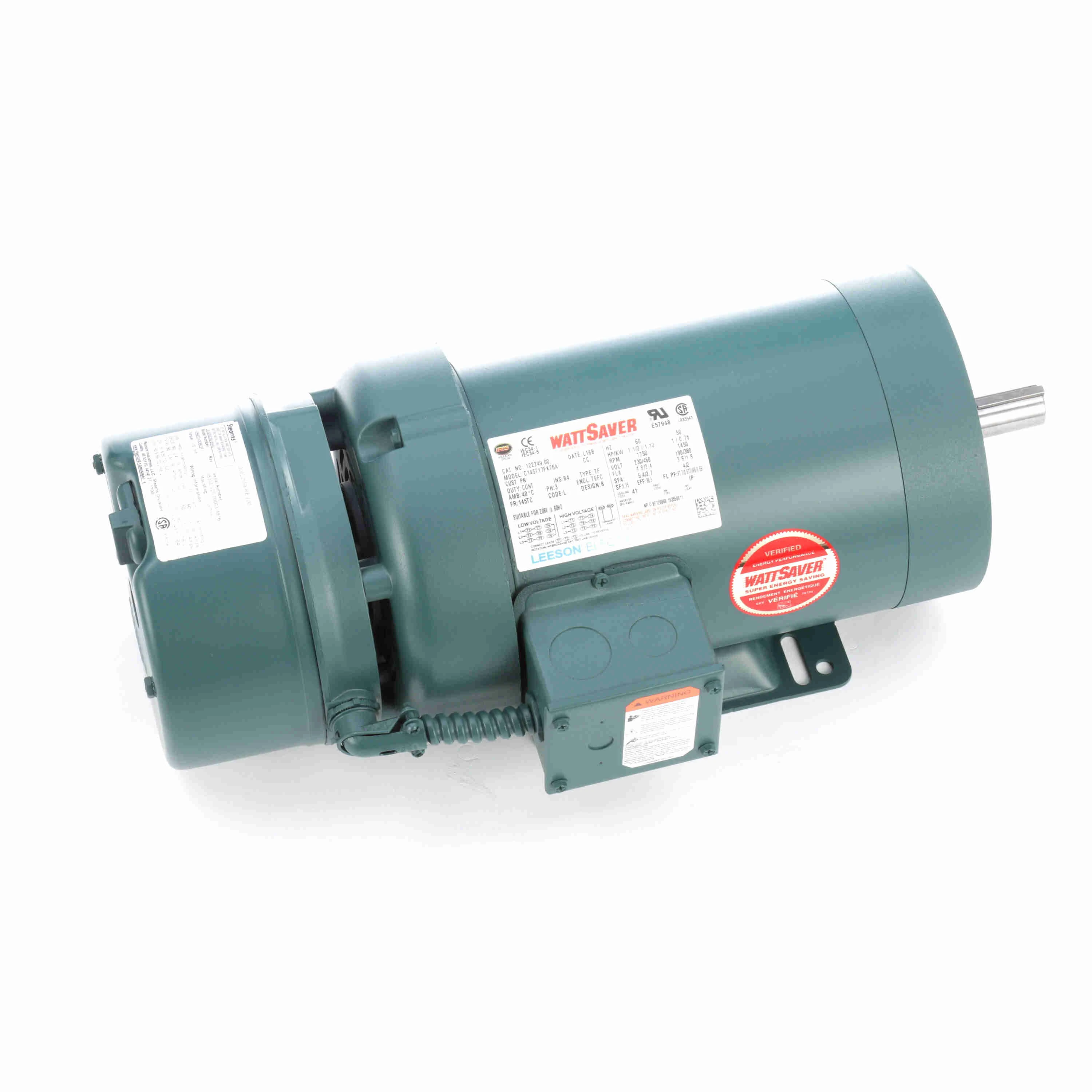

122249.00 | 230/460V | 1 1/2 hp | 1750 RPM | B, L | 145TC | 10 lbs.-ft. | Class B | 67.7 | €2,764.47 |
