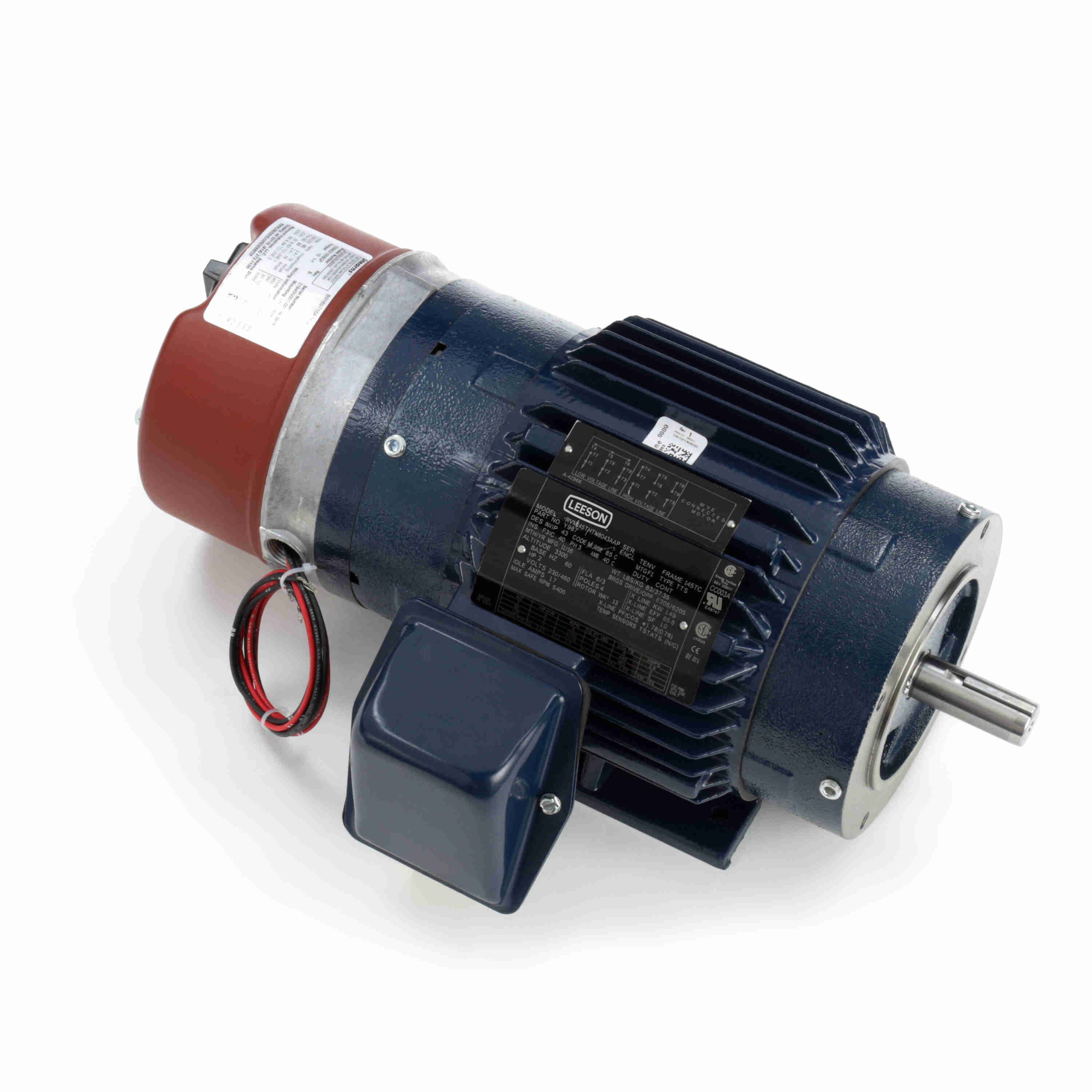

LEESON 145THTN8043 Y987 Inverter Duty Brake Motor, 2 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Friday, Aug 14
€2,971.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Break Down Torque | 28.5 lbs.-ft. |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | Epact |
| Encoder Acceptable | Yes |
| Encoder Shaft | 5/8" x 2-1/16" |
| Encoder Shaft Dimensions | 0.625" x 2.065" |
| Encoder Shaft Dimensions | 5/8" x 2 1/16" |
| Finish | Enamel |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Full Load Torque | 10 lbs.-ft. |
| Hp | 2 hp |
| Insulation Class | Class F |
| Insulation Feature | Class F |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 5400 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Speed | 1750 RPM |
| Nema Design | A |
| No. Of Speed | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 18" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed | 1701-1800 RPM , 2000:1 |
| Speed Range | 2000:1 CT |
| Speed Ratio | 2000:1 |
| Thermal Protection | Thermostat |
| Torque | 10 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 37.35 |
| Ship height (cm) | 32.05 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 31.27 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Speed | Shaft Dia. | Mounting Type | Hp | Nameplate Speed | Break Down Torque | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143THTN8036 | 230/460V AC | 1701-1800 RPM | 7/8" | Face, Base | 1 hp | 1756 RPM | 14 lbs.-ft. | Cast Iron | €3,532.36 | |
 |
5K49PN4565 | 230/460V AC | 1701-1800 RPM | 5/8" | C Face | 3/4 hp | 1725 RPM | 106 lbs.-ft. | - | €1,893.91 | |
 |
5K49KN4563 | 208-230/460V AC | 1701-1800 RPM | 5/8" | C Face, Footless | 1/2 hp | 1725 RPM | 97.8 lbs.-ft. | - | €1,415.50 | |
 |
110669.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Rigid Base | 33/100 hp | 1800 RPM | 72 lbs.-ft. | Rolled Steel | €1,004.12 | |
 |
110670.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Rigid Base | 1/2 hp | 1800 RPM | 97.8 lbs.-ft. | Rolled Steel | €2,160.07 | |
 |
110671.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Rigid Base | 3/4 hp | 1800 RPM | 106 lbs.-ft. | Rolled Steel | €1,318.13 | |
 |
114158.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Round | 33/100 hp | 1800 RPM | 72 lbs.-ft. | Rolled Steel | €1,543.02 |
