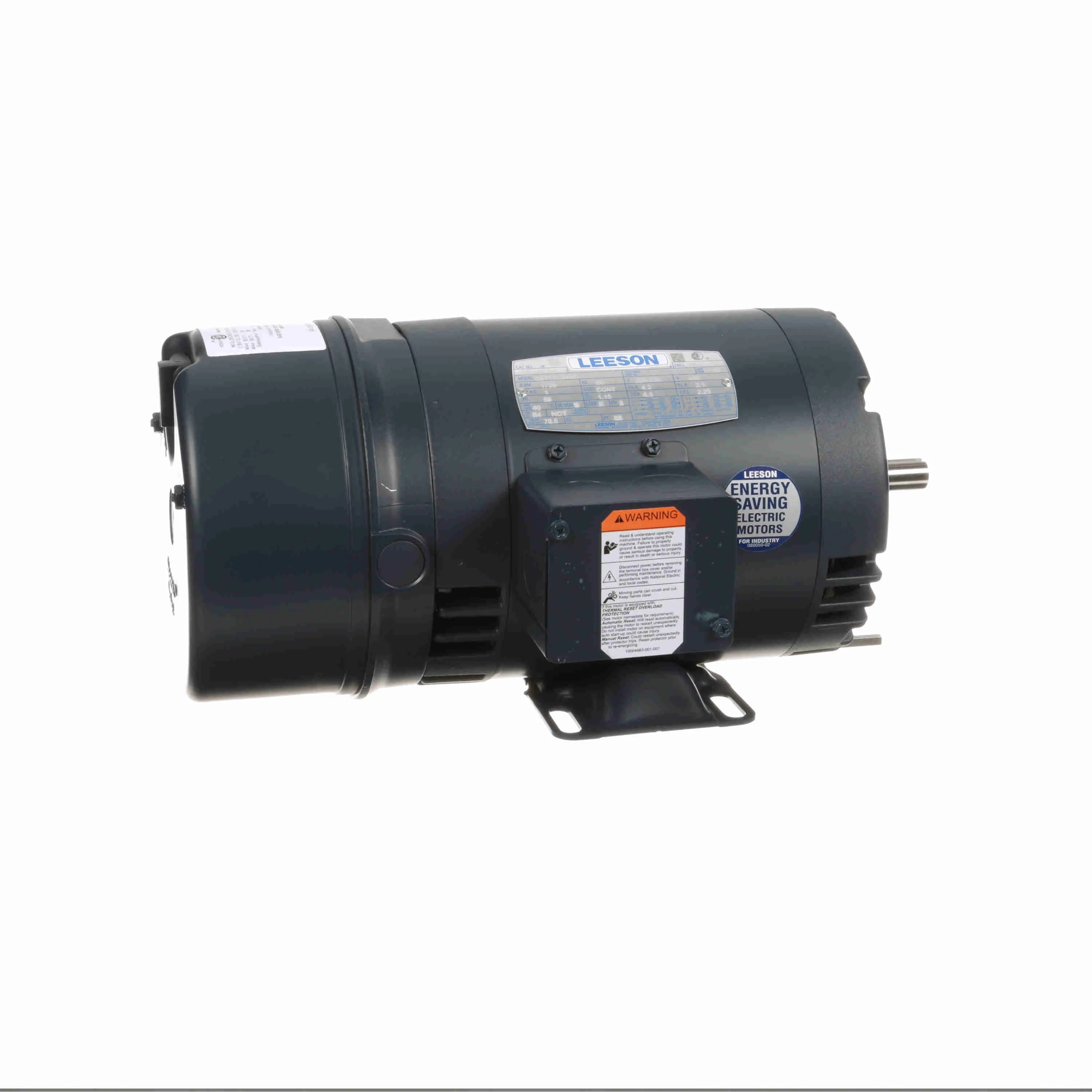

LEESON 114164.00 C6T17DB48C Brake Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Friday, Jul 3
€1,298.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Amps | 4.2/2.1A |
| Code | K |
| Design | B, K |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 56 |
| Frame Length | 5 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 4.2/2.1A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class B |
| Ip Code | IP22 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1725 RPM |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Packaging | B |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 58 |
| Product Datasheet | leeson-114164-00.pdf |
| Resistance Main | 19.48 ohms |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TD |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 78.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 004002
- Winding: T634195
- GROUP: 3
- Paint: VERIFY
- S. F Amps: 4.5 / 2.25
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Design | Frame | Insulation Class | Power Factor | Service Factor | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
114157.00 | 208-230/460V | 3/4 hp | B, K | 56C | Class B | 65 | 1.25 | 2.8/1.4A | €1,224.24 | |
 |
114166.00 | 208-230/460V | 1 hp | B, K | 56C | Class B | 58 | 1.15 | 4.2/2.1A | €1,524.60 | |
 |
116766.00 | 230/460V | 1 1/2 hp | C, L | 56C | Class B | 64 | 1.15 | 5.6/2.8A | €2,502.07 | |
 |
122241.00 | 230/460V | 2 hp | B, L | 145TC | Class F | 75.6 | 1.15 | 5.8/3.2A | €1,846.35 |
