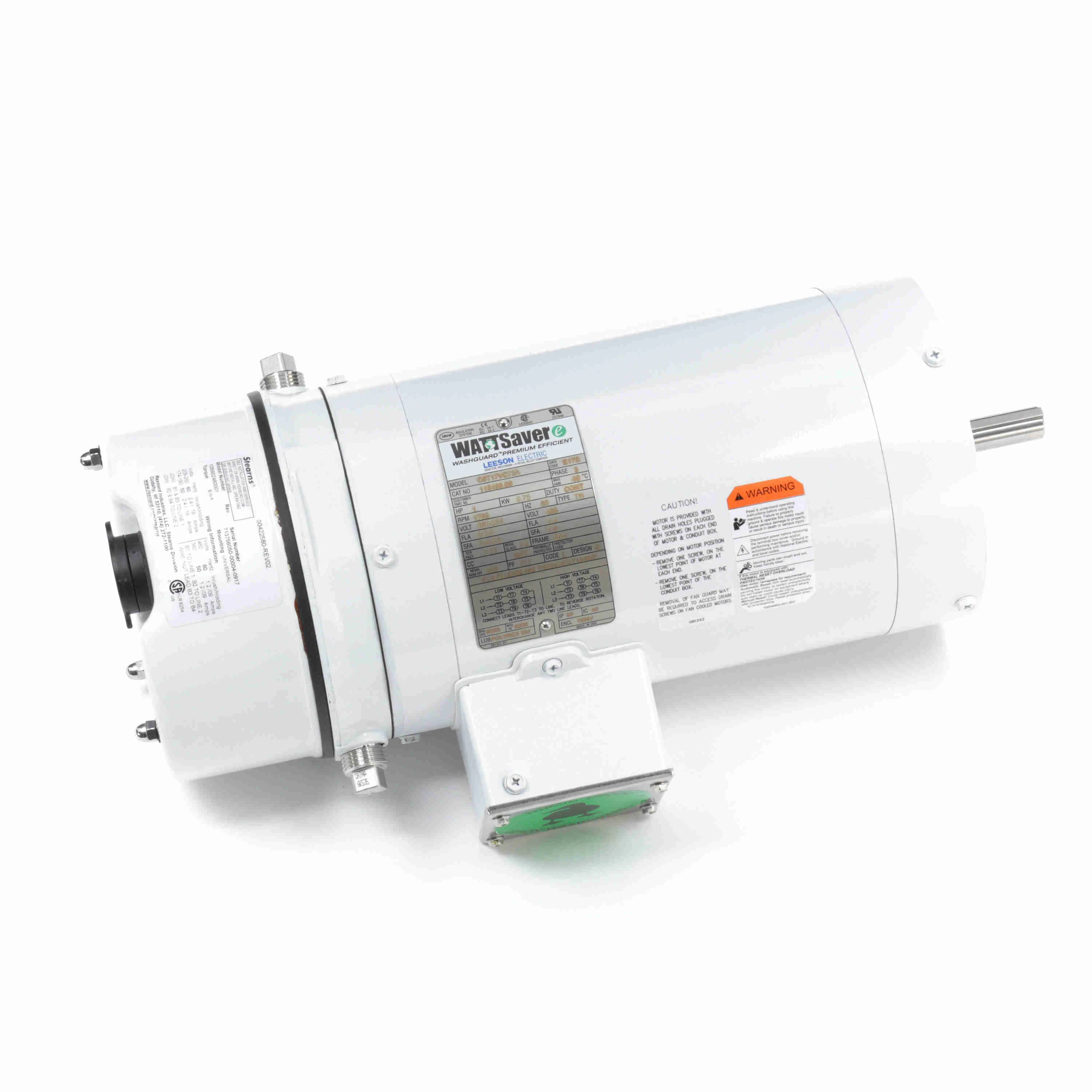

LEESON 119485.00 C6T17VC73A Brake Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Aug 25
5.00% off
€2,594.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ambient Temp. | 104°F |
| Amps | 2.8/1.4A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | L |
| Color | White |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Finish | Epoxy Coating |
| Frame | 56C |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.8-3/1.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Included | 6 ft.-Lbs. Brake |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Length Less Shaft | 15 7/16" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Speed | 1750 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 17" |
| Packaging | B |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 77.7 |
| Product Datasheet | leeson-119485-00.pdf |
| Product Type | Washdown Motor |
| Removable Base | No |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.87" |
| Shaft Type | NEMA 56 |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TN |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 116465.00 / C6T17VC45B
- Eff 100%: 85.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081341
- Winding: T634471
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 3.4-3.2 / 1.6
Documentation:
Product Variants
| Product | Model | Voltage | Speed | Shaft Dia. | Mounting Type | Frequency | Hp | Nameplate Speed | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

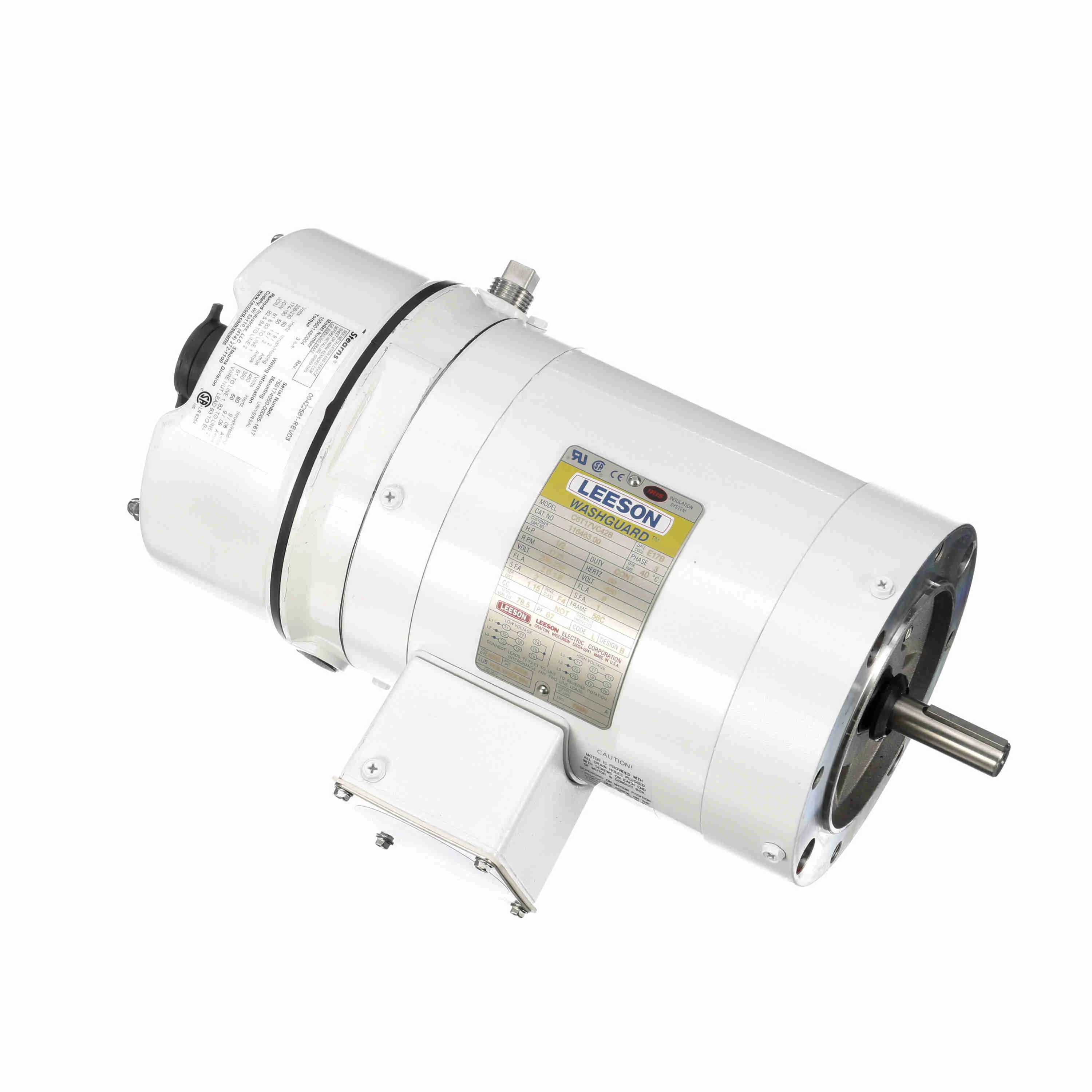

116463.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Round | 60 Hz | 1/2 hp | 1725 RPM | 1.8A | €2,199.82 | |
 |
119486.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Rigid Base | 60 Hz | 1 hp | 1750 RPM | 2.8-3/1.4A | €3,078.13 | |
 |
122193.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Rigid Base | 60 Hz | 1 hp | 1750 RPM | 1.3A | €3,223.59 | |
 |

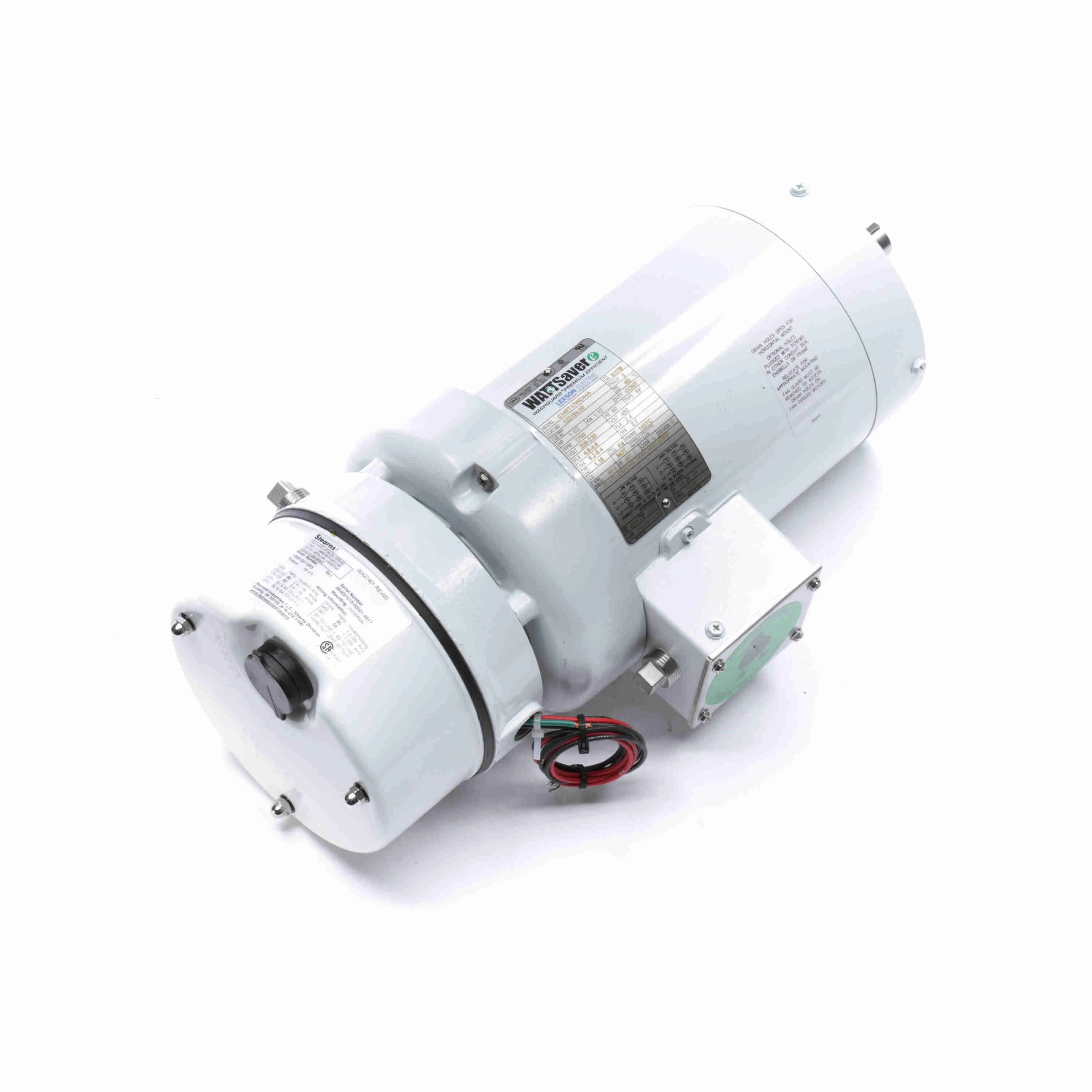

122194.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Round | 60 Hz | 1 1/2 hp | 1750 RPM | 2.4A | €4,739.25 | |
 |
122195.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Rigid Base | 60 Hz | 1 1/2 hp | 1750 RPM | 2.4A | €4,208.44 | |
 |

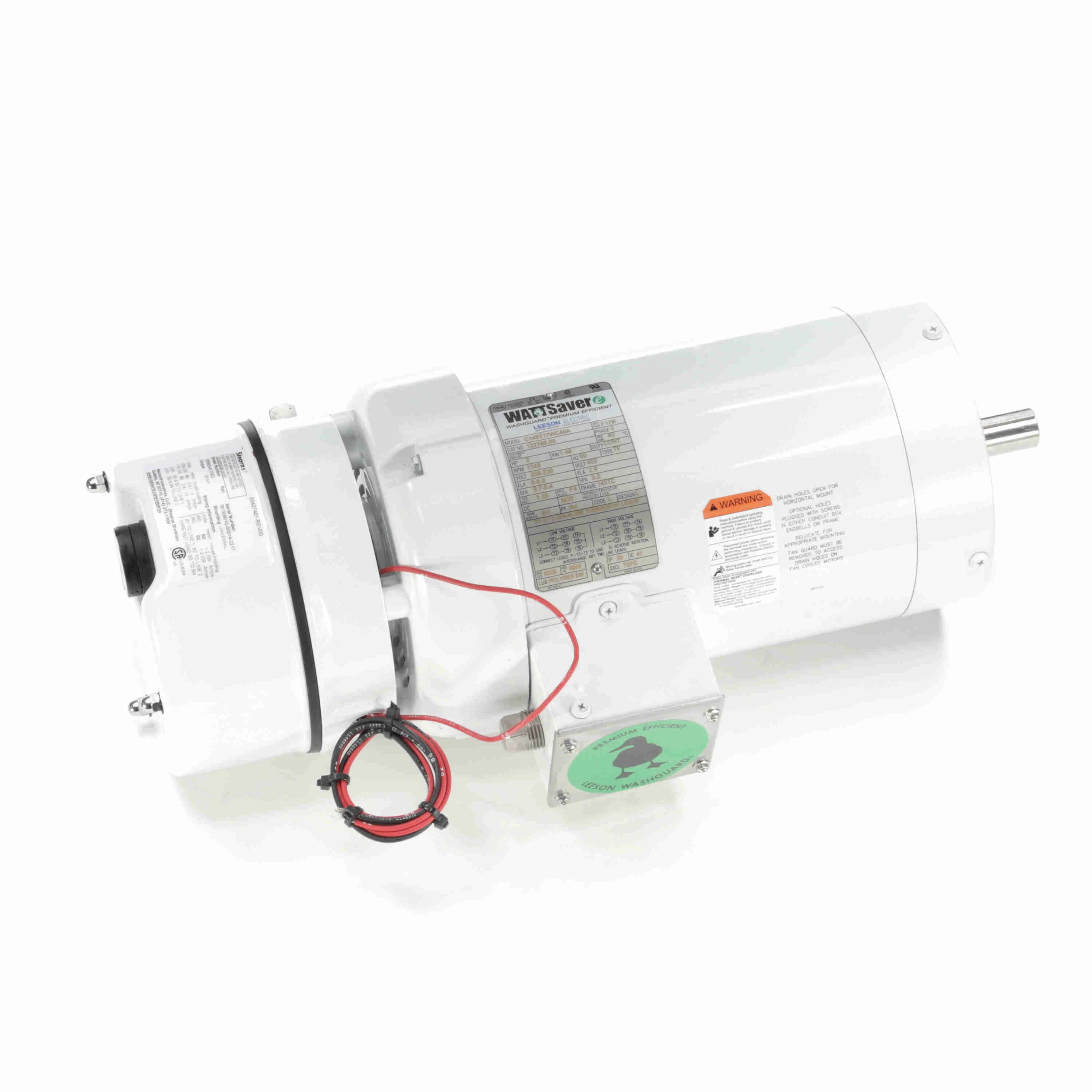

122196.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Round | 60 Hz | 2 hp | 1745 RPM | 2A | €2,499.16 | |
 |
116466.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Face, Base | 60 Hz | 33/100 hp | 1725 RPM | 0.65A | €1,321.26 |
