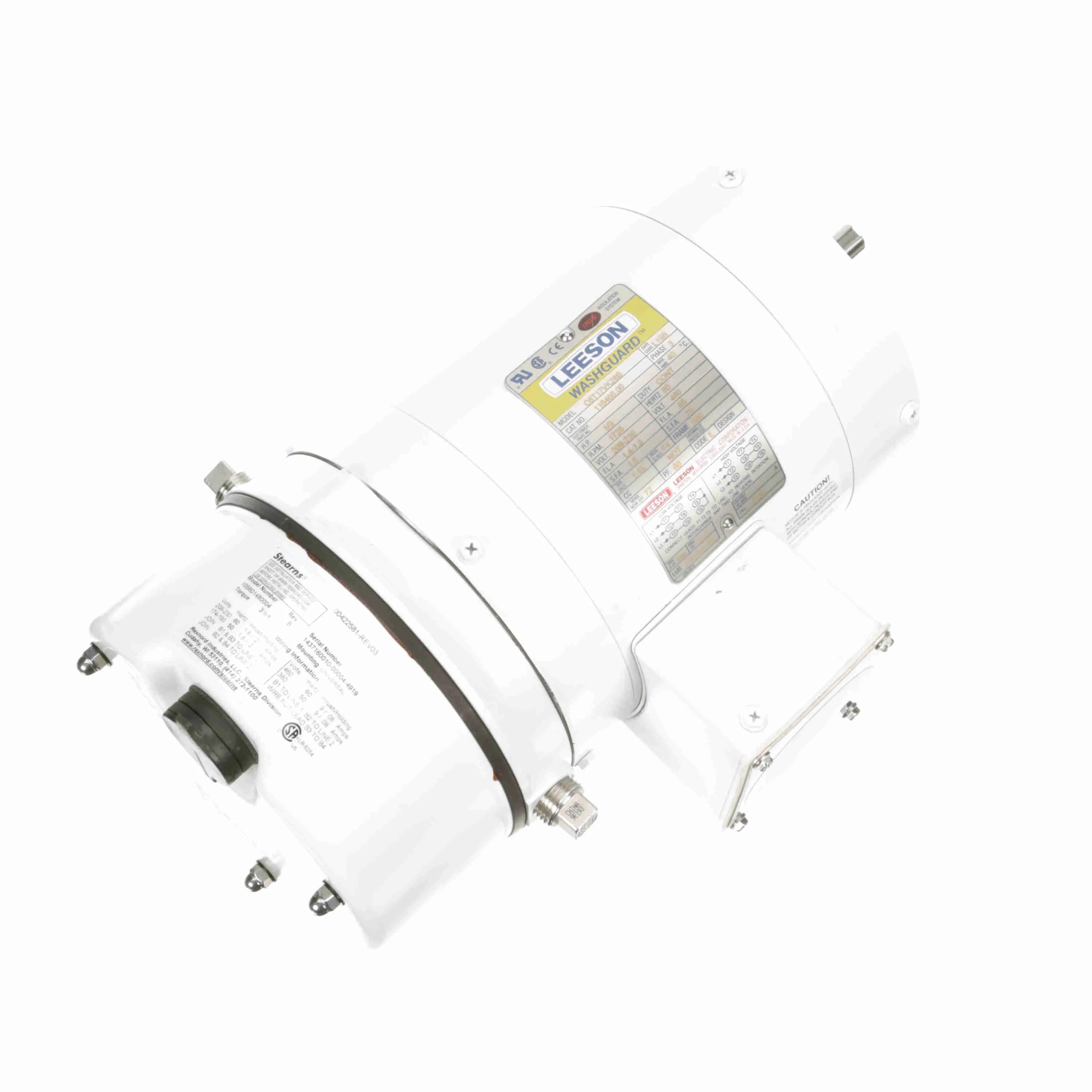

LEESON 116466.00 C6T17VK28B Brake Motor, 0.33 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Friday, May 22
€1,321.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Yes |
| Ambient Temp. | 40°C |
| Amps | 1.3/0.65A |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Design Code | No Design Code |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Frame | 56C |
| Frame Length | 5" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 0.65A |
| Height | 10 22/25" |
| Hp | 33/100 hp |
| Hz | 60 Hz |
| Includes | 3 ft.-Lbs. Brake |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12 1/16" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 14" |
| Phase | 3 |
| Power Factor | 66 |
| Product Datasheet | leeson-116466-00.pdf |
| Product Type | Washdown Brake Motor |
| Removable Base | No |
| Resistance Main | 59.2 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hp | Nameplate Rpm | Frame | Motor Mounting Type | Design | Power Factor | Full Load Amps | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
116463.00 | 1/2 hp | 1725 RPM | 56C | Face | B | 67 | 1.8A | 14 1/2" | €2,095.06 | |
 |
119485.00 | 1 hp | 1750 RPM | 56C | Face | B | 77.7 | 2.8-3/1.4A | 17" | €2,578.70 | |
 |
119486.00 | 1 hp | 1750 RPM | 56HC | Rigid Base | B | 77.7 | 2.8-3/1.4A | 17" | €2,947.97 | |
 |
122193.00 | 1 hp | 1750 RPM | 143TC | Rigid Base | B | 77.7 | 1.3A | 17" | €3,163.95 | |
 |
122194.00 | 1 1/2 hp | 1750 RPM | 145TC | Face | B | 67.7 | 2.4A | 18 1/2" | €4,494.01 | |
 |
122195.00 | 1 1/2 hp | 1750 RPM | 145TC | Rigid Base | B | 67.7 | 2.4A | 18 1/2" | €4,185.32 | |
 |
122196.00 | 2 hp | 1745 RPM | 145TC | Face | C | 75.6 | 2A | 19" | €2,499.16 |
