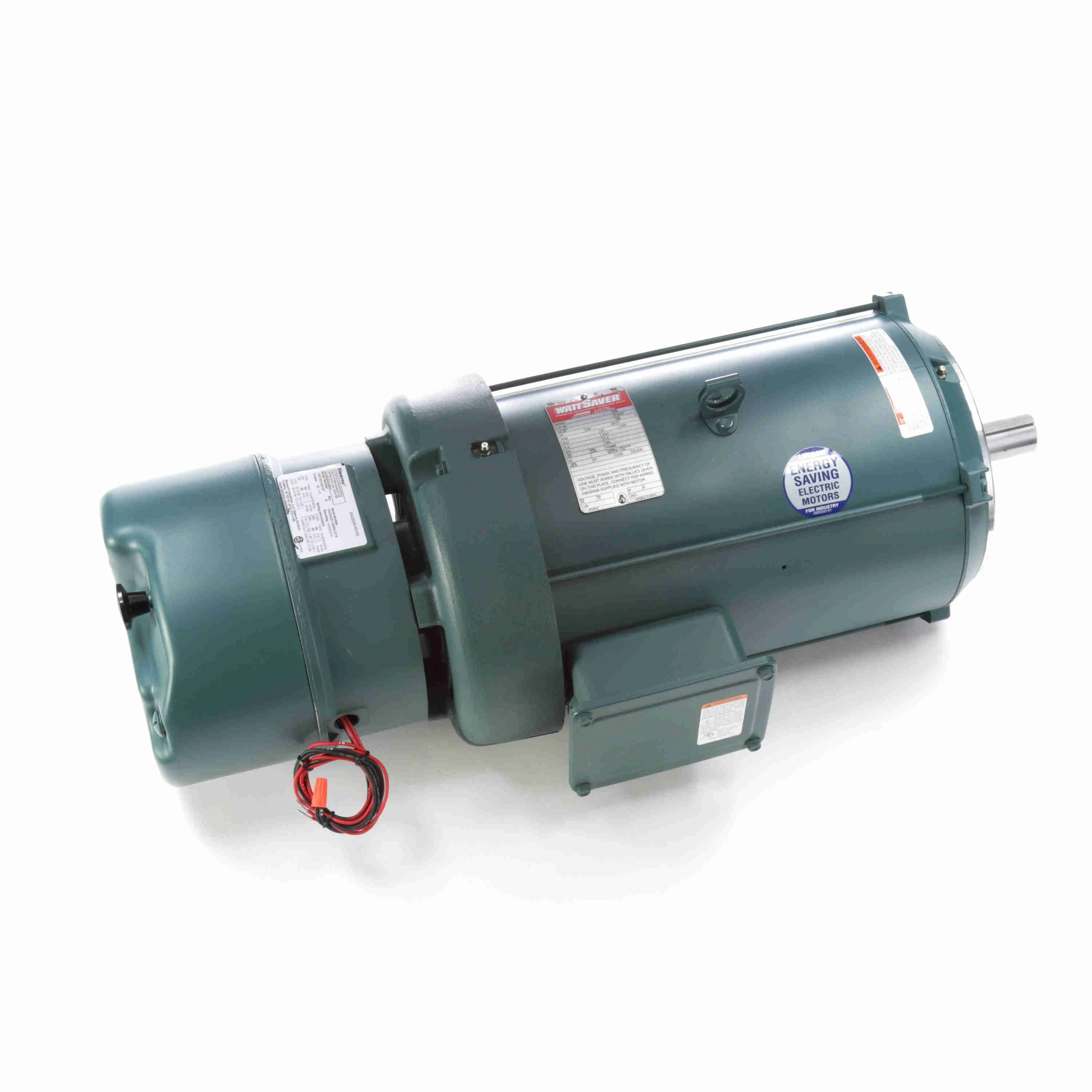

LEESON 141309.00 C215T17FC11A Brake Motor, 10/7.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
€4,773.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Break-down Torque | 90 lbs.-ft. |
| Code | H |
| Conduit Box Position | F1 |
| Design | B, H |
| Drive End Bearing Size | 6207 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Enclosure Type | Tefc |
| Frame | 215TC |
| Frame Material | Rolled Steel |
| Frame Type | 215TC |
| Frequency | 60 Hz |
| Full Load Amps | 28.8-26.8/13.4A |
| Grease Type | Polyrex EM |
| Hp | 10 hp |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | C Face Footless |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1800 RPM |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | F |
| Phase | 3 |
| Power | 7.5 kW |
| Power Factor | 77 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Type | TF |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 69.75 |
| Ship height (cm) | 31.17 |
| Ship length (cm) | 87.93 |
| Ship width (cm) | 38.1 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 140637.00 / C215T17FC8B
- Eff 100%: 91.7
- Bearing OPE: 6206
- CC Number: EXEMPT
- Bearing PE: 6207
- Nameplate: 081299
- Winding: T9497
- GROUP: 3
- Paint: VERIFY
- S. F Amps: 35.2-32.4 / 16.2
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Design | Frame | Brake Rating | Motor Thermal Protection | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

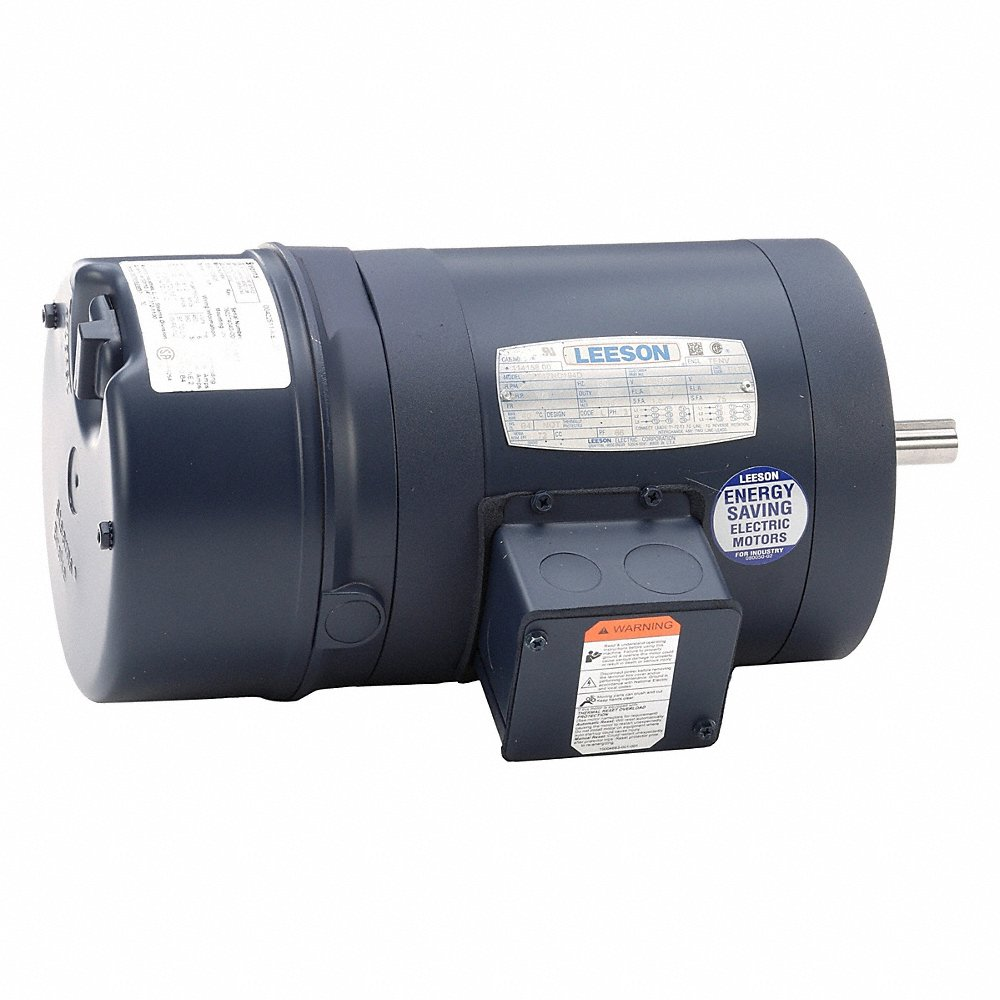

114158.00 | 208-230/460V | 33/100 hp | 1800 RPM | L | 56C | - | - | Class B | €1,690.25 | |
 |

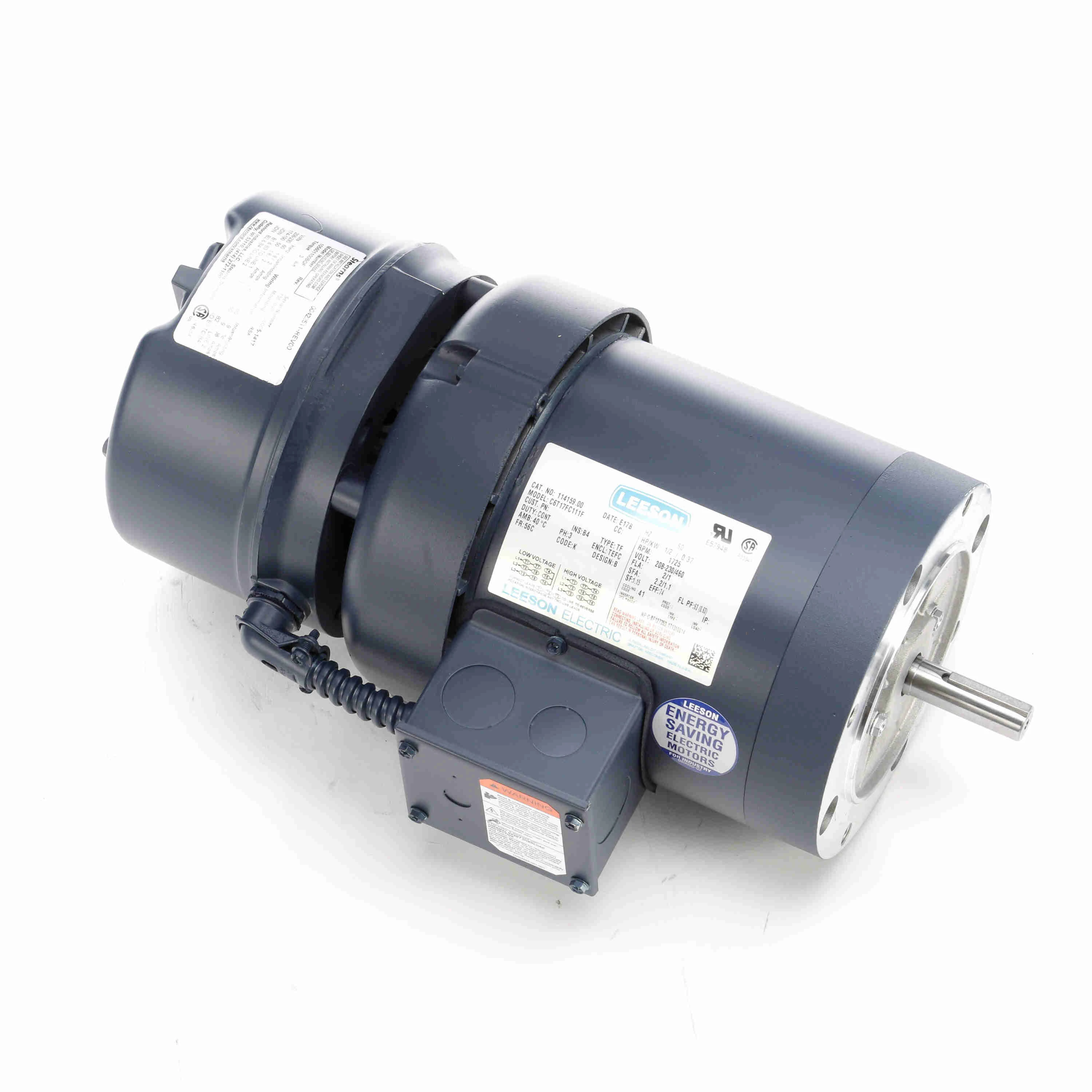

114159.00 | 208-230/460V | 1/2 hp | 1800 RPM | B, K | 56C | - | - | Class B | €1,108.25 | |
 |

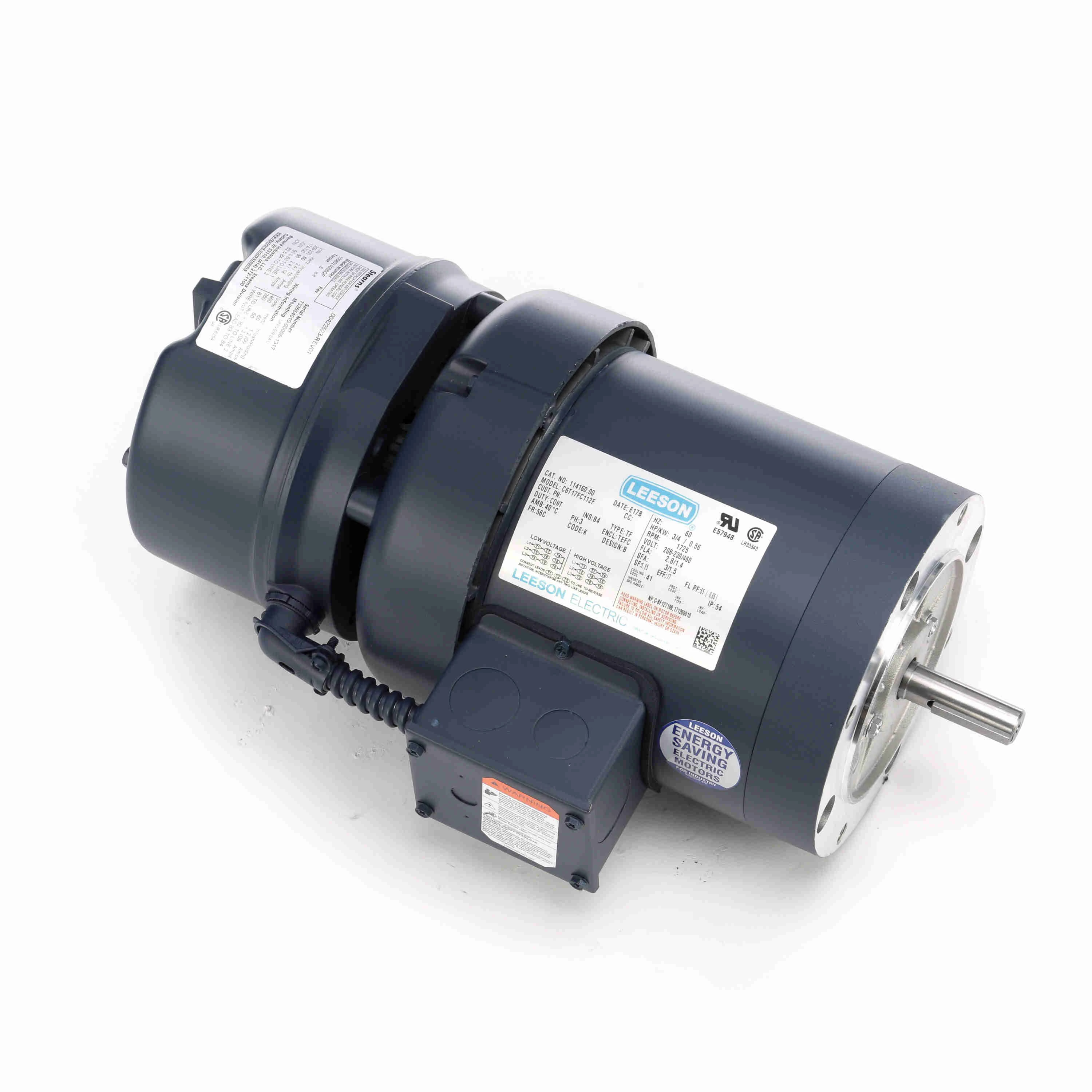

114160.00 | 208-230/460V | 3/4 hp | 1725 RPM | B, K | 56C | 6 lbs.-ft. | - | Class B | €1,694.67 | |
 |
119564.00 | 208-230/460V | 1 hp | 1760 RPM | B, N | 56C | 6 lbs.-ft. | T Stat | Class F | €1,564.17 | |
 |

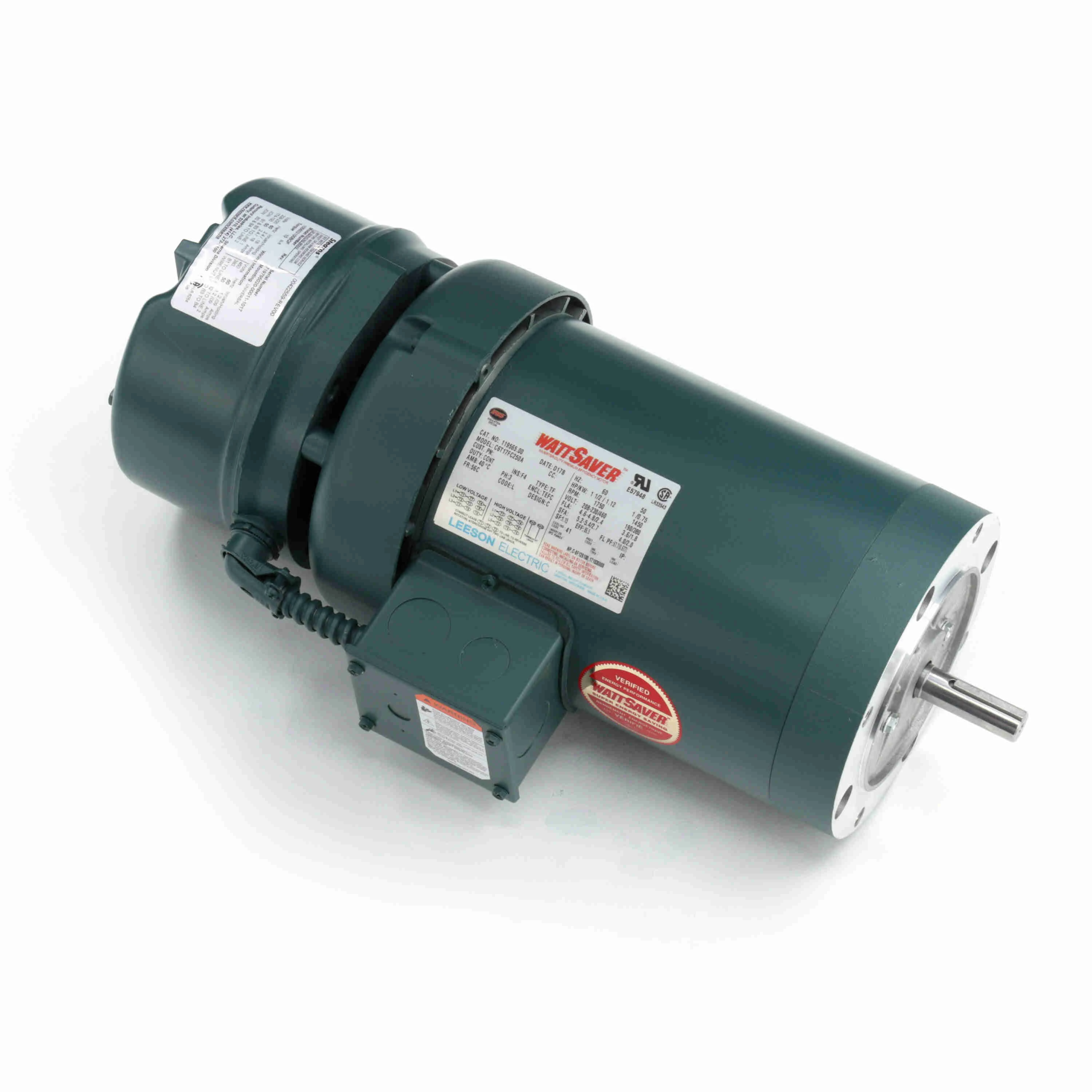

119565.00 | 208-230/460V | 1 1/2 hp | 1750 RPM | C, L | 56C | 10 lbs.-ft. | Thermostat | Class F | €1,754.64 | |
 |
122251.00 | 208-230/460V | 1 hp | 1760 RPM | B, N | 143TC | 6 lbs.-ft. | Thermostat | Class F | €2,470.27 | |
 |

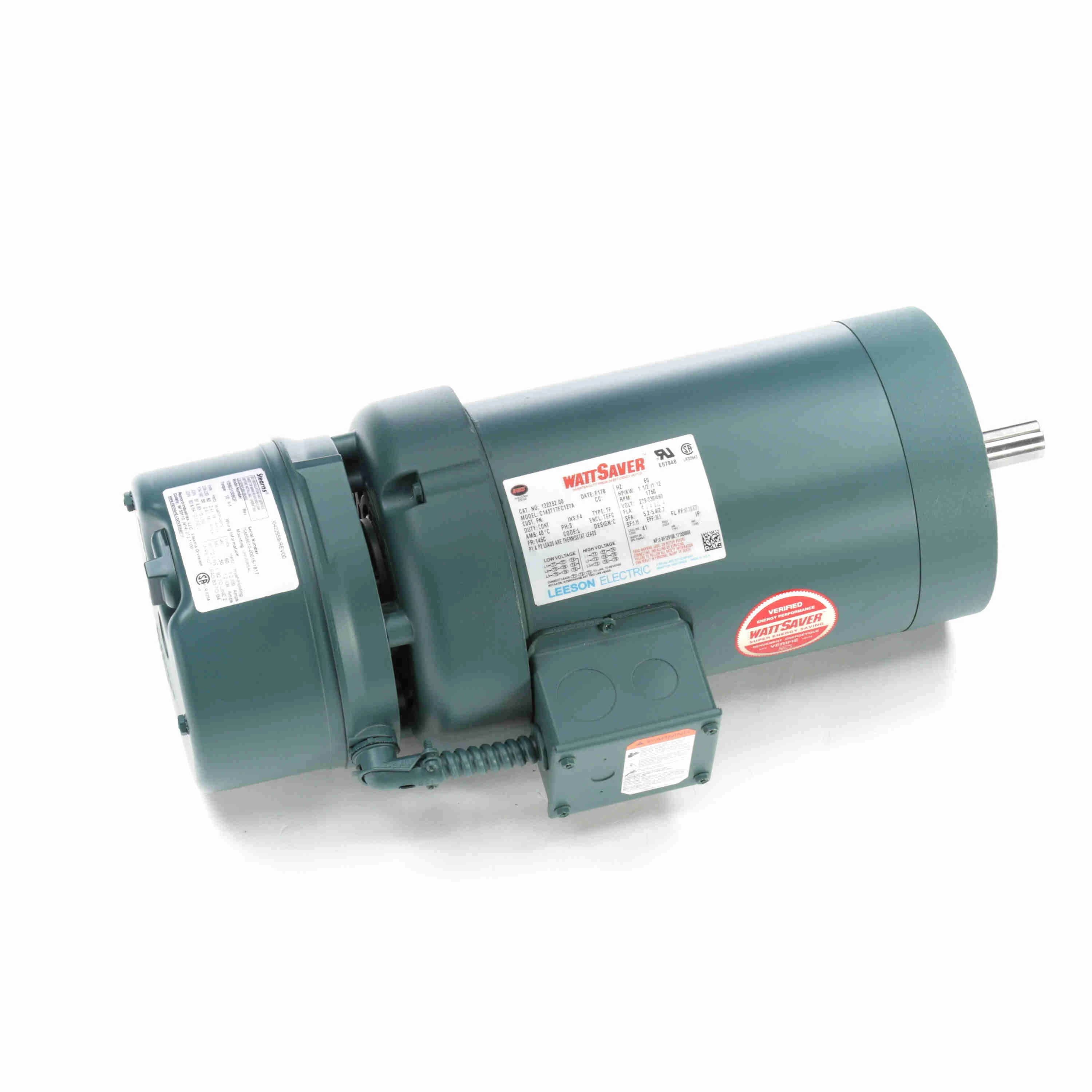

122252.00 | 208-230/460V | 1 1/2 hp | 1750 RPM | C, L | 145TC | 10 lbs.-ft. | T Stat | Class F | €1,767.04 |
