LEESON 5K49KN4563 K457 Brake Motor, 0.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Monday, May 18
5.00% off
€1,378.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Protection | Double Shield |
| Brake Model/series | Series 56000 |
| Brake Rating | 3 lbs.-ft. |
| Break-down Torque | 97.8 lbs.-ft. |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 0.9A |
| Hp | 1/2 hp |
| Includes | Key |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 12 1/8" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Thermostat |
| Motor Type | Squirrel Cage Induction Run |
| Mounting | Rigid Base |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nominal Efficiency | 78.5% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Output Kw | 0.37 kW |
| Overall Length | 14 1/16" |
| Phase | 3 |
| Power | 0.37 kW |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Standards | Csa, Ul Recognized |
| Torque | 3 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501514040 |
| Country of Origin | US |
Product Details:
- Series: 56,000
- Provisions: VERIFY
- Starting Type: ACROSS THE LINE
- KVA Code: L
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Design | Motor Mounting Type | Motor Application | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143THTN8036 | 230/460V AC | 1 hp | 1756 RPM | 143TC | - | Rigid Base | Crane | T Stat | €3,441.88 | |
 |
145THTN8043 | 230/460V AC | 2 hp | 1750 RPM | 145TC | - | Rigid Base | Crane | None | €2,971.12 | |
 |

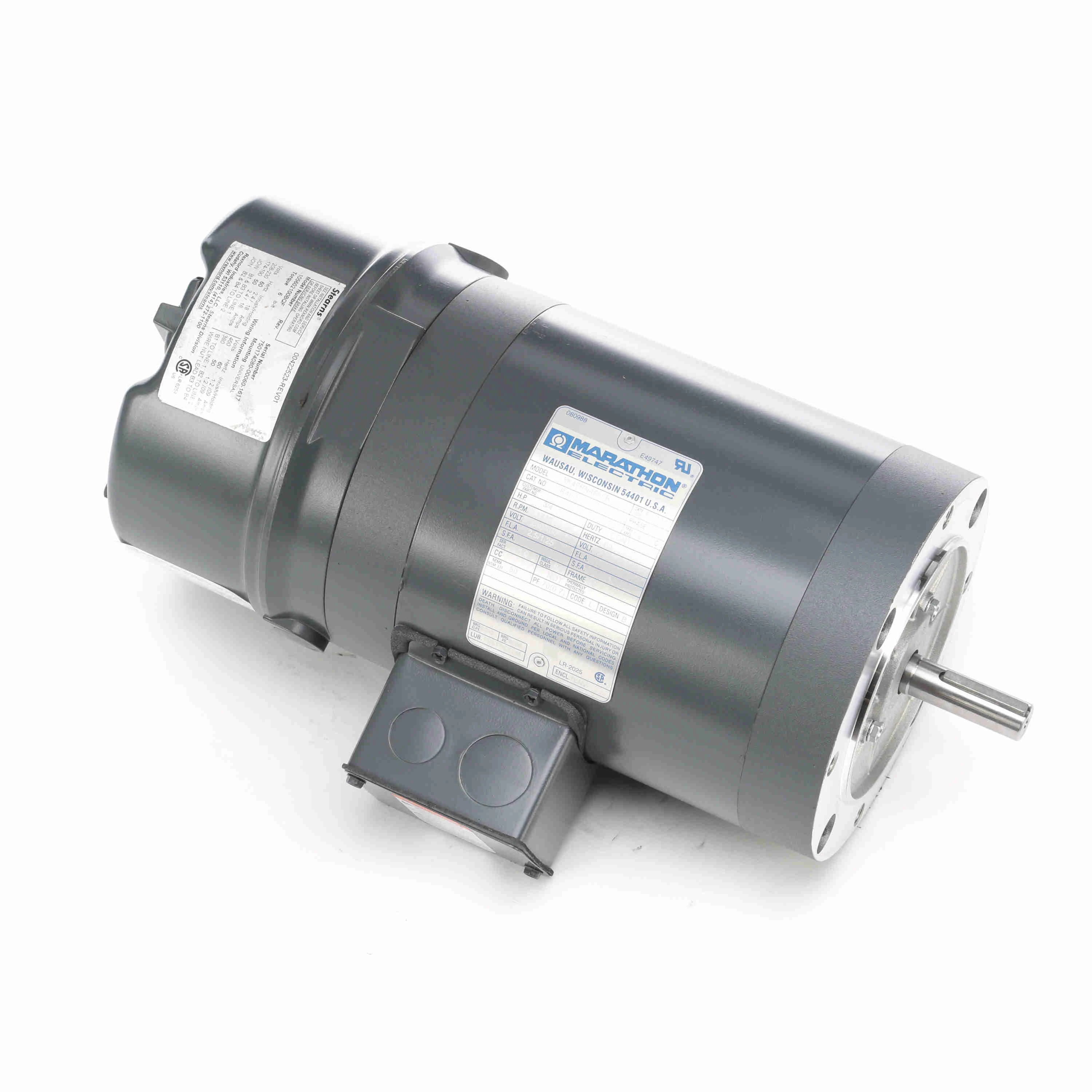

5K49PN4565 | 230/460V AC | 3/4 hp | 1725 RPM | 56C | - | Face | Brake Motor | No | €1,644.54 | |
 |
110669.00 | 208-230/460V | 33/100 hp | 1800 RPM | C56C | L | - | - | - | €1,004.12 | |
 |
110670.00 | 208-230/460V | 1/2 hp | 1800 RPM | 56C | B, L | - | - | - | €2,104.76 | |
 |
110671.00 | 208-230/460V | 3/4 hp | 1800 RPM | 56C | B, L | - | - | - | €1,318.13 | |
 |
114158.00 | 208-230/460V | 33/100 hp | 1800 RPM | 56C | L | - | - | - | €1,690.25 |
