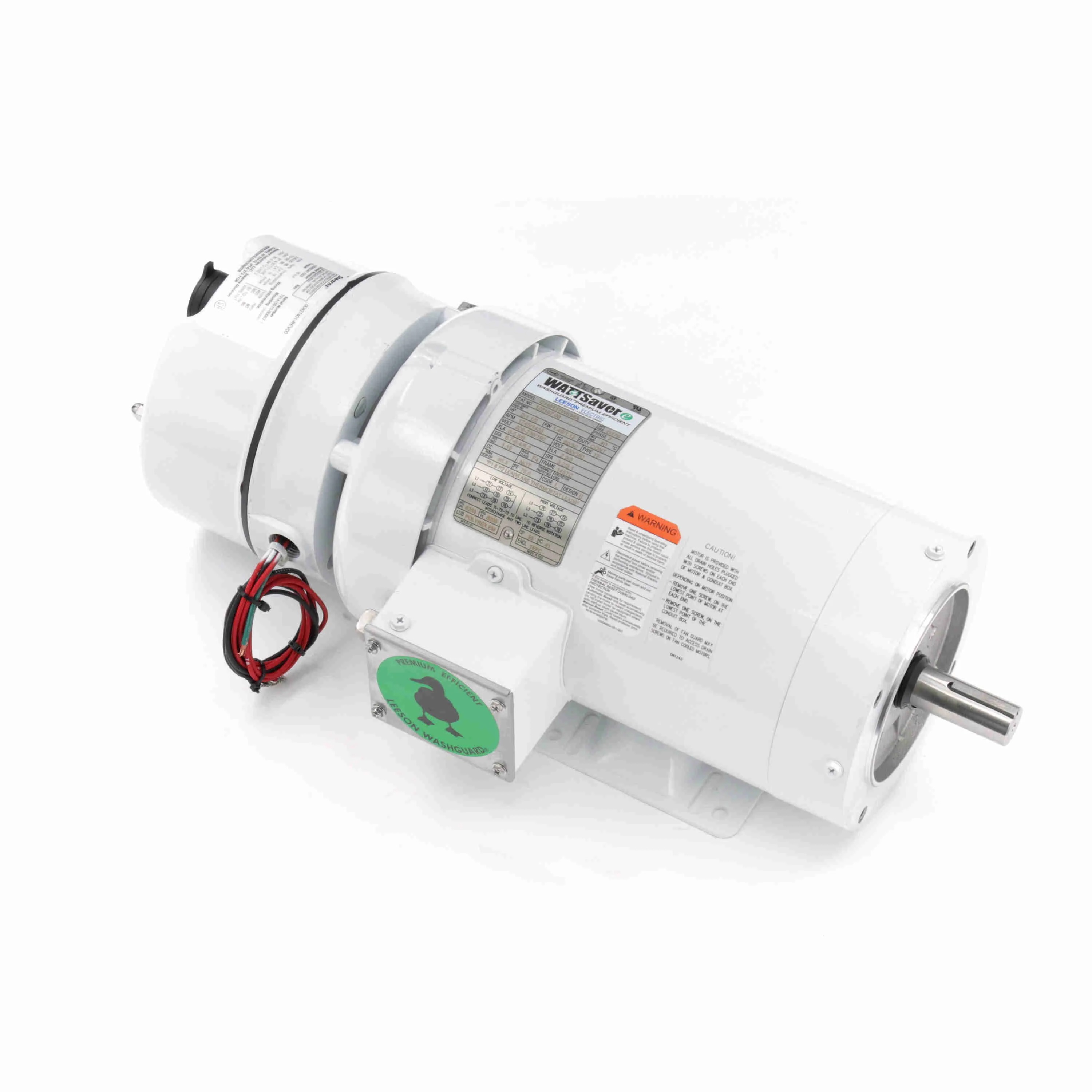

LEESON 122197.00 C145T17WK56A Brake Motor, 2 and 1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Wednesday, May 20
€2,541.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Yes |
| Ambient Temp. | 40°C |
| Amps | 5.8/2.9A |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Height | 9 22/25" |
| Hp | 2 hp |
| Hz | 50/60 Hz |
| Includes | 10 ft.-lbs. Brake |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 22 22/25" |
| Length Less Shaft | 17" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1745 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 19" |
| Phase | 3 |
| Power Factor | 75.6 |
| Product Datasheet | leeson-122197-00.pdf |
| Product Type | Washdown Brake Motor |
| Removable Base | No |
| Resistance Main | 6 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2" |
| Shaft Type | T |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 10 14/25" |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 58.12 |
| Ship width (cm) | 26.82 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hp | Nameplate Rpm | Frame | Motor Mounting Type | Design | Power Factor | Full Load Amps | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
116463.00 | 1/2 hp | 1725 RPM | 56C | Face | B | 67 | 1.8A | 14 1/2" | €2,095.06 | |
 |
119485.00 | 1 hp | 1750 RPM | 56C | Face | B | 77.7 | 2.8-3/1.4A | 17" | €2,578.70 | |
 |
119486.00 | 1 hp | 1750 RPM | 56HC | Rigid Base | B | 77.7 | 2.8-3/1.4A | 17" | €2,947.97 | |
 |
122193.00 | 1 hp | 1750 RPM | 143TC | Rigid Base | B | 77.7 | 1.3A | 17" | €3,163.95 | |
 |
122194.00 | 1 1/2 hp | 1750 RPM | 145TC | Face | B | 67.7 | 2.4A | 18 1/2" | €4,494.01 | |
 |
122195.00 | 1 1/2 hp | 1750 RPM | 145TC | Rigid Base | B | 67.7 | 2.4A | 18 1/2" | €4,185.32 | |
 |
122196.00 | 2 hp | 1745 RPM | 145TC | Face | C | 75.6 | 2A | 19" | €2,499.16 |
