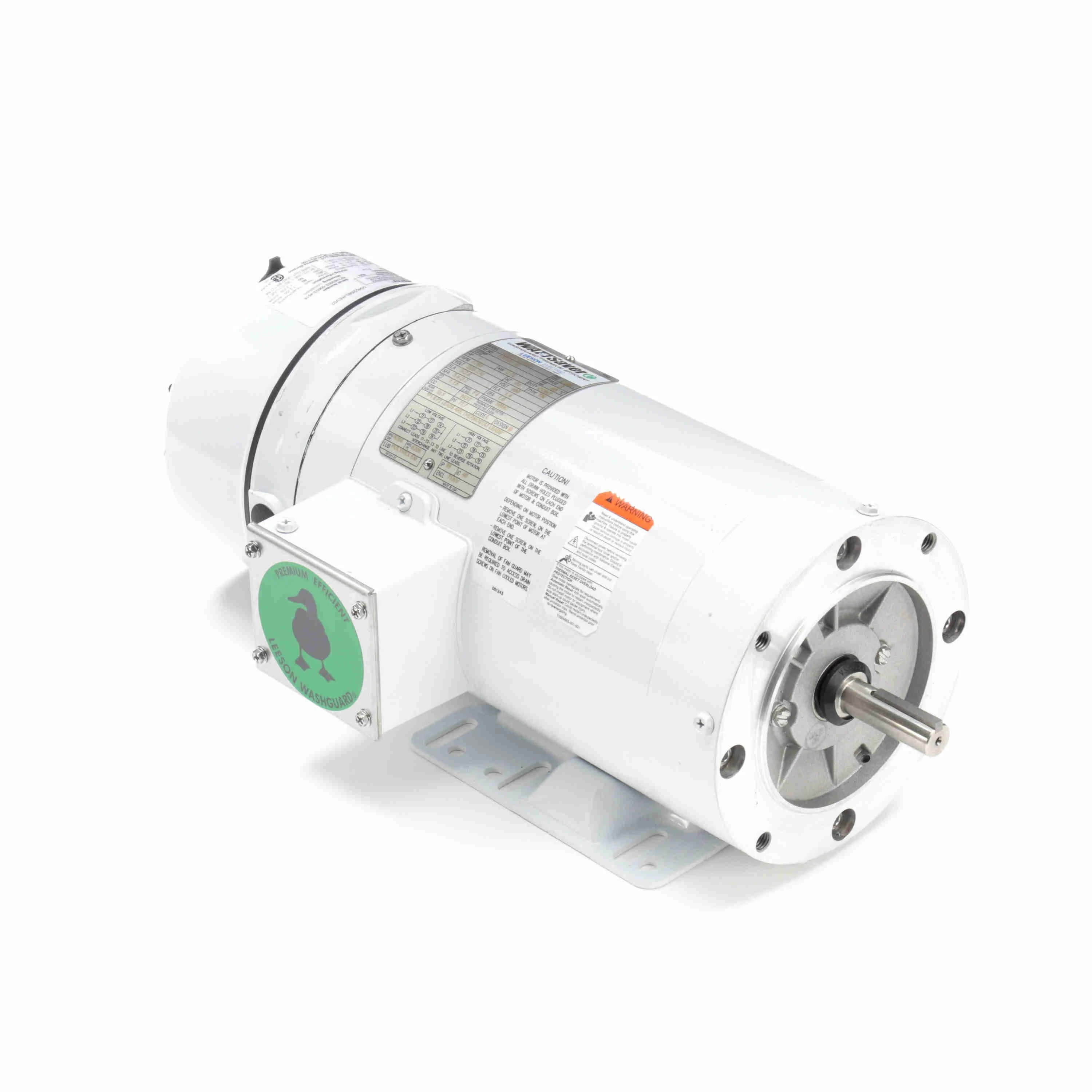

LEESON 116468.00 C6T17VK29B Brake Motor, 0.75 HP, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Aug 25
€1,596.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ambient Temp. | 40°C |
| Amps Rating | 2.7-2.5/1.3A |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Compatible Part/model Number | Baldor CEWDBM3542 |
| Conduit Box Location | Exterior |
| Efficiency Type | Standard |
| Electrical Phase | 3 |
| Enclosure | Tenv |
| Enclosure Type | Tenv (Totally Enclosed Non Ventilated) |
| Family Series | Leeson Motors, Brakemotors Series |
| Frame | 56 |
| Frame Size | 56C |
| Full Load Amps | 2.8/1.4A |
| Includes | 6 Ft.-Lb. Brake |
| Insulation | F4 |
| Kw | 0.56 kW |
| Length Less Shaft | 13 1/16" |
| Motor Application | Brake Motor |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Shaft Rotation | CCW, CW |
| Mounting | Rigid |
| Mounting Location | C-Face Rigid |
| Mounting Type | C Face Footed |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Voltage | 208/240/480V AC |
| Product Datasheet | leeson-116468-00.pdf |
| Rotation | Reversible |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1701-1800 RPM , 1725 RPM , 1800 RPM |
| Type | Brake Motor |
| Usable @ 208 V | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Speed | Shaft Dia. | Mounting Type | Frequency | Hp | Nameplate Speed | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
116463.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Round | 60 Hz | 1/2 hp | 1725 RPM | 1.8A | €2,199.82 | |
 |
119485.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Round | 60 Hz | 1 hp | 1750 RPM | 2.8-3/1.4A | €2,730.71 | |
 |
119486.00 | 208-230/460V | 1700-1800 RPM | 5/8" | Rigid Base | 60 Hz | 1 hp | 1750 RPM | 2.8-3/1.4A | €3,078.13 | |
 |
122193.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Rigid Base | 60 Hz | 1 hp | 1750 RPM | 1.3A | €3,223.59 | |
 |
122194.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Round | 60 Hz | 1 1/2 hp | 1750 RPM | 2.4A | €4,739.25 | |
 |
122195.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Rigid Base | 60 Hz | 1 1/2 hp | 1750 RPM | 2.4A | €4,208.44 | |
 |
122196.00 | 208-230/460V | 1700-1800 RPM | 7/8" | Round | 60 Hz | 2 hp | 1745 RPM | 2A | €2,499.16 |
