LEESON 111950.00 Brake Motor, TEFC, 1/2 HP, 1725 RPM, 115/208 To 230V AC | AJ2QGN 61KM83

LEESON 111950.00 C6C17FK20K Brake Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2QGNModel: 111950.00Cross Ref: 61KM83 / C6C17FK20K
Check Availability
In Stock

Get it by Wednesday, Dec 24

€1,171.53 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Brake Motor
Amps 8.8/4.4A
Application Brake Motor
Bearing Protection Double Shield
Bearing Type Ball
Brake Model/series Series 56000
Brake Rating 3 lbs.-ft.
Break-down Torque 67.3 lbs.-ft.
Code L
Conduit Box Location Exterior
Conduit Box Position F1
Design L, N
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 66%
Electrical Type Capacitor Start, Induction Run
Enclosure Type Tefc
Frame 56C
Frame Length 5 1/2"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 4.36A
Grease Type Polyrex EM
Height 9 22/25"
Hp 1/2 hp
Hz 60 Hz
Includes Key
Ins. Class Class B
Insulation Class Class B
Inverter Rated No
Ip Code IP43
Kva Code L
Kw 0.37 kW
Length 22 4/5"
Length Less Shaft 13 7/8"
Manufacturers Warranty Length 18 Months
Max. Ambient Temp. 40°C
Max. Rpm 1725 RPM
Motor Application Brake Motor
Motor Bearings Ball
Motor Design Capacitor Start
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Service Factor 1
Motor Shaft Design Keyed
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Shaft Rotation CW/CCW
Motor Thermal Protection Manual
Motor Type Capacitor Start/Induction Run
Mounting Type Rigid Base
Nameplate Rpm 1725 RPM
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 66%
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.37 kW
Overall Length 15 11/16"
Packaging B
Phase 1
Power 0.37 kW
Power Factor 58
Resistance Main 3.4 ohms
Rpm 1700-1800 RPM
Rpm Range 1701-1800 RPM
Series Series 56000
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Standards Csa, Ul Recognized
Starting Method Across The Line
Thermal Protection No Protection
Type CF
Usable @ 200v No
Usable @ 208v Yes
Voltage 115/208-230V
Weight 32 lbs.
Width 10 14/25"

Shipping Info:

Ship weight (kg) 14.4
Ship height (cm)25.1
Ship length (cm)57.91
Ship width (cm)26.82
Country of OriginUS

Product Details:

    • Eff 100%: 66
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 993500
    • Winding: C634257
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelHpNameplate RpmFrameDesignBrake RatingMotor Thermal ProtectionInsulation ClassPower FactorPrice

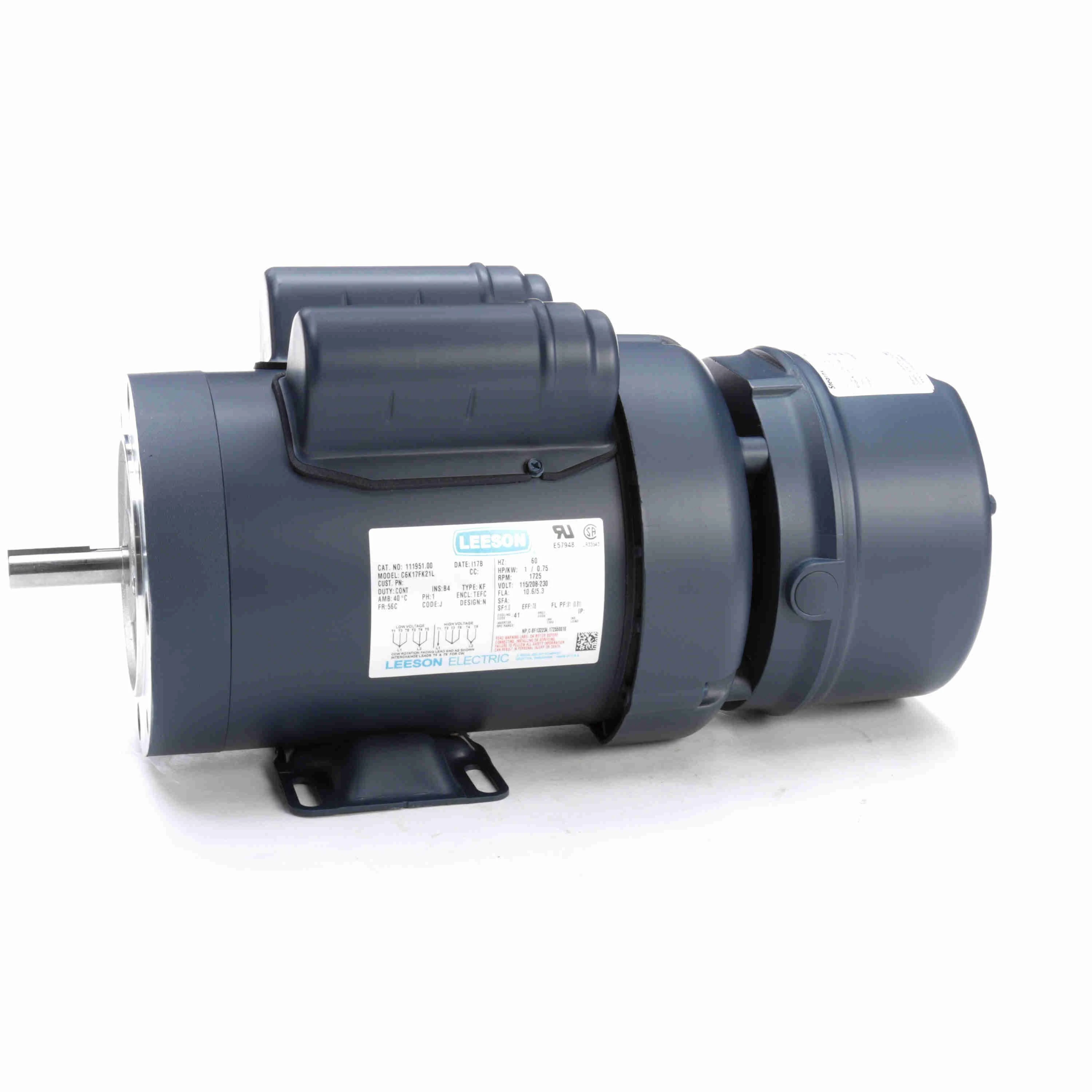

LEESON 111951.00 Brake Motor, TEFC, 1 HP, 1725 RPM, 115/208 To 230V AC | AJ2QGP 61KM85 111951.001 hp1725 RPM56CJ, N6 lbs.-ft.No ProtectionClass B81€1,798.91

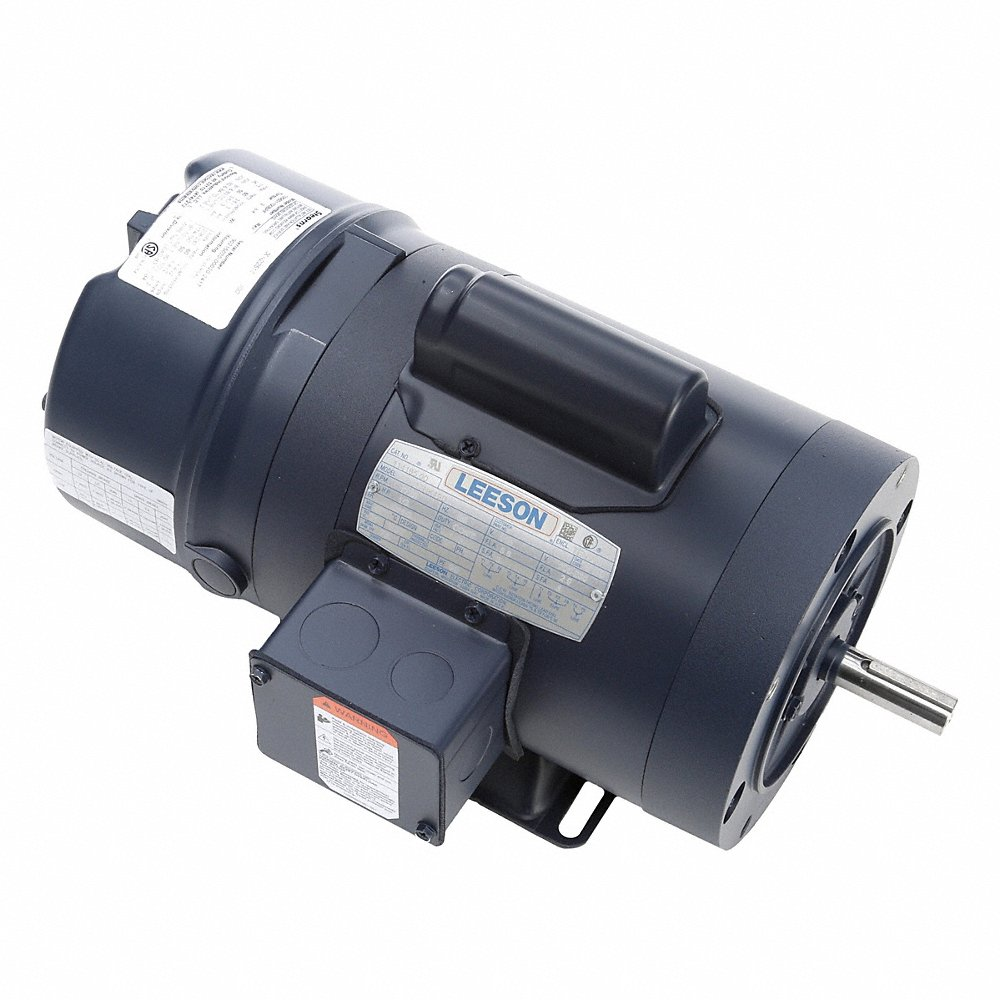

LEESON 114165.00 C6C17NK19D Brake Motor | AJ2QMX C6C17NK19D 114165.0033/100 hp1800 RPM56CL, N--Class B54€1,764.37

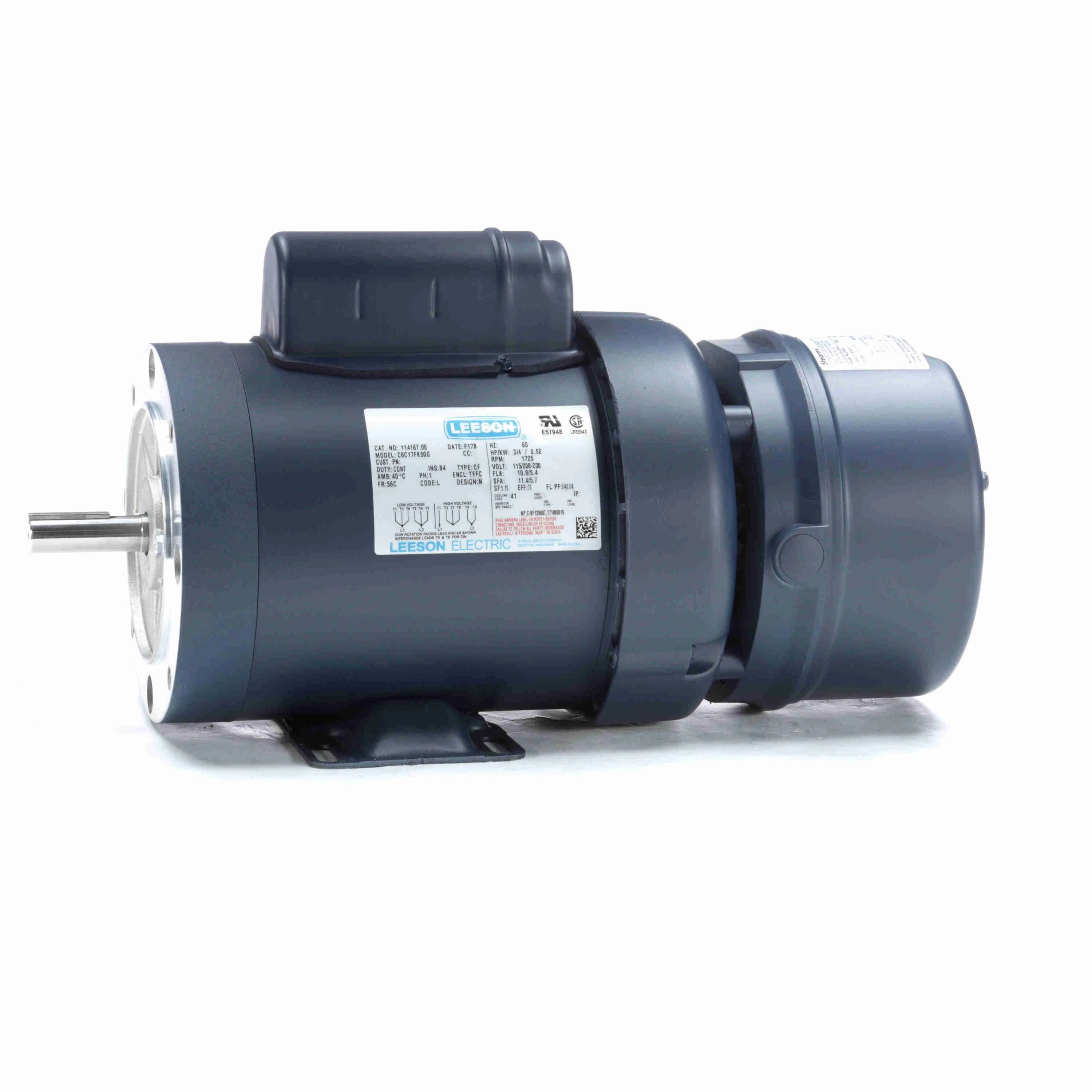

LEESON 114167.00 Brake Motor, TEFC, 3/4 HP, 1725 RPM, 115/208 To 230V AC | AJ2QMZ 61KM84 114167.003/4 hp1725 RPM56CL, N6 lbs.-ft.No ProtectionClass B64€1,745.90

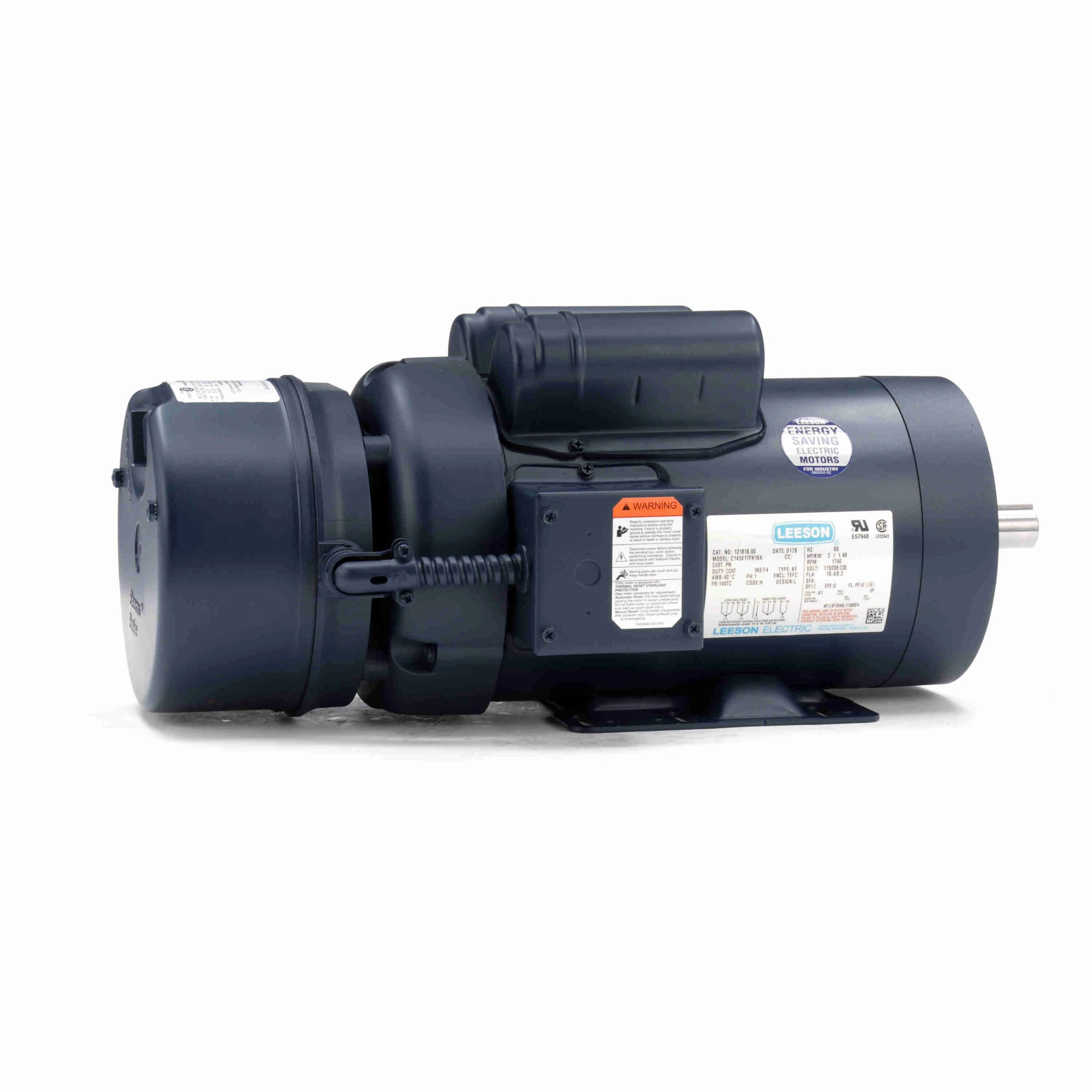

LEESON 121816.00 C145K17FK16A Brake Motor | AJ2RJU C145K17FK16A 121816.002 hp1740 RPM145TC---Class F86€3,118.66
