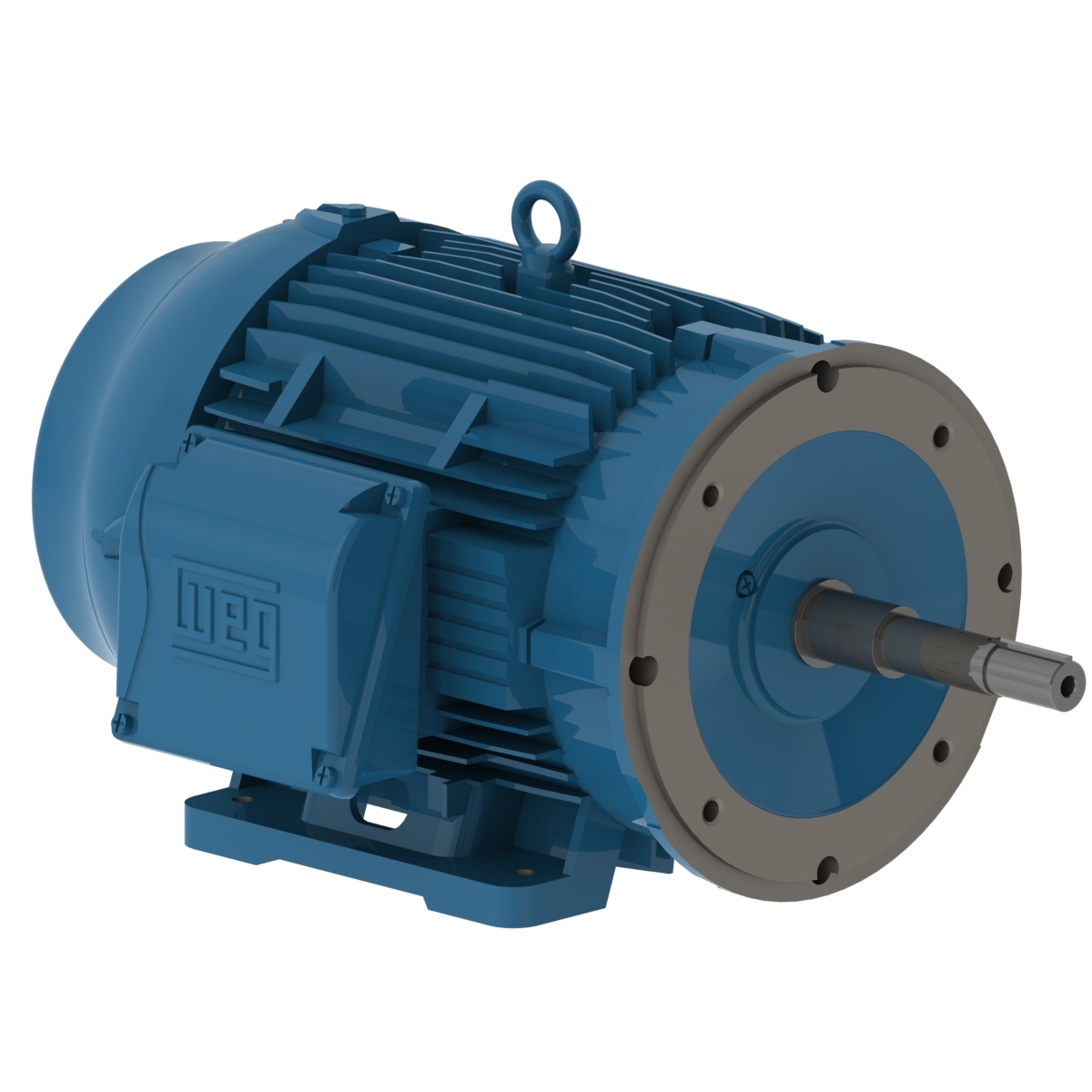

WEG 04036ET3E286JP-W22 Pump Motor, 40 HP, 3600 RPM, 208-230/460V, TEFC, 286JP, Footed, Close Coupled Pump
Get it by Tuesday, Feb 17
€6,272.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Application | Closed Coupled |
| Body Design | Cast Iron |
| Composition | Cast Iron |
| Ct Speed Range | 2:1 |
| Efficiency | 92.4% |
| Enclosure Iec | IP55 |
| Enclosure Type | Tefc |
| Frame | 286JP |
| Frame Size | 286JP |
| Hp | 40 hp |
| Hz | 60 Hz |
| Inverter Rating | Inverter Duty |
| Mounting Arrangement | F1, F2 |
| Nema Frame | NEMA 284-6JP |
| Nema Mount | C Face With Base |
| Output Hp | 40 hp |
| Output Kw | 30 kW |
| Output Rpm | 3555 RPM |
| Phase | 3 |
| Replaces | 04036EP3E286JP-W22 |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Temp Code | T3C = 160°C |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 211.95 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 80.2 |
| Ship width (cm) | 37.08 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Service Factor | Hp | Frequency | Motor Enclosure Design | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 380-415/460V | 1.25 | 25 hp | 50 Hz | Totally Enclosed Fan Cooled | 29.9A | 3550 RPM | - | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 380-415/460V | 1.25 | 50 hp | 60 Hz | Totally Enclosed Fan Cooled | 59.8A | 3570 RPM | - | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 1.25 | 75 hp | 50/60 Hz | Totally Enclosed Fan Cooled | 80.3A | 3600 RPM | - | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 1.25 | 1 1/2 hp | 60 Hz | Totally Enclosed Fan Cooled | 1.57A | 3480 RPM | Three Phase | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 1.25 | 2 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.05A | 3475 RPM | Three Phase | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 1 | 3 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.9A | 3515 RPM | Three Phase | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 1.25 | 5 hp | 60 Hz | Totally Enclosed Fan Cooled | 4.72A | 3485 RPM | Three Phase | €1,251.50 |
