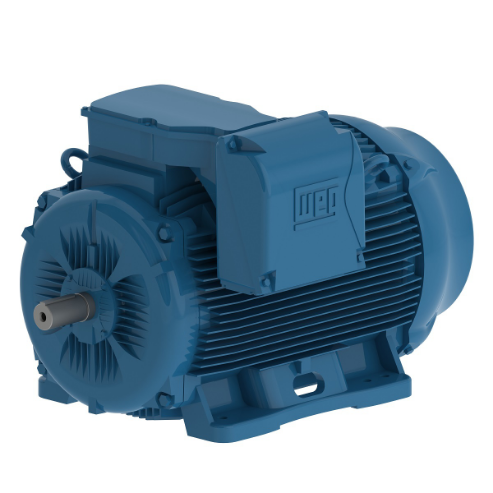

WEG 30012EP3Y355M/L-W22 13025681 General Purpose Motor, Cast Iron 355M/L Frame, 400 HP, 1190 RPM, 460 V
1200 rpm
400 hp
355M/L
Get it by Wednesday, Aug 26
€64,344.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 513A , 597A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 200% , 250% |
| Cable Press Material | Sem |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 57% , 95.7% |
| Efficiency 75% | 95.7% |
| Efficiency @ 1 % | 77% |
| Efficiency @ 100% | 95.5% |
| Efficiency @ 75 % | 70% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Flange Type | Without |
| Frame | 355 M/L , 355M/L |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 30 sec. |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 3701A , 3796A |
| Locked Rotor Time (cold) | 54 sec. |
| Locked Rotor Torque | 200% , 250% |
| Lrc | 7.4 |
| Main Terminal Box Hole | 2 x M63 x 1.5 |
| Main Terminal Box Hole Size | M63 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 340 lbs.-sq. ft. |
| Moment Of Inertia (j) | 340 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1190 RPM |
| Mounting | B3L , Foot Mounted |
| Nde Bearing Seal | Yes |
| No Load Amps | 240A , 250A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 6 |
| Noise Level | 73 dBA |
| Output | 400 hp |
| Output Rating | 400 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.8 |
| Power Factor 50% | 0.65 |
| Power Factor 75% | 0.75 |
| Power Factor @ 1 % | 95.4 |
| Power Factor @ 50 % | 95 |
| Power Factor @ 75 % | 95.4 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.83% , 1% |
| Speed | 1100-1200 RPM , 990 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Torque | 1770 lbs.-ft. , 2120 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380-415/460V , 460V AC |
Shipping Info:
| Ship weight (kg) | 2094.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 60 Hz | 1.25 | 1" | Totally Enclosed Fan Cooled | 3.5/1.7A | Rigid Base | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 60 Hz | 1.25 | 1 1/2 hp | - | 5.08/2.54A | Rigid Base | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 60 Hz | 1.25 | 2 hp | Totally Enclosed Fan Cooled | 6.44/3.22A | Rigid Base | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 60 Hz | 1.25 | 3 hp | Totally Enclosed Fan Cooled | 8.8/4.4A | Rigid Base | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 60 Hz | 1.25 | 5 hp | Totally Enclosed Fan Cooled | 13.7/6.83A | Rigid Base | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 60 Hz | 1.25 | 7 1/2 hp | Totally Enclosed Fan Cooled | 19/9.48A | Rigid Base | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 60 Hz | 1.25 | 10 hp | Totally Enclosed Fan Cooled | 26.6/13.3A | Rigid Base | Three Phase | €3,044.25 |
