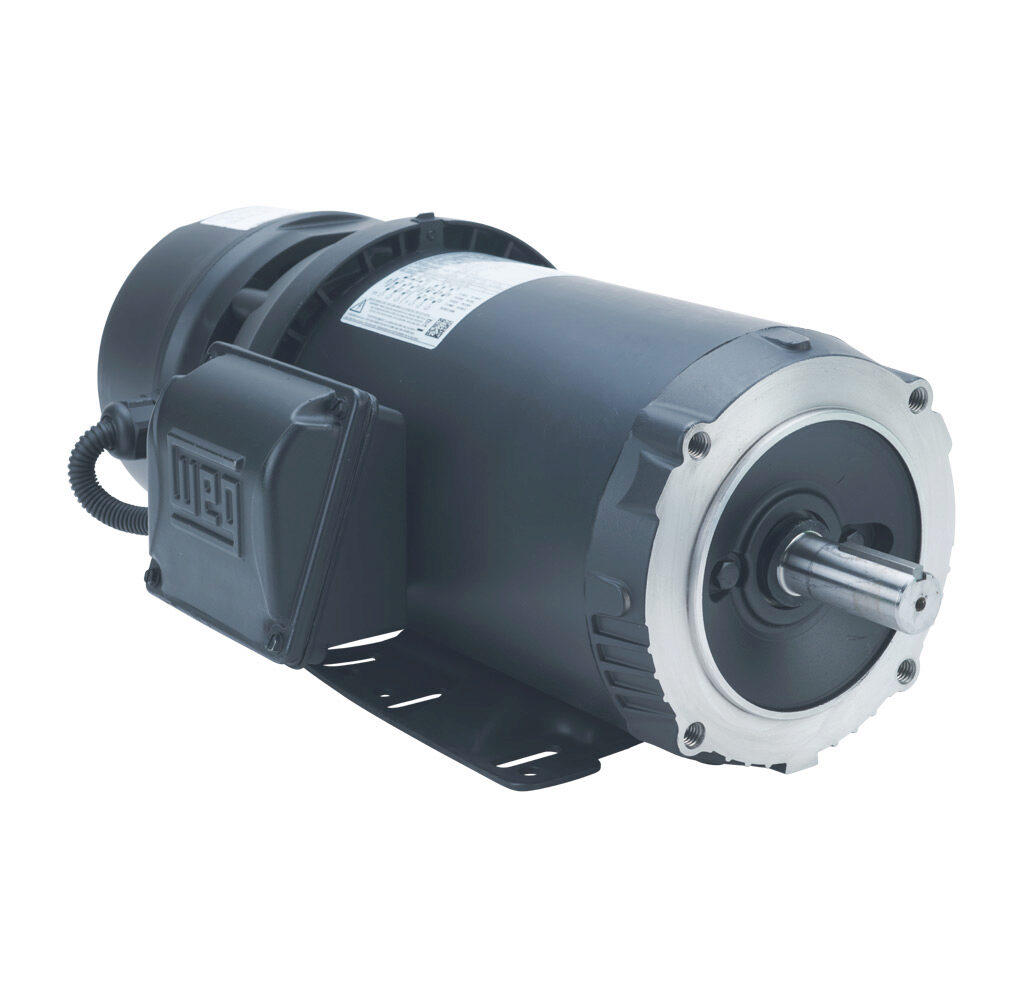

WEG 00218ET3EBM145TC-S 13590823 Brake Motor, 2 HP, 1800 RPM, 143/5TC Frame, 415 V Rated, Foot-mounted
1800 rpm
2 hp
145T
Get it by Friday, Aug 21
€3,195.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.72/5.44A , 5.44/2.72A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Brake Input Voltage | 190/208-230/380/460V , 208-230/460/190/380V AC |
| Brake Ip Rating | IP23 |
| Brake Torque Rating | 10.3 lbs.-ft. |
| Brake Voltage Rating | 208-230/460V AC |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 0 sec. , 27 sec. |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 4:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 86.5% |
| Efficiency 50% | 60% , 85.5% |
| Efficiency 75% | 87.5% |
| Efficiency @ 1 % | 80% |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 75 % | 73% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Aluminum |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 143/5TC |
| Frame Material | Rolled Steel |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 15 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Included | Stearns 105603100BQF Brake Assembly |
| Insulation Class | Class F |
| Integrated Brake | Yes |
| Ip Rating | IP55 |
| L. R. Amps | 21.8A , 22.3/44.6A , 44.6/22.3A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 0 sec. , 15 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 7.1x(Code J) , 8.2X(Code K) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Manual Brake Release | Yes |
| Material | Carbon Steel |
| Moment Of Inertia | 0.1296 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1296 lbs.-sq. ft. |
| Motor Application | General Purpose, Inverter Rated And Brake |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 143/5TC |
| Motor Speed | 1745 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 1745 RPM |
| Nde Bearing Seal | No |
| Nema Design | Design B |
| No Load Amps | 1.4/2.8A , 2.8/1.4A |
| No. Of Phase | 3 |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.8 |
| Power Factor 50% | 0.6 |
| Power Factor 75% | 0.73 |
| Power Factor @ 1 % | 86.5 |
| Power Factor @ 50 % | 85.5 |
| Power Factor @ 75 % | 87.5 |
| Product Datasheet | weg-2518es3ebmw56cfl-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 3.06% |
| Speed | 1700-1800 RPM , 1745 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 6.02 lbs.-ft. |
| Tropicalized Painting | Without |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC , 230/460/190-220/380-415V AC , 230/460V AC , 415V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 24.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 67.56 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
