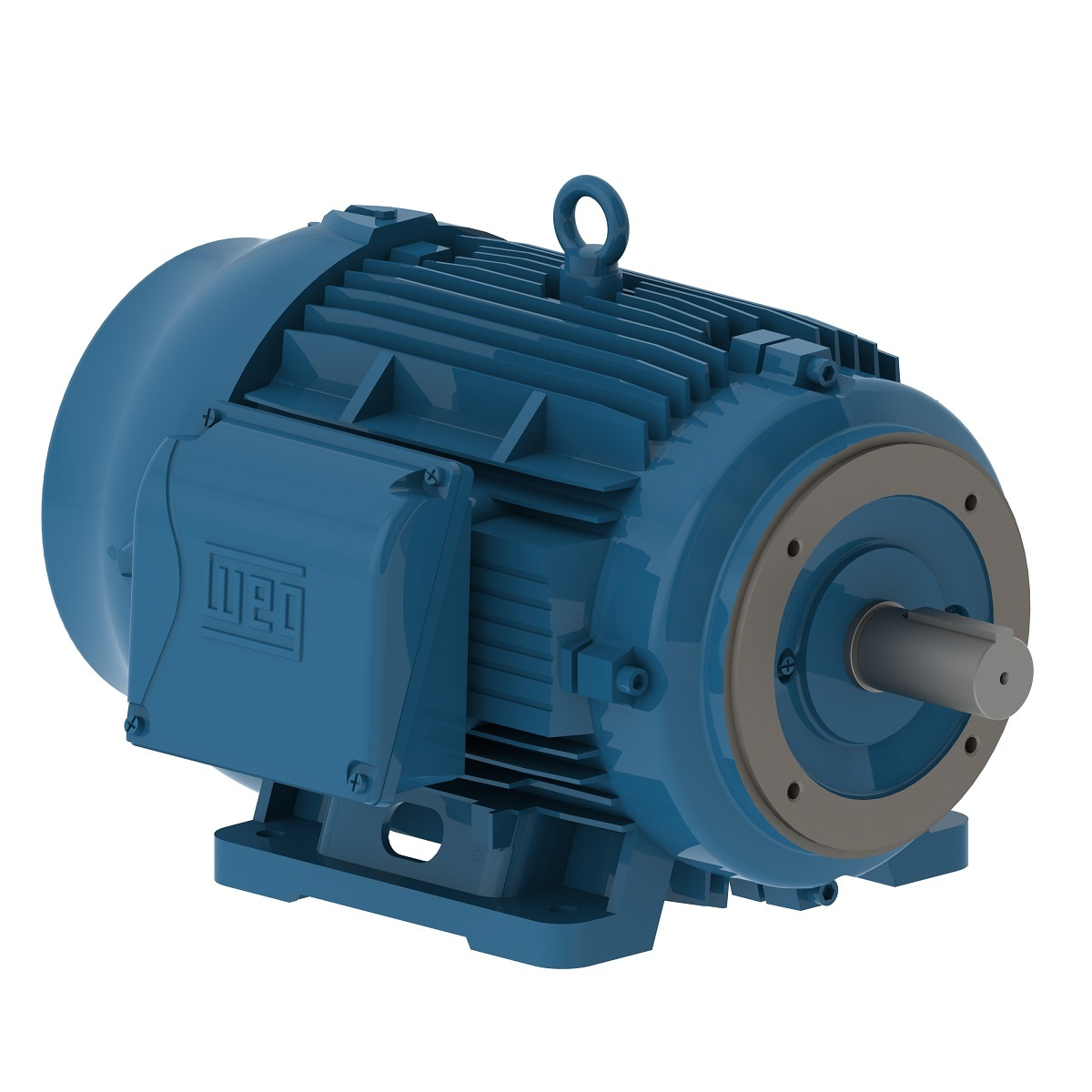

WEG 02012ET3E286TC-W22 11580967 General Purpose Motor, TEFC Cast Iron 284/6TC Frame, 20 HP, 975 RPM, 415 V

Item: EC2LPMModel: 02012ET3E286TC-W22Cross Ref: 11580967
Check Availability
In Stock

Get it by Friday, Jul 17

€4,693.46 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item AC Motor
Altitude 1000 m.a.s.l.
Ambient Temp. -20°C to +40°C
Amps 27.2A
Application General Purpose
Balancing Method 1/2 Key
Bearing Cap Yes
Body Design Material Cast Iron
Break Down Torque 240%
Cold Locked Rotor Time 21 sec.
Connection Cables Quantity 12
Ct Speed Range 20:1
De Bearing Seal V Ring
Degree Of Protection IP55
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Cont.(S1)
Efficiency 91.7%
Enclosure Iec IP55
Enclosure Nema Tefc
Enclosure Rating IC411
Enclosure Type Totally Enclosed Fan Cooled
Fan Cover Material Cast Iron
Fan Material Plastic
Flange C
Frame 286TC
Frame Material Cast Iron
Frame Size Nema NEMA 284/6tc
Frequency 50/60 Hz
Grade Grade 1010/20
Grounding Lugs Type Single
Hp 20 hp
Impregnation Method Dip And Bake Polyester
Insulation Class F
Inverter Rating Inverter Duty
L. R. Amps 158A
Locked Rotor Time(hot) 12 sec.
Locked Rotor Torque 210%
Lrc 5.8x(Code G)
Main Terminal Box Hole 1 1/2"
Main Terminal Box Hole Type NPT
Material Carbon Steel
Moment Of Inertia 9.16 lbs.-sq. ft.
Mount Arrangement F1/F2 Capable
Mounting Foot-Mounted, F-1
Nde Bearing Seal V Ring
No Load Amps 10.6A
No. Of Poles 6
Noise Level 56 dBA
Output Rating 15 kW
Output Speed 1175 RPM
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Product Datasheet weg-02012et3e286tc-w22.pdf
Rated Speed 975 RPM
Rated Torque 108 lbs.-ft.
Regreasing System At Drive End And Non-Drive End
Rotation CW And CCW
Service Factor 1.15 , 1.25
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Slip 2.5%
Speed 1200 RPM
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Code 200°C
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/380V , 415V
Vt Speed Range 1000:1
Xp Atex Zone Iic

Shipping Info:

Ship weight (kg) 201.15
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyService FactorHpMotor Enclosure DesignFull Load AmpsMounting TypeMotor TypePrice
WEG 00112ET3E145T-W22 Motor, 3 Phase, 1 Hp, 1150 208-230/460V, Eff 82.5 | AE7TTU 6AHZ6 00112ET3E145T-W22230/460/380V60 Hz1.251"Totally Enclosed Fan Cooled3.5/1.7ARigid BaseThree Phase€758.54
WEG 00152ET3E182T-W22 Motor, 3 Phase, 1.5Hp, 1165 208-230/460V, Eff 87.5 | AE7TTW 6AHZ8 00152ET3E182T-W22230/460/380V60 Hz1.251 1/2 hp-5.08/2.54ARigid BaseThree Phase€914.23
WEG 00212ET3E184T-W22 Motor, 3 Phase, 2 Hp, 1165 208-230/460V, Eff 88.5 | AE7TUX 6AJA3 00212ET3E184T-W22230/460/380V60 Hz1.252 hpTotally Enclosed Fan Cooled6.44/3.22ARigid BaseThree Phase€988.08
WEG 00312ET3E213T-W22 Motor, 3 Phase, 3 Hp, 1170 208-230/460V, Eff 89.5 | AE7TVB 6AJA7 00312ET3E213T-W22230/460/380V60 Hz1.253 hpTotally Enclosed Fan Cooled8.8/4.4ARigid BaseThree Phase€1,525.74
WEG 00512ET3E215T-W22 Motor, 3 Phase, 5 Hp, 1160 208-230/460V, Eff 89.5 | AE7TVF 6AJC1 00512ET3E215T-W22230/460/380V60 Hz1.255 hpTotally Enclosed Fan Cooled13.7/6.83ARigid BaseThree Phase€1,801.89
WEG 00712ET3E254T-W22 Motor, 3 Phase, 7.5 Hp, 1175 208-230/460V, Efficiency 91.0 | AE7TVJ 6AJC4 00712ET3E254T-W22230/460/380V60 Hz1.257 1/2 hpTotally Enclosed Fan Cooled19/9.48ARigid BaseThree Phase€2,634.64
WEG 01012ET3E256T-W22 Motor, 3 Phase, 10 Hp, 1175 208-230/460V, Eff 91.0 | AE7TVM 6AJC7 01012ET3E256T-W22230/460/380V60 Hz1.2510 hpTotally Enclosed Fan Cooled26.6/13.3ARigid BaseThree Phase€3,044.25
