WEG 00152ET3EBM182T-W22 Electric Motor, 1.5Hp, 60Hz, 1200 Rpm | BB9DXY

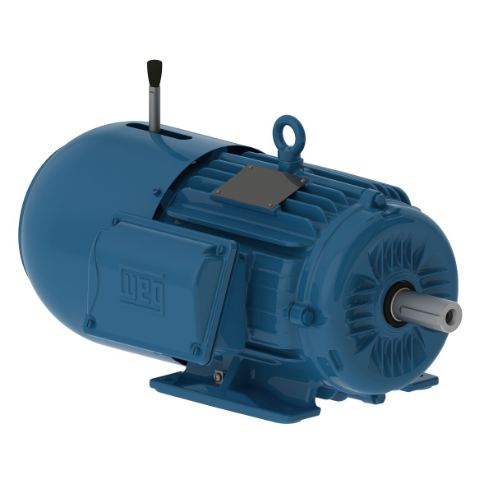

WEG 00152ET3EBM182T-W22 13473877 Brake Motor, 1.5 HP, 1200 RPM, 182/4T Frame, 230/460 V Rated

Item: BB9DXYModel: 00152ET3EBM182T-W22Cross Ref: 13473877
Check Availability
In Stock

Get it by Friday, Feb 20

€2,633.60 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Bearing Cap No
Brake Input Voltage 220-240V AC
Braking Torque 60 N-m
Break-down Torque 400%
Cold Locked Rotor Time 28 sec.
Composition Cast Iron
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency At 1 % 62%
Efficiency At 50 % 45%
Efficiency At 75 % 54%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 182/4T
Frame Material Cast Iron
Frame Size 182T
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 16 sec.
Hp 1 1/2 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 39.6/19.8A
Locked Rotor Torque 320%
Lrc 7.8X(Code M)
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.4879 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1170 RPM
Mounting Foot Mounted
No Load Amps 3.25/1.63A
No. Of Poles 6
Noise Level 52 dBA
Output 1 1/2 hp
Output Rating 1 1/2 hp
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 3
Power Factor At 1 % 87.5
Power Factor At 50 % 84
Power Factor At 75 % 86.5
Product Datasheet weg-00152et3ebm182t-w22.pdf
Rated Current 5.08/2.54A
Rated Torque 6.73 lbs.-ft.
Rated Voltage 230/460V AC
Rotation Clockwise/Counter Clockwise
Rpm 1100-1200 RPM
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460V

Shipping Info:

Ship weight (kg) 52.65
Ship height (cm)25.4
Ship length (cm)50.8
Ship width (cm)25.4
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageService FactorFrequencyMotor Enclosure DesignHpFull Load AmpsNameplate RpmMotor TypePrice
WEG 00112ET3E145T-W22 Motor, 3 Phase, 1 Hp, 1150 208-230/460V, Eff 82.5 | AE7TTU 6AHZ6 00112ET3E145T-W22230/460/380V1.2560 HzTotally Enclosed Fan Cooled1"3.5/1.7A1160 RPMThree Phase€758.54
WEG 00152ET3E182T-W22 Motor, 3 Phase, 1.5Hp, 1165 208-230/460V, Eff 87.5 | AE7TTW 6AHZ8 00152ET3E182T-W22230/460/380V1.2560 Hz-1 1/2 hp5.08/2.54A1170 RPMThree Phase€914.23
WEG 00212ET3E184T-W22 Motor, 3 Phase, 2 Hp, 1165 208-230/460V, Eff 88.5 | AE7TUX 6AJA3 00212ET3E184T-W22230/460/380V1.2560 HzTotally Enclosed Fan Cooled2 hp6.44/3.22A1170 RPMThree Phase€988.08
WEG 00312ET3E213T-W22 Motor, 3 Phase, 3 Hp, 1170 208-230/460V, Eff 89.5 | AE7TVB 6AJA7 00312ET3E213T-W22230/460/380V1.2560 HzTotally Enclosed Fan Cooled3 hp8.8/4.4A1175 RPMThree Phase€1,525.74
WEG 00512ET3E215T-W22 Motor, 3 Phase, 5 Hp, 1160 208-230/460V, Eff 89.5 | AE7TVF 6AJC1 00512ET3E215T-W22230/460/380V1.2560 HzTotally Enclosed Fan Cooled5 hp13.7/6.83A1170 RPMThree Phase€1,801.89
WEG 00712ET3E254T-W22 Motor, 3 Phase, 7.5 Hp, 1175 208-230/460V, Efficiency 91.0 | AE7TVJ 6AJC4 00712ET3E254T-W22230/460/380V1.2560 HzTotally Enclosed Fan Cooled7 1/2 hp19/9.48A1175 RPMThree Phase€2,634.64
WEG 01012ET3E256T-W22 Motor, 3 Phase, 10 Hp, 1175 208-230/460V, Eff 91.0 | AE7TVM 6AJC7 01012ET3E256T-W22230/460/380V1.2560 HzTotally Enclosed Fan Cooled10 hp26.6/13.3A1175 RPMThree Phase€3,044.25
