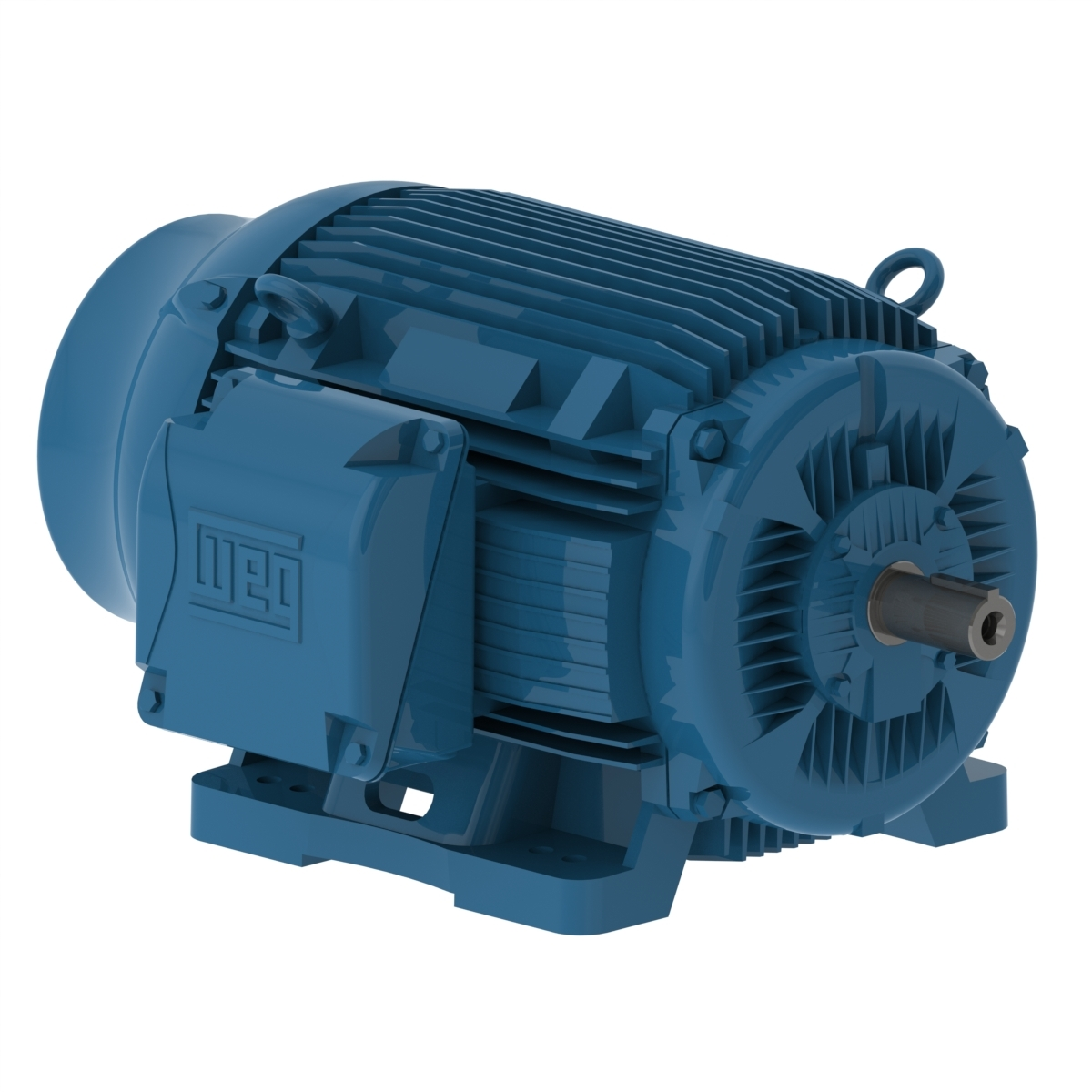

WEG 03009ET3E364T-W22 11355724 General Purpose Motor, TEFC Cast Iron 364/5T Frame, 30 HP, 730 RPM, 415 V
900 rpm
30 hp
365T
Get it by Tuesday, Sep 1
€12,847.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 32 sec. |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 91.7% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Frame Material | Cast Iron |
| Frame Size | 364/5T |
| Frequency | 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Insulation Class | Class F |
| Item | 2229709 |
| L. R. Amps | 249A |
| Locked Rotor Time(hot) | 18 sec. |
| Lrc | 5.9x(Code G) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | Yes |
| No. Of Poles | 8 |
| Output Rating | 22 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-03009et3e364t-w22.pdf |
| Rated Torque | 216 lbs.-ft. |
| Rotation | CW, CCW |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Speed | 880 RPM |
| Starting Method | Direct On Line |
| Tropicalized Painting | Without |
| Voltage | 415V |
Shipping Info:
| Ship weight (kg) | 348.3 |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00109ET3E182T-W22 | 415V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 182T | 104°F | €1,106.24 | |
 |
00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 182/4T | 104°F | €1,282.62 | |
|
00209ET3E213T-W22 | 415V | 50/60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 213T | 104°F | €2,102.66 | |
|
00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 215T | 104°F | €2,583.09 | |
 |
00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 254T | 104°F | €3,747.26 | |
 |
01509ES3EOW324T-W22 | 208-230/460V | 60 Hz | - | 1 | 15 hp | 19.5/38.9-43A | 324T | -20°C to +40°C | - | RFQ
|
|
01009ES3EOW286T-W22 | 208-230/460V | 60 Hz | - | 1 | 10 hp | 13.9/27.8-30.7A | 286T | -20°C to +40°C | - | RFQ
|
