WEG 01009ET3E284T-W22 Electric Motor, 10Hp, 60Hz, 880 Rpm | BB6WQK

WEG 01009ET3E284T-W22 12446748 General Purpose Motor, TEFC Cast Iron 284/6T Frame, 10 HP, 730 RPM, 415 V

Item: BB6WQKModel: 01009ET3E284T-W22Cross Ref: 12446748
Check Availability
In Stock

Get it by Thursday, Feb 19

€5,308.58 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Break-down Torque 240%
Cold Locked Rotor Time 57 sec.
Composition Cast Iron
Connection Cables Quantity 12
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency At 1 % 78%
Efficiency At 50 % 61%
Efficiency At 75 % 72%
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Type Without
Frame 284/6T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 32 sec.
Hp 10 hp
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 150/75A
Locked Rotor Torque 200%
Lrc 5.6X(Code G)
Main Terminal Box Hole Size 1 1/2"
Main Terminal Box Hole Type NPT
Moment Of Inertia 7.2 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 880 RPM
Mounting Foot Mounted
No Load Amps 13/6.5A
No. Of Poles 8
Noise Level 54 dBA
Output 10 hp
Output Rating 10 hp
Overload Protector Without Overload Protector
Painting RAL5009 203A (ISO 12944-C2)
Phase 3
Power Factor At 1 % 90.2
Power Factor At 50 % 89.5
Power Factor At 75 % 90.2
Product Datasheet weg-01009et3e284t-w22.pdf
Rated Current 26.8/13.4A
Rated Torque 59.7 lbs.-ft.
Rated Voltage 230/460V AC
Regreasing System At Drive End And Non Drive End
Rotation CW/CCW
Rpm 880 RPM
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.22%
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/380V AC

Shipping Info:

Ship weight (kg) 167.85
Ship height (cm)77.98
Ship length (cm)115.06
Ship width (cm)85.09
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyMotor Enclosure DesignService FactorHpFull Load AmpsNameplate RpmRpmPrice

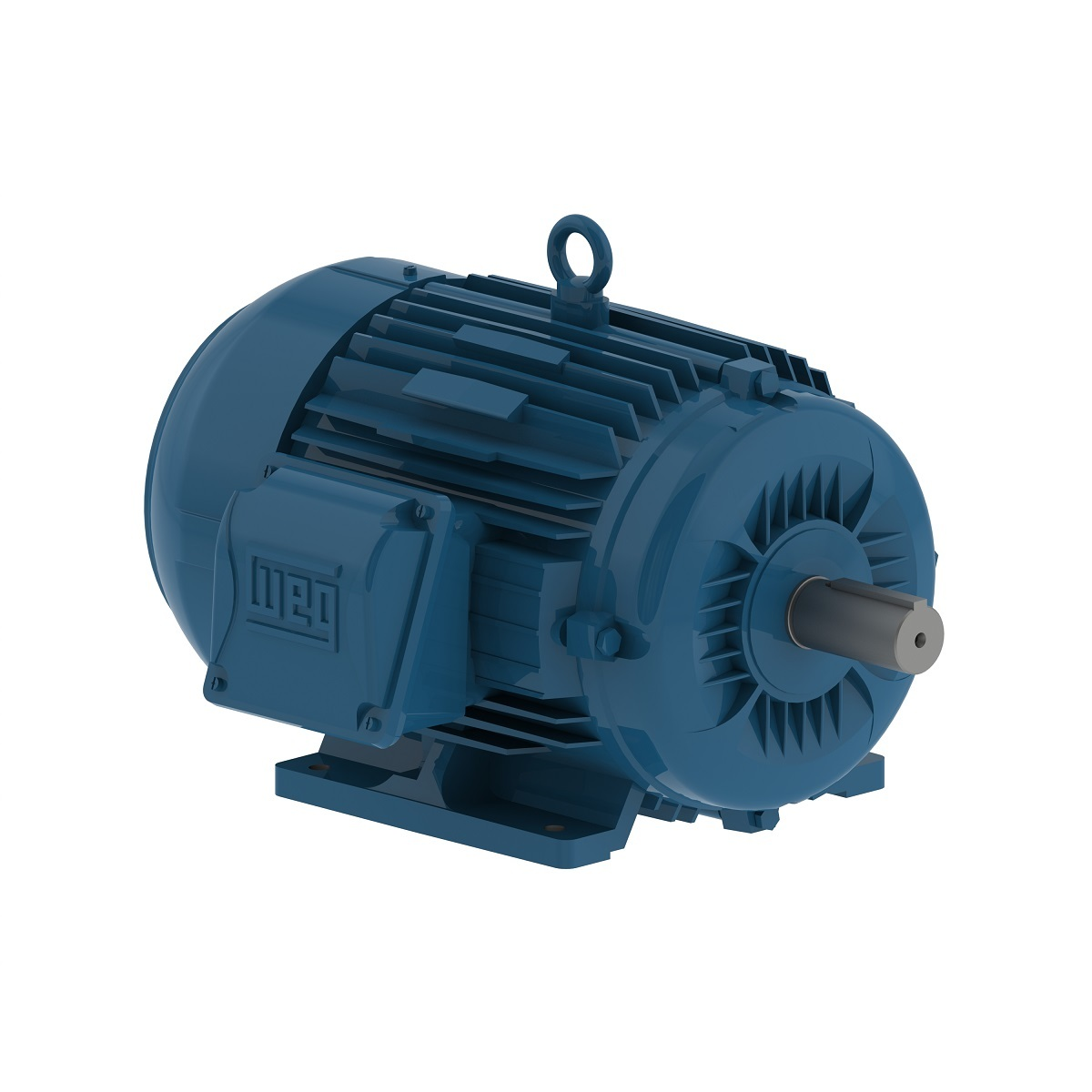

WEG 00109ET3E182T-W22 Motor, 3 Phase, 1 Hp, 875 208-230/460V, Eff 78.5 | AE7TTT 6AHZ5 00109ET3E182T-W22230/460/380V60 HzTotally Enclosed Fan Cooled1.251 hp4.6/2.3A875 RPM875 RPM€1,106.24
WEG 00159ET3E184T-W22 Motor, 3 Phase, 1.5 Hp, 860 208-230/460V, Eff 82.5 | AE7TUV 6AJA1 00159ET3E184T-W22230/460/380V60 HzTotally Enclosed Fan Cooled1.251 1/2 hp5.4/2.7A865 RPM860 RPM€1,282.62
WEG 00209ET3E213T-W22 Motor, 3 Phase, 2 Hp, 870 208-230/460V, Eff 85.5 | AE7TUW 6AJA2 00209ET3E213T-W22230/460/380V60 HzTotally Enclosed Fan Cooled1.252 hp6.8/3.4A875 RPM870 RPM€2,102.66
WEG 00309ET3E215T-W22 Motor, 3 Phase, 3 Hp, 865 208-230/460V, Eff 85.5 | AE7TVA 6AJA6 00309ET3E215T-W22230/460V AC60 HzTotally Enclosed Fan Cooled1.253 hp9.1/4.55A870 RPM865 RPM€2,583.09
WEG 00509ET3E254T-W22 Motor, 3 Phase, 5 Hp, 880 208-230/460V, Eff 87.5 | AE7TVE 6AJC0 00509ET3E254T-W22208-230/460V60 HzTotally Enclosed Fan Cooled15 hp15.2/7.6A882 RPM880 RPM€3,747.26
WEG 01509ES3EOW324T Electric Motor, 15Hp, 60Hz, 850 Rpm | BB3FWZ 01509ES3EOW324T-W22208-230/460V60 Hz-115 hp19.5/38.9-43A-850 RPM-
RFQ
WEG 01009ES3EOW286T Electric Motor, 10Hp, 60Hz, 830 Rpm | BB4JWP 01009ES3EOW286T-W22208-230/460V--110 hp13.9/27.8-30.7A-830 RPM-
RFQ
