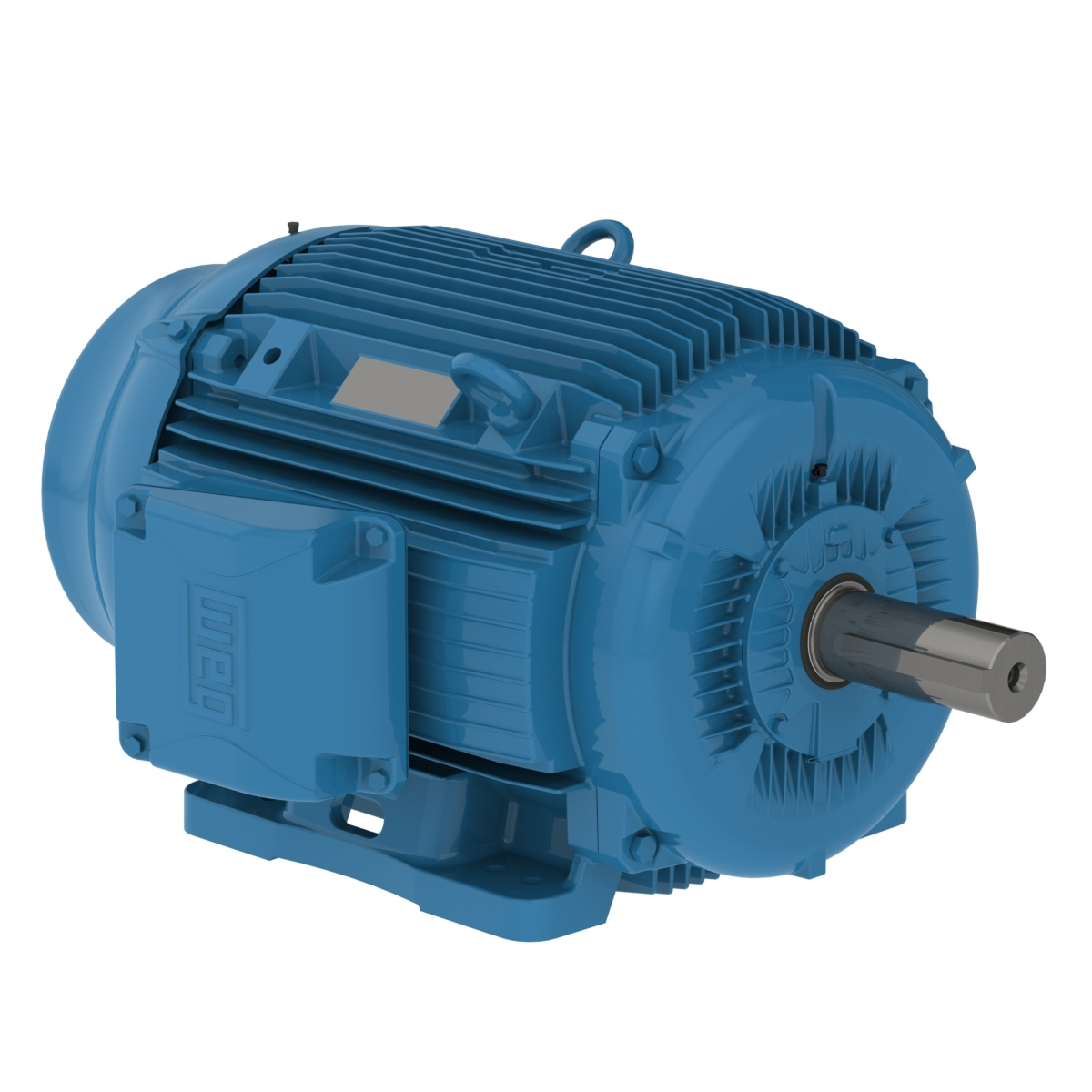

WEG 07509ET3GKD444T-W22 Electric Motor, 75Hp, 60Hz, 900 Rpm | BB9QEQ

WEG 07509ET3GKD444T-W22 13503282 Electric Motor, 75Hp, 60Hz, 900 Rpm

Item: BB9QEQModel: 07509ET3GKD444T-W22Cross Ref: 13503282
Check Availability
In Stock

Get it by Wednesday, Aug 26

€24,750.70 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 93A
Balancing Method 1/2" Key
Bearing Cap Yes
Cable Press Material Sem
Cold Locked Rotor Time 32 sec.
Connection Cables Quantity 12
Design A
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 64% , 93%
Efficiency 75% 93.6%
Efficiency @ 1 % 79%
Efficiency @ 100% 93.6%
Efficiency @ 75 % 74%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Without
Flange Type Without
Frame 444/5T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Double
Hot Locked Rotor Time 18 sec.
Impregnation Method Constant Resin Flow
Insulation Class Class F
Locked Rotor Time (cold) 32 sec.
Locked Rotor Time(hot) 18 sec.
Locked Rotor Torque 180%
Lrc 6.0X(Code G)
Main Terminal Box Hole 2"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 73.6 lbs.-sq. ft.
Moment Of Inertia (j) 73.6 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 890 RPM
Mounting F-1 , Foot Mounted
No Load Amps 40A
No. Of Holes 2
No. Of Pins 21
No. Of Poles 8
Noise Level 63 dBA
Output 75 hp
Output Rating 75 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 203A (ISO 12944-C2)
Phase 3
Power Factor 100% 0.79
Power Factor 50% 0.64
Power Factor 75% 0.74
Power Factor @ 1 % 93.6
Power Factor @ 50 % 93
Power Factor @ 75 % 93.6
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Carbon Steel
Shaft Locking Device With
Shaft Material Carbon Steel
Shaft Material Grade Grade 4140
Slip 1.11%
Speed 890 RPM , 900 RPM
Starting Method Direct On Line
Synchronous Speed 900 RPM
Temp. Rise 80 K
Terminal Block BMC
Terminal Box Left Position
Terminal Type BMC
Torque 443 lbs.-ft.
Tropicalized Painting Without

Shipping Info:

Ship weight (kg) 964.35
Ship height (cm)25.4
Ship length (cm)50.8
Ship width (cm)25.4
Country of OriginUS

Product Variants

ProductModelVoltageFrequencyMotor Enclosure DesignService FactorHpFull Load AmpsFrameDuty CyclePrice
WEG 00109ET3E182T-W22 Motor, 3 Phase, 1 Hp, 875 208-230/460V, Eff 78.5 | AE7TTT 6AHZ5 00109ET3E182T-W22230/460/380V60 HzTotally Enclosed Fan Cooled1.251 hp4.6/2.3A182TS1€1,106.24
WEG 00159ET3E184T-W22 Motor, 3 Phase, 1.5 Hp, 860 208-230/460V, Eff 82.5 | AE7TUV 6AJA1 00159ET3E184T-W22230/460/380V60 HzTotally Enclosed Fan Cooled1.251 1/2 hp5.4/2.7A182/4TS1€1,282.62
WEG 00209ET3E213T-W22 Motor, 3 Phase, 2 Hp, 870 208-230/460V, Eff 85.5 | AE7TUW 6AJA2 00209ET3E213T-W22230/460/380V60 HzTotally Enclosed Fan Cooled1.252 hp6.8/3.4A213TS1€2,102.66
WEG 00309ET3E215T-W22 Motor, 3 Phase, 3 Hp, 865 208-230/460V, Eff 85.5 | AE7TVA 6AJA6 00309ET3E215T-W22230/460V AC60 HzTotally Enclosed Fan Cooled1.253 hp9.1/4.55A215TS1€2,583.09
WEG 00509ET3E254T-W22 Motor, 3 Phase, 5 Hp, 880 208-230/460V, Eff 87.5 | AE7TVE 6AJC0 00509ET3E254T-W22208-230/460V60 HzTotally Enclosed Fan Cooled15 hp15.2/7.6A254TContinuous€3,747.26
WEG 01509ES3EOW324T Electric Motor, 15Hp, 60Hz, 850 Rpm | BB3FWZ 01509ES3EOW324T-W22208-230/460V60 HzTotally Enclosed Fan Cooled115 hp43-38.9/19.5A324TContinuous-
