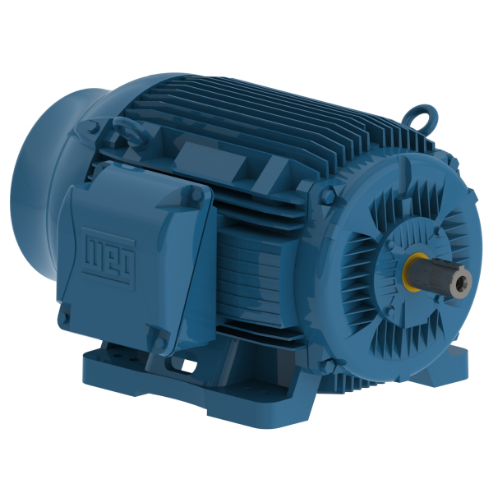

WEG 10009ST3HIE445T-W22 12912584 Severe Duty Motor, 100 HP, 8 Poles, 444/5T Frame, 3 Phase, 575 V, 60 Hz, IC411-TEFC, Foot Mounted
900 rpm
100 hp
445T
Get it by Tuesday, Jul 14
€28,273.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 102A |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 220% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 3 |
| De Bearing Seal | Inpro, Seal |
| Degree Of Protection | IP56 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 63% |
| Efficiency @ 1 % | 79% |
| Efficiency @ 75 % | 74% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic , Plastic |
| Flange | Without |
| Flange Type | Without |
| Foot Flatness | (0.005 Pol) 0.127 mm |
| Frame | 444/5T |
| Frame Material | Cast Iron |
| Frame Size | 445T |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 100 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| Joints Seal | Molykote |
| L. R. Amps | 610A |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 190% |
| Lrc | 6.0X(Code G) , 6x(Code G) |
| Main Terminal Box Hole | 2 x NPT 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 87.3 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 890 RPM |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | Inpro, Seal |
| No Load Amps | 44.8A |
| No. Of Holes | 2 |
| No. Of Poles | 8 |
| Noise Level | 63 dBA |
| Output | 100 hp |
| Output Rating | 100 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 202E (ISO 12944-C4) |
| Phase | 3 |
| Power Factor @ 1 % | 94.1 |
| Power Factor @ 50 % | 93.6 |
| Power Factor @ 75 % | 94.1 |
| Regreasing System | Extended In Stainless Steel, At Drive End And Non-Drive End , Stainless Steel, At Drive End And Non Drive End |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 4140 Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 1.11% |
| Speed | 900 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 590 lbs.-ft. |
| Tropicalized Painting | According To Ieee-841 (96H) |
| Voltage | 575V , 575V AC |
Shipping Info:
| Ship weight (kg) | 820.8 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00109ET3E182T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 182T | S1 | €1,106.24 | |
 |
00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 182/4T | S1 | €1,282.62 | |
|
00209ET3E213T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 213T | S1 | €2,102.66 | |
|
00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 215T | S1 | €2,583.09 | |
 |
00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 254T | Continuous | €3,747.26 | |
 |
01509ES3EOW324T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 15 hp | 43-38.9/19.5A | 324T | Continuous | - | RFQ
|
|
01009ES3EOW286T-W22 | 208-230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1 | 10 hp | 30.7-27.8/13.9A | 286T | S1 | - | RFQ
|
