WEG 02018ET3H256TC-S Electric Motor, 20Hp, 60Hz, 1800 Rpm | BB9DFR

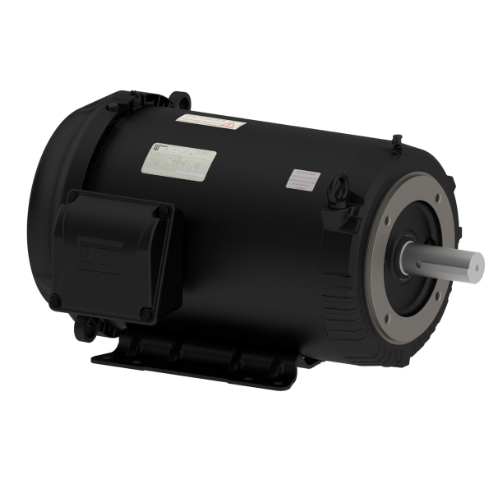

WEG 02018ET3H256TC-S 12845573 General Purpose Motor, TEAO/TEFC RolLED Steel 254/6TC Frame, 20 HP, 1765 RPM, 575 V

Item: BB9DFRModel: 02018ET3H256TC-SCross Ref: 12845573
Check Availability
In Stock

Get it by Monday, Jul 13

€2,286.61 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 19.8A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 300%
Cold Locked Rotor Time 28 sec.
Composition Steel
Connection Cables Quantity 6
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 50% 66%
Efficiency @ 1 % 82%
Efficiency @ 75 % 77%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 254/6TC
Frame Material Rolled Steel
Frame Size 256TC
Frequency 60 Hz
Grounding Lugs Superior
Hot Locked Rotor Time 16 sec.
Hp 20 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 132A
Locked Rotor Torque 270%
Lrc 6.7X(Code H)
Main Terminal Box Hole Size 1.732"
Moment Of Inertia 2.64 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1765 RPM
Mounting Foot Mounted
No Load Amps 8.89A
No. Of Poles 4
Noise Level 68 dBA
Output 20 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor @ 1 % 93
Power Factor @ 50 % 91.7
Power Factor @ 75 % 92.4
Product Datasheet weg-02018et3h256tc-s.pdf
Regreasing System At Drive End And Non Drive End
Resilient Base Without
Rotation CW, CCW
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.94%
Speed 1700-1800 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 59.5 lbs.-ft.
Tropicalized Painting Without
Voltage 575V , 575V AC

Shipping Info:

Ship weight (kg) 125.55
Ship height (cm)48.26
Ship length (cm)48.26
Ship width (cm)45.72
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelFrequencyService FactorHpMotor Enclosure DesignFull Load AmpsMotor TypeMounting TypeFramePrice
