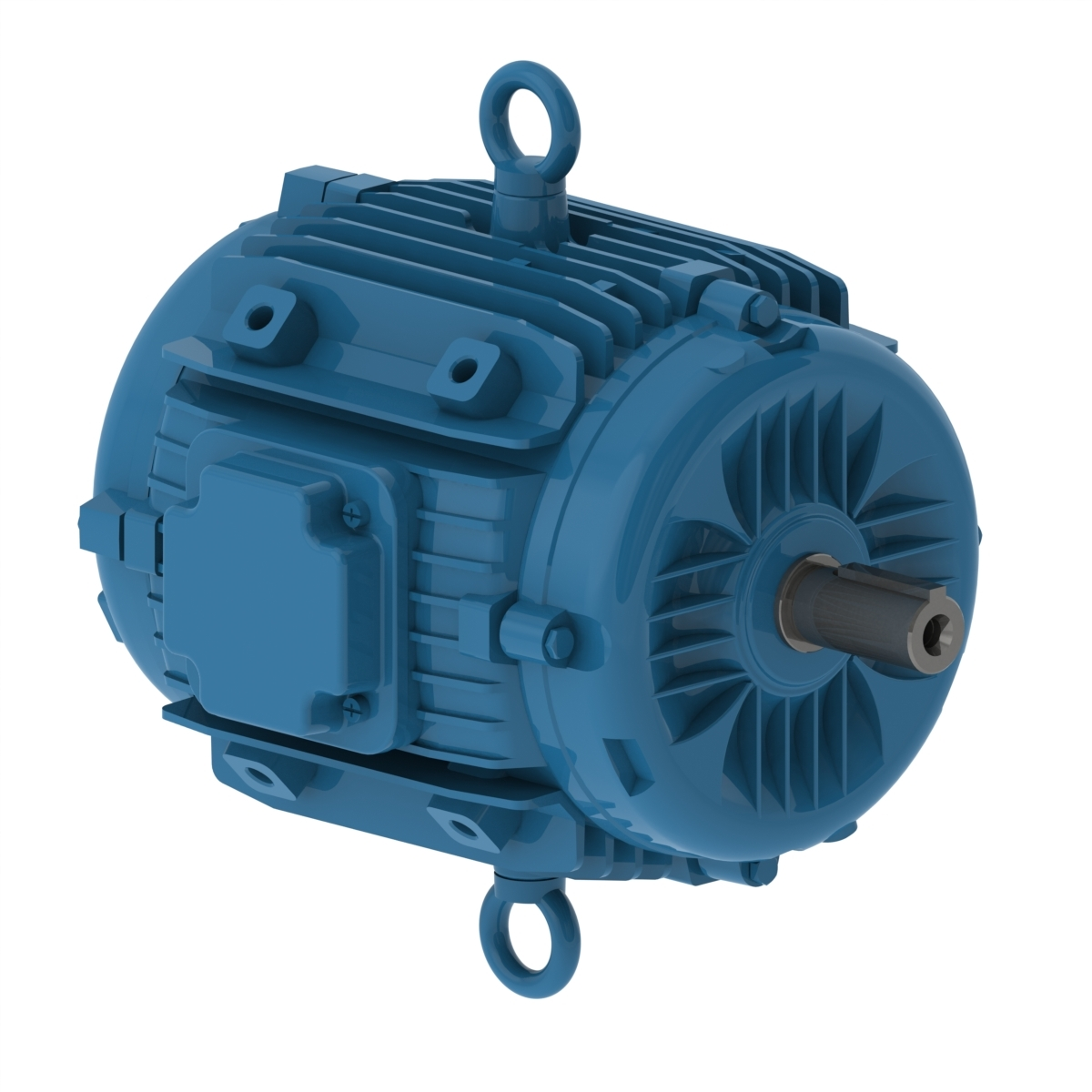

WEG 00536ET3EPM182/4Y-W2 13607442 Air Handling Motor, Pad Mount, 5 HP, 3.7 kW, 3600 RPM, 184YZ Frame, 208-230/460 V
3600 rpm
5 hp
184Y
Get it by Wednesday, Apr 8
€1,175.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Breakdown Torque | 350% |
| Cable Press Material | Sem |
| Composition | Cast Iron |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 88.5% |
| Efficiency @ 50% | 86.5% |
| Efficiency @ 75% | 88.5% |
| Enclosure | IC418 |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 184YZ |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hp | 5 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L.r. Amperes | 44.8/89.7-99.6A |
| Locked Rotor Time (cold) | 45 sec. |
| Locked Rotor Time (hot) | 25 sec. |
| Locked Rotor Torque | 229% |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Type | NPT |
| Moment Of Inertia (j) | 0.2231 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Mounting | F-1 , Pad Mounted |
| No Load Amps | 0-4.4/2.2A |
| No. Of Poles | 2 |
| Output Rating | 5 hp |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.76 |
| Power Factor 75% | 0.85 |
| Power Factor_100% | 0.89 |
| Rated Current | 5.9/11.8-13.1A |
| Rated Speed | 3500 RPM |
| Rated Torque | 7.5 lbs.-ft. |
| Rated Voltage | 208-230/460V |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.78% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 50.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Service Factor | Hp | Frequency | Motor Enclosure Design | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 380-415/460V | 1.25 | 25 hp | 50 Hz | Totally Enclosed Fan Cooled | 29.9A | 3550 RPM | - | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 380-415/460V | 1.25 | 50 hp | 60 Hz | Totally Enclosed Fan Cooled | 59.8A | 3570 RPM | - | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 1.25 | 75 hp | 50/60 Hz | Totally Enclosed Fan Cooled | 80.3A | 3600 RPM | - | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 1.25 | 1 1/2 hp | 60 Hz | Totally Enclosed Fan Cooled | 1.57A | 3480 RPM | Three Phase | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 1.25 | 2 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.05A | 3475 RPM | Three Phase | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 1 | 3 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.9A | 3515 RPM | Three Phase | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 1.25 | 5 hp | 60 Hz | Totally Enclosed Fan Cooled | 4.72A | 3485 RPM | Three Phase | €1,251.50 |
