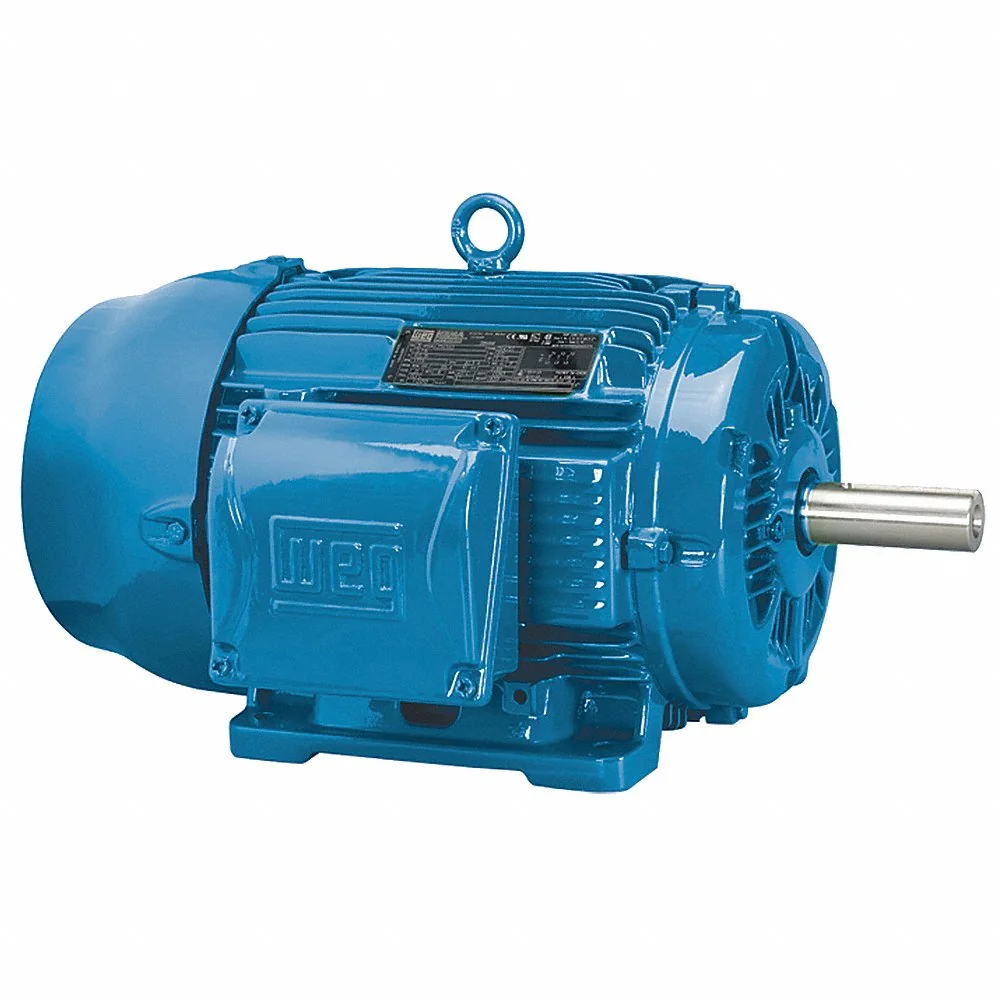

WEG 00159ET3H184T-W22 12744550 General Purpose Motor, TEFC Cast Iron 182/4T Frame, 1.5 HP, 870 RPM, 575 V
900 rpm
1.5 hp
184T
Get it by Tuesday, Aug 25
€1,440.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.16A , 2.47A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | No |
| Break Down Torque | 300% , 340% |
| Cold Locked Rotor Time | 30 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 43% , 72.5% |
| Efficiency 75% | 78% |
| Efficiency @ 1 % | 62% |
| Efficiency @ 100% | 78.5% |
| Efficiency @ 75 % | 54% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 17 sec. |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 12.7A , 14.8A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Time(hot) | 17 sec. |
| Locked Rotor Torque | 280% , 290% |
| Lrc | 5.9X(Code K) , 6x(Code L) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.5766 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.5766 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 865 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | V Ring |
| No Load Amps | 1.6A , 2.08A |
| No. Of Poles | 8 |
| Noise Level | 50 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.57 |
| Power Factor 50% | 0.36 |
| Power Factor 75% | 0.47 |
| Power Factor @ 1 % | 82.5 |
| Power Factor @ 50 % | 80 |
| Power Factor @ 75 % | 82.5 |
| Product Datasheet | weg-00159et3h184t-w22.pdf |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% , 3.89% |
| Speed | 870 RPM , 900 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 9.05 lbs.-ft. , 9.11 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 575V , 575V AC |
Shipping Info:
| Ship weight (kg) | 45.9 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 115.06 |
| Ship width (cm) | 85.09 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
00109ET3E182T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 182T | S1 | €1,106.24 | |
 |
00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 182/4T | S1 | €1,282.62 | |
|
00209ET3E213T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 213T | S1 | €2,102.66 | |
|
00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 215T | S1 | €2,583.09 | |
 |
00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 254T | Continuous | €3,747.26 | |
 |
01509ES3EOW324T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 15 hp | 43-38.9/19.5A | 324T | Continuous | - | RFQ
|
|
01009ES3EOW286T-W22 | 208-230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1 | 10 hp | 30.7-27.8/13.9A | 286T | S1 | - | RFQ
|
