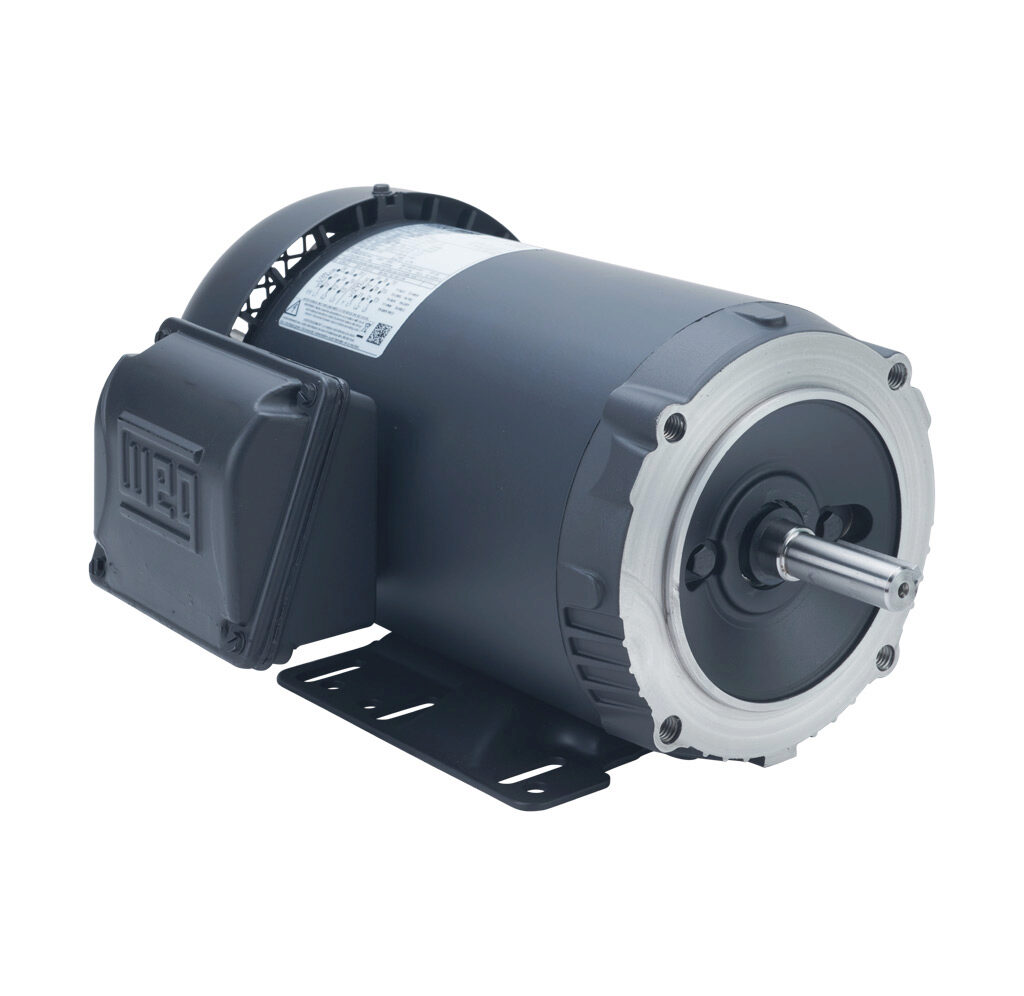

WEG 00112ET3E56C-S Electric Motor, 1Hp, 60Hz, 1200 Rpm | BB9GKW

WEG 00112ET3E56C-S 14797781 Fractional Motor, 1 HP, 1200 RPM, 208-230/460 V, 3 Phase, TEFC, 56C Frame, Footed

Item: BB9GKWModel: 00112ET3E56C-SCross Ref: 52XR27 / 14797781
Check Availability
In Stock

Get it by Tuesday, Jul 7

€687.89
5.00% off
€653.50 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 3.16/1.58A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 280%
Cc Number CC029A
Cold Locked Rotor Time 55 sec.
Composition Steel
Connection Cables Quantity 9
Constant Torque Rating 5:1
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 82.5%
Efficiency 50% 50%
Efficiency @ 1 % 72%
Efficiency @ 75 % 63%
Efficiency Group Premium Efficiency
Electrically Reversible Yes
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 56HC
Frame Material Rolled Steel
Frame Size 56C
Frequency 50/60 Hz , 60 Hz
Full Load Amps 3.16/1.58A
Full Load Amps @ 50 Hz 3.41/1.81/3.74/1.87A
Grade Grade 1045
Grounding Lugs Single
Hot Locked Rotor Time 31 sec.
Hp 1 hp
Hp @ 50 Hz 1 hp
Impregnation Method Dip And Bake Polyester
Included Conduit Box
Ins. Class Class F
Insulation Class Class F
Integrated Brake No
Inverter Rated Yes
Ip Rating IP55
L. R. Amps 18.3/9.16A
Length Less Shaft 11 5/8"
Locked Rotor Torque 229%
Lrc 5.8X(Code J)
Main Terminal Box Hole Size 0.881"
Max. Ambient Temp. 40°C
Moment Of Inertia 0.1597 lbs.-sq. ft.
Motor Application General Purpose And Inverter Rated
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame 56HC
Motor Frame Material Steel
Motor Mounting Position All Angle
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation CW, CCW
Motor Speed 1145 RPM
Motor Type Induction
Mounting C-Face/Rigid Base , Foot Mounted
Mounting Orientation Horizontal, Vertical
Nameplate Speed 1145 RPM
Nema Design Design B
No Load Amps 2.03/1.01A
No. Of Phase 3
No. Of Poles 6
No. Of Speeds 1
Noise Level 50 dBA
Nominal Efficiency 82.5%
Output 1 hp
Output Rating 1 hp
Overall Length 13 1/2"
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor @ 1 % 82.5
Power Factor @ 50 % 80
Power Factor @ 75 % 82.5
Product Datasheet weg-00112et3e56c-s.pdf
Resilient Base Without
Rotation CW, CCW
Series S Series
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 7/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Shaft Type Round With Square Key
Slip 4.58%
Speed 1100-1200 RPM , 1101-1200 RPM
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 4.59 lbs.-ft.
Tropicalized Painting Without
Usable @ 200v No
Usable @ 208v Yes
Variable Torque Rating 1000:1
Voltage 208-230/460V AC , 230/460V , 230/460V AC
Voltage Type AC

Shipping Info:

Ship weight (kg) 21.15
Ship height (cm)48.26
Ship length (cm)34.29
Ship width (cm)45.72
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyService FactorHpMotor Enclosure DesignFull Load AmpsMounting TypeMotor TypePrice
WEG 00112ET3E145T-W22 Motor, 3 Phase, 1 Hp, 1150 208-230/460V, Eff 82.5 | AE7TTU 6AHZ6 00112ET3E145T-W22230/460/380V60 Hz1.251"Totally Enclosed Fan Cooled3.5/1.7ARigid BaseThree Phase€758.54
WEG 00152ET3E182T-W22 Motor, 3 Phase, 1.5Hp, 1165 208-230/460V, Eff 87.5 | AE7TTW 6AHZ8 00152ET3E182T-W22230/460/380V60 Hz1.251 1/2 hp-5.08/2.54ARigid BaseThree Phase€914.23
WEG 00212ET3E184T-W22 Motor, 3 Phase, 2 Hp, 1165 208-230/460V, Eff 88.5 | AE7TUX 6AJA3 00212ET3E184T-W22230/460/380V60 Hz1.252 hpTotally Enclosed Fan Cooled6.44/3.22ARigid BaseThree Phase€988.08
WEG 00312ET3E213T-W22 Motor, 3 Phase, 3 Hp, 1170 208-230/460V, Eff 89.5 | AE7TVB 6AJA7 00312ET3E213T-W22230/460/380V60 Hz1.253 hpTotally Enclosed Fan Cooled8.8/4.4ARigid BaseThree Phase€1,525.74
WEG 00512ET3E215T-W22 Motor, 3 Phase, 5 Hp, 1160 208-230/460V, Eff 89.5 | AE7TVF 6AJC1 00512ET3E215T-W22230/460/380V60 Hz1.255 hpTotally Enclosed Fan Cooled13.7/6.83ARigid BaseThree Phase€1,801.89
WEG 00712ET3E254T-W22 Motor, 3 Phase, 7.5 Hp, 1175 208-230/460V, Efficiency 91.0 | AE7TVJ 6AJC4 00712ET3E254T-W22230/460/380V60 Hz1.257 1/2 hpTotally Enclosed Fan Cooled19/9.48ARigid BaseThree Phase€2,634.64
WEG 01012ET3E256T-W22 Motor, 3 Phase, 10 Hp, 1175 208-230/460V, Eff 91.0 | AE7TVM 6AJC7 01012ET3E256T-W22230/460/380V60 Hz1.2510 hpTotally Enclosed Fan Cooled26.6/13.3ARigid BaseThree Phase€3,044.25
