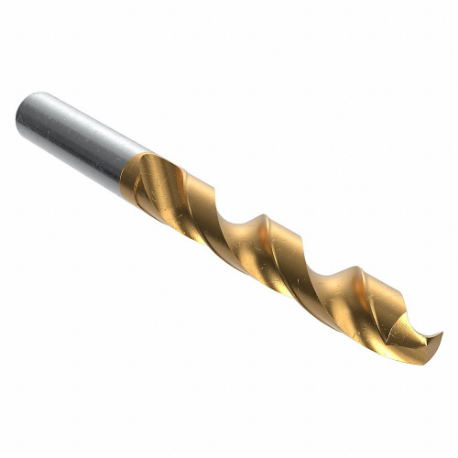

WALTER TOOLS A1211TIN-9.3 Jobber Length Drill Bit, 9.30 mm Drill Bit Size, 81 mm Flute Length, High Speed Steel | CU8TKX 442H93

WALTER TOOLS A1211TIN-9.3 5058984 Jobber Length Drill Bit, 9.30 mm Size, 81 mm Flute Length, High Speed Steel

Item: CU8TKXModel: A1211TIN-9.3Cross Ref: 442H93 / 5058984
7 In Stock

Ships within 2 days via

€59.40
10.00% off
€53.46 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Coolant Fed Non Coolant Through
Cutting Direction Right Hand
Decimal Equivalent 0.3661
Depthdia. Ratio 8xd
Drill Bit Point Angle 118°
Drill Bit Point Type Conical Point
Drill Bit Size 9.3 mm
Drill Diameter Tolerance H8
Drill Length Class Jobber Length
Drill Point Length 2.79 mm
Finish Tin
Finish - Machining Tin
Flute Length 81 mm
Flute Type Spiral
Grade General Purpose
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining General Purpose
Max. Drilling Depth 81 mm
Mfr. Series N Series
Number Of Flutes 2
Overall Length 125 mm
Point Angle 118°
Point Type Conical Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Secondary Material Application Aluminum, Brass, Bronze, Composite, Copper, Graphite, Nickel, Stainless Steel, Titanium
Secondary Material Application Iso Code M, N, O, S
Shank Length 44 mm
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 9.3 mm
System Of Measurement Metric

Shipping Info:

Ship weight (kg) 0.02
Ship height (cm)2.54
Ship length (cm)12.5
Ship width (cm)2.54
Country of OriginFR

Product Variants

ProductModelCutting DirectionDecimal EquivalentFlute LengthMax. Drilling DepthFinishOverall LengthDrill Bit SizeDrill Bit Point AnglePrice
WALTER TOOLS A1231-0.5 Jobber Drill Bit, 0.50 mm Drill Bit Size, 6 mm Flute Length, 22 mm Overall Length | CU8NEU 442K15 A1231-0.5Left Hand0.00986 mm6 mm-22 mm0.5 mm118°€8.03
WALTER TOOLS A1211-1.21 Jobber Drill Bit, 1.21 mm Drill Bit Size, 16 mm Flute Length, 38 mm Overall Length | CU8NEV 442D27 A1211-1.21Right Hand0.047616 mm16 mm-38 mm1.21 mm118°€7.93
WALTER TOOLS A1211-1.27 Jobber Drill Bit, 1.27 mm Drill Bit Size, 16 mm Flute Length, 38 mm Overall Length | CU8NEW 442D31 A1211-1.27Right Hand0.0516 mm16 mm-38 mm1.27 mm118°€8.82
WALTER TOOLS A1211-10.75 Jobber Drill Bit, 10.75 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CU8NEX 442D51 A1211-10.75Right Hand0.423294 mm94 mm-142 mm10.75 mm118°€39.91
WALTER TOOLS A1211-11.25 Jobber Drill Bit, 11.25 mm Drill Bit Size, 94 mm Flute Length, 142 mm Overall Length | CU8NEY 442D52 A1211-11.25Right Hand0.442994 mm94 mm-142 mm11.25 mm118°€42.87
WALTER TOOLS A1211-14.75 Jobber Drill Bit, 14.75 mm Drill Bit Size, 114 mm Flute Length, 169 mm Overall Length | CU8NEZ 442D64 A1211-14.75Right Hand0.5807114 mm114 mm-169 mm14.75 mm118°€99.26
WALTER TOOLS A1211-3.35 Jobber Drill Bit, 3.35 mm Drill Bit Size, 36 mm Flute Length, 65 mm Overall Length | CU8NFD 442D82 A1211-3.35Right Hand0.131936 mm36 mm-65 mm3.35 mm118°€6.87
