Jobber Length Drill Bits

SANDVIK COROMANT -

Brazed carbide drills

A

Style	Model	Shank Dia.	Overall Length	Shank Length	Cutting Direction	Price
A	R411.5-17034D16.75 P20	20 mm	133 mm	50 mm	Right Hand	€616.63
A	R411.5-28534D28.50 P20	32 mm	204 mm	60 mm	Right Hand	€671.78

WALTER TOOLS -

Non Coolant Through Solid Carbide Jobber Length Drill Bits

A

B

C

D

E

F

Style	Model	Coolant Fed	Flute Length	Max. Drilling Depth	Decimal Equivalent	Shank Dia.	Overall Length	Drill Bit Size	Drill Bit Point Type	Price
A	DC150-05-16.200A1-WJ30RE	Coolant Through	93 mm	93 mm	0.6378	18 mm	143 mm	16.2 mm	Self Centering Point	€666.14
B	DC150-03-15.300A1-WJ30RE	Coolant Through	65 mm	65 mm	0.6024	16 mm	115 mm	15.3 mm	Self Centering Point	€481.64
B	DC150-03-03.250A1-WJ30RE	Coolant Through	20 mm	20 mm	0.128	6 mm	62 mm	-	-	€146.85
C	DC170-05-04.650A1-WJ30EJ	Coolant Through	36 mm	36 mm	0.1831	6 mm	74 mm	4.65 mm	Self Centering Point	€300.80
D	7378447	Non Coolant Through	36 mm	29 mm	0.1535	6 mm	74 mm	3.9 mm	-	€235.62
D	7378514	Non Coolant Through	53 mm	43 mm	0.2638	8 mm	91 mm	6.7 mm	-	€281.59
D	7378487	Non Coolant Through	44 mm	35 mm	0.2185	6 mm	82 mm	5.55 mm	-	€235.62
E	7462094	Non Coolant Through	44 mm	35 mm	0.2185	6 mm	82 mm	5.55 mm	-	€141.41

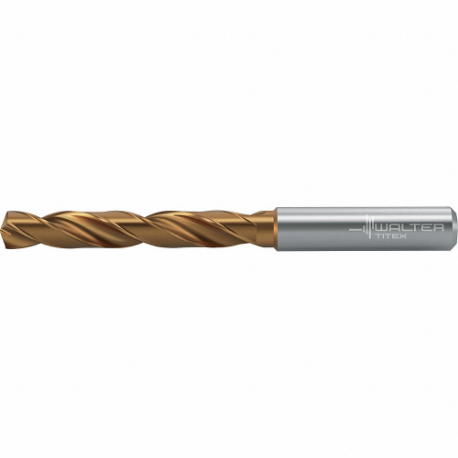

F	7378489	Non Coolant Through	44 mm	35 mm	0.2205	6 mm	82 mm	5.6 mm	-	€192.39
D	7378490	Non Coolant Through	44 mm	35 mm	0.2205	6 mm	82 mm	5.6 mm	-	€235.62
F	7378509	Non Coolant Through	53 mm	43 mm	0.2559	8 mm	91 mm	6.5 mm	-	€273.71
E	7462107	Non Coolant Through	53 mm	43 mm	0.2559	8 mm	91 mm	6.5 mm	-	€170.94
F	7378511	Non Coolant Through	53 mm	43 mm	0.2598	8 mm	91 mm	6.6 mm	-	€230.18
D	7378512	Non Coolant Through	53 mm	43 mm	0.2598	8 mm	91 mm	6.6 mm	-	€281.59
E	7462108	Non Coolant Through	53 mm	43 mm	0.2598	8 mm	91 mm	6.6 mm	-	€171.37
F	7378513	Non Coolant Through	53 mm	43 mm	0.2638	8 mm	91 mm	6.7 mm	-	€265.11
D	7378517	Non Coolant Through	53 mm	43 mm	0.2677	8 mm	91 mm	6.8 mm	-	€281.59
E	7462109	Non Coolant Through	53 mm	43 mm	0.2638	8 mm	91 mm	6.7 mm	-	€172.05
F	7378516	Non Coolant Through	53 mm	43 mm	0.2677	8 mm	91 mm	6.8 mm	-	€273.71
F	7378484	Non Coolant Through	44 mm	35 mm	0.2165	6 mm	82 mm	-	-	€223.58
D	7378519	Non Coolant Through	53 mm	43 mm	-	8 mm	91 mm	6.9 mm	-	€281.59
E	7462112	Non Coolant Through	53 mm	43 mm	0.2716	8 mm	91 mm	6.9 mm	-	€171.50
E	7462063	Non Coolant Through	28 mm	23 mm	0.126	6 mm	66 mm	3.2 mm	-	€141.41
E	7462064	Non Coolant Through	28 mm	23 mm	0.1279	6 mm	66 mm	3.25 mm	-	€141.41
E	7462065	Non Coolant Through	28 mm	23 mm	0.1299	6 mm	66 mm	3.3 mm	-	€141.41

MORSE CUTTING TOOLS -

2314 Series Heavy Duty Taper Length Drills, M42 Cobalt

A

B

Style	Model	MPN	Price

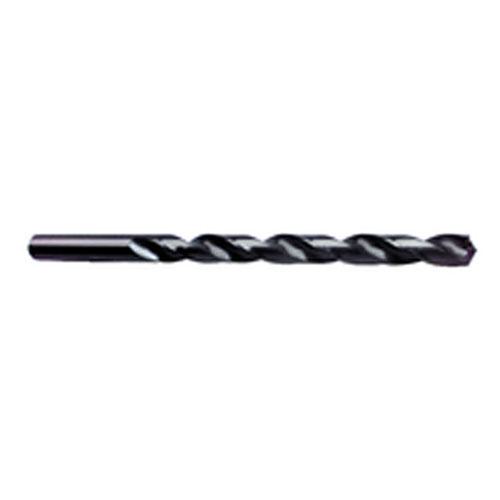

A	10707	10707	€34.23
A	10708	10708	€35.07
A	10709	10709	€35.16
A	10710	10710	€39.32
A	10711	10711	€40.71
A	10712	10712	€41.09
A	10713	10713	€40.77
A	10714	10714	€50.75
A	10715	10715	€47.92
A	10716	10716	€52.43
A	10717	10717	€49.82
A	10718	10718	€60.25
A	10719	10719	€59.84
A	10720	10720	€71.14
A	10721	10721	€66.47
A	10722	10722	€77.42
A	10723	10723	€74.65
A	10724	10724	€82.76
A	10725	10725	€84.51
A	10726	10726	€96.96
A	10727	10727	€98.66
A	10728	10728	€107.75
A	10729	10729	€101.99
B	10764	10764	€22.00
A	10766	10766	€27.56

MORSE CUTTING TOOLS -

1322 Series Taper Length Drills, High Speed Steel

A

Style	Model	Overall Length	Flute Length	Finish	Material	Price
A	11052	2 1/4"	1 1/8"	Black Oxide	High Speed Steel	€13.05
A	11051	2 1/4"	1 1/8"	Black Oxide	High Speed Steel	€13.05
A	11054	2 1/4"	1 1/8"	Black Oxide	High Speed Steel	€13.05
A	11055	2 1/4"	1 1/8"	Black Oxide	High Speed Steel	€13.05
A	11053	2 1/4"	1 1/8"	Black Oxide	High Speed Steel	€13.05
A	11059	3 3/4"	2"	Black Oxide	High Speed Steel	€13.05
A	11061	3 3/4"	2"	Black Oxide	High Speed Steel	€13.05
A	11062	3 3/4"	2"	Black Oxide	High Speed Steel	€13.05
A	11060	3 3/4"	2"	Black Oxide	High Speed Steel	€13.05
A	11063	3 3/4"	2"	Black Oxide	High Speed Steel	€13.05
A	11056	3"	1 3/4"	Black Oxide	High Speed Steel	€13.05
A	11058	3"	1 3/4"	Black Oxide	High Speed Steel	€13.05
A	11057	3"	1 3/4"	Black Oxide	High Speed Steel	€13.05
A	11068	4 1/4"	2 1/4"	Black Oxide	High Speed Steel	€15.36
A	11065	4 1/4"	2 1/4"	Black Oxide	High Speed Steel	€15.36
A	11066	4 1/4"	2 1/4"	Black Oxide	High Speed Steel	€15.36
A	11067	4 1/4"	2 1/4"	Black Oxide	High Speed Steel	€15.36
A	11064	4 1/4"	2 1/4"	Black Oxide	High Speed Steel	€15.36
A	11069	4 1/4"	2 1/4"	Black Oxide	High Speed Steel	€15.36
A	11075	4 5/8"	2 1/2"	Black Oxide	High Speed Steel	€20.26
A	11073	4 5/8"	2 1/2"	Black Oxide	High Speed Steel	€20.26
A	11072	4 5/8"	2 1/2"	Black Oxide	High Speed Steel	€19.64
A	11071	4 5/8"	2 1/2"	Black Oxide	High Speed Steel	€14.91
A	11074	4 5/8"	2 1/2"	Black Oxide	High Speed Steel	€20.26
A	11070	4 5/8"	2 1/2"	Black Oxide	High Speed Steel	€17.84

MORSE CUTTING TOOLS -

1314 Series Taper Length Drills, High Speed Steel

A

B

C

Style	Model	Material	Finish	Cutting Direction	Flute Length	Shank Dia.	Overall Length	Price

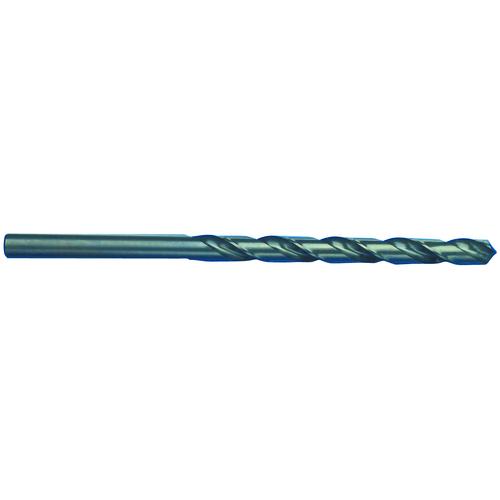

A	10637	-	-	-	-	-	-	€765.53
B	10602	-	-	-	-	-	-	€160.66
B	10613	-	-	-	-	-	-	€251.86
B	10612	-	-	-	-	-	-	€227.80
B	10611	-	-	-	-	-	-	€241.58
B	10610	-	-	-	-	-	-	€198.79
B	10609	-	-	-	-	-	-	€214.02
B	10608	-	-	-	-	-	-	€191.09
B	10607	-	-	-	-	-	-	€205.74
B	10606	-	-	-	-	-	-	€179.37
B	10605	-	-	-	-	-	-	€193.05
A	10604	-	-	-	-	-	-	€170.78
B	10603	-	-	-	-	-	-	€183.88
B	10601	-	-	-	-	-	-	€170.00
B	10615	-	-	-	-	-	-	€331.89
B	10600	-	-	-	-	-	-	€147.49
C	10599	-	-	-	-	-	-	€154.48
C	10598	-	-	-	-	-	-	€131.75
C	10597	-	-	-	-	-	-	€140.70
C	10596	-	-	-	-	-	-	€124.82
C	10595	-	-	-	-	-	-	€130.84
C	10594	-	-	-	-	-	-	€120.19
C	10593	-	-	-	-	-	-	€124.26
C	10592	-	-	-	-	-	-	€110.17
C	10591	-	-	-	-	-	-	€115.47

MORSE CUTTING TOOLS -

1315 Series Straight Shank Drills, Extra Long, High Speed Steel

A

Style	Model	Flute Length	Overall Length	Material	Finish	Price

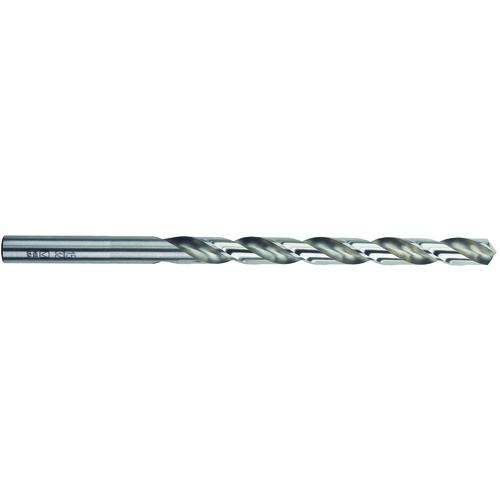

A	10311	-	-	-	-	€81.38
A	10313	-	-	-	-	€214.43
A	10309	-	-	-	-	€64.27
A	10308	-	-	-	-	€82.05
A	10307	-	-	-	-	€82.05
A	10306	-	-	-	-	€61.80
A	10305	-	-	-	-	€54.07
A	10303	-	-	-	-	€256.59
A	10302	-	-	-	-	€237.98
A	10301	-	-	-	-	€207.74
A	10310	-	-	-	-	€73.20
A	10904	-	-	-	-	€52.53
A	10653	-	-	-	-	€120.25
A	10657	-	-	-	-	€147.17
A	10660	-	-	-	-	€175.73
A	10663	-	-	-	-	€187.96
A	10902	-	-	-	-	€40.57
A	10903	-	-	-	-	€52.75
A	10905	-	-	-	-	€44.47
A	10961	5 1/2"	8"	High Speed Steel	Bright	€65.80
A	10952	5 1/2"	8"	High Speed Steel	Bright	€63.28
A	10951	5 1/2"	8"	High Speed Steel	Bright	€56.71
A	10909	5 1/2"	8"	High Speed Steel	Bright	€45.60
A	10967	5 1/2"	8"	High Speed Steel	Bright	€81.60
A	10942	5 1/2"	8"	High Speed Steel	Bright	€59.32

MORSE CUTTING TOOLS -

1302 Series Taper Shank Drills, High Speed Steel

A

Style	Model	MPN	Price
A	10008	10008	€42.00
A	10009	10009	€51.88
A	10010	10010	€42.31
A	10011	10011	€51.92
A	10012	10012	€38.10
A	10013	10013	€38.10
A	10014	10014	€38.10
A	10015	10015	€38.10
A	10016	10016	€38.10
A	10017	10017	€39.74
A	10018	10018	€39.74
A	10019	10019	€44.89
A	10020	10020	€39.74
A	10021	10021	€49.20
A	10022	10022	€51.40
A	10023	10023	€56.91
A	10024	10024	€55.16
A	10025	10025	€58.96
A	10026	10026	€57.52
A	10027	10027	€63.50
A	10028	10028	€61.38
A	10029	10029	€69.87
A	10030	10030	€70.23
A	10031	10031	€78.96
A	10032	10032	€71.78

WALTER TOOLS -

Carbide Tipped Jobber Length Drill Bits

A

B

C

D

E

Style	Model	Decimal Equivalent	Material	Finish	Shank Dia.	Drill Bit Size	Flute Length	Overall Length	Shank Length	Price

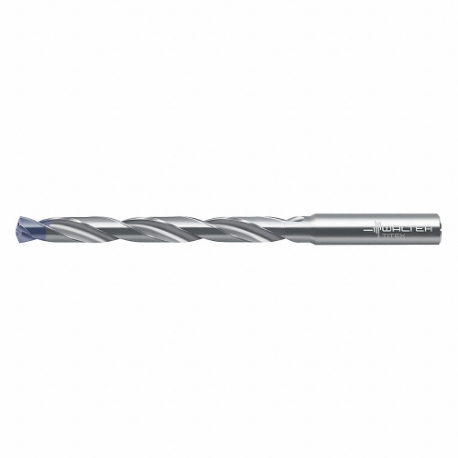

A	A6493TTP-3.1	0.122	Carbide Tipped	Tin Aluminum	6 mm	3.1 mm	34 mm	74 mm	36 mm	-	RFQ

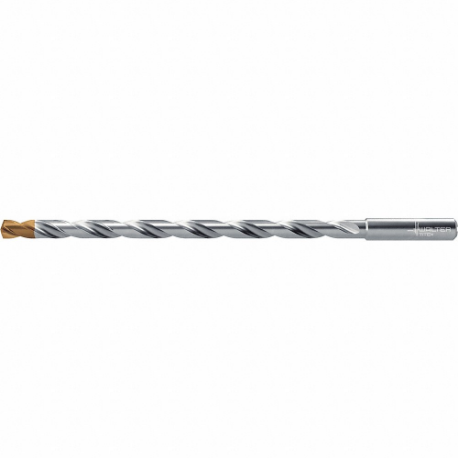

B	DC160-16-03.175A1-WJ30EU	0.125	Carbide	TiSiAlCrN, AlTiN	4 mm	1/8"	2 9/16"	3 13/16"	1 1/16"	€495.62
A	A6493TTP-3.2	0.126	Carbide Tipped	Tin Aluminum	6 mm	3.2 mm	34 mm	74 mm	36 mm	-	RFQ
A	A6493TTP-3.3	0.1299	Carbide Tipped	Tin Aluminum	6 mm	3.3 mm	34 mm	74 mm	36 mm	-	RFQ

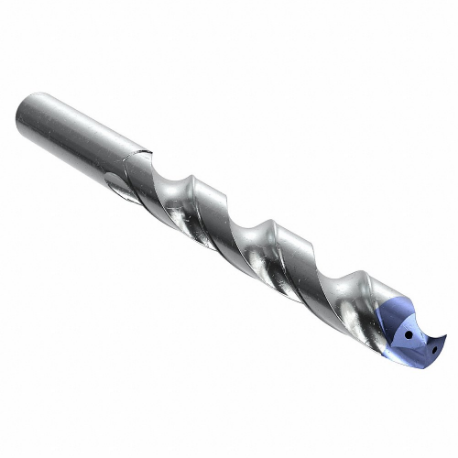

C	A6493TTP-3.4	0.1339	Carbide Tipped	Tin Aluminum	6 mm	3.4 mm	34 mm	74 mm	36 mm	-	RFQ
A	A6493TTP-3.5	0.1378	Carbide Tipped	Tin Aluminum	6 mm	-	34 mm	74 mm	36 mm	-	RFQ
A	A6493TTP-3.7	0.1457	Carbide Tipped	Tin Aluminum	6 mm	3.7 mm	34 mm	74 mm	36 mm	-	RFQ
A	A6493TTP-3.8	0.1496	Carbide Tipped	Tin Aluminum	6 mm	3.8 mm	45 mm	85 mm	36 mm	-	RFQ
A	A6493TTP-3.9	0.1535	Carbide Tipped	Tin Aluminum	6 mm	3.9 mm	45 mm	85 mm	36 mm	-	RFQ

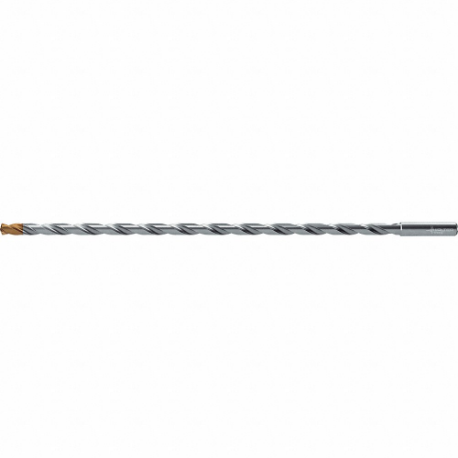

D	DC160-30-04.000A1-WJ30EU	0.1575	Carbide	TiSiAlCrN, AlTiN	4 mm	4 mm	133 mm	166 mm	28 mm	€890.17

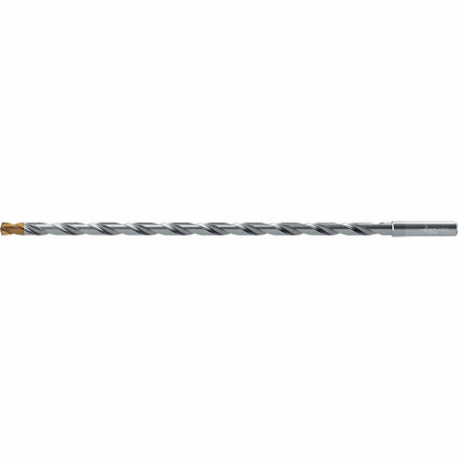

E	DC160-25-05.556A1-WJ30EU	0.2187	Carbide	TiSiAlCrN, AlTiN	6 mm	7/32"	-	8 3/8"	1 3/8"	€809.91
C	A6493TTP-10	0.3937	Carbide Tipped	Tin Aluminum	10 mm	10 mm	95 mm	139 mm	40 mm	-	RFQ
C	A6493TTP-10.5	0.4134	Carbide Tipped	Tin Aluminum	12 mm	10.5 mm	114 mm	163 mm	45 mm	€846.79
C	A6493TTP-11	0.4331	Carbide Tipped	Tin Aluminum	12 mm	11 mm	114 mm	163 mm	45 mm	-	RFQ
C	A6493TTP-11.5	0.4528	Carbide Tipped	Tin Aluminum	12 mm	11.5 mm	114 mm	163 mm	45 mm	-	RFQ
C	A6493TTP-12	0.4724	Carbide Tipped	Tin Aluminum	12 mm	12 mm	114 mm	163 mm	45 mm	-	RFQ
C	A6493TTP-12.5	0.4921	Carbide Tipped	Tin Aluminum	14 mm	12.5 mm	133 mm	182 mm	45 mm	-	RFQ
C	A6493TTP-13	0.5118	Carbide Tipped	Tin Aluminum	14 mm	13 mm	133 mm	-	45 mm	-	RFQ
C	A6493TTP-14	0.5512	Carbide Tipped	Tin Aluminum	14 mm	14 mm	133 mm	182 mm	45 mm	-	RFQ
C	A6493TTP-15	0.5906	Carbide Tipped	Tin Aluminum	16 mm	15 mm	152 mm	204 mm	48 mm	-	RFQ
C	A6493TTP-16	0.6299	Carbide Tipped	Tin Aluminum	16 mm	16 mm	152 mm	204 mm	48 mm	-	RFQ

WALTER TOOLS -

Coolant Through High Speed Steel Jobber Length Drill Bits

A

B

Style	Model	Flute Length	Max. Drilling Depth	Overall Length	Drill Bit Size	Decimal Equivalent	Shank Dia.	Shank Length	Drill Point Length	Price

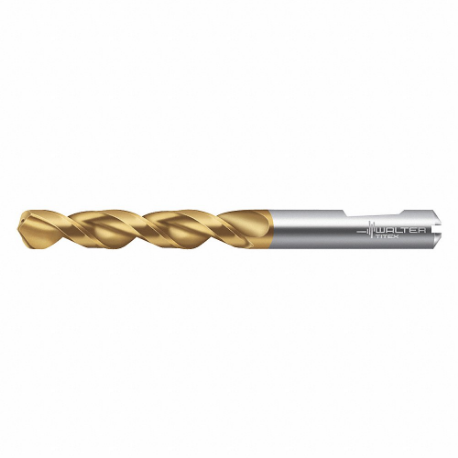

A	A6292TIN-6.7	53 mm	53 mm	91 mm	6.7 mm	0.2638	8 mm	36 mm	1.56 mm	€294.63
B	A6292TIN-9.5	61 mm	61 mm	103 mm	9.5 mm	0.374	10 mm	40 mm	2.21 mm	€251.45
B	A6292TIN-5/8IN	100 mm	100 mm	150 mm	5/8"	0.625	-	48 mm	3.7 mm	€414.65
B	A6292TIN-18	112 mm	112 mm	162 mm	18 mm	0.7087	18 mm	48 mm	4.2 mm	-	RFQ
B	A6292TIN-21	145 mm	145 mm	207 mm	-	-	25 mm	56 mm	6.31 mm	-	RFQ
B	A6292TIN-22	145 mm	145 mm	207 mm	22 mm	0.8661	25 mm	56 mm	6.61 mm	-	RFQ

WALTER TOOLS -

Coolant Through Solid Carbide Jobber Length Drill Bits

A

B

C

D

E

F

Style	Model	Flute Length	Max. Drilling Depth	Shank Dia.	Decimal Equivalent	Overall Length	Drill Bit Size	Drill Bit Point Angle	Drill Bit Point Type	Price
A	A6493TTP-5	-	48 mm	6 mm	0.1969	97 mm	5 mm	140°	Split Point	-	RFQ

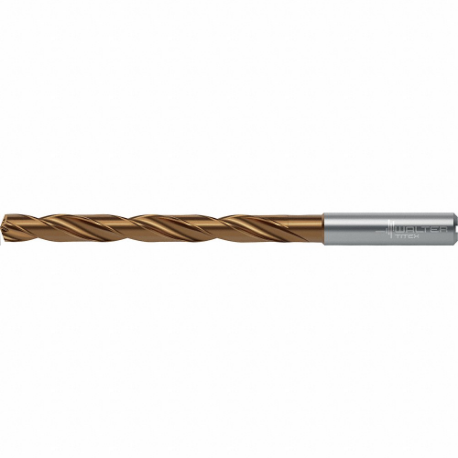

B	7377933	-	-	0.547"	0.4843	7.17"	31/64"	140°	-	€999.43
B	7377937	-	-	0.547"	0.5312	4.213"	17/32"	140°	-	€906.48
C	DC150-03-04.366A1-WJ30RE	0.938"	0.656"	6 mm	0.1719	2.594"	-	-	-	€155.10
C	DC150-03-05.953A1-WJ30RE	1 1/16"	0.781"	6 mm	0.2344	2 19/32"	15/64"	140°	Split Point	€155.10
D	DC170-05-03.175A1-WJ30EJ	1 1/16"	0.891"	6 mm	0.125	2 19/32"	1/8"	140°	Split Point	€294.65
C	DC150-03-04.800A1-WJ30RE	1 1/16"	0.781"	6 mm	0.189	2 19/32"	#12	140°	Split Point	€128.11
D	DC170-03-04.800A1-WJ30EJ	1 1/16"	0.781"	6 mm	0.189	2 19/32"	#12	140°	Split Point	€242.94
D	DC170-03-05.556A1-WJ30EJ	1 1/16"	0.781"	6 mm	0.2188	2 19/32"	7/32"	140°	Split Point	€241.26
C	DC150-03-05.159A1-WJ30RE	1 1/16"	0.781"	6 mm	0.2031	2 19/32"	13/64"	140°	Split Point	€149.79
D	DC170-03-05.953A1-WJ30EJ	1 1/16"	0.781"	6 mm	0.2344	2 19/32"	15/64"	140°	Split Point	€241.26

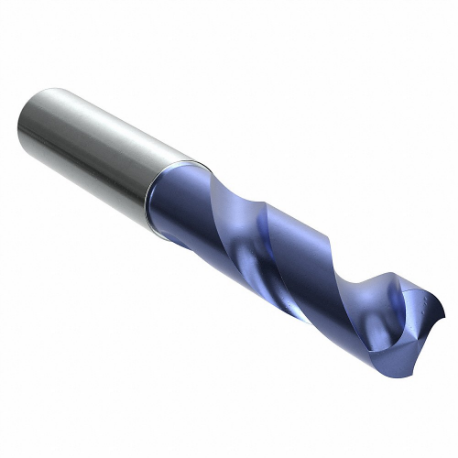

E	DC150-03-05.556A1-WJ30RE	1 1/16"	0.781"	6 mm	0.2188	2 19/32"	7/32"	140°	Split Point	€150.29
C	DC150-03-04.763A1-WJ30RE	1 1/16"	0.781"	6 mm	0.1875	2 19/32"	3/16"	140°	Split Point	€152.47
D	DC170-03-04.763A1-WJ30EJ	1 1/16"	0.781"	6 mm	0.1875	2 19/32"	3/16"	140°	Split Point	€241.26
D	DC170-03-05.159A1-WJ30EJ	1 1/16"	0.781"	6 mm	0.2031	2 19/32"	13/64"	140°	Split Point	€241.26
A	A6493TTP-4.7	1 3/4"	1.453"	6 mm	0.185	3 11/32"	#13	140°	Split Point	-	RFQ
D	DC170-05-04.366A1-WJ30EJ	1 3/8"	1.141"	6 mm	0.1719	2 29/32"	11/64"	140°	Split Point	€298.81
D	DC170-05-04.700A1-WJ30EJ	1 3/8"	1.141"	6 mm	0.185	2 29/32"	#13	140°	Split Point	€300.80
D	DC170-05-03.969A1-WJ30EJ	1 3/8"	1.141"	6 mm	0.1563	2 29/32"	5/32"	140°	Split Point	€298.81
D	DC170-03-06.350A1-WJ30EJ	1 5/16"	0.938"	8 mm	0.25	3 3/32"	1/4"	140°	Split Point	€289.52
D	DC170-03-06.747A1-WJ30EJ	1 5/16"	0.938"	8 mm	0.2656	3 3/32"	17/64"	140°	Split Point	€289.52

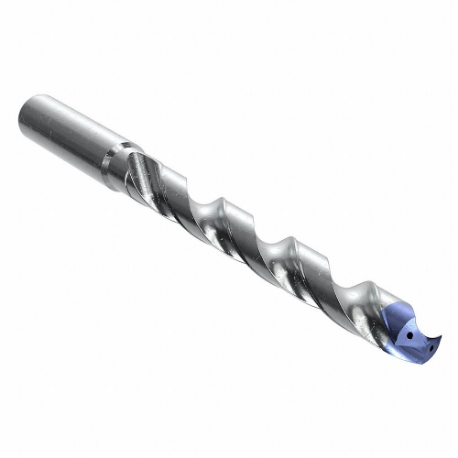

F	A6493TTP-1/8IN	1 5/16"	1.094"	6 mm	0.125	2 29/32"	1/8"	140°	Split Point	-	RFQ
C	DC150-03-06.747A1-WJ30RE	1 5/16"	0.938"	8 mm	0.2656	3 3/32"	17/64"	140°	Split Point	€178.96
D	DC170-03-07.938A1-WJ30EJ	1 9/16"	1.141"	8 mm	0.3125	3 3/32"	5/16"	140°	Split Point	€289.52
D	DC170-03-07.541A1-WJ30EJ	1 9/16"	1.141"	8 mm	0.2969	3 3/32"	19/64"	140°	Split Point	€289.52

WALTER TOOLS -

Non Coolant Through High Speed Steel Jobber Length Drill Bits

A

B

C

D

E

F

G

H

Style	Model	Cutting Direction	Decimal Equivalent	Flute Length	Max. Drilling Depth	Finish	Overall Length	Drill Bit Size	Drill Bit Point Angle	Price
A	A1244-NO64	-	0.036	11 mm	11 mm	Bright	32 mm	#64	130°	€19.07
B	A1231-0.5	Left Hand	0.0098	6 mm	6 mm	-	22 mm	0.5 mm	118°	€8.03
C	7506496	Right Hand	0.3189	75 mm	62 mm	Tin	117 mm	8.1 mm	118°	€19.30
D	5058845	Right Hand	0.3248	75 mm	62 mm	Bright	117 mm	8.25 mm	118°	€19.49
A	A1244-8.2	Right Hand	0.3228	75 mm	75 mm	Bright	117 mm	8.2 mm	130°	€52.74
E	A1222-8.2	Right Hand	0.3228	75 mm	75 mm	Bright	117 mm	8.2 mm	130°	€44.44
F	A1247-8.2	Right Hand	0.3228	75 mm	75 mm	Bright	117 mm	8.2 mm	130°	€56.56
D	5058844	Right Hand	0.3228	75 mm	62 mm	Bright	117 mm	8.2 mm	118°	€15.94
C	7506497	Right Hand	0.3228	75 mm	62 mm	Tin	117 mm	8.2 mm	118°	€19.96
G	A1211TIN-8.2	Right Hand	0.3228	75 mm	75 mm	Tin	117 mm	8.2 mm	118°	€47.00
G	A1211TIN-8.1	Right Hand	0.3189	75 mm	75 mm	Tin	117 mm	8.1 mm	118°	€45.40
D	5058846	Right Hand	0.3268	75 mm	62 mm	Bright	117 mm	8.3 mm	118°	€18.03
D	5058842	Right Hand	0.3189	75 mm	62 mm	Bright	117 mm	8.1 mm	118°	€16.10
E	A1222-8.1	Right Hand	0.3189	75 mm	75 mm	Bright	117 mm	8.1 mm	130°	€43.46
A	A1244-8.1	Right Hand	0.3189	75 mm	75 mm	Bright	117 mm	8.1 mm	130°	€49.21
D	5058840	Right Hand	0.315	75 mm	62 mm	Bright	117 mm	8 mm	118°	€14.64
E	A1222-8	Right Hand	0.315	75 mm	75 mm	Bright	117 mm	8 mm	130°	€34.10
G	A1211TIN-8	Right Hand	0.315	75 mm	75 mm	Tin	117 mm	8 mm	118°	€38.41
E	A1222-7.9	Right Hand	0.311	75 mm	75 mm	Bright	117 mm	7.9 mm	130°	€39.50
E	A1222-8.3	Right Hand	0.3268	75 mm	75 mm	Bright	117 mm	8.3 mm	130°	€46.14
A	A1244-8.3	Right Hand	0.3268	75 mm	75 mm	Bright	117 mm	8.3 mm	130°	€52.83
H	A1249XPL-7.7	Right Hand	0.3031	75 mm	75 mm	Aluminum Chromium Nitride	-	7.7 mm	130°	€98.83
E	A1222-8.5	Right Hand	0.3346	75 mm	75 mm	Bright	117 mm	-	-	€35.48
D	5058852	Right Hand	0.3386	81 mm	66 mm	Bright	125 mm	8.6 mm	118°	€19.77
A	A1244-8.6	Right Hand	0.3386	81 mm	81 mm	Bright	125 mm	8.6 mm	130°	€59.86

MORSE CUTTING TOOLS -

1325 Series High Helix Taper Length Drills, High Speed Steel

A

Style	Model	Overall Length	Flute Length	Material	Finish	Price
A	11201	2 1/4"	1 1/8"	High Speed Steel	Bright	€17.01
A	11204	2 1/4"	1 1/8"	High Speed Steel	Bright	€18.10
A	11203	2 1/4"	1 1/8"	High Speed Steel	Bright	€17.01
A	11202	2 1/4"	1 1/8"	High Speed Steel	Bright	€18.00
A	11205	2 1/4"	1 1/8"	High Speed Steel	Bright	€17.01
A	11212	3 3/4"	2"	High Speed Steel	Bright	€16.14
A	11211	3 3/4"	2"	High Speed Steel	Bright	€16.14
A	11210	3 3/4"	2"	High Speed Steel	Bright	€15.78
A	11213	3 3/4"	2"	High Speed Steel	Bright	€16.14
A	11215	3 3/4"	2"	High Speed Steel	Bright	€12.34
A	11214	3 3/4"	2"	High Speed Steel	Bright	€16.14
A	11206	3"	1 3/4"	High Speed Steel	Bright	€17.01
A	11207	3"	1 3/4"	High Speed Steel	Bright	€17.01
A	11209	3"	1 3/4"	High Speed Steel	Bright	€12.49
A	11208	3"	1 3/4"	High Speed Steel	Bright	€17.01
A	11219	4 1/4"	2 1/4"	High Speed Steel	Bright	€16.45
A	11221	4 1/4"	2 1/4"	High Speed Steel	Bright	€16.45
A	11222	4 1/4"	2 1/4"	High Speed Steel	Bright	€12.81
A	11218	4 1/4"	2 1/4"	High Speed Steel	Bright	€16.45
A	11220	4 1/4"	2 1/4"	High Speed Steel	Bright	€16.45
A	11217	4 1/4"	2 1/4"	High Speed Steel	Bright	€16.45
A	11216	4 1/4"	2 1/4"	High Speed Steel	Bright	€15.98
A	11229	4 5/8"	2 1/2"	High Speed Steel	Bright	€19.17
A	11228	4 5/8"	2 1/2"	High Speed Steel	Bright	€21.38
A	11227	4 5/8"	2 1/2"	High Speed Steel	Bright	€21.38

WALTER TOOLS -

Indexable Drill Bits for Small Diameter Drilling

A

B

C

Style	Model	Shank Dia.	Max. Drilling Depth	Flute Length	Overall Length	Depth X Dia. Ratio	Shank Length	Coolant Fed	Toolholder Style	Price
A	D4120-02-19.50F25-P42	-	39 mm	58.2 mm	120 mm	2xd	56 mm	Coolant Through	D4120	€985.16
B	D4120.03-33.32F31-P45	1 1/4"	3.936"	4.917"	7.351"	3xd	2.281"	Coolant Through	D4120	€1,085.80
B	D4120.03-25.40F31-P44	1 1/4"	3"	3.925"	6.411"	3xd	2.281"	Coolant Through	D4120	€1,038.27
B	D4120.03-34.93F31-P45	1 1/4"	4 1/8"	5.102"	7.541"	3xd	2.281"	Coolant Through	D4120	€1,085.80
B	D4120.03-28.58F31-P44	1 1/4"	3 3/8"	4.374"	6.791"	3xd	2.281"	Coolant Through	D4120	€1,038.27
B	D4120.03-22.23F31-P43	1 1/4"	2 5/8"	3.571"	6.041"	3xd	2.281"	Coolant Through	D4120	€991.12
C	D4120.04-26.97F31-P44	1 1/4"	4 1/4"	-	-	4xd	-	Coolant Through	D4120	€1,222.89
C	D4120.04-24.99F31-P44	1 1/4"	-	-	-	4xd	-	Coolant Through	D4120	€1,089.37
C	D4120.04-31.75F31-P45	1 1/4"	5"	5.823"	8.411"	4xd	2.281"	Coolant Through	D4120	€1,193.04
C	D4120.04-25.40F31-P44	1 1/4"	4"	4.874"	7.411"	4xd	2.281"	Coolant Through	D4120	€1,141.91
C	D4120.04-30.15F31-P45	1 1/4"	4 3/4"	5.587"	8.161"	4xd	2.281"	Coolant Through	D4120	€1,141.91
C	D4120.04-22.23F31-P43	1 1/4"	3 1/2"	4.398"	6.911"	4xd	2.281"	Coolant Through	D4120	€1,089.37
C	D4120.04-34.93F31-P45	1 1/4"	5 1/2"	6.299"	8.911"	4xd	2.281"	Coolant Through	D4120	€1,193.04
B	D4120.03-26.97F31-P44	1 1/4"	3.186"	4.189"	6.601"	3xd	2.281"	Coolant Through	D4120	€1,038.27
B	D4120.03-31.75F31-P45	1 1/4"	3 3/4"	4.732"	7.161"	3xd	2.281"	Coolant Through	D4120	€1,085.80
B	D4120.03-19.84F26-P42	1"	2.343"	3.106"	5.621"	3xd	2.281"	Coolant Through	D4120	€943.56
B	D4120.03-19.05F26-P42	1"	2 1/4"	3.024"	5 17/32"	3xd	2.281"	Coolant Through	D4120	€943.56
B	D4120.03-15.88F19-P41	3/4"	1 7/8"	2.504"	4.693"	3xd	2.031"	Coolant Through	D4120	€936.33
B	D4120.03-14.68F19-P41	3/4"	1 47/64"	2.346"	4.552"	3xd	2.031"	Coolant Through	D4120	€936.33
B	D4120-03-15.50F20-P41	20 mm	47 mm	61.6 mm	116.5 mm	3xd	50 mm	Coolant Through	D4120	€985.16
B	D4120-03-13.50F20-P41	20 mm	41 mm	56.1 mm	110.5 mm	3xd	50 mm	Coolant Through	D4120	€985.16
B	D4120-03-14.50F20-P41	20 mm	44 mm	58.9 mm	113.5 mm	3xd	50 mm	Coolant Through	D4120	€985.16
A	D4120-02-15.50F20-P41	20 mm	31 mm	46.4 mm	101 mm	2xd	50 mm	Coolant Through	D4120	€935.26
A	D4120-02-13.50F20-P41	20 mm	27 mm	42.8 mm	97 mm	2xd	50 mm	Coolant Through	D4120	€935.26
A	D4120-02-14.50F20-P41	20 mm	29 mm	44.6 mm	99 mm	2xd	50 mm	Coolant Through	D4120	€935.26

WALTER TOOLS -

Indexable Drill Bit Inserts

A

B

C

D

E

F

G

H

Style	Model	Cutting Direction	Insert Size	Corner Radius	Shape	For Drill Type	Thickness	Coating Process	Inscribed Circle	Price
A	6169846	-	-	-	-	-	-	-	-	€35.40
B	WOMX080408-B57 WKP35S	-	-	-	-	-	-	-	-	€34.88
C	6154481	-	-	-	-	-	-	-	-	€33.70
D	P4160-2L08-E47 WKP30S	Left Hand	2	0 mm	Rectangular	-	-	CVD	-	€76.27
D	P4160-2L08-E47 WKK20S	Left Hand	2	0 mm	Rectangular	-	-	-	-	€76.27
D	P4160-2L08-E47 WSM20S	Left Hand	2	0 mm	Rectangular	-	-	PVD	-	€72.93
B	WOMX100508-B57 WKP35S	Neutral	100508	0.8 mm	Trigon	Komet	5.3 mm	Chemical vapor deposition	-	€45.94
E	WOMX080408-D57 WKP25S	Neutral	080408	0.8 mm	Trigon	Komet	4.8 mm	CVD	-	€34.88
E	WOMX100508-D57 WKP35S	Neutral	100508	0.8 mm	Trigon	Komet	5.3 mm	CVD	-	€47.75
F	WOEX06T304-E57 WKP35S	Neutral	06T304	0.4 mm	Trigon	Komet	3.8 mm	CVD	-	€32.74
F	WOEX080408-E57 WKP25S	Neutral	080408	0.8 mm	Trigon	Komet	4.8 mm	CVD	-	€41.84
F	WOEX030204-E57 WKP35S	Neutral	030204	0.4 mm	Trigon	Komet	2.3 mm	CVD	-	€28.27
B	WOMX05T304-B57 WKP35S	Neutral	05T304	0.4 mm	Trigon	Komet	3.8 mm	CVD	-	€24.19
B	WOMX030204-B57 WKP35S	Neutral	030204	0.4 mm	Trigon	Komet	2.3 mm	CVD	-	€23.00
E	WOMX06T304-D57 WKP35S	Neutral	06T304	0.4 mm	Trigon	Komet	3.8 mm	CVD	-	€26.37
B	WOMX06T304-B57 WKP35S	Neutral	06T304	0.4 mm	Trigon	Komet	3.8 mm	CVD	-	€28.27
E	WOMX100508-D57 WKP25S	Neutral	100508	0.8 mm	Trigon	Komet	5.3 mm	CVD	-	€45.34
G	WOMX080408-D57 WXP40	Neutral	080408	0.8 mm	Trigon	Komet	4.8 mm	PVD	-	€34.82
G	WOMX05T304-D57 WXP40	Neutral	05T304	0.4 mm	Trigon	Komet	3.8 mm	PVD	-	€24.19
F	WOEX100508-E57 WKP35S	Neutral	100508	0.8 mm	Trigon	Komet	5.3 mm	CVD	-	€55.23
F	WOEX05T304-E57 WKP35S	Neutral	05T304	0.4 mm	Trigon	Komet	3.8 mm	CVD	-	€28.15
H	WOMX100508-D57 WAK15	Neutral	100508	0.8 mm	Trigon	Komet	5.3 mm	CVD	-	€45.94
E	WOMX05T304-D57 WKP35S	Neutral	05T304	0.4 mm	Trigon	Komet	3.8 mm	CVD	-	€23.62
G	WOMX030204-D57 WXP40	Neutral	030204	0.4 mm	Trigon	Komet	2.3 mm	PVD	-	€22.74
G	WOMX040304-D57 WXP40	Neutral	040304	0.4 mm	Trigon	Komet	3.18 mm	PVD	-	€21.97

SANDVIK COROMANT -

Non Coolant Through Solid Carbide Jobber Length Drill Bits

A

SANDVIK COROMANT 460.1-0820-041A1-XM GC34

B

C

SANDVIK COROMANT 860.1-1580-044A1-PM 4234

D

E

SANDVIK COROMANT 861.1-0400-012A1-GP GC34

F

SANDVIK COROMANT 460.1-0620-031A0-XM GC34

G

H

I

J

SANDVIK COROMANT 860.1-0635-051A1-NM H10F

K

L

SANDVIK COROMANT 860.2-1050-032A1-PM 4234

M

Style	Model	Decimal Equivalent	Overall Length	Cutting Direction	Flute Length	Drill Bit Size	Coolant Fed	Max. Drilling Depth	Drill Bit Point Angle	Price
A	R840-0200-50-A0B 1020	0.0781	1 15/32"	Right Hand	15/32"	5/64"	Non Coolant Through	0.469"	140°	€110.32
B	460.1-0820-041A1-XM GC34	0.375	4 1/32"	Right Hand	2 3/8"	3/8"	Coolant Through	2.391"	140°	€196.02
B	460.1-0640-032A1-XM GC34	0.375	3 9/16"	Right Hand	2 1/16"	3/8"	Coolant Through	2.078"	140°	-	RFQ
C	R840-1110-50-W1A 1220	0.437	4.646"	Right Hand	2.795"	1.9 mm	Coolant Through	2.781"	140°	€405.41
D	860.1-1580-044A1-PM 4234	0.622	4.528"	Right Hand	-	-	Coolant Through	2.547"	-	€691.15
E	R840-1750-30-A0A 1220	0.689	4.843"	Right Hand	2.874"	4.1 mm	Non Coolant Through	2.859"	140°	€616.28
F	861.1-0400-012A1-GP GC34	0.1406	2.594"	Right Hand	0.938"	-	Coolant Through	0.938"	-	€215.62
G	460.1-0620-031A0-XM GC34	0.2031	3 9/16"	Right Hand	2 1/16"	13/64"	Non Coolant Through	2.078"	140°	€110.32
B	460.1-0714-036A1-XM GC34	0.2031	3 9/16"	Right Hand	2 1/16"	13/64"	Coolant Through	2.078"	140°	-	RFQ
H	R840-0520-70-A1A 1220	0.2188	3 21/32"	Right Hand	1 31/32"	7/32"	Coolant Through	1.969"	140°	€259.88
H	R840-0714-70-A1A 1220	0.2188	4 1/8"	Right	2 5/8"	7/32"	Coolant Through	-	140°	€294.17
I	R840-0440-50-A1A 1220	0.2344	2 29/32"	Right	1 13/32"	15/64"	Coolant Through	-	140°	€217.05
J	854.1-0476-05-A0 N20C	0.2344	3 7/32"	Right Hand	1 23/32"	15/64"	Non Coolant Through	1.719"	130°	-	RFQ
D	860.1-0460-018A1-PM 4234	0.2344	2 19/32"	Right Hand	15/16"	15/64"	Coolant Through	0.938"	141°	€194.21
K	860.1-0635-051A1-NM H10F	0.2656	4 3/4"	Right Hand	3 1/8"	17/64"	Coolant Through	3.141"	130°	€376.99
I	R840-0940-50-A1A 1220	0.3701	4.055"	Right Hand	2.402"	0.55 mm	Coolant Through	2.391"	140°	€325.60
B	460.1-0660-033A1-XM GC34	0.3906	3 9/16"	Right Hand	2 1/16"	25/64"	Coolant Through	2.078"	140°	€154.87
L	R840-0670-50-A0A 1220	0.3906	3 9/16"	Right Hand	2 1/16"	25/64"	Non Coolant Through	2.078"	140°	€194.47
D	860.1-1000-031A1-PM 4234	0.3937	3.504"	Right Hand	1.85"	0.9 mm	Coolant Through	1.844"	143°	€274.17
G	460.1-1032-052A0-XM GC34	0.4063	4.646"	Right Hand	2.795"	1.25 mm	Non Coolant Through	2.781"	140°	€192.32
B	460.1-1032-052A1-XM GC34	0.4063	4.646"	Right Hand	2.795"	1.1 mm	Coolant Through	2.781"	140°	€267.30
B	460.1-0850-043A1-XM GC34	0.4063	4 1/32"	Right Hand	2 3/8"	13/32"	-	2.391"	140°	-	RFQ
K	860.1-1050-084A1-NM H10F	0.4134	6.732"	Right Hand	4.724"	1.5 mm	Coolant Through	4.719"	130°	€622.61
M	860.2-1050-032A1-PM 4234	0.4134	115 mm	Right Hand	59 mm	17 mm	Coolant Through	59 mm	143°	€631.16
D	860.1-0870-031A1-PM 4234	0.4219	3 1/2"	Right Hand	1 27/32"	27/64"	Coolant Through	1.844"	145°	€274.17

SANDVIK COROMANT -

Indexable Drill Bit Inserts

A

B

SANDVIK COROMANT 880-04 03 05H-C-GR 1044

C

Style	Model	Cutting Direction	Insert Style	Insert Size	Inscribed Circle	Chip-breaker	Rake	Price
A	880-06 04 W06H-P-GM 4324	Right	Corodrill 880	604	0.419"	GM	Positive	-	RFQ
B	LCMX 03 03 08-53 1020	Right Hand	U-DRILL(R)	030308	0.219"	53	Positive	€24.89
A	880-05 03 W05H-P-GM 4044	Right Hand	Corodrill 880	05 03	0.35"	GM	Positive	€30.55
A	880-06 04 W06H-P-GM 4024	Right Hand	Corodrill 880	604	0.419"	GM	Positive	€36.07
C	880-04 03 05H-C-GR 1044	Right Hand	Corodrill 880	403	0.268"	GR	Positive	€28.78
C	880-07 04 06H-C-GR 1044	Right Hand	Corodrill 880	704	0.486"	GR	Positive	€37.13
A	880-04 03 W07H-P-LM 4024	Right Hand	Corodrill 880	0403	0.291"	-	Positive	-	RFQ

OSG -

Coolant Through High Speed Steel Jobber Length Drill Bits

A

B

C

Style	Model	Decimal Equivalent	Shank Dia.	Flute Length	Max. Drilling Depth	Drill Bit Size	Overall Length	Shank Length	Drill Diameter Tolerance	Price
A	17500008	0.5	1/2"	4 1/2"	4 1/2"	1/2"	6 19/32"	53 mm	-0.027 mm to 0 mm	€432.42
A	17250008	0.25	1/4"	2 3/4"	2 3/4"	1/4"	4 9/16"	46 mm	-0.022 mm to 0 mm	€321.17
B	17750008	0.75	3/4"	5 7/8"	5 7/8"	3/4"	8 11/32"	70 mm	-0.033 mm to 0 mm	€739.23
A	17257008	0.257	9 63/64"	2 7/8"	2 7/8"	F	4 11/16"	46 mm	-0.022 mm to 0 mm	€331.09
A	17272008	0.272	9 63/64"	2 7/8"	2 7/8"	I	4 11/16"	46 mm	-0.022 mm to 0 mm	€315.94
A	17315008	0.315	8 mm	3 3/16"	3 3/16"	8 mm	5 mm	47 mm	-0.022 mm to 0 mm	€310.27
C	17375008	0.375	3/8"	3 5/8"	3 5/8"	3/8"	5 7/16"	46 mm	-0.022 mm to 0 mm	€334.15
A	17377008	0.377	9 63/64"	3 5/8"	3 5/8"	V	5 23/32"	53 mm	-0.022 mm to 0 mm	€334.15
A	17625008	0.625	5/8"	5 3/16"	5 3/16"	5/8"	7 9/16"	61 mm	-0.027 mm to 0 mm	€605.44
A	17875008	0.875	7/8"	6 1/8"	6 1/8"	7/8"	8 25/32"	68 mm	-0.033 mm to 0 mm	€981.03
A	17234408	0.2344	15/64"	2 5/8"	2 5/8"	15/64"	4 7/16"	46 mm	-0.018 mm to 0 mm	€317.49
A	17236208	0.2362	6 mm	2 3/4"	2 3/4"	6 mm	4 9/16"	46 mm	-0.018 mm to 0 mm	€326.39
A	17265608	0.2656	17/64"	2 7/8"	2 7/8"	17/64"	4 11/16"	46 mm	-0.022 mm to 0 mm	€306.71
A	17281208	0.2813	9/32"	-	2 15/16"	9/32"	4 3/4"	46 mm	-0.022 mm to 0 mm	€306.71
A	17296908	0.2969	19/64"	3 1/16"	3 1/16"	19/64"	4 7/8"	46 mm	-0.022 mm to 0 mm	€310.27
A	17312508	0.3125	5/16"	3 3/16"	3 3/16"	5/16"	5 mm	47 mm	-0.022 mm to 0 mm	€310.27
A	17328108	0.3281	21/64"	3 5/16"	3 5/16"	21/64"	5 1/8"	46 mm	-0.022 mm to 0 mm	€314.68
A	17343808	0.3438	11/32"	3 7/16"	3 7/16"	11/32"	5 1/4"	46 mm	-0.022 mm to 0 mm	€325.90
A	17359408	0.3594	23/64"	3 1/2"	3 1/2"	23/64"	5 5/16"	46 mm	-0.022 mm to 0 mm	€355.32
A	17390608	0.3906	25/64"	3 3/4"	-	25/64"	5 27/32"	53 mm	-0.022 mm to 0 mm	€360.20
A	17393708	0.3937	10 mm	3 3/4"	3 3/4"	10 mm	5 27/32"	53 mm	-0.022 mm to 0 mm	€334.15
A	17406208	0.4063	0.406"	3 7/8"	3 7/8"	-	5.969"	53 mm	-	€328.77
A	17421908	0.4219	27/64"	3 15/16"	3 15/16"	27/64"	6 1/32"	53 mm	-0.027 mm to 0 mm	€371.71
A	17437508	0.4375	7/16"	4 1/16"	4 1/16"	7/16"	6 5/32"	53 mm	-0.027 mm to 0 mm	€376.09
A	17453108	0.4531	29/64"	4 3/16"	4 3/16"	29/64"	6 9/32"	53 mm	-0.027 mm to 0 mm	€348.22

OSG -

Coolant Through Solid Carbide Jobber Length Drill Bits

A

B

C

D

E

F

G

H

I

Style	Model	Decimal Equivalent	Max. Drilling Depth	Flute Type	Shank Dia.	Flute Length	Overall Length	Drill Bit Size	Drill Bit Point Type	Price
A	651007812	0.0787	18 mm	Spiral	3 mm	18 mm	70 mm	2 mm	X Thinning Point	€168.00
A	651008212	0.0827	19 mm	Spiral	3 mm	19 mm	70 mm	2.1 mm	X Thinning Point	€168.00
A	651008612	0.0866	20 mm	Spiral	3 mm	20 mm	70 mm	2.2 mm	X Thinning Point	€168.00
A	8692230	0.0906	21 mm	Spiral	3 mm	21 mm	70 mm	2.3 mm	X Thinning Point	€168.00
A	651009412	0.0945	22 mm	Spiral	3 mm	22 mm	70 mm	2.4 mm	X Thinning Point	€168.00
A	8692250	0.0984	23 mm	Spiral	3 mm	23 mm	-	2.5 mm	X Thinning Point	€168.00
B	8663270	0.5	102 mm	Spiral	13 mm	102 mm	167 mm	1/2"	R Thinning Point	€453.48
C	521050012	0.5	102 mm	Spiral	12.7 mm	102 mm	167 mm	1/2"	R Thinning Point	€460.28
D	HP255-5000	0.5	77 mm	Spiral	14 mm	77 mm	124 mm	1/2"	R Thinning Point	€328.68
C	8668270	0.5	102 mm	Spiral	13 mm	102 mm	167 mm	1/2"	R Thinning Point	€446.56
E	595550011	0.5	104 mm	Slow Spiral	14 mm	104 mm	167 mm	1/2"	R Thinning Point	€535.82
F	8703270	0.5	102 mm	Spiral	14 mm	102 mm	167 mm	1/2"	X Thinning Point	€472.95
F	8693270	0.5	102 mm	Spiral	13 mm	102 mm	167 mm	1/2"	X Thinning Point	€472.95
F	651050011	0.5	102 mm	Spiral	12.7 mm	102 mm	167 mm	1/2"	X Thinning Point	€497.77
A	651025011	0.25	-	Spiral	6.4 mm	-	109 mm	1/4"	X Thinning Point	€206.26
D	HP255-2500	0.25	53 mm	Spiral	8 mm	53 mm	91 mm	-	-	€125.03
E	595525011	0.25	52 mm	Slow Spiral	8 mm	52 mm	102 mm	1/4"	R Thinning Point	€229.47
C	8667635	0.25	52 mm	Spiral	6.3 mm	52 mm	109 mm	1/4"	R Thinning Point	€194.60
G	651075011	0.75	154 mm	Spiral	19 mm	154 mm	217 mm	3/4"	X Thinning Point	€934.82
H	521075012	0.75	134 mm	Spiral	19 mm	134 mm	205 mm	3/4"	R Thinning Point	€1,066.47
I	HP255-7500	0.75	101 mm	Spiral	20 mm	101 mm	153 mm	3/4"	R Thinning Point	€714.45
D	HP255-1220	0.122	28 mm	Spiral	6 mm	28 mm	66 mm	3.1 mm	R Thinning Point	€98.10
A	8692310	0.122	28 mm	Spiral	4 mm	28 mm	86 mm	3.1 mm	X Thinning Point	€173.87
C	8667310	0.122	28 mm	Spiral	4 mm	28 mm	86 mm	3.1 mm	R Thinning Point	€164.03
D	HP255-1248	0.125	28 mm	Spiral	6 mm	28 mm	66 mm	1/8"	R Thinning Point	€96.75

OSG -

Powdered Metal Jobber Length Drill Bits

A

B

C

D

Style	Model	Decimal Equivalent	Flute Type	Overall Length	Max. Drilling Depth	Flute Length	Shank Dia.	Drill Bit Size	Drill Bit Point Angle	Price
A	8612199	0.0785	Spiral	56 mm	24 mm	24 mm	3 mm	#47	130°	€43.32
B	8593020	0.0787	Fast Spiral	56 mm	24 mm	24 mm	3 mm	2 mm	120°	€41.35
A	8612206	0.081	Spiral	56 mm	24 mm	24 mm	3 mm	#46	130°	€55.05
A	8612208	0.082	Spiral	56 mm	24 mm	24 mm	3 mm	#45	130°	€55.05
B	8593021	0.0827	Fast Spiral	56 mm	24 mm	24 mm	3 mm	2.1 mm	120°	€47.06
A	8612218	0.086	Spiral	59 mm	27 mm	27 mm	3 mm	#44	130°	€55.05
B	8593022	0.0866	Fast Spiral	59 mm	27 mm	27 mm	3 mm	2.2 mm	120°	€47.06
A	8612226	0.089	Spiral	59 mm	27 mm	27 mm	3 mm	#43	130°	€53.15
B	8593023	0.0906	Fast Spiral	59 mm	27 mm	27 mm	3 mm	2.3 mm	120°	€47.06
A	8612237	0.0935	Spiral	62 mm	30 mm	30 mm	3 mm	#42	130°	€55.05
A	8612238	0.0938	Spiral	62 mm	30 mm	30 mm	3 mm	3/32"	130°	€50.95
B	8593024	0.0945	Fast Spiral	62 mm	30 mm	30 mm	3 mm	2.4 mm	120°	€47.06
A	8612249	0.098	Spiral	62 mm	30 mm	30 mm	3 mm	#40	130°	€55.05
C	8593025	0.0984	Fast Spiral	62 mm	30 mm	30 mm	3 mm	2.5 mm	120°	€47.06
A	8612253	0.0995	Spiral	62 mm	30 mm	30 mm	3 mm	#39	130°	€55.05
B	8593127	0.5	Fast Spiral	158 mm	101 mm	101 mm	12 mm	1/2"	120°	€280.38
D	8613270	0.5	Spiral	158 mm	101 mm	101 mm	12 mm	1/2"	130°	€242.82
A	8612279	0.11	Spiral	65 mm	33 mm	33 mm	3 mm	#35	130°	€49.54
A	8612305	0.12	Spiral	68 mm	36 mm	36 mm	4 mm	#31	130°	€57.43
D	8612457	0.18	Spiral	91 mm	47 mm	47 mm	6 mm	#15	130°	€91.55
D	8612635	0.25	Spiral	107 mm	63 mm	63 mm	8 mm	1/4"	130°	€99.13
D	8612737	0.29	Spiral	113 mm	69 mm	69 mm	8 mm	L	130°	€112.27
A	8612264	0.104	Spiral	62 mm	30 mm	30 mm	3 mm	#37	130°	€55.05
A	8612295	0.116	Spiral	65 mm	33 mm	33 mm	3 mm	#32	130°	€48.05
B	8593031	0.122	Fast Spiral	68 mm	36 mm	36 mm	4 mm	3.1 mm	120°	€56.32

OSG -

Non Coolant Through Solid Carbide Jobber Length Drill Bits

A

B

C

D

E

Style	Model	Decimal Equivalent	Cutting Direction	Max. Drilling Depth	Overall Length	Flute Length	Flute Type	Coolant Fed	Shank Dia.	Price
A	HP245-0394	0.0394	Right Hand	9 mm	38 mm	9 mm	Spiral	Non-Coolant Through	3 mm	€51.97
A	HP245-0433	0.0433	Right Hand	9 mm	38 mm	9 mm	Spiral	Non-Coolant Through	3 mm	€51.97
B	HP245-0469	0.0469	Right Hand	11 mm	38 mm	11 mm	Spiral	Non-Coolant Through	3 mm	€51.97
A	HP245-0472	0.0472	Right Hand	11 mm	38 mm	11 mm	Spiral	Non-Coolant Through	3 mm	€53.70
A	HP245-0512	0.0512	Right Hand	11 mm	38 mm	11 mm	Spiral	Non-Coolant Through	3 mm	€51.97
A	HP245-0551	0.0551	Right Hand	12 mm	38 mm	12 mm	Spiral	Non-Coolant Through	3 mm	€45.31
A	HP245-0591	0.0591	Right Hand	12 mm	45 mm	12 mm	Spiral	Non-Coolant Through	3 mm	€45.31
A	HP245-0626	0.0625	Right Hand	14 mm	45 mm	14 mm	Spiral	Non-Coolant Through	3 mm	€43.70
A	HP245-0630	0.063	Right Hand	14 mm	45 mm	14 mm	Spiral	Non-Coolant Through	3 mm	€43.27
A	HP245-0669	0.0669	Right Hand	14 mm	45 mm	14 mm	Spiral	Non-Coolant Through	3 mm	€43.27
A	HP245-0709	0.0709	Right Hand	16 mm	45 mm	16 mm	Spiral	Non-Coolant Through	3 mm	€43.27
A	HP245-0748	0.0748	Right Hand	16 mm	45 mm	16 mm	Spiral	Non-Coolant Through	3 mm	€43.27
A	HP245-0780	0.0781	Right Hand	18 mm	50 mm	18 mm	Spiral	Non-Coolant Through	3 mm	€43.27
A	HP245-0787	0.0787	Right Hand	18 mm	50 mm	18 mm	Spiral	Non-Coolant Through	3 mm	€40.82
C	8672200	0.0787	Right	20 mm	66 mm	20 mm	Spiral	Non-Coolant Through	4 mm	€107.25
D	3318210	0.0827	Right Hand	12 mm	-	12 mm	Slow Spiral	Non-Coolant Through	3 mm	€160.38
A	HP245-0827	0.0827	Right Hand	18 mm	50 mm	18 mm	Spiral	Non-Coolant Through	3 mm	€43.27
E	8672210	0.0827	Right	20 mm	66 mm	20 mm	Spiral	Non-Coolant Through	4 mm	€107.25
D	3318220	0.0866	Right Hand	13 mm	43 mm	13 mm	Slow Spiral	Non-Coolant Through	3 mm	€160.38
A	HP245-0866	0.0866	Right Hand	20 mm	52 mm	20 mm	Spiral	Non-Coolant Through	3 mm	€45.31
E	8672220	0.0866	Right	20 mm	66 mm	20 mm	Spiral	Non-Coolant Through	4 mm	€107.25
E	8672230	0.0906	Right	20 mm	66 mm	20 mm	Spiral	Non-Coolant Through	4 mm	€107.80
A	HP245-0906	0.0906	Right Hand	20 mm	52 mm	20 mm	Spiral	Non-Coolant Through	3 mm	€45.31
D	3318230	0.0906	Right Hand	13 mm	43 mm	13 mm	Slow Spiral	Non-Coolant Through	3 mm	€160.38
B	HP245-0937	0.0938	Right Hand	22 mm	52 mm	22 mm	Spiral	Non-Coolant Through	3 mm	€52.44

PAN AMERICAN TOOL -

Cobalt Jobber Length Drill Bits

A

B

Style	Model	Decimal Equivalent	Overall Length	Flute Length	Drill Bit Size	Drill Bit Point Type	Drill Point Length	Material	Finish	Price
A	13-DM63	0.0938	2 1/4"	1 1/4"	3/32"	Split Point	-	Cobalt	Straw, Bronze	€12.61
A	13-DM40	0.098	2 3/8"	1 3/8"	#40	Split Point	-	Cobalt	Straw, Bronze	€10.14
A	13-DM15	0.18	3 3/8"	2 3/16"	#15	Split Point	-	Cobalt	Straw, Bronze	€16.97
B	13-216	0.25	4"	2 3/4"	1/4" x #10	Pilot Point	42491"	Cobalt	Straw, Bronze	€30.20
B	13-223	0.25	4"	2 3/4"	1/4" x #11	Pilot Point	42491"	Cobalt	Straw, Bronze	€30.20
A	13-DM73	0.25	4"	2 3/4"	1/4"	Split Point	-	Cobalt	Straw, Bronze	€17.82
B	13-230	0.25	4"	-	1/4" x #30	Pilot Point	42491"	Cobalt	Straw, Bronze	€30.58
B	13-327	0.25	4"	2 3/4"	1/4" x #21	Pilot Point	42491"	Cobalt	Straw, Bronze	€30.20
A	13-DM65	0.125	2 3/4"	1 5/8"	1/8"	Split Point	-	Cobalt	Straw, Bronze	€15.54
B	13-106	0.144	3"	1 7/8"	#27 x #40	Pilot Point	1/4"	Cobalt	Straw, Bronze	€21.28
A	13-DM27	0.144	3"	1 7/8"	#27	Split Point	-	Cobalt	Straw, Bronze	€13.62
B	13-107	0.159	3 1/4"	2 1/8"	#21 x #30	Pilot Point	1/4"	Cobalt	Straw, Bronze	€21.81
B	13-114	0.159	3 1/4"	2 1/8"	#21 x #40	Pilot Point	1/4"	Cobalt	Straw, Bronze	€21.28
A	13-DM21	0.159	3 1/4"	2 1/8"	#21	Split Point	-	Cobalt	Straw, Bronze	€12.98
B	13-115	0.161	3 1/4"	2 1/8"	#20 x #30	Pilot Point	1/4"	Cobalt	Straw, Bronze	€22.54
B	13-117	0.161	3 1/4"	2 1/8"	#20 x #40	Pilot Point	1/4"	Cobalt	Straw, Bronze	€22.54
A	13-DM20	0.161	3 1/4"	2 1/8"	#20	Split Point	-	Cobalt	Straw, Bronze	€10.39
A	13-DM19	0.166	3 1/4"	2 1/8"	#19	Split Point	-	Cobalt	Straw, Bronze	€14.13
B	13-119	0.177	3 3/8"	2 3/16"	#16 x #30	Pilot Point	1/4"	Cobalt	Straw, Bronze	€22.28
B	13-118	0.177	3 3/8"	2 3/16"	#16 x #40	Pilot Point	1/4"	Cobalt	Straw, Bronze	€25.08
A	13-DM16	0.177	3 3/8"	2 3/16"	#16	Split Point	-	Cobalt	Straw, Bronze	€14.13
B	13-128	0.185	3 1/2"	2 5/16"	#13 x #30	Pilot Point	1/4"	Cobalt	Straw, Bronze	€22.48
A	13-DM13	0.185	3 1/2"	2 5/16"	#13	Split Point	-	Cobalt	Straw, Bronze	€19.94
B	13-135	0.185	3 1/2"	2.312"	-	-	1/4"	Cobalt	Straw, Bronze	€24.96
B	13-121	0.185	3 1/2"	2 5/16"	#13 x #40	Pilot Point	1/4"	Cobalt	Straw, Bronze	€24.96

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Jobber Length Drill Bits

Brazed carbide drills

Non Coolant Through Solid Carbide Jobber Length Drill Bits

2314 Series Heavy Duty Taper Length Drills, M42 Cobalt

1322 Series Taper Length Drills, High Speed Steel

1314 Series Taper Length Drills, High Speed Steel

1315 Series Straight Shank Drills, Extra Long, High Speed Steel

1302 Series Taper Shank Drills, High Speed Steel

Carbide Tipped Jobber Length Drill Bits

Coolant Through High Speed Steel Jobber Length Drill Bits

Coolant Through Solid Carbide Jobber Length Drill Bits

Non Coolant Through High Speed Steel Jobber Length Drill Bits

1325 Series High Helix Taper Length Drills, High Speed Steel

Indexable Drill Bits for Small Diameter Drilling

Indexable Drill Bit Inserts

Non Coolant Through Solid Carbide Jobber Length Drill Bits

Indexable Drill Bit Inserts

Coolant Through High Speed Steel Jobber Length Drill Bits

Coolant Through Solid Carbide Jobber Length Drill Bits

Powdered Metal Jobber Length Drill Bits

Non Coolant Through Solid Carbide Jobber Length Drill Bits

Cobalt Jobber Length Drill Bits

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Jobber Length Drill Bits

Popular Search Queries

Explore More
