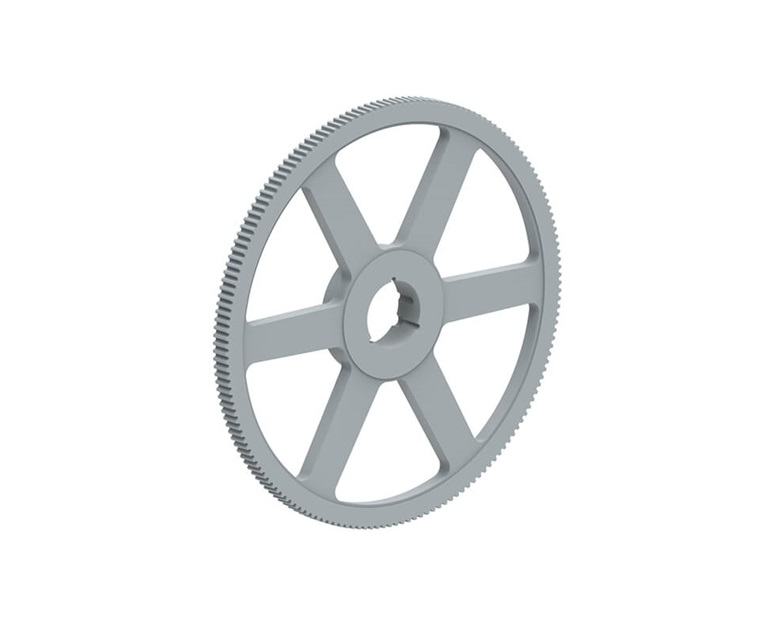

TB WOODS 14MPC90S20 QT Power Chain II Belt Sprocket, Cast Iron, 8.75 inch Hub Dia., 20mm Belt Width
1600 RPM
Get it by Tuesday, Aug 25
€715.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Belt Type | Polychain |
| Belt Width | 20 mm |
| Bore Type | Taper Lock Bushed |
| Bushing | 3525 |
| Bushing Type | 3525 |
| Construction | Spoked |
| Dimension L | 2 1/2" |
| Dimensions E | 0.0" |
| Dimensions L | 2 1/2" |
| Dimensions M | 1.14" |
| Face Width | 1 9/25" |
| Hub Dia. | 8 3/4" |
| Hub Length | 2 1/2" |
| Inside Dia. | 14.19" |
| Material | Cast Iron |
| Max. Speed | 1600 RPM |
| No. Of Teeth | 90 |
| Outside Dia. | 15 17/25" |
| Pitch Dia. | 15.79" |
| Rpm High | 1600 RPM |
Shipping Info:
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 39.83 |
| Ship length (cm) | 39.83 |
| Ship width (cm) | 2.01 |
Product Variants
| Product | Model | Material | No. Of Teeth | Pitch Dia. | Belt Width | Bore Type | Rpm High | Construction | Dimensions M | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
14MPC112S125 | Cast Iron | 112 | 19.65" | 125 mm | Taper Locking Bushing | 1280 RPM | - | 0.61" | €1,676.27 | |
 |
14MPC112S37 | Cast Iron | 112 | 19.65" | 37 mm | Taper Lock Bushed | 1280 RPM | Spoked | 11/25" | €1,014.96 | |
|
14MPC140S37 | Cast Iron | 140 | 24.562" | - | Taper Lock Bushed | 1030 RPM | Spoked | 11/25" | €1,330.49 | |
|
14MPC140S68 | Cast Iron | 140 | 24.562" | 68 mm | Taper Lock Bushed | 1030 RPM | Spoked | 0.33" | €1,635.52 | |
 |
14MPC140S90 | Cast Iron | - | - | - | Taper Lock Bushed | 1030 RPM | Spoked | 1/5" | €1,784.48 | |
 |
14MPC168S125 | Cast Iron | 168 | 29.475" | 125 mm | Taper Lock Bushed | 860 RPM | Spoked | 0.39" | €2,777.69 | |
|
14MPC168S68 | Cast Iron | 168 | 29.475" | 68 mm | Taper Lock Bushed | 860 RPM | Spoked | 0.17" | €2,171.74 |
