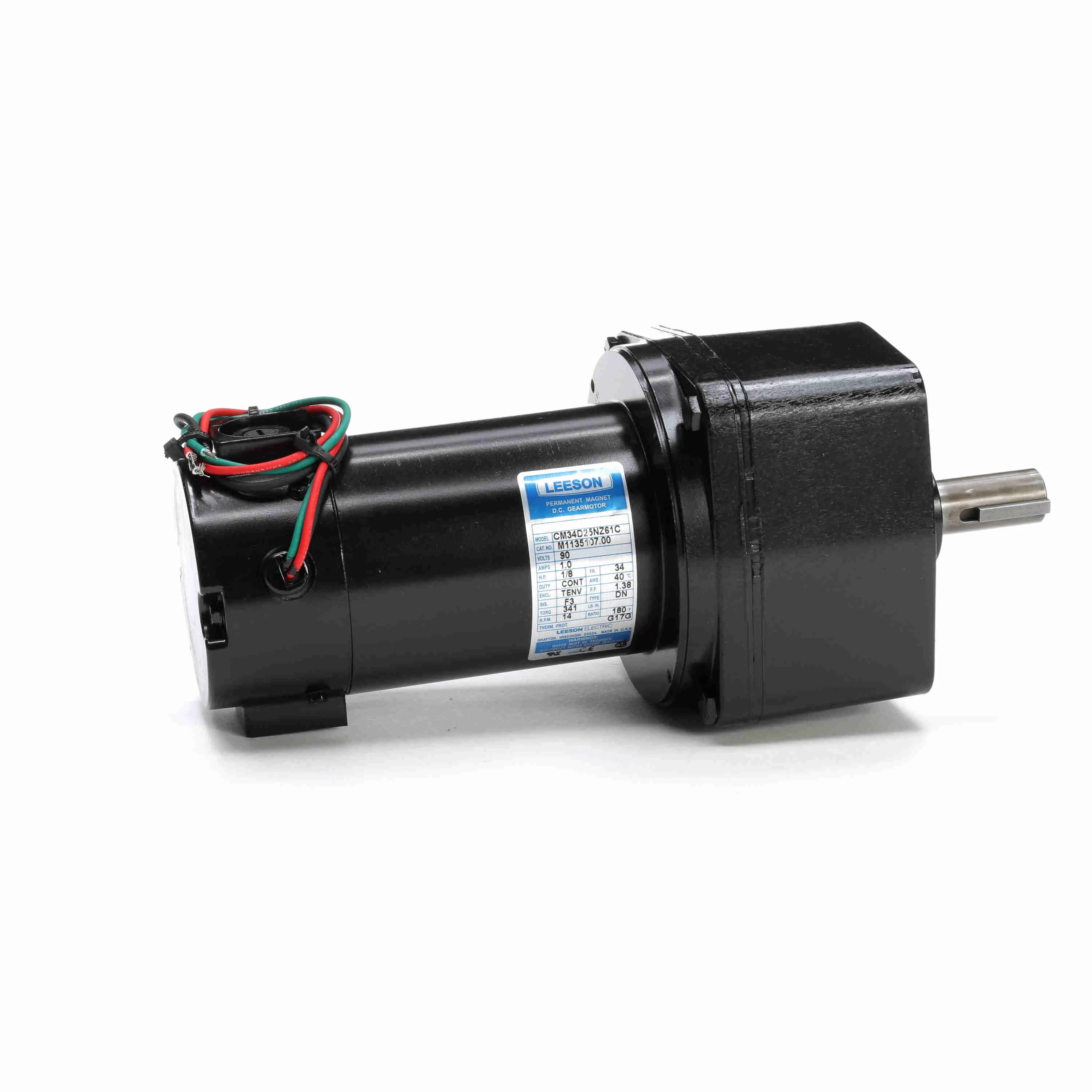

LEESON M1135107.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 14 RPM, 341 in-lb Max Torque, 180, 1 | CR8PQZ 794AU4

LEESON M1135107.00 CM34D25NZ61C Parallel Shaft Gearmotor, 0.13 HP, 90V, 14 RPM

Item: CR8PQZModel: M1135107.00Cross Ref: 794AU4 / CM34D25NZ61C
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,009.80 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Parallel
Ambient Temp. 40°C
Amps 1A
Assembly M1040874
Base To Center Of Shaft 4"
Connection Const Torque Speed Range
Drive End Bearing Size 6201
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 47.2%
Enclosure Type Tenv
Explosion Proof Brake Motors
Features Agma Class 9 Standard, Rugged Die Cast Aluminum Gear Housing
Frame Length 4 3/5"
Frame Size 34
Frame Suffix Not Available
Full Load Amps 1A
Gear Ratio 180:1
Height 6.69"
Hp 13/100 hp
Input Hp 1/8 hp
Insulation Class Class F
Keyway Depth 3/16"
Keyway Length 1 1/8"
Keyway Type Square
Keyway Width 1"
Kw 0.1 kW
Length 16 1/2"
Length Less Shaft 9.31"
Lubrication Polyrex EM
Max. Output Speed 14 RPM
Max. Torque 341 lbs.-in.
Maximum Ambient Temperature 40°C
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Nonventilated
Motor Insulation Class Class F
Motor Type Permanent Magnet DC
Mount Hole Center-to-center Length 2 1/2"
Mount Hole Center-to-center Width 5"
Mount Type Special
Mounting Orientation Horizontal, Vertical with Shaft Down
Mounting Type Special
Nameplate Rpm 14 RPM
Operating Voltage 90V DC
Opp. Drive End Bearing Size 608
Opp. Drive End Bearing Type Ball
Outline M1030589
Output Kw 0.1 kW
Output Shaft Dia. 3/4"
Output Shaft Length 1 5/8"
Overall Height 6 3/4"
Overall Length 11.31"
Overall Width 6"
Overhung Load Capacity 465 lbs.-ft.
Overrlung Ld. 465 lbs.
Rotation CW/CCW
Rotation Type Reversible
Rpm 14 RPM
Seal Type Heavy Duty Industrial
Series PE350 Series
Service Factor 1
Shaft Dia. 3/4"
Shaft Length 1 5/8"
Shaft Orientation Parallel
Shaft Type Parallel
Starting Torque 341 lbs.-in.
Test Card 10
Torque 341 lbs.-in.
Type Dn
Voltage 90V
Winding MD342195

Shipping Info:

Ship weight (kg) 5.4
Ship height (cm)16.99
Ship length (cm)41.91
Ship width (cm)19.51
Country of OriginUS

Product Variants

ProductModelShaft OrientationOperating VoltageGear RatioNameplate RpmInput HpBase To Center Of ShaftOverhung Load CapacityMax. TorquePrice
LEESON M1125071.00 Motor, Parallel, 90VDC, TENV, 51 RPM, 130 in-lb | CR8PMN 36X874 M1125071.00Parallel90V DC35:151 RPM-3 1/2"277 lbs.-ft.130 lbs.-in.€1,017.86
LEESON M1125074.00 90 Volt Dc Gearmotor, Parallel, 90VDC, TENV, 167 RPM, 43 in-lb | CR8PMP 36X633 M1125074.00Parallel90V DC11:1167 RPM---43 lbs.-in.€990.65
LEESON M1125004.00 90Vdc Gear Motor 31Rpm, Parallel, 90VDC, TENV, 100 RPM, 36 in-lb | CR8PMQ 36X883 M1125004.00Parallel90V DC18:1100 RPM3/50 hp--36 lbs.-in.€812.90
LEESON M1135065.00 Motor, 1/4 Hp 180 Volt Tenv, Right Angle, 180V DC | CR8PMR 36X855 M1135065.00Right Angle180V DC10:1250 RPM1/4 hp-235 lbs.-ft.-€1,050.36
LEESON M1125069.00 Motor, Parallel, 90V Dc, Tenv, 24 Rpm, 280 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMT 36X876 M1125069.00Parallel90V DC76:124 RPM13/100 hp--280 lbs.-in.€1,044.63
LEESON M1125073.00 Motor, Parallel, 90V Dc, Tenv, 94 Rpm, 77 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMU 36X856 M1125073.00Parallel90V DC19:194 RPM13/100 hp--77 lbs.-in.€1,152.51
LEESON M1135252.00 Right Angle Gearmotors, Right Angle, 12V DC, Tenv, 125 Rpm, 90 In-Lb Max Torque | CR8PMW 794AZ2 M1135252.00Right Angle12V DC20:1125 RPM1/4 hp1.67"235 lbs.-ft.-€1,060.13
