Browning Tapered And Qd Bushings

BROWNING -

SDS Type, Quick Disconnect Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Overall Length	Flange Thickness	Bore Size	Keyway Size	Bolt Circle Dia.	Rated Torque	Outside Dia.	Type	Price
A	3208097	-	-	40 mm	-	-	-	2.187"	-	€63.36
B	1076876	1.33"	7/16"	3/4"	3/16" x 3/32"	2 11/16"	5000 lbs.-in.	-	-	€90.37
C	3208105	1.33"	0.45"	42 mm	12 mm x 4 mm	2 11/16"	5000 lbs.-in.	2.187"	Type SDS	€44.16	RFQ
D	1076835	1.33"	7/16"	1/2"	1/8" x 1/16"	2 11/16"	-	2.187"	-	€42.98	RFQ
E	3208048	1.33"	0.45"	28 mm	8 mm x 3.5 mm	2 11/16"	5000 lbs.-in.	2.187"	Type SDS	€127.33
F	1076934	1.33"	7/16"	1 1/8"	1/4" x 1/8"	2 11/16"	5000 lbs.-in.	2.187"	-	€61.65
G	1076942	1.33"	7/16"	1 3/16"	1/4" x 1/8"	2 11/16"	-	-	-	€90.37
H	1076983	1.33"	7/16"	1 3/8"	5/16" x 5/32"	2 11/16"	5000 lbs.-in.	-	-	€61.65
I	1076926	1.33"	7/16"	1 1/16"	1/4" x 1/8"	2 11/16"	-	2.187"	-	€55.58
J	1076868	1.33"	7/16"	11/16"	3/16" x 3/32"	2 11/16"	5000 lbs.-in.	2.187"	-	€55.58
K	1076900	1.33"	0.45"	15/16"	1/4" x 1/8"	2 11/16"	5000 lbs.-in.	2.187"	Type SDS	€42.98	RFQ
L	3208071	1.33"	0.45"	35 mm	10 mm x 4 mm	2 11/16"	5000 lbs.-in.	-	Type SDS	€57.11
M	1076892	1.33"	7/16"	7/8"	3/16" x 3/32"	2 11/16"	5000 lbs.-in.	2.187"	-	€61.65
N	1076967	1.33"	7/16"	1 5/16"	5/16" x 5/32"	2 11/16"	-	2.187"	-	€55.58
O	3208113	1.33"	0.45"	48 mm	14 mm x 4.5 mm	2 11/16"	5000 lbs.-in.	2.187"	Type SDS	€55.54
P	1076959	1.33"	7/16"	1 1/4"	1/4" x 1/8"	2 11/16"	5000 lbs.-in.	2.187"	-	€90.37
Q	1076991	1.33"	0.45"	1 3/8"	3/4" x 3/16"	2 11/16"	5000 lbs.-in.	2.187"	Type SDS	€55.58
R	1076884	1.33"	0.45"	13/16"	3/16" x 3/32"	2 11/16"	5000 lbs.-in.	2.187"	Type SDS	€93.88
S	3208089	1.33"	0.45"	38 mm	10 mm x 4 mm	2 11/16"	5000 lbs.-in.	-	Type SDS	€44.16	RFQ
T	1077072	1.33"	7/16"	1 7/8"	1/2" x 1/4"	2 11/16"	-	-	-	€90.37
U	1076918	1.33"	7/16"	1"	1/4" x 1/8"	2 11/16"	5000 lbs.-in.	2.187"	-	€88.67
V	1077007	1.33"	7/16"	1 7/16"	3/4" x 3/16"	2 11/16"	5000 lbs.-in.	-	-	€61.65
W	1077015	1.33"	7/16"	1 1/2"	3/4" x 3/16"	2 11/16"	5000 lbs.-in.	-	-	€88.67
X	1077031	1.33"	7/16"	1 5/8"	3/4" x 3/16"	2 11/16"	5000 lbs.-in.	2.187"	-	€61.65
Y	1077049	1.33"	7/16"	1 11/16"	3/4" x 3/16"	2 11/16"	5000 lbs.-in.	2.187"	-	€88.67

BROWNING -

W2 Type, Split Taper Bushings

A

Style	Model	Bore Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Type	Price
A	1081348	4 7/8"	10"	11 1/4"	1.438"	Type W2	€5,218.55
A	1081397	5 1/4"	10"	11 1/4"	1.438"	Type W2	€8,660.99
A	1081363	5"	10"	11 1/4"	1.438"	Type W2	€5,143.26

BROWNING -

U2 Type, Split Taper Bushings

A

B

C

D

E

Style	Model	Bore Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Type	Outside Dia.	Price
A	1072081	3 3/4"	7"	10 1/8"	1.063"	Type U2	-	€2,974.76
A	1072040	3 7/16"	7"	10 1/8"	1.063"	Type U2	6"	€2,250.21
B	1072107	3 15/16"	7"	10 1/8"	1.063"	Type U2	6"	€2,306.46
A	1072206	4 3/4"	7"	10 1/8"	1.063"	Type U2	6"	€3,741.90
C	1072164	4 7/16"	7"	10 1/8"	1.063"	Type U2	-	€1,789.85
D	1072222	4 15/16"	7"	10 1/8"	1.063"	Type U2	-	€2,306.46
E	1072230	5"	7"	10 1/8"	1.063"	Type U2	-	€2,385.20

BROWNING -

U1 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

Style	Model	Flange Thickness	Bore Size	Bolt Circle Dia.	Overall Length	Type	Outside Dia.	Price
A	1071703	1.063"	3 3/8"	7"	7 1/8"	Type U1	-	€2,501.72
B	1071828	1.063"	4 3/8"	7"	7 1/8"	Type U1	-	€3,399.76
C	1071786	1.063"	4"	7"	7 1/8"	Type U1	6"	€1,772.96
D	1071901	1.063"	5"	7"	7 1/8"	Type U1	6"	€1,590.04
E	1071778	1.063"	3 15/16"	7"	7 1/8"	Type U1	6"	€1,976.96
F	1071794	1.063"	4 1/8"	7"	7 1/8"	Type U1	-	€2,814.43
G	1071836	1.063"	4 7/16"	7"	7 1/8"	Type U1	6"	€1,590.04
H	1071711	1.063"	3 7/16"	7"	7 1/8"	Type U1	-	€2,005.88
I	1071810	1.063"	4 1/4"	7"	7 1/8"	Type U1	-	€1,976.96
J	1071661	1.063"	3"	7"	7 1/8"	Type U1	6"	€1,928.72
K	1071893	1.063"	4 15/16"	7"	7 1/8"	Type U1	6"	€1,976.96
L	3195054	1.063"	5 1/2"	7"	7 1/8"	Type U1	6"	€1,590.04
M	1071570	1.063"	2 3/8"	7"	7 1/8"	Type U1	-	€2,940.27
N	1071844	1.063"	4 1/2"	7"	7 1/8"	Type U1	6"	€1,689.14
O	1071729	1.063"	3 1/2"	7"	7 1/8"	Type U1	-	€2,005.88
P	1071653	1.063"	2 15/16"	7"	7 1/8"	Type U1	6"	€2,005.88
Q	1071760	1.063"	3 7/8"	7"	7 1/8"	Type U1	6"	€2,005.88
R	3195047	1.188"	5 7/16"	7"	7 1/8"	Type U1	6"	€1,976.96

BROWNING -

U0 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Style	Model	Overall Length	Flange Thickness	Bore Size	Bolt Circle Dia.	Type	Outside Dia.	Keyway Size	Price
A	1071471	4 15/16"	3/4"	4 1/4"	7"	-	6"	1" x 1/2"	€930.72
B	1071430	4.938"	3/4"	3 15/16"	7"	Type U0	6"	-	€1,182.06
C	1071489	4.938"	3/4"	4 3/8"	7"	Type U0	6"	-	€1,222.42
D	1071372	4.938"	3/4"	3 7/16"	7"	Type U0	6"	-	€948.63
E	3170743	4.938"	0.766"	5 1/2"	7"	Type U0	6"	-	€1,524.59
F	1071513	4.938"	3/4"	4 5/8"	7"	Type U0	6"	-	€948.63	RFQ
G	1071505	4.938"	3/4"	4 1/2"	7"	Type U0	6"	-	€1,724.87
H	1071497	4.938"	3/4"	4 7/16"	7"	Type U0	6"	-	€1,034.58
I	1071380	4.938"	3/4"	3 1/2"	7"	Type U0	6"	-	€930.72	RFQ
J	1071539	4.938"	3/4"	4 3/4"	7"	Type U0	6"	-	€2,231.09
K	1071554	4.938"	3/4"	4 15/16"	7"	Type U0	6"	-	€1,098.32
L	1071448	4.938"	3/4"	4"	7"	Type U0	6"	-	€1,199.35
M	1071414	4.938"	3/4"	3 3/4"	7"	Type U0	6"	-	€1,199.35
N	1071562	4.938"	3/4"	5"	7"	Type U0	6"	-	€1,199.35
O	1071463	4.938"	3/4"	4 3/16"	7"	Type U0	6"	-	€1,182.06
P	3170735	4.938"	3/4"	5 7/16"	7"	Type U0	6"	-	€1,945.76
Q	1071323	5 1/4"	1.063"	3"	7"	Type U0	6"	-	€1,182.06
R	1071315	5 1/4"	1.063"	2 15/16"	7"	Type U0	-	-	€1,983.20
S	1071240	5 1/4"	1.063"	2 7/16"	7"	Type U0	6"	-	€1,870.93

BROWNING -

SH Type, Quick Disconnect Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Overall Length	Flange Thickness	Bore Size	Keyway Size	Bolt Circle Dia.	Outside Dia.	Rated Torque	Type	Price
A	3207966	1 1/5"	0.45"	24 mm	8 mm x 3.5 mm	2 1/4"	1.871"	3500 lbs.-in.	Type SH	€49.17
B	1077601	1 1/5"	7/16"	1"	1/4" x 1/8"	2 1/4"	1.871"	3500 lbs.-in.	-	€53.08
C	1077635	1 1/5"	7/16"	1 3/16"	1/4" x 1/8"	2 1/4"	1.871"	3500 lbs.-in.	-	€103.80
D	1077718	1 1/5"	7/16"	1 9/16"	3/4" x 3/16"	2 1/4"	1.871"	-	-	€47.86
E	1077692	1 1/5"	7/16"	1 7/16"	3/4" x 3/16"	2 1/4"	-	3500 lbs.-in.	-	€53.08
F	1077593	1 1/5"	7/16"	15/16"	1/4" x 1/8"	2 1/4"	-	-	-	€47.86
G	1077726	1 1/5"	7/16"	1 5/8"	3/4" x 3/16"	2 1/4"	1.871"	3500 lbs.-in.	-	€36.00	RFQ
H	1077619	1 1/5"	7/16"	1 1/16"	1/4" x 1/8"	2 1/4"	1.871"	-	-	€47.86
I	1077544	1 1/5"	7/16"	5/8"	3/16" x 3/32"	2 1/4"	1.871"	3500 lbs.-in.	-	€47.86
J	3207974	1 1/5"	0.45"	25 mm	8 mm x 3.5 mm	2 1/4"	1.871"	3500 lbs.-in.	Type SH	€49.17
K	1077650	1 1/5"	7/16"	1 5/16"	5/16" x 5/32"	2 1/4"	1.871"	-	-	€47.86
L	1077700	1 1/5"	7/16"	1 1/2"	3/4" x 3/16"	2 1/4"	-	3500 lbs.-in.	-	€77.86
M	1077528	1 1/5"	7/16"	1/2"	1/8" x 1/16"	2 1/4"	1.871"	3500 lbs.-in.	-	€36.00	RFQ
N	1077585	1 1/5"	7/16"	7/8"	3/16" x 3/32"	2 1/4"	-	3500 lbs.-in.	-	€36.00	RFQ
O	1077536	1 1/5"	7/16"	9/16"	1/8" x 1/16"	2 1/4"	1.871"	-	-	€92.55
P	1077684	1 1/5"	7/16"	1 3/8"	3/4" x 3/16"	2 1/4"	1.871"	-	-	€46.55
Q	1077569	1 1/5"	7/16"	3/4"	3/16" x 3/32"	2 1/4"	-	3500 lbs.-in.	-	€80.04
R	1077643	1 1/5"	7/16"	1 1/4"	1/4" x 1/8"	2 1/4"	-	3500 lbs.-in.	-	€77.86
S	1077577	1 1/5"	7/16"	13/16"	3/16" x 3/32"	2 1/4"	1.871"	-	-	€92.55
T	1077668	1 1/5"	0.45"	1 5/16"	3/4" x 3/16"	2 1/4"	1.871"	3500 lbs.-in.	Type SH	€47.86
U	1077627	1 1/5"	7/16"	1 1/8"	1/4" x 1/8"	2 1/4"	1.871"	3500 lbs.-in.	-	€53.08
V	1077551	1 1/5"	7/16"	11/16"	3/16" x 3/32"	2 1/4"	1.871"	-	-	€46.55
W	1077676	1 1/5"	7/16"	1 3/8"	5/16" x 5/32"	2 1/4"	-	3500 lbs.-in.	-	€53.08
X	3207990	30.48 mm	7/16"	30 mm	8 mm x 3.5 mm	2 1/4"	1.871"	-	-	€106.67
Y	3208006	30.48 mm	7/16"	32 mm	10 mm x 4 mm	2 1/4"	1.871"	-	-	€49.17

BROWNING -

SF Type, Quick Disconnect Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Overall Length	Bore Size	Keyway Size	Bolt Circle Dia.	Flange Thickness	Outside Dia.	Rated Torque	Type	Price
A	1077502	1.995"	2 7/8"	3/4" x 3/8"	3 7/8"	9/16"	3 1/8"	-	-	€82.01	RFQ
B	1077486	1.995"	2 3/4"	5/8" x 5/16"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€169.14
C	1077403	1.995"	2 1/4"	1/2" x 1/4"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€123.27
D	1077411	1.995"	2 5/16"	5/8" x 5/16"	3 7/8"	9/16"	3 1/8"	-	-	€82.01	RFQ
E	1077429	1.995"	2 3/8"	5/8" x 5/16"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€117.61
F	1077437	1.995"	2 7/16"	5/8" x 5/16"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€115.91
G	1077452	1.995"	2 9/16"	5/8" x 5/16"	3 7/8"	9/16"	-	-	-	€106.05
H	1077460	1.995"	2 5/8"	5/8" x 5/16"	3 7/8"	9/16"	3 1/8"	-	-	€82.01	RFQ
I	1077122	1.995"	5/8"	3/16" x 3/32"	3 7/8"	9/16"	3 1/8"	-	-	€106.05
J	1077387	1.995"	2 1/8"	1/2" x 1/4"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€115.91
K	1077478	1.995"	2 11/16"	5/8" x 5/16"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€117.61
L	1077197	1.995"	1 1/16"	1/4" x 1/8"	3 7/8"	9/16"	-	-	-	€97.28
M	1077148	1.995"	3/4"	3/16" x 3/32"	3 7/8"	9/16"	3 1/8"	-	-	€205.01
N	1077510	1.995"	2 15/16"	3/4" x 3/8"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€117.61
O	1077163	1.995"	7/8"	3/16" x 3/32"	3 7/8"	9/16"	3 1/8"	-	-	€106.05
P	1077171	1.995"	15/16"	1/4" x 1/8"	3 7/8"	9/16"	3 1/8"	-	-	€106.05
Q	1077395	1.995"	2 3/16"	1/2" x 1/4"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€115.91
R	1077445	1.995"	2 1/2"	5/8" x 5/16"	3 7/8"	-	3 1/8"	-	-	€90.96
S	1077379	1.995"	2 1/16"	1/4" x 1/8"	3 7/8"	9/16"	3 1/8"	-	-	€188.07
T	1077270	1.995"	1 7/16"	3/4" x 3/16"	3 7/8"	9/16"	-	11000 lbs.-in.	-	€172.38
U	1077213	1.995"	1 3/16"	1/4" x 1/8"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€79.72	RFQ
V	1077189	1.995"	1"	1/4" x 1/8"	3 7/8"	9/16"	-	11000 lbs.-in.	-	€79.72	RFQ
W	1077106	1.995"	1/2"	1/8" x 1/16"	3 7/8"	9/16"	3 1/8"	-	-	€106.05
X	1077361	1.995"	2"	1/2" x 1/4"	3 7/8"	9/16"	-	11000 lbs.-in.	-	€172.38
Y	1077221	1.995"	1 1/4"	1/4" x 1/8"	3 7/8"	9/16"	3 1/8"	11000 lbs.-in.	-	€172.38

BROWNING -

SD Type, Quick Disconnect Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

Style	Model	Overall Length	Flange Thickness	Bore Size	Keyway Size	Bolt Circle Dia.	Outside Dia.	Rated Torque	Type	Price
A	1076561	1.83"	7/16"	1/2"	1/8" x 1/16"	2 11/16"	2.187"	-	-	€51.68	RFQ
B	1076637	1.83"	7/16"	15/16"	1/4" x 1/8"	2 11/16"	2.187"	-	-	€66.83
C	1076587	1.83"	7/16"	5/8"	3/16" x 3/32"	2 11/16"	2.187"	5000 lbs.-in.	-	€129.18
D	1076686	1.83"	7/16"	1 1/4"	1/4" x 1/8"	2 11/16"	2.187"	5000 lbs.-in.	-	€50.25	RFQ
E	1076801	1.83"	7/16"	1 7/8"	1/2" x 1/4"	2 11/16"	2.187"	5000 lbs.-in.	-	€74.12
C	3208188	1.83"	0.45"	38 mm	10 mm x 4 mm	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€53.09	RFQ
C	1076611	1.83"	0.45"	13/16"	3/16" x 3/32"	2 11/16"	-	5000 lbs.-in.	Type SD	€112.86
F	3208154	1.83"	0.45"	30 mm	8 mm x 3.5 mm	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€68.65
G	1076694	1.83"	0.45"	1 5/16"	5/16" x 5/32"	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€129.18
H	1076827	1.83"	7/16"	2"	1/2" x 1/4"	2 11/16"	2.187"	5000 lbs.-in.	-	€49.30	RFQ
I	3208162	1.83"	0.45"	32 mm	10 mm x 4 mm	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€53.09	RFQ
J	3208204	1.83"	0.45"	42 mm	10 mm x 4 mm	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€66.81
C	1076793	1.83"	7/16"	1 13/16"	1/2" x 1/4"	2 11/16"	2.187"	-	-	€61.29
C	1076751	1.83"	7/16"	1 9/16"	3/4" x 3/16"	2 11/16"	2.187"	-	-	€66.83
K	3208139	1.83"	0.45"	25 mm	8 mm x 3.5 mm	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€68.65
L	1076777	1.83"	7/16"	1 11/16"	3/4" x 3/16"	2 11/16"	2.187"	5000 lbs.-in.	-	€66.83
M	1076710	1.83"	7/16"	1 3/8"	5/16" x 5/32"	2 11/16"	2.187"	5000 lbs.-in.	-	€68.78
N	1076736	1.83"	7/16"	1 7/16"	3/4" x 3/16"	2 11/16"	2.187"	5000 lbs.-in.	-	€108.67
O	1076678	1.83"	7/16"	1 3/16"	1/4" x 1/8"	2 11/16"	-	5000 lbs.-in.	-	€51.68	RFQ
P	1076728	1.83"	0.45"	1 3/8"	3/4" x 3/16"	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€64.98
Q	1076785	1.83"	7/16"	1 3/4"	3/4" x 3/16"	2 11/16"	-	-	-	€111.72
R	1076595	1.83"	7/16"	11/16"	3/16" x 3/32"	2 11/16"	2.187"	-	-	€118.52
S	1076652	1.83"	7/16"	1 1/16"	1/4" x 1/8"	2 11/16"	2.187"	-	-	€61.29
T	3208196	1.83"	0.45"	40 mm	10 mm x 4 mm	2 11/16"	2.187"	5000 lbs.-in.	Type SD	€68.65
U	1076603	1.83"	7/16"	3/4"	3/16" x 3/32"	2 11/16"	2.187"	5000 lbs.-in.	-	€51.68	RFQ

BROWNING -

R2 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Bore Size	Keyway Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Outside Dia.	Type	Price

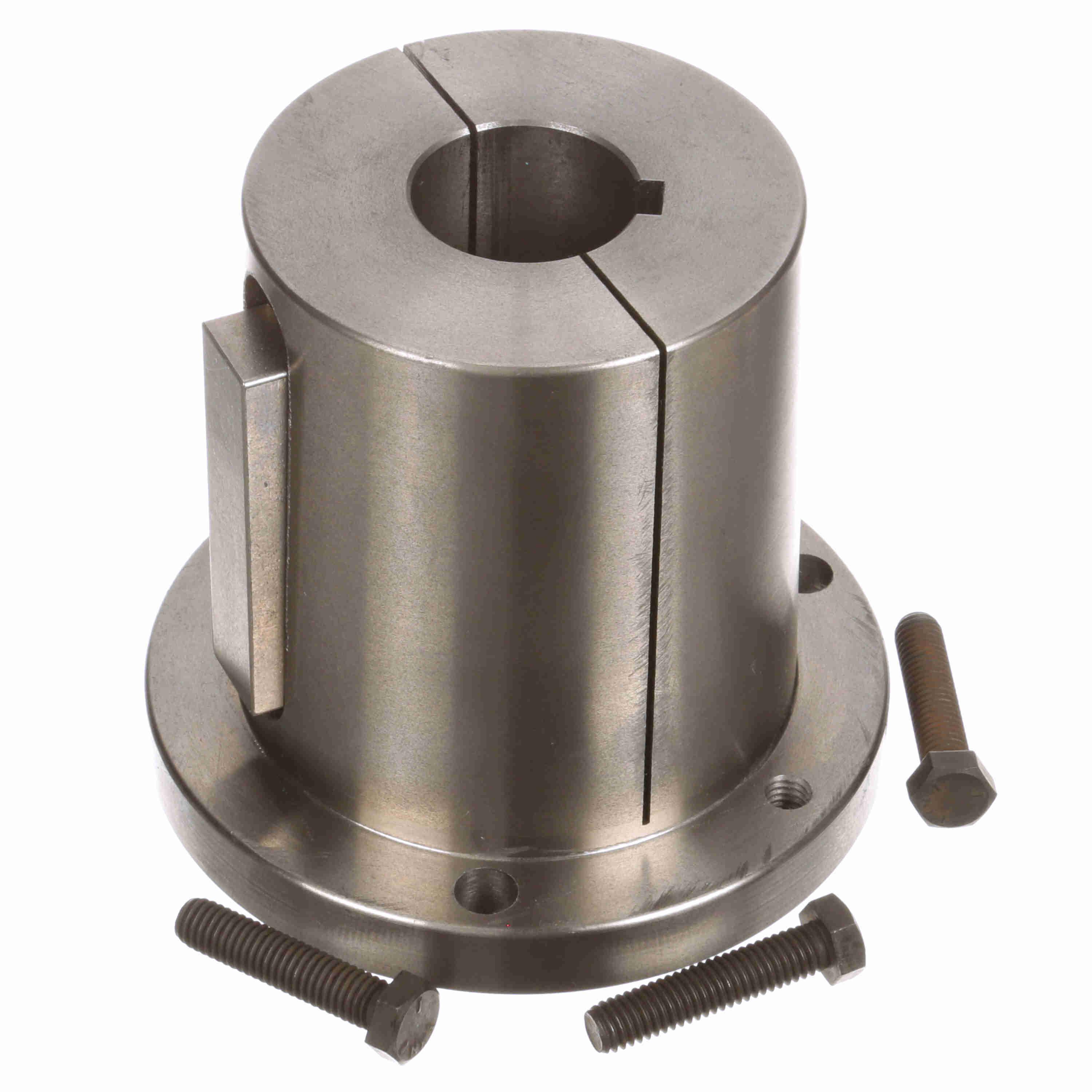

A	1070507	1 1/2"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€273.33
B	1070549	1 3/4"	-	4 5/8"	4 7/8"	5/8"	-	Type R2	€212.11	RFQ
C	1070523	1 5/8"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€268.16
D	1070564	1 7/8"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€264.32
E	1070499	1 7/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€218.12	RFQ
F	1070572	1 15/16"	1/2" x 1/4"	4 5/8"	4 7/8"	5/8"	4"	-	€264.32
G	1070663	2 1/2"	5/8" x 5/16"	4 5/8"	4 7/8"	5/8"	4"	-	€449.97
H	1070622	2 1/4"	1/2" x 1/4"	4 5/8"	4 7/8"	5/8"	4"	-	€212.11	RFQ
I	1070606	2 1/8"	1/2" x 1/4"	4 5/8"	4 7/8"	5/8"	4"	-	€268.16
J	1070598	2 1/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€200.13
K	1070705	2 3/4"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€308.37
L	1070648	2 3/8"	5/8" x 5/16"	4 5/8"	4 7/8"	5/8"	4"	-	€308.37

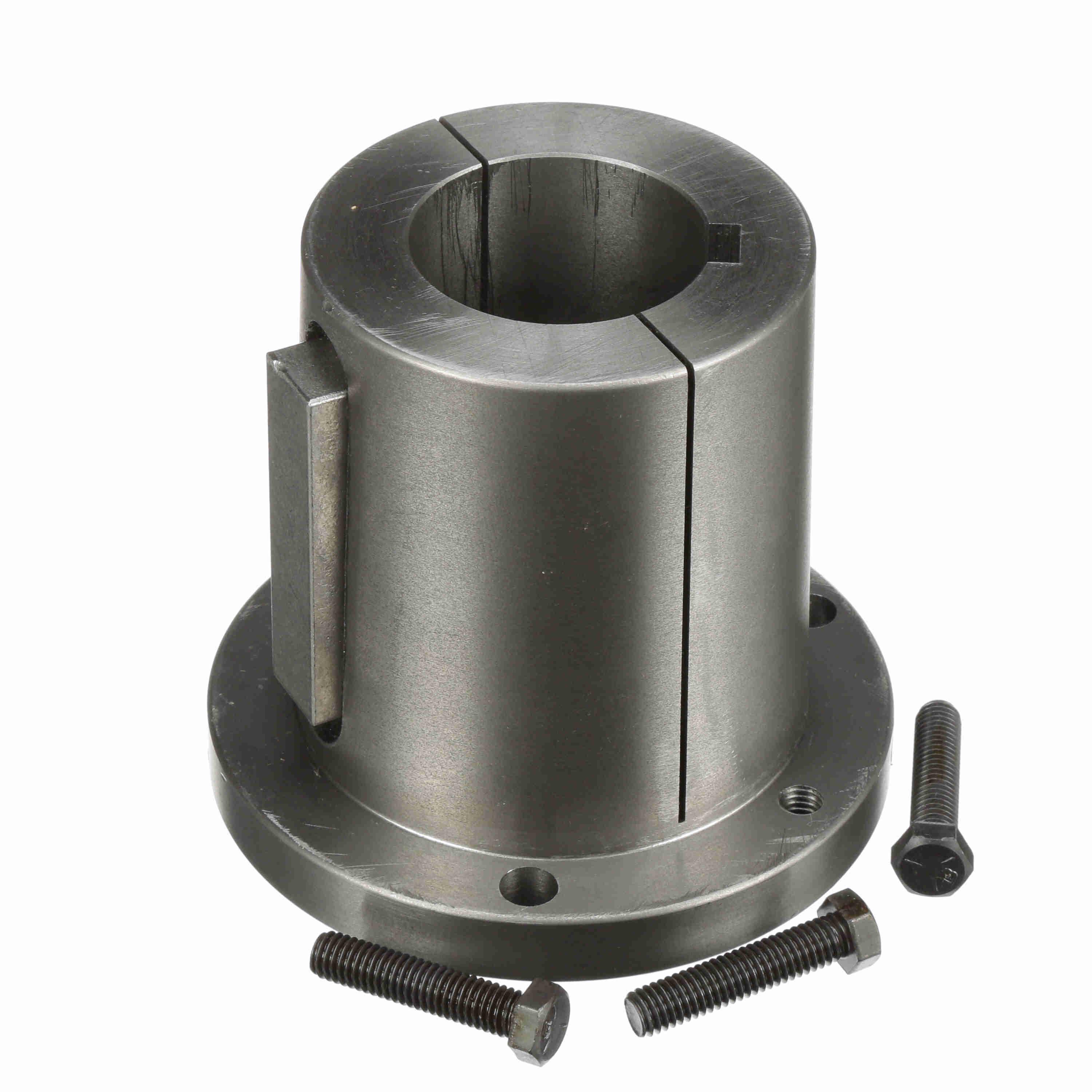

M	1070614	2 3/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€264.32

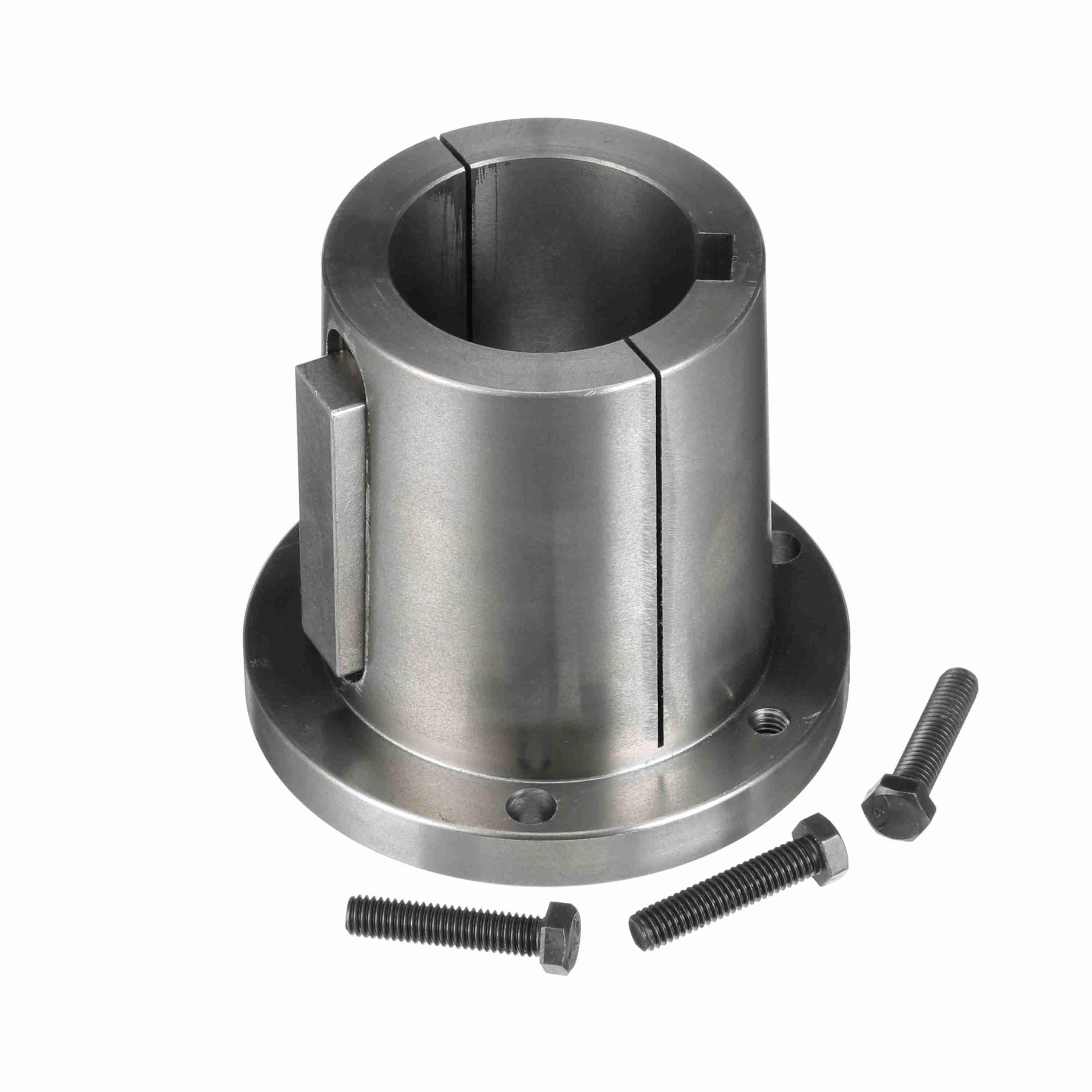

N	1070689	2 5/8"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€312.86

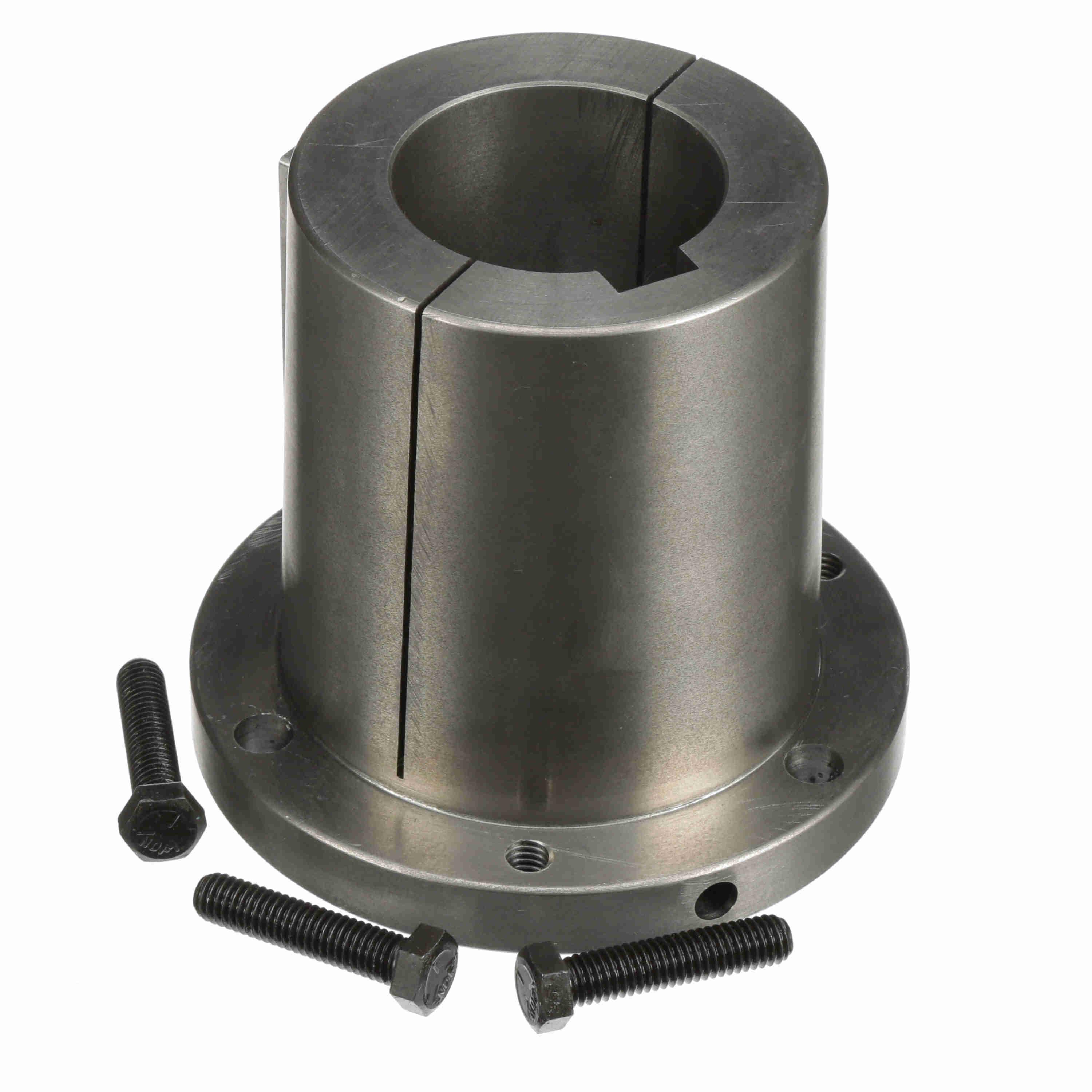

O	1070630	2 5/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€454.50
P	1070721	2 7/8"	3/4" x 3/8"	4 5/8"	4 7/8"	5/8"	4"	-	€241.98
Q	1070655	2 7/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€241.98
R	1070671	2 9/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€258.79

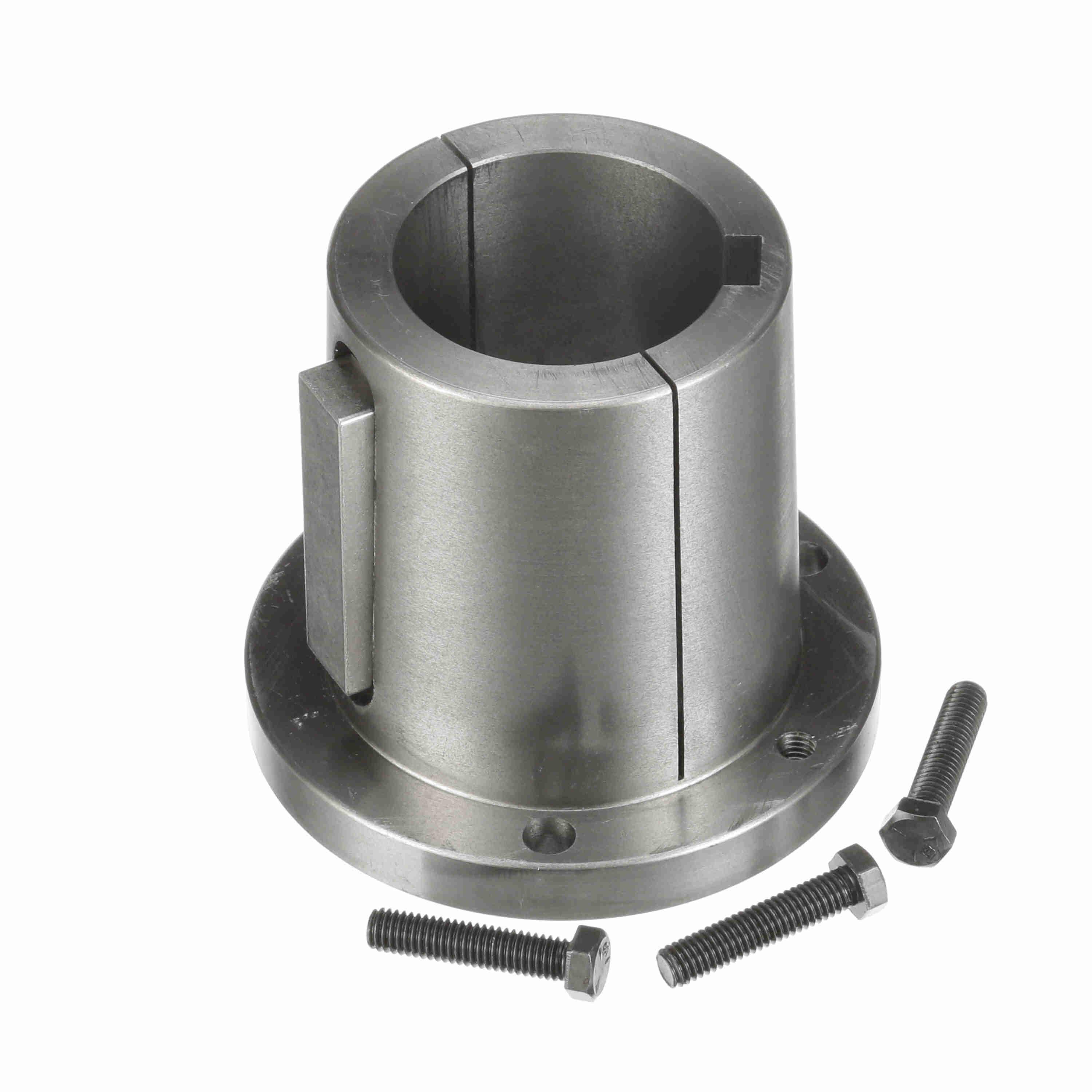

S	1070697	2 11/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€241.98
T	1070713	2 13/16"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€282.05
U	1070739	2 15/16"	3/4" x 3/8"	4 5/8"	4 7/8"	5/8"	4"	-	€241.98
V	1070580	2"	1/2" x 1/4"	4 5/8"	4 7/8"	5/8"	4"	-	€212.11	RFQ
W	1070804	3 1/2"	7/8" x 7/16"	4 5/8"	4 7/8"	5/8"	4"	-	€312.86

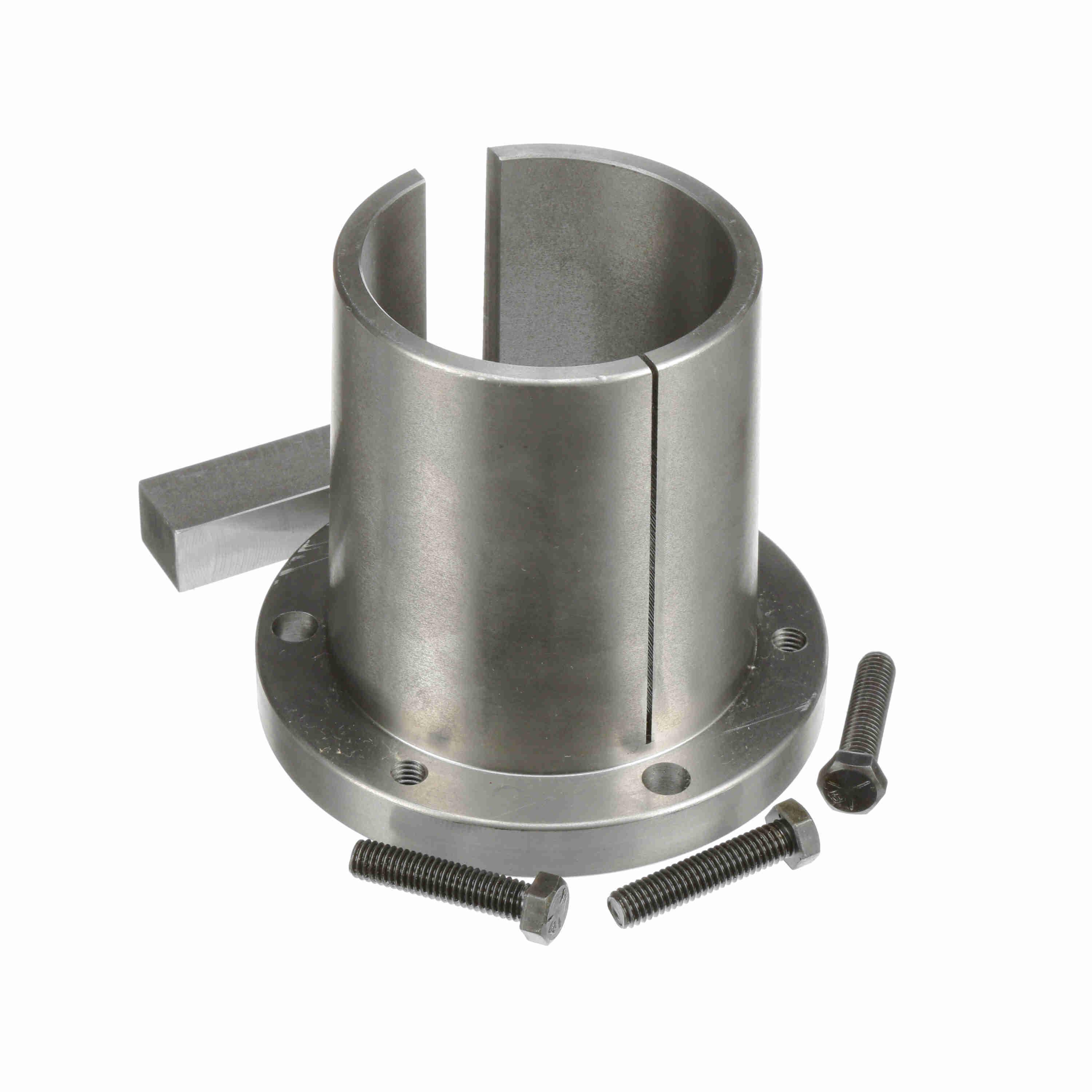

X	1070770	3 1/4"	3/4" x 3/8"	4 5/8"	4 7/8"	5/8"	4"	-	€408.97
Y	1070754	3 1/8"	-	4 5/8"	4 7/8"	5/8"	4"	Type R2	€408.97

BROWNING -

R1 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Overall Length	Bore Size	Keyway Size	Bolt Circle Dia.	Flange Thickness	Outside Dia.	Type	Price
A	1070911	2 7/8"	45 mm	-	4 5/8"	5/8"	4"	Type R1	€193.72	RFQ
B	1070077	2 7/8"	1 3/16"	1/4" x 1/8"	4 5/8"	5/8"	4"	-	€193.89	RFQ
C	1070457	2 7/8"	3 11/16"	-	4 5/8"	5/8"	4"	Type R1	€390.23
D	1070465	2 7/8"	3 3/4"	7/8" x 7/16"	4 5/8"	5/8"	4"	-	€274.13
E	1070119	2 7/8"	1 3/8"	5/16" x 5/32"	4 5/8"	5/8"	-	-	€278.16
F	1070853	2 7/8"	35 mm	-	4 5/8"	5/8"	4"	Type R1	€257.61
G	1070895	2 7/8"	40 mm	-	4 5/8"	5/8"	4"	Type R1	€257.61
H	1070929	2 7/8"	48 mm	-	4 5/8"	5/8"	4"	Type R1	€430.75
I	1070937	2 7/8"	50 mm	-	4 5/8"	5/8"	4"	Type R1	€291.26
J	1070952	2 7/8"	60 mm	-	4 5/8"	5/8"	4"	Type R1	€291.26
K	1071000	2 7/8"	85 mm	-	4 5/8"	5/8"	4"	Type R1	€199.22	RFQ
L	1071018	2 7/8"	90 mm	-	4 5/8"	5/8"	4"	Type R1	€291.26
M	1070093	2 7/8"	1 5/16"	-	4 5/8"	5/8"	-	Type R1	€250.73
N	1070945	2 7/8"	55 mm	-	4 5/8"	5/8"	4"	Type R1	€291.26
O	1070135	2 7/8"	1 1/2"	3/4" x 3/16"	4 5/8"	5/8"	4"	-	€278.16
P	1070176	2 7/8"	1 3/4"	3/4" x 3/16"	4 5/8"	5/8"	4"	-	€274.13
Q	1070200	2 7/8"	1 15/16"	1/2" x 1/4"	4 5/8"	5/8"	4"	-	€245.92
R	1070242	2 7/8"	2 3/16"	1/2" x 1/4"	4 5/8"	5/8"	4"	-	€215.08
S	1070267	2 7/8"	2 5/16"	5/8" x 5/16"	4 5/8"	5/8"	4"	-	€243.78
T	1070291	2 7/8"	2 1/2"	5/8" x 5/16"	4 5/8"	5/8"	4"	-	€274.13
U	1070317	2 7/8"	2 5/8"	5/8" x 5/16"	4 5/8"	5/8"	4"	-	€274.13
V	1070341	2 7/8"	2 13/16"	3/4" x 3/8"	4 5/8"	5/8"	4"	-	€243.78
W	1070358	2 7/8"	2 7/8"	3/4" x 3/8"	4 5/8"	5/8"	-	-	€215.08
X	1070382	2 7/8"	3 1/8"	-	4 5/8"	5/8"	4"	Type R1	€278.16
Y	1070416	2 7/8"	3 3/8"	7/8" x 7/16"	4 5/8"	5/8"	4"	-	€215.08

BROWNING -

Q3 Type, Split Taper Bushings

A

B

C

D

Style	Model	Bore Size	Bolt Circle Dia.	Flange Thickness	Overall Length	Type	Outside Dia.	Price
A	1079490	1 5/8"	3 3/8"	0.531"	5"	Type Q3	2 7/8"	€223.94
A	1079532	1 7/8"	3 3/8"	0.531"	5"	Type Q3	2 7/8"	€230.29
B	1079540	1 15/16"	3 3/8"	0.531"	5"	Type Q3	2 7/8"	€219.75
A	1079631	2 1/2"	3 3/8"	0.531"	5"	Type Q3	2 7/8"	€165.84
A	1079599	2 1/4"	3 3/8"	0.531"	5"	Type Q3	2 7/8"	€117.18	RFQ
A	1079573	2 1/8"	3 3/8"	0.531"	-	Type Q3	2 7/8"	€223.94
C	1079615	2 3/8"	3 3/8"	0.531"	5"	Type Q3	2 7/8"	€122.83	RFQ
D	1079581	2 3/16"	3 3/8"	0.531"	5"	Type Q3	-	€173.67
A	1079623	2 7/16"	3 3/8"	0.531"	5"	Type Q3	2 7/8"	€176.17

BROWNING -

Q2 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Flange Thickness	Bore Size	Keyway Size	Bolt Circle Dia.	Overall Length	Outside Dia.	Type	Price
A	1079177	0.531"	1"	-	3 3/8"	3 1/2"	-	Type Q2	€85.98	RFQ
B	1079276	0.531"	1 9/16"	-	3 3/8"	3 1/2"	2 7/8"	Type Q2	€111.19
C	1079235	0.531"	1 3/8"	-	3 3/8"	3 1/2"	2 7/8"	Type Q2	€156.77
D	1079433	0.531"	2 9/16"	-	3 3/8"	3 1/2"	2 7/8"	Type Q2	€85.98	RFQ
E	1079185	0.531"	1 1/16"	-	3 3/8"	3 1/2"	-	Type Q2	€85.98	RFQ
F	1079359	0.531"	2 1/16"	-	3 3/8"	3 1/2"	2 7/8"	Type Q2	€111.19
G	1079250	0.531"	1 7/16"	-	3 3/8"	3 1/2"	2 7/8"	Type Q2	€121.55
H	1079409	1/2"	2 3/8"	5/8" x 5/16"	3 3/8"	3 1/2"	2 7/8"	-	€95.39
I	1079342	17/32"	2"	1/2" x 1/4"	3 3/8"	-	2 7/8"	-	€102.68
J	1079334	17/32"	1 15/16"	1/2" x 1/4"	3 3/8"	3 1/2"	2 7/8"	-	€95.39
K	1079193	17/32"	1 1/8"	1/4" x 1/8"	3 3/8"	3 1/2"	-	-	€153.80
L	1079441	17/32"	2 5/8"	5/8" x 5/16"	3 3/8"	3 1/2"	2 7/8"	-	€121.55
M	1079201	17/32"	1 3/16"	1/4" x 1/8"	3 3/8"	3 1/2"	2 7/8"	-	€106.07
N	1079425	17/32"	2 1/2"	5/8" x 5/16"	3 3/8"	3 1/2"	2 7/8"	-	€109.07
O	1079417	17/32"	2 7/16"	5/8" x 5/16"	3 3/8"	3 1/2"	2 7/8"	-	€95.39
P	1079391	17/32"	2 5/16"	5/8" x 5/16"	3 3/8"	3 1/2"	2 7/8"	-	€83.61	RFQ
Q	1079268	17/32"	1 1/2"	3/4" x 3/16"	3 3/8"	3 1/2"	2 7/8"	-	€123.32
R	1079383	17/32"	2 1/4"	1/2" x 1/4"	3 3/8"	3 1/2"	2 7/8"	-	€121.55
S	1079375	17/32"	2 3/16"	1/2" x 1/4"	3 3/8"	3 1/2"	2 7/8"	-	€95.39
T	1079219	17/32"	1 1/4"	1/4" x 1/8"	3 3/8"	3 1/2"	-	-	€83.61	RFQ
U	1079326	17/32"	1 7/8"	1/2" x 1/4"	3 3/8"	3 1/2"	2 7/8"	-	€95.39
V	1079300	17/32"	1 3/4"	3/4" x 3/16"	3 3/8"	3 1/2"	2 7/8"	-	€121.55
W	1079292	17/32"	1 11/16"	3/4" x 3/16"	3 3/8"	3 1/2"	2 7/8"	-	€95.39
X	1079284	17/32"	1 5/8"	3/4" x 3/16"	3 3/8"	3 1/2"	2 7/8"	-	€95.39
Y	1079243	17/32"	1 3/8"	5/16" x 5/32"	3 3/8"	3 1/2"	2 7/8"	-	€123.32

BROWNING -

Q1 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

Style	Model	Overall Length	Flange Thickness	Bore Size	Keyway Size	Bolt Circle Dia.	Outside Dia.	Type	Price
A	1079821	2 1/2"	0.531"	60 mm	-	3 3/8"	-	Type Q1	€96.33
B	1079052	2 1/2"	17/32"	2 1/8"	1/2" x 1/4"	3 3/8"	2 7/8"	-	€87.15
C	1079771	2 1/2"	0.531"	42 mm	-	3 3/8"	2 7/8"	Type Q1	€94.91
D	1079839	2 1/2"	0.531"	65 mm	-	3 3/8"	2 7/8"	Type Q1	€118.06
E	1079680	2 1/2"	0.531"	24 mm	-	3 3/8"	2 7/8"	Type Q1	€78.53	RFQ
F	1079755	2 1/2"	0.531"	-	-	3 3/8"	2 7/8"	Type Q1	€114.18
G	1079813	2 1/2"	0.531"	55 mm	-	3 3/8"	2 7/8"	Type Q1	€115.83
H	1078963	2 1/2"	17/32"	1 9/16"	3/4" x 3/16"	3 3/8"	-	-	€76.43	RFQ
I	1078971	2 1/2"	17/32"	1 5/8"	3/4" x 3/16"	3 3/8"	2 7/8"	-	€87.15
J	1078989	2 1/2"	17/32"	1 11/16"	3/4" x 3/16"	3 3/8"	2 7/8"	-	€87.15
K	1078997	2 1/2"	17/32"	1 3/4"	3/4" x 3/16"	3 3/8"	2 7/8"	-	€87.15
L	1079003	2 1/2"	17/32"	1 13/16"	1/2" x 1/4"	3 3/8"	2 7/8"	-	€76.43	RFQ
M	1079011	2 1/2"	17/32"	1 7/8"	1/2" x 1/4"	3 3/8"	2 7/8"	-	€87.15
N	1079045	2 1/2"	17/32"	2 1/16"	1/2" x 1/4"	3 3/8"	2 7/8"	-	€78.60	RFQ
O	1079094	2 1/2"	17/32"	2 3/8"	5/8" x 5/16"	3 3/8"	2 7/8"	-	€87.15
P	1726082	2 1/2"	0.531"	3/4"	-	3 3/8"	2 7/8"	Type Q1	€252.35
Q	1079128	2 1/2"	17/32"	2 9/16"	5/8" x 5/16"	3 3/8"	-	-	€101.63
R	1079136	2 1/2"	17/32"	2 5/8"	5/8" x 5/16"	3 3/8"	2 7/8"	-	€112.73
S	1079847	2 1/2"	1/2"	-	1/4" x 1/8"	3 3/8"	2 7/8"	-	€196.49
T	1079862	2 1/2"	17/32"	1 3/8"	5/16" x 5/32"	3 3/8"	2 7/8"	-	€78.60	RFQ
P	1726165	2 1/2"	0.531"	1 1/2"	-	3 3/8"	2 7/8"	Type Q1	€100.93	RFQ
U	1726132	2 1/2"	0.531"	1 1/4"	-	3 3/8"	2 7/8"	Type Q1	€100.93	RFQ
V	1726116	2 1/2"	0.531"	1 1/8"	-	3 3/8"	2 7/8"	Type Q1	€130.51
W	1726181	2 1/2"	17/32"	1 11/16"	3/4" x 3/16"	3 3/8"	2 7/8"	-	€130.51
P	1726124	2 1/2"	0.531"	1 3/16"	-	3 3/8"	2 7/8"	Type Q1	€252.35

BROWNING -

P3 Type, Split Taper Bushings

A

Style	Model	Bolt Circle Dia.	Overall Length	Flange Thickness	Bore Size	Outside Dia.	Type	Keyway Size	Price
A	1069749	2 7/16"	4 7/16"	13/32"	1 3/8"	1.938"	-	5/16" x 5/32"	€175.08
A	1069731	2.438"	4.438"	3/8"	1 1/8"	1.938"	Type P3	-	€90.56

BROWNING -

P2 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Bore Size	Keyway Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Outside Dia.	Price
A	1069681	1 1/2"	3/4" x 3/16"	2 7/16"	2 15/16"	13/32"	1.938"	€91.92
B	1069632	1 1/4"	1/4" x 1/8"	2 7/16"	2 15/16"	13/32"	1.938"	€89.69
C	1069616	1 1/8"	1/4" x 1/8"	2 7/16"	2 15/16"	13/32"	1.938"	€58.19
D	1069723	1 3/4"	3/4" x 3/16"	2 7/16"	2 15/16"	13/32"	1.938"	€91.92
E	1069665	1 3/8"	5/16" x 5/32"	2 7/16"	2 15/16"	13/32"	1.938"	€48.53
F	1069657	1 3/8"	3/4" x 3/16"	2 7/16"	2 15/16"	13/32"	-	€54.97
G	1069624	1 3/16"	1/4" x 1/8"	2 7/16"	2 15/16"	13/32"	1.938"	€91.92
H	1069707	1 5/8"	3/4" x 3/16"	2 7/16"	2 15/16"	13/32"	1.938"	€48.53
I	1069673	1 7/16"	3/4" x 3/16"	2 7/16"	2 15/16"	13/32"	1.938"	€52.22
J	1069699	1 9/16"	3/4" x 3/16"	2 7/16"	2 15/16"	13/32"	1.938"	€43.75	RFQ
K	1069715	1 11/16"	3/4" x 3/16"	2 7/16"	2 15/16"	13/32"	1.938"	€51.56
L	1069590	1"	1/4" x 1/8"	2 7/16"	2 15/16"	13/32"	-	€62.74
M	1069558	3/4"	3/16" x 3/32"	2 7/16"	2 15/16"	13/32"	1.938"	€42.52	RFQ
N	1069574	7/8"	3/16" x 3/32"	2 7/16"	2 15/16"	13/32"	1.938"	€54.97
O	1069582	15/16"	1/4" x 1/8"	2 7/16"	2 15/16"	13/32"	1.938"	€56.57

BROWNING -

P1 Type, Split Taper Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Style	Model	Overall Length	Flange Thickness	Bolt Circle Dia.	Bore Size	Keyway Size	Outside Dia.	Type	Price
A	1069301	1 15/16"	13/32"	2 7/16"	9/16"	1/8" x 1/16"	1.938"	-	€51.72
B	1069319	1 15/16"	13/32"	2 7/16"	5/8"	3/16" x 3/32"	1.938"	-	€56.53
C	1726074	1 15/16"	13/32"	2 7/16"	1 3/8"	5/16" x 5/32"	1.938"	-	€72.60
D	1069509	1 15/16"	13/32"	2 7/16"	1 9/16"	3/4" x 3/16"	1.938"	-	€57.34
E	1069434	1 15/16"	13/32"	2 7/16"	1 3/16"	1/4" x 1/8"	1.938"	-	€44.35
F	1069368	1 15/16"	13/32"	2 7/16"	13/16"	3/16" x 3/32"	1.938"	-	€51.72
G	1069525	1 15/16"	13/32"	-	1 11/16"	3/4" x 3/16"	1.938"	-	€44.35
H	1069384	1 15/16"	13/32"	2 7/16"	15/16"	1/4" x 1/8"	1.938"	-	€72.89
I	1069517	1 15/16"	13/32"	2 7/16"	1 5/8"	3/4" x 3/16"	1.938"	-	€44.35
J	1069442	1 15/16"	13/32"	2 7/16"	1 1/4"	1/4" x 1/8"	1.938"	-	€44.35
K	1069376	1 15/16"	13/32"	2 7/16"	7/8"	3/16" x 3/32"	1.938"	-	€44.35
L	1069293	1 15/16"	13/32"	2 7/16"	1/2"	1/8" x 1/16"	1.938"	-	€82.00
M	1069459	1 15/16"	13/32"	2 7/16"	1 5/16"	5/16" x 5/32"	-	-	€38.88	RFQ
N	1069475	1 15/16"	13/32"	2 7/16"	1 3/8"	5/16" x 5/32"	1.938"	-	€44.35
O	1069400	1 15/16"	13/32"	2 7/16"	1"	1/4" x 1/8"	1.938"	-	€44.35
P	1069533	1 15/16"	13/32"	2 7/16"	1 3/4"	3/4" x 3/16"	1.938"	-	€47.74
Q	1069467	1 15/16"	13/32"	2 7/16"	1 3/8"	3/4" x 3/16"	-	-	€65.93
R	1069483	1 15/16"	13/32"	2 7/16"	1 7/16"	3/4" x 3/16"	1.938"	-	€44.35
H	1069418	1 15/16"	13/32"	2 7/16"	1 1/16"	1/4" x 1/8"	1.938"	-	€72.89
S	1069335	1 15/16"	13/32"	2 7/16"	11/16"	3/16" x 3/32"	1.938"	-	€84.05
T	1069491	1 15/16"	13/32"	2 7/16"	1 1/2"	3/4" x 3/16"	1.938"	-	€44.35
U	1069426	1 15/16"	13/32"	2 7/16"	1 1/8"	1/4" x 1/8"	1.938"	-	€44.35
V	1069343	1 15/16"	13/32"	2 7/16"	3/4"	3/16" x 3/32"	1.938"	-	€56.53
W	1069939	1.938"	3/8"	2.438"	42 mm	-	1.938"	Type P1	€58.92
X	1726025	1.938"	3/8"	2.438"	7/8"	-	1.938"	Type P1	€72.60

BROWNING -

JA Type, Quick Disconnect Bushings

A

B

C

Style	Model	Bore Size	Keyway Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Rated Torque	Outside Dia.	Price
A	1074723	1"	1/4" x 1/8"	1 21/32"	0.89"	5/16"	1000 lbs.-in.	1 3/8"	€65.46
B	1074681	3/4"	3/16" x 3/32"	1 21/32"	0.89"	5/16"	1000 lbs.-in.	-	€36.71
C	1074665	5/8"	3/16" x 3/32"	1 21/32"	0.89"	5/16"	1000 lbs.-in.	1 3/8"	€44.65

BROWNING -

J Type, Quick Disconnect Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

Style	Model	Bolt Circle Dia.	Overall Length	Flange Thickness	Bore Size	Keyway Size	Rated Torque	Outside Dia.	Type	Price
A	1074640	1 21/32"	0.89"	5/16"	1/2"	1/8" x 1/16"	-	1 3/8"	-	€31.14	RFQ
B	1074764	1 21/32"	0.89"	5/16"	1 1/4"	1/4" x 1/8"	1000 lbs.-in.	1 3/8"	-	€67.30

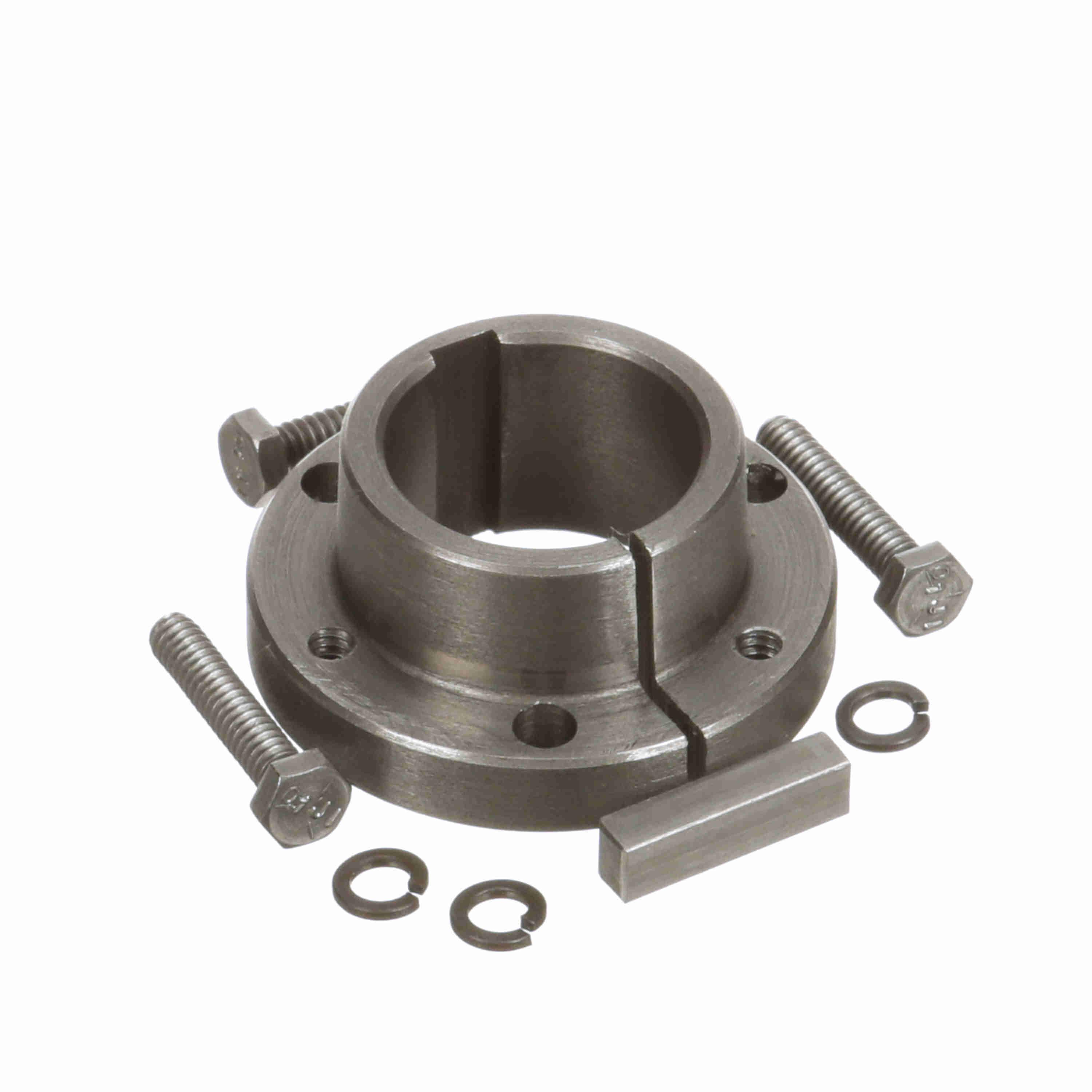

C	1074731	1 21/32"	0.89"	5/16"	1 1/16"	1/4" x 1/8"	-	1 3/8"	-	€40.26
D	1074673	1 21/32"	0.89"	5/16"	11/16"	3/16" x 3/32"	-	1 3/8"	-	€40.26
E	1074657	1 21/32"	0.89"	5/16"	9/16"	1/8" x 1/16"	-	1 3/8"	-	€40.26
F	1074699	1 21/32"	0.89"	5/16"	13/16"	3/16" x 3/32"	1000 lbs.-in.	1 3/8"	-	€40.26
G	1074756	1 21/32"	0.89"	5/16"	1 3/16"	1/4" x 1/8"	-	1 3/8"	-	€40.26
H	1074749	1 21/32"	0.89"	5/16"	1 1/8"	1/4" x 1/8"	1000 lbs.-in.	1 3/8"	-	€29.70	RFQ
I	1074715	1 21/32"	0.89"	5/16"	15/16"	1/4" x 1/8"	-	1 3/8"	-	€40.26
J	1074707	1 21/32"	0.89"	5/16"	7/8"	3/16" x 3/32"	1000 lbs.-in.	-	-	€36.71
K	1074350	6 1/4"	4.51"	1"	2 3/4"	5/8" x 5/16"	45000 lbs.-in.	5.148"	Type J	€864.99
K	1074525	6 1/4"	4.51"	1"	3 13/16"	1" x 1/2"	45000 lbs.-in.	-	Type J	€864.99
K	1074277	6 1/4"	4.51"	1"	2 1/4"	1/2" x 1/4"	45000 lbs.-in.	5.148"	Type J	€823.82
L	1074574	6 1/4"	4.51"	1"	4 1/8"	1" x 1/2"	45000 lbs.-in.	5.148"	Type J	€942.85
K	3208774	6 1/4"	4.51"	1"	95 mm	22 mm x 7 mm	45000 lbs.-in.	5.148"	Type J	€888.82
M	3208691	6 1/4"	114.554 mm	1"	55 mm	16 mm x 5 mm	-	-	-	€414.80
K	1074434	6 1/4"	4.51"	1"	3 1/4"	3/4" x 3/8"	45000 lbs.-in.	5.148"	Type J	€439.99
N	1074533	6 1/4"	4.51"	1"	3 7/8"	1" x 1/2"	45000 lbs.-in.	5.148"	Type J	€942.85
K	1074236	6 1/4"	4.51"	1"	2"	1/2" x 1/4"	45000 lbs.-in.	-	Type J	€823.82
K	1074400	6 1/4"	4.51"	1"	3 1/16"	3/4" x 3/8"	45000 lbs.-in.	5.148"	Type J	€942.85
K	1074590	6 1/4"	4.51"	1"	4 1/4"	1" x 1/2"	45000 lbs.-in.	5.148"	Type J	€942.85
K	1074285	6 1/4"	4.51"	1"	2 5/16"	5/8" x 5/16"	45000 lbs.-in.	5.148"	Type J	€823.82
K	1074558	6 1/4"	4.51"	1"	4"	1" x 1/2"	45000 lbs.-in.	-	Type J	€439.99

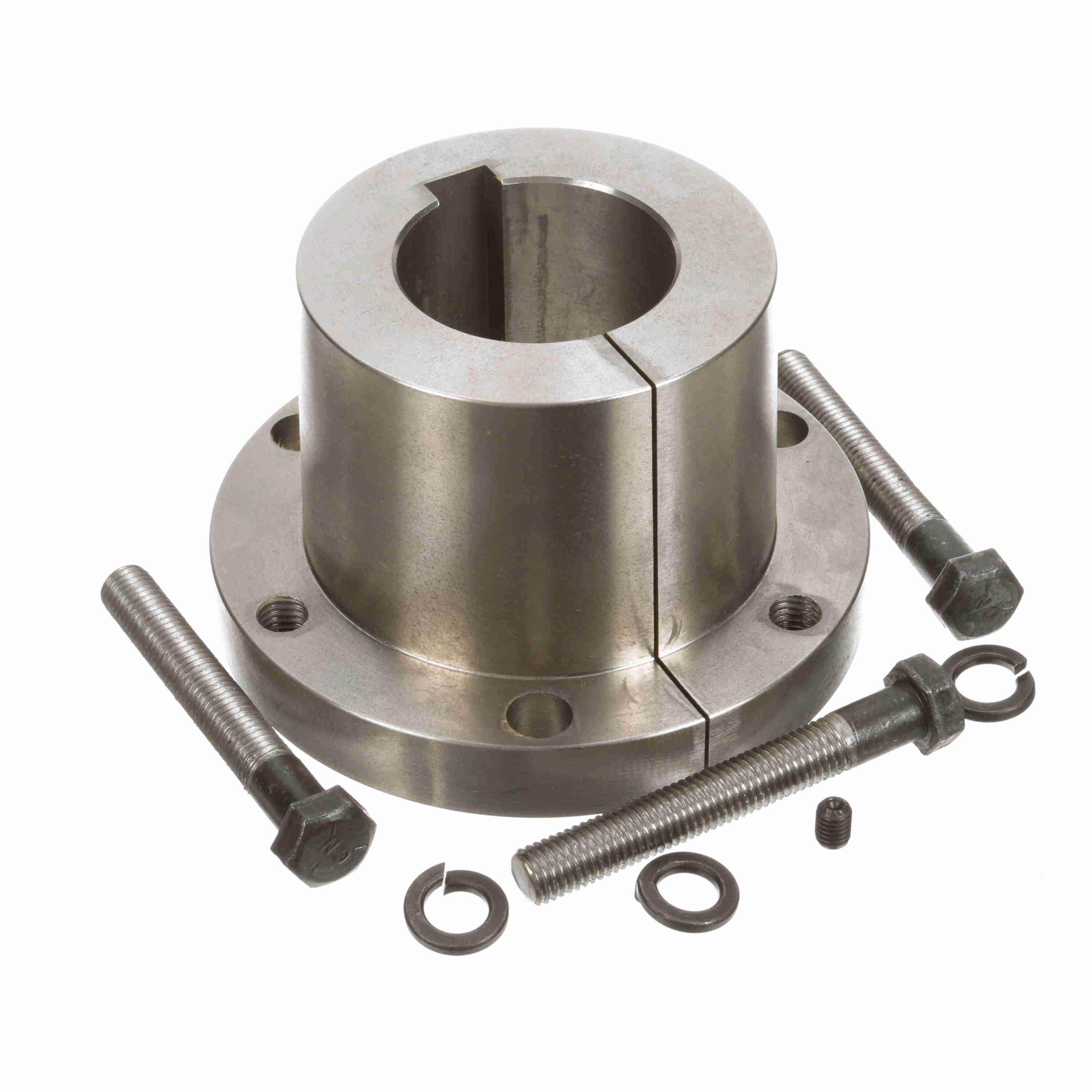

O	1074376	6 1/4"	4.51"	1"	2 7/8"	3/4" x 3/8"	45000 lbs.-in.	5.148"	Type J	€427.89
K	1074244	6 1/4"	4.51"	1"	2 1/16"	1/2" x 1/4"	45000 lbs.-in.	5.148"	Type J	€823.82

BROWNING -

E Type, Quick Disconnect Bushings

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Style	Model	Bore Size	Keyway Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Rated Torque	Outside Dia.	Type	Price
A	1073295	1 1/2"	3/4" x 3/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	-	€188.64	RFQ
B	1073238	1 1/4"	1/4" x 1/8"	5"	2 16/25"	3/4"	-	3.834"	-	€248.63
C	1073204	1 1/16"	1/4" x 1/8"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€370.73
D	1073337	1 3/4"	3/4" x 3/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	-	-	€279.79
E	1073279	1 3/8"	3/4" x 3/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€255.64
F	1073220	1 3/16"	1/4" x 1/8"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€248.63
G	1073287	1 7/16"	3/4" x 3/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€427.46
H	1073303	1 9/16"	3/4" x 3/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€255.64
I	1073329	1 11/16"	3/4" x 3/16"	5"	2 16/25"	3/4"	-	3.834"	-	€192.27	RFQ
J	1073345	1 13/16"	1/2" x 1/4"	5"	2 16/25"	3/4"	20000 lbs.-in.	-	Type E	€431.87
K	1073360	1 15/16"	1/2" x 1/4"	5"	2 16/25"	3/4"	-	-	-	€415.72
L	1073196	1"	1/4" x 1/8"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€197.69	RFQ
M	1073451	2 1/2"	5/8" x 5/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	-	€297.23
N	1073410	2 1/4"	1/2" x 1/4"	5"	2 16/25"	3/4"	-	-	-	€289.06
O	1073394	2 1/8"	1/2" x 1/4"	5"	2 16/25"	3/4"	20000 lbs.-in.	-	Type E	€283.62
P	1073386	2 1/16"	1/2" x 1/4"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€494.28
Q	1073493	2 3/4"	5/8" x 5/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	-	€219.31
R	1073436	2 3/8"	5/8" x 5/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	-	-	€283.62
S	1073402	2 3/16"	1/2" x 1/4"	5"	2 16/25"	3/4"	-	-	-	€283.62
T	1073428	2 5/16"	5/8" x 5/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	-	Type E	€255.64
U	1073519	2 7/8"	3/4" x 3/8"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	-	€283.62
V	1073444	2 7/16"	5/8" x 5/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	-	-	€232.16
W	1073469	2 9/16"	5/8" x 5/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€494.28
X	1073485	2 11/16"	5/8" x 5/16"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€283.62
Y	1073501	2 13/16"	3/4" x 3/8"	5"	2 16/25"	3/4"	20000 lbs.-in.	3.834"	Type E	€234.56

BROWNING -

P1 Split Taper Bushings

A

B

C

D

E

Style	Model	Bolt Circle Dia.	Overall Length	Flange Thickness	Bore Size	Outside Dia.	Type	Price
A	1069806	2 7/16"	49.2125 mm	-	19 mm	1.938"	-	€115.58
B	1069780	2 7/16"	49.2125 mm	13/32"	16 mm	1.938"	-	€53.12
C	1069822	2 7/16"	49.2125 mm	13/32"	22 mm	1.938"	-	€41.08	RFQ
D	1069772	2.438"	1.938"	3/8"	15 mm	1.938"	Type P1	€50.70
E	1726009	2.438"	1.938"	3/8"	5/8"	1.938"	Type P1	€49.01	RFQ

BROWNING -

W1 Type Split Taper Bushings

A

Style	Model	Bore Size	Bolt Circle Dia.	Overall Length	Flange Thickness	Type	Outside Dia.	Price
A	1080951	5 1/2"	10"	8 1/4"	1.438"	Type W1	8 1/2"	€5,837.31
A	1080910	5 3/16"	10"	8 1/4"	1.438"	Type W1	8 1/2"	€7,783.07
A	1081082	6 3/4"	10"	8 1/4"	1.438"	Type W1	8 1/2"	€4,522.31

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

BROWNING Tapered And QD Bushings

SDS Type, Quick Disconnect Bushings

W2 Type, Split Taper Bushings

U2 Type, Split Taper Bushings

U1 Type, Split Taper Bushings

U0 Type, Split Taper Bushings

SH Type, Quick Disconnect Bushings

SF Type, Quick Disconnect Bushings

SD Type, Quick Disconnect Bushings

R2 Type, Split Taper Bushings

R1 Type, Split Taper Bushings

Q3 Type, Split Taper Bushings

Q2 Type, Split Taper Bushings

Q1 Type, Split Taper Bushings

P3 Type, Split Taper Bushings

P2 Type, Split Taper Bushings

P1 Type, Split Taper Bushings

JA Type, Quick Disconnect Bushings

J Type, Quick Disconnect Bushings

E Type, Quick Disconnect Bushings

P1 Split Taper Bushings

W1 Type Split Taper Bushings

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

BROWNING Tapered And QD Bushings

Popular Search Queries

Explore More
