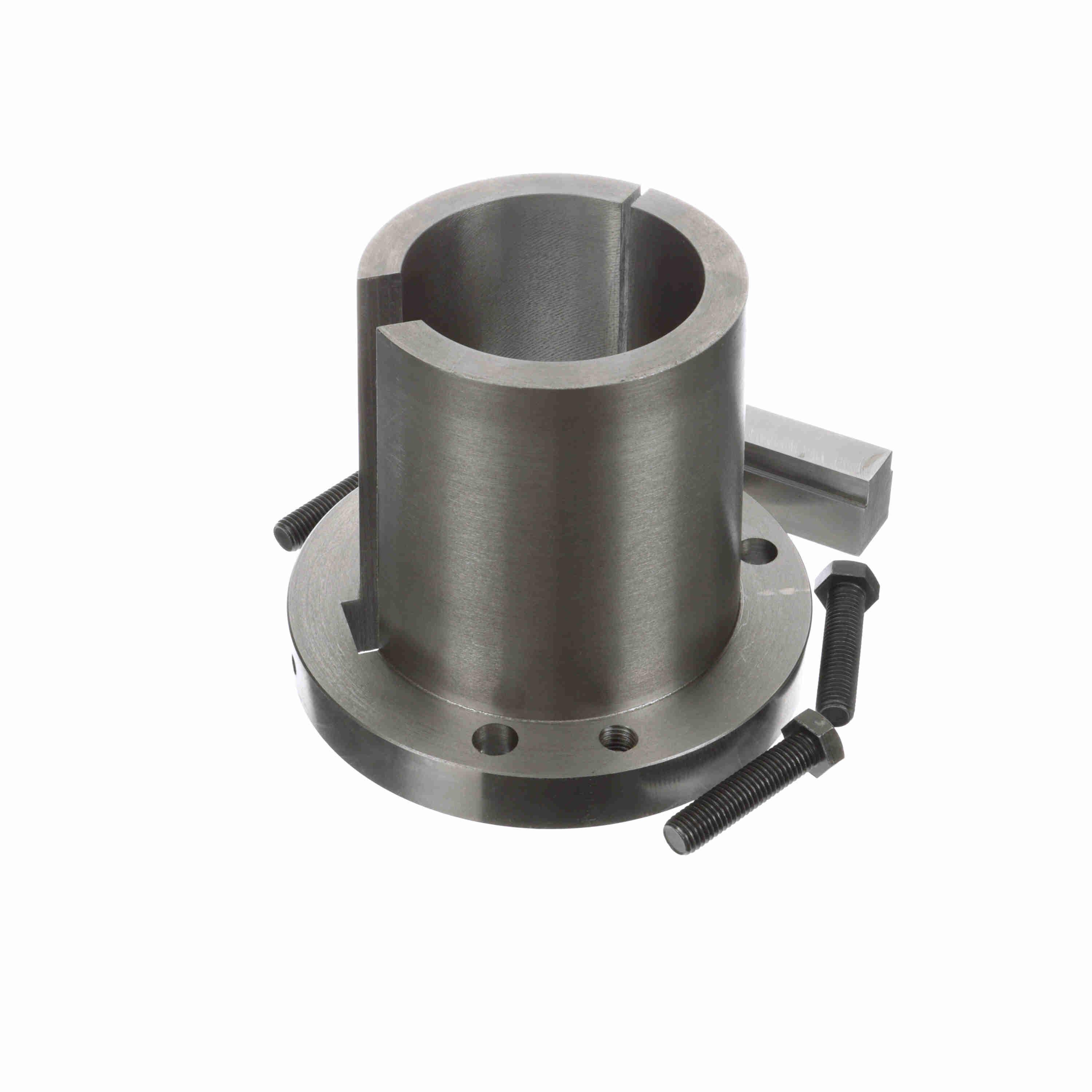

BROWNING 1071828 U1 4 3/8 Split Taper Bushing, 4.375 Inch Bore Size, 8.375 Inch Outer Dia., U1 Split Taper Bushing, Ductile Iron/ Gray Iron
4 3/8"
Get it by Tuesday, Dec 23
€3,399.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 7" |
| Bore Size | 4 3/8" |
| Flange Dia. | 8 3/8" |
| Flange Thickness | 1.063" |
| For Use With | Gearbelt Multiple Groove Sheaves |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Overall Length | 7 1/8" |
| Screw Size | 5/8" x 2 3/4" |
| Type | Type U1 |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 9.86 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 23.5 |
Product Variants
| Product | Model | Flange Thickness | Bore Size | Bolt Circle Dia. | Overall Length | Type | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |

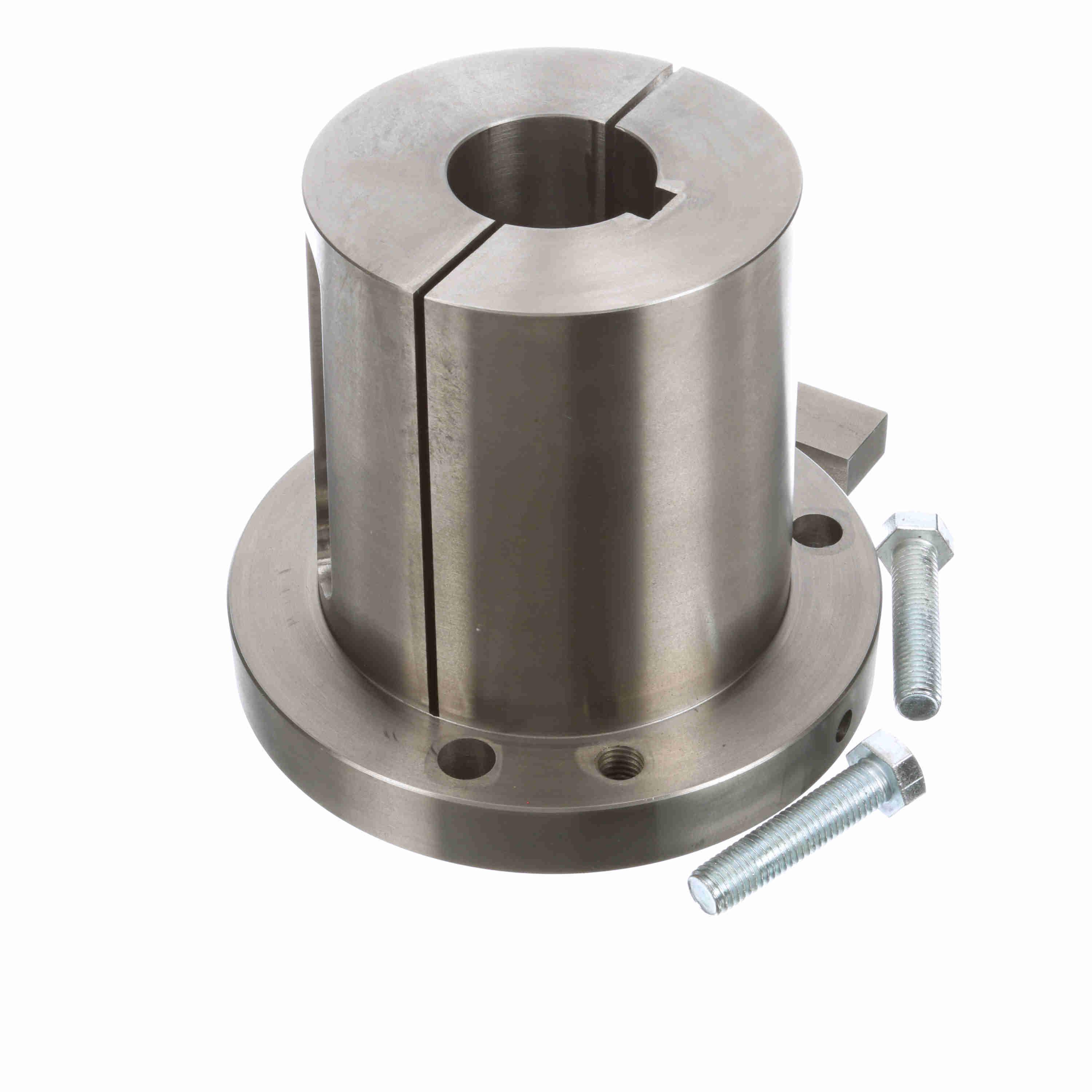

1071570 | 1.063" | 2 3/8" | 7" | 7 1/8" | Type U1 | - | €2,940.27 | |
 |

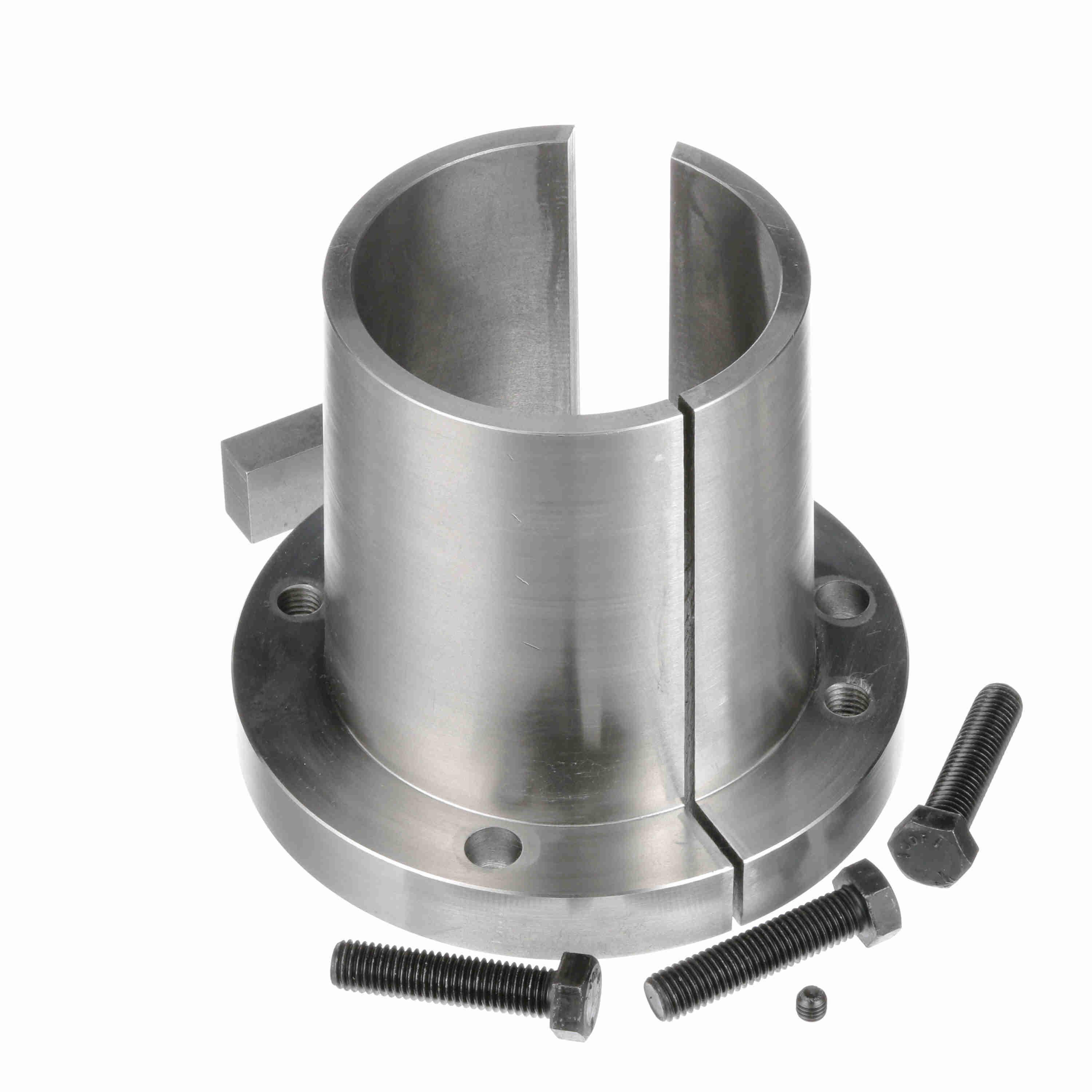

1071653 | 1.063" | 2 15/16" | 7" | 7 1/8" | Type U1 | 6" | €2,005.88 | |
 |
1071661 | 1.063" | 3" | 7" | 7 1/8" | Type U1 | 6" | €1,928.72 | |
 |

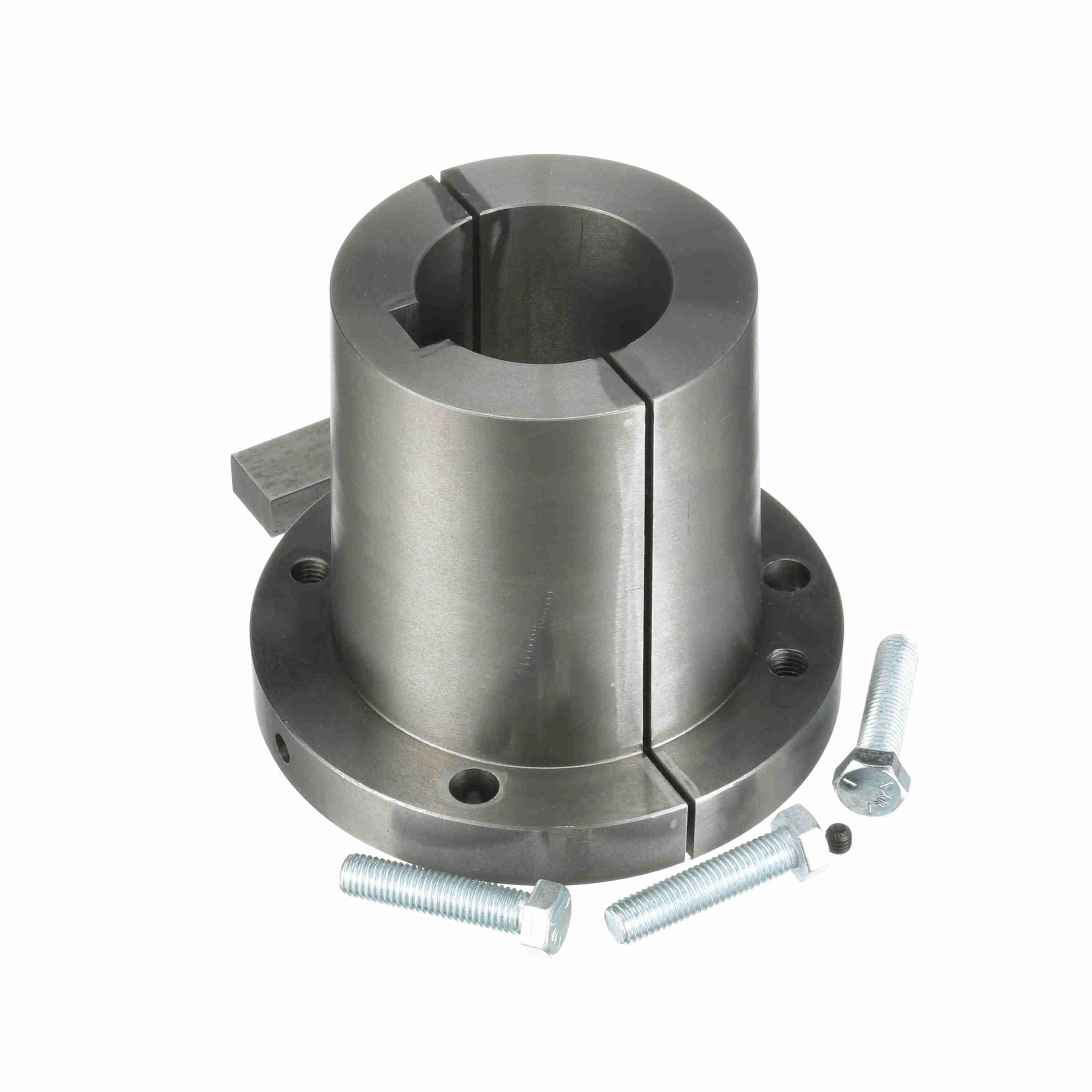

1071703 | 1.063" | 3 3/8" | 7" | 7 1/8" | Type U1 | - | €2,501.72 | |
 |

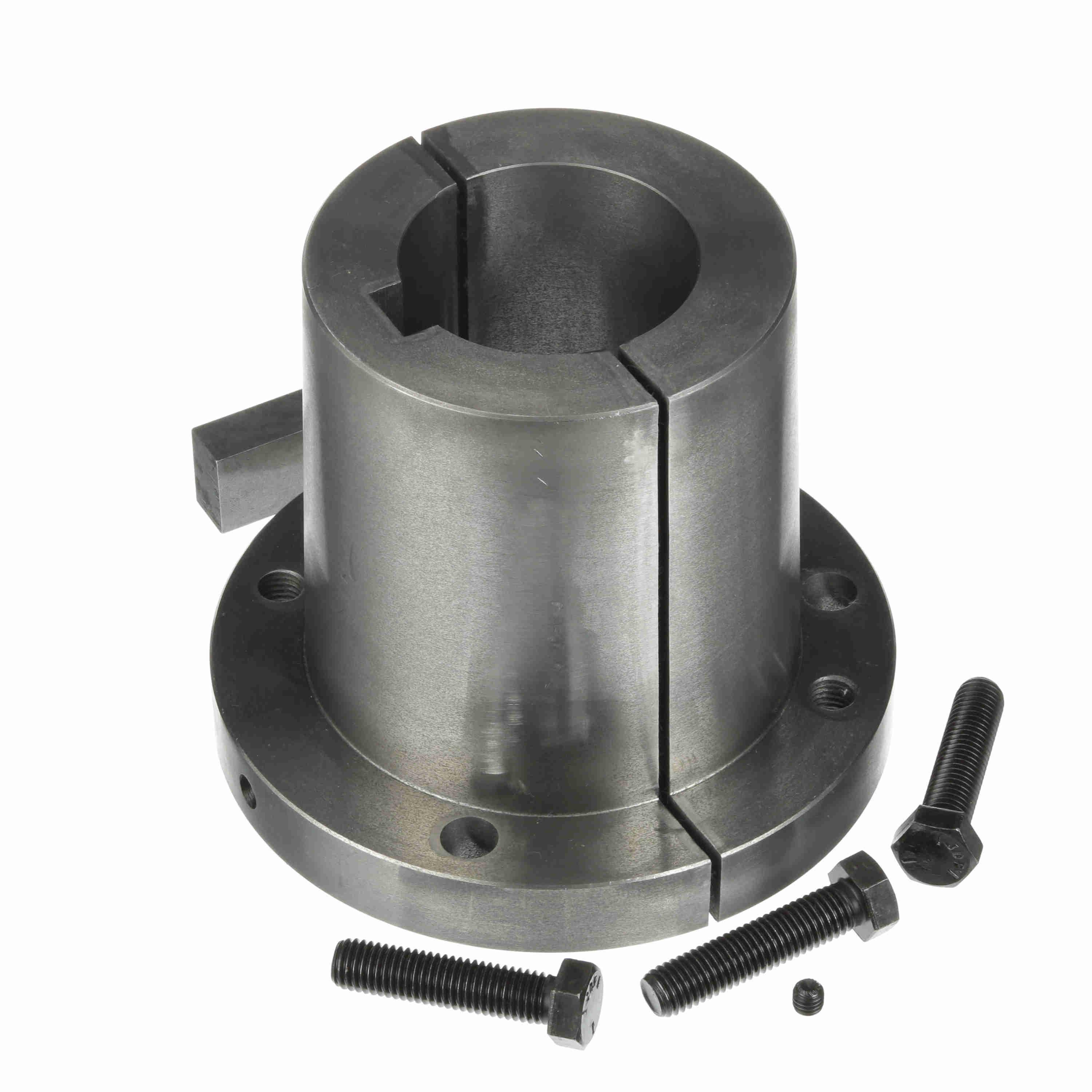

1071711 | 1.063" | 3 7/16" | 7" | 7 1/8" | Type U1 | - | €2,005.88 | |
 |

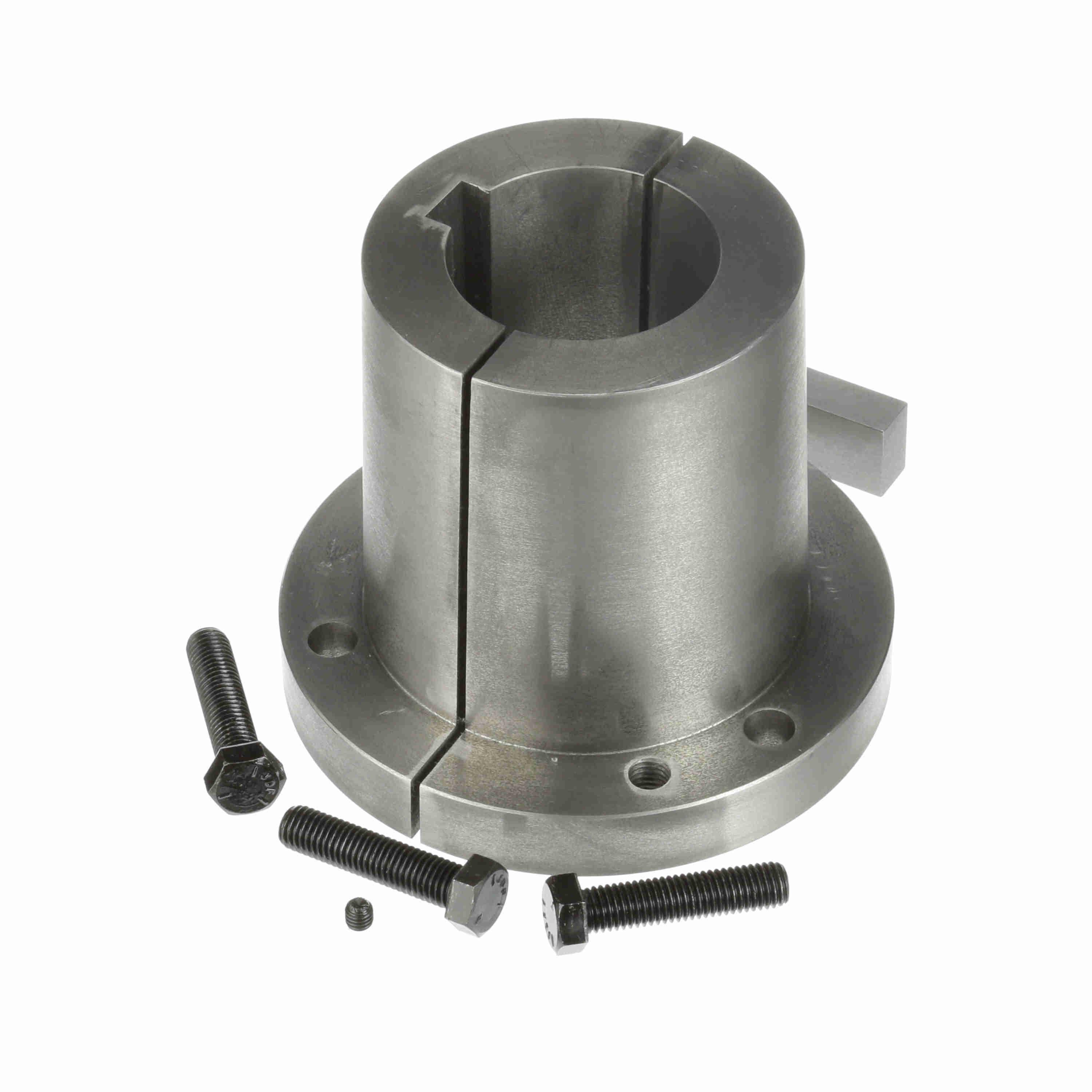

1071729 | 1.063" | 3 1/2" | 7" | 7 1/8" | Type U1 | - | €2,005.88 | |
 |

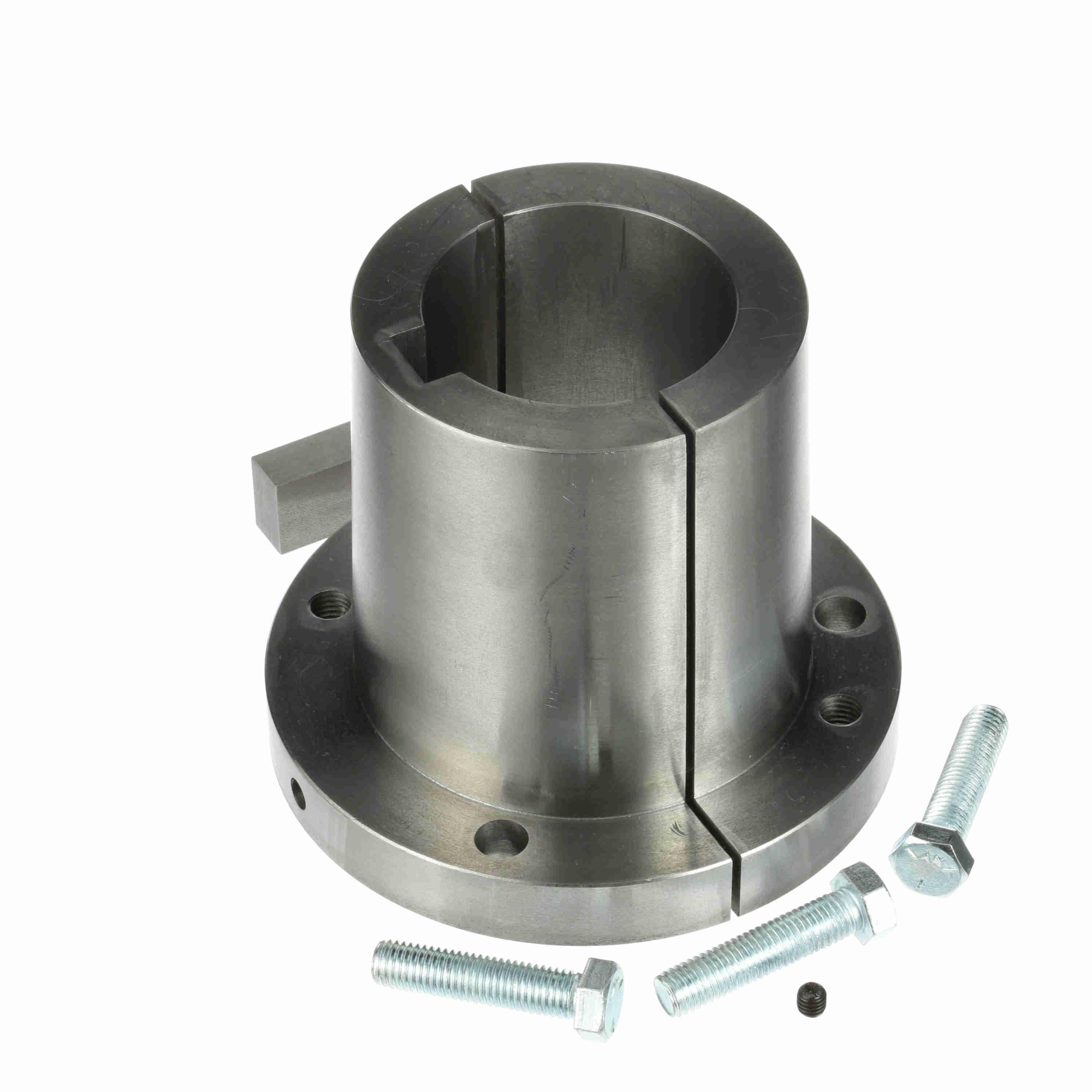

1071760 | 1.063" | 3 7/8" | 7" | 7 1/8" | Type U1 | 6" | €2,005.88 |
