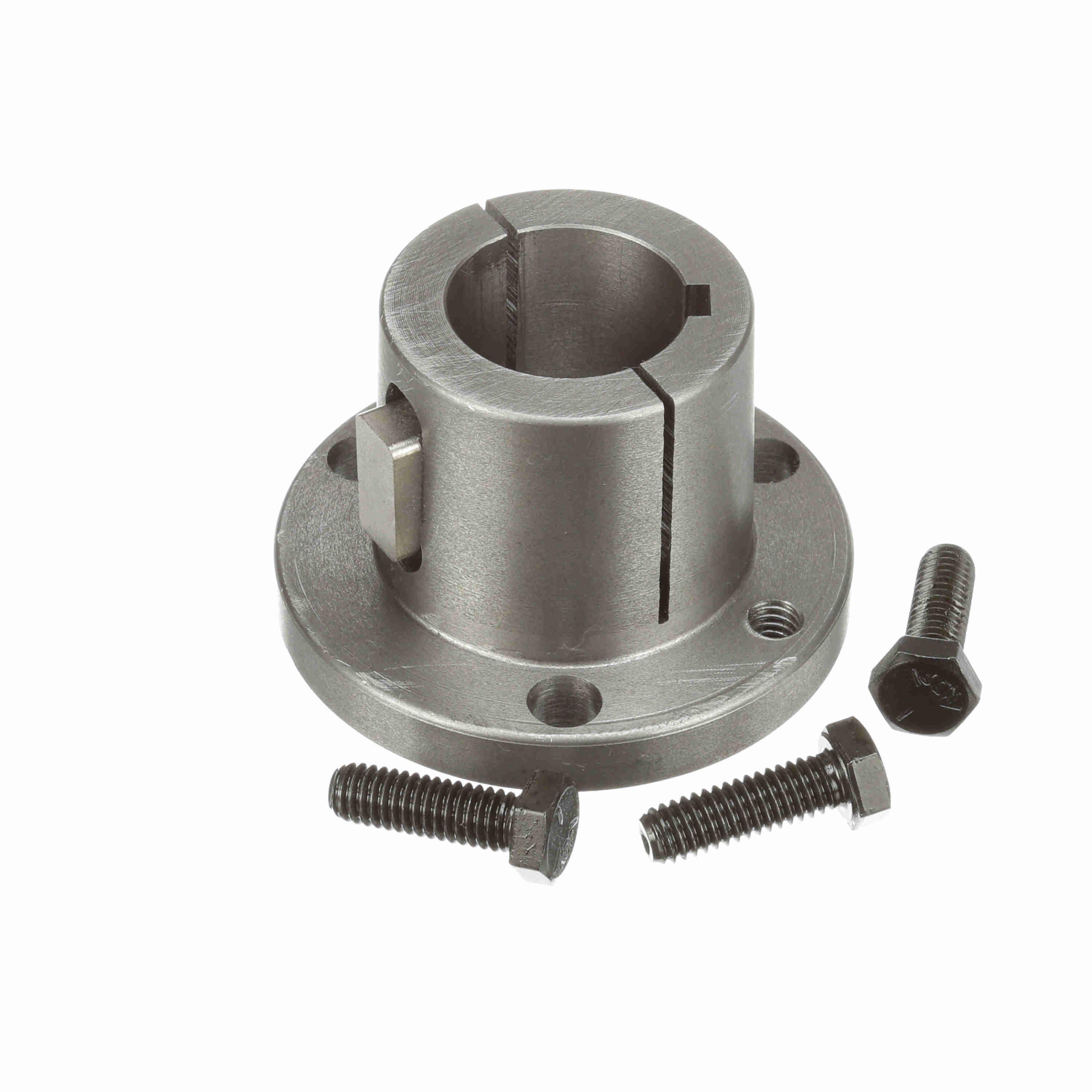

BROWNING 1069434 P1 1 3/16 Split Taper Bushing, 1.1875 Inch Bore Size, 3 Inch Outer Dia., P1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XDMModel: 1069434Cross Ref: P1 1 3/16
7 In Stock
Ships within 2 days via
€44.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 1.8555", 1.9375" |
| Bolt Circle Dia. | 2 7/16" |
| Bore Size | 1 3/16" |
| Bushing Series | P1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 3" |
| Flange Thickness | 13/32" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Thru Bore | 1.94" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 1.938" |
| Overall Length | 1 15/16" |
| Screw Size | 5/16" x 1" |
| System Of Measurement | Imperial |
| Weight | 1.3 lbs. |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 4.93 |
Product Variants
| Product | Model | Overall Length | Flange Thickness | Bolt Circle Dia. | Bore Size | Keyway Size | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1069764 | 1.938" | 3/8" | 2.438" | 14 mm | - | - | Type P1 | €53.12 | |
 |
1069814 | 49.2125 mm | 13/32" | 2 7/16" | 20 mm | - | 1.938" | - | €41.08 | RFQ
|
 |
1069830 | 49.2125 mm | 13/32" | 2 7/16" | 24 mm | - | - | - | €60.07 | |
 |
1069848 | 49.2125 mm | 13/32" | 2 7/16" | 25 mm | - | 1.938" | - | €58.09 | |
 |
1069855 | 49.2125 mm | 13/32" | 2 7/16" | 28 mm | - | 1.938" | - | €58.92 | |
 |
1069863 | 49.2125 mm | 13/32" | 2 7/16" | 30 mm | - | 1.938" | - | €74.96 | |
 |
1069871 | 49.2125 mm | 13/32" | 2 7/16" | 32 mm | - | 1.938" | - | €74.96 |
