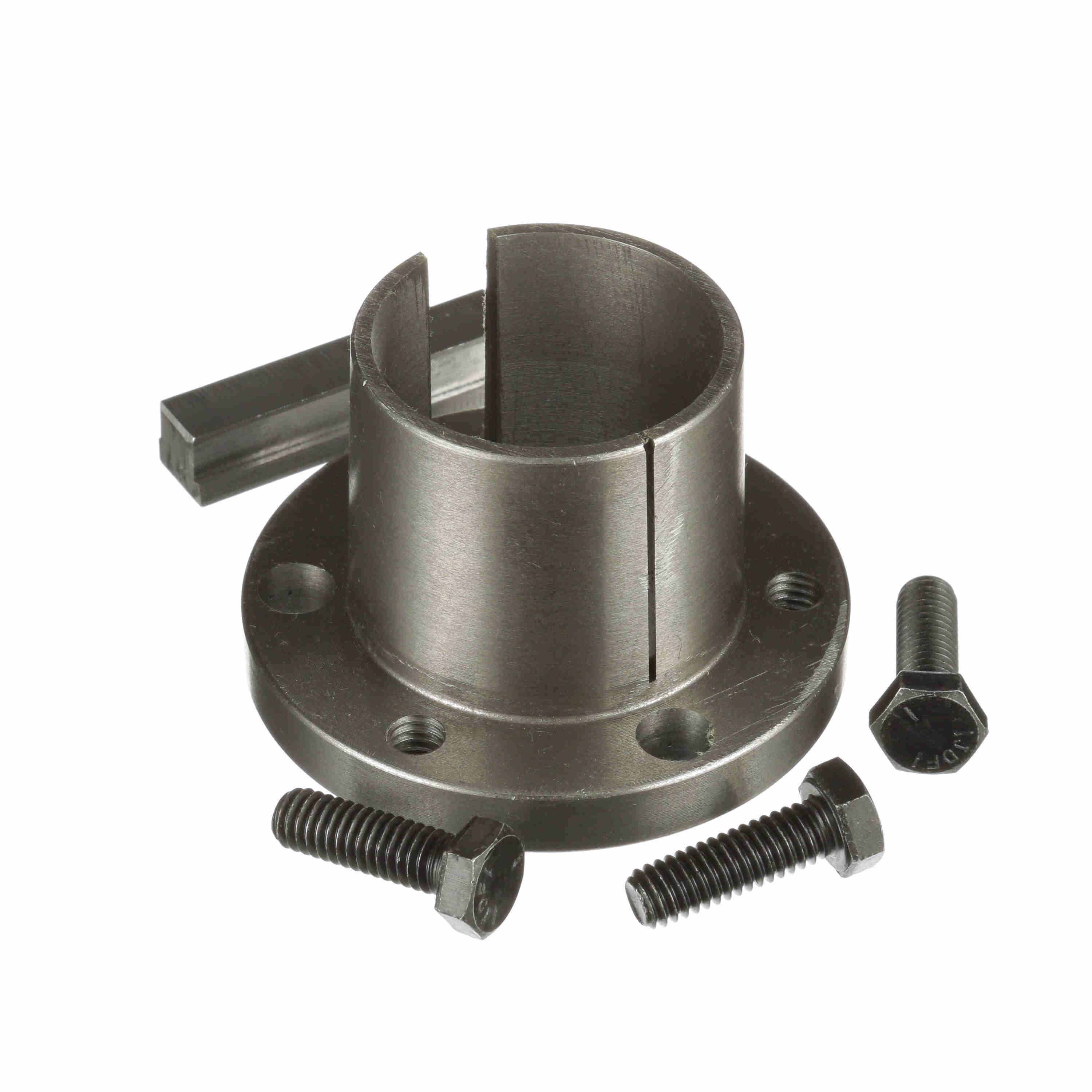

BROWNING 1069939 P1 42 MM Split Taper Bushing, 42 mm Bore Size, 3 Inch Outer Dia., P1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XCZModel: 1069939Cross Ref: P1 42 MM
7 In Stock
42 mm
Ships within 2 days via
€58.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 2.438" |
| Bore Size | 42 mm |
| Bushing Series | P1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 3" |
| Flange Thickness | 3/8" |
| For Use With | Gearbelt Multiple Groove Sheaves |
| Keyway | Yes |
| Length Thru Bore | 1.94" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 1.938" |
| Overall Length | 1.938" |
| Screw Size | 5/16" x 1" |
| System Of Measurement | Metric |
| Type | Type P1 |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 8.13 |
| Country of Origin | MX |
Product Variants
| Product | Model | Material | Bolt Circle Dia. | Bore Size | Flange Thickness | Key Way Size | Type | No. Of Bolt Holes | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1069764 | Sintered Steel | 2.438" | 14 mm | 3/8" | - | Type P1 | 3 | 5/16" x 1" | €53.12 | |
 |
1069814 | Sintered Steel | 2 7/16" | 20 mm | 13/32" | - | - | 3 | 5/16" x 1" | €47.40 | |
 |
1069830 | Sintered Steel | 2 7/16" | 24 mm | 13/32" | - | - | 3 | 5/16" x 1" | €60.07 | |
 |
1069848 | Sintered Steel | 2 7/16" | 25 mm | 13/32" | - | - | 3 | 5/16" x 1" | €58.09 | |
 |
1069855 | Sintered Steel | 2 7/16" | 28 mm | 13/32" | - | - | 3 | 5/16" x 1" | €58.92 | |
 |
1069863 | Sintered Steel | 2 7/16" | 30 mm | 13/32" | - | - | 3 | 5/16" x 1" | €74.96 | |
 |
1069871 | Sintered Steel | 2 7/16" | 32 mm | 13/32" | - | - | 3 | 5/16" x 1" | €74.96 |
