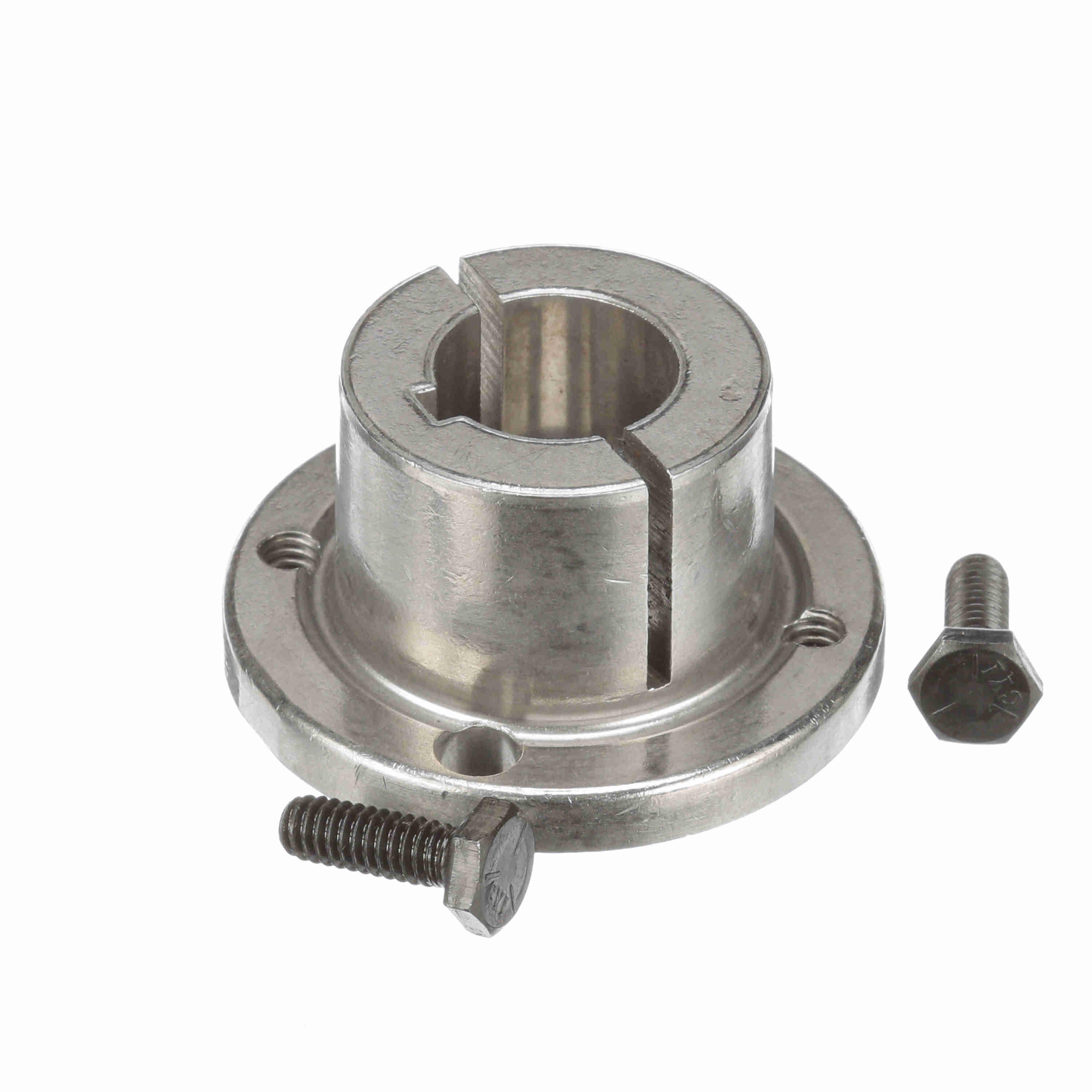

BROWNING 1078302 H 7/8 Split Taper Bushing, 0.875 Inch Bore Size, 2.5 Inch Outer Dia., H Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9WZDModel: 1078302Cross Ref: H 7/8
7 In Stock
Ships within 2 days via
€24.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 1.57", 1.625" |
| Bolt Circle Dia. | 2" |
| Bore Size | 7/8" |
| Bushing Series | H Series |
| Bushing Style | Split Taper |
| Flange Dia. | 2 1/2" |
| Flange Thickness | 1/4" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway | Yes |
| Keyway Size | 3/16" x 3/32" |
| Length Thru Bore | 1 1/4" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 2 |
| Outside Dia. | 1 5/8" |
| Overall Length | 1 1/4" |
| Screw Size | 1/4" x 3/4" |
| System Of Measurement | Imperial |
| Weight | 0.65 lbs. |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 4.14 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 4.14 |
Product Variants
| Product | Model | Overall Length | Bore Size | Keyway Size | Flange Thickness | Bolt Circle Dia. | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1078195 | 1 1/4" | 3/8" | 1/8" x 1/16" | 1/4" | 2" | 1 5/8" | - | €28.10 | |
 |
1078203 | 1 1/4" | 7/16" | 1/8" x 1/16" | 1/4" | 2" | 1 5/8" | - | €22.36 | RFQ
|
 |
1078211 | 1 1/4" | 1/2" | 1/8" x 1/16" | 1/4" | 2" | 1 5/8" | - | €31.60 | |
 |
1078229 | 1 1/4" | 9/16" | 1/8" x 1/16" | 1/4" | 2" | 1 5/8" | - | €28.10 | |
 |
1078245 | 1 1/4" | 5/8" | 3/16" x 3/32" | 1/4" | 2" | 1 5/8" | - | €24.78 | |
 |
1078260 | 1 1/4" | 11/16" | 3/16" x 3/32" | 1/4" | 2" | 1 5/8" | - | €28.10 | |
 |
1078278 | 1 1/4" | 3/4" | 3/16" x 3/32" | 1/4" | 2" | 1 5/8" | - | €24.78 |
