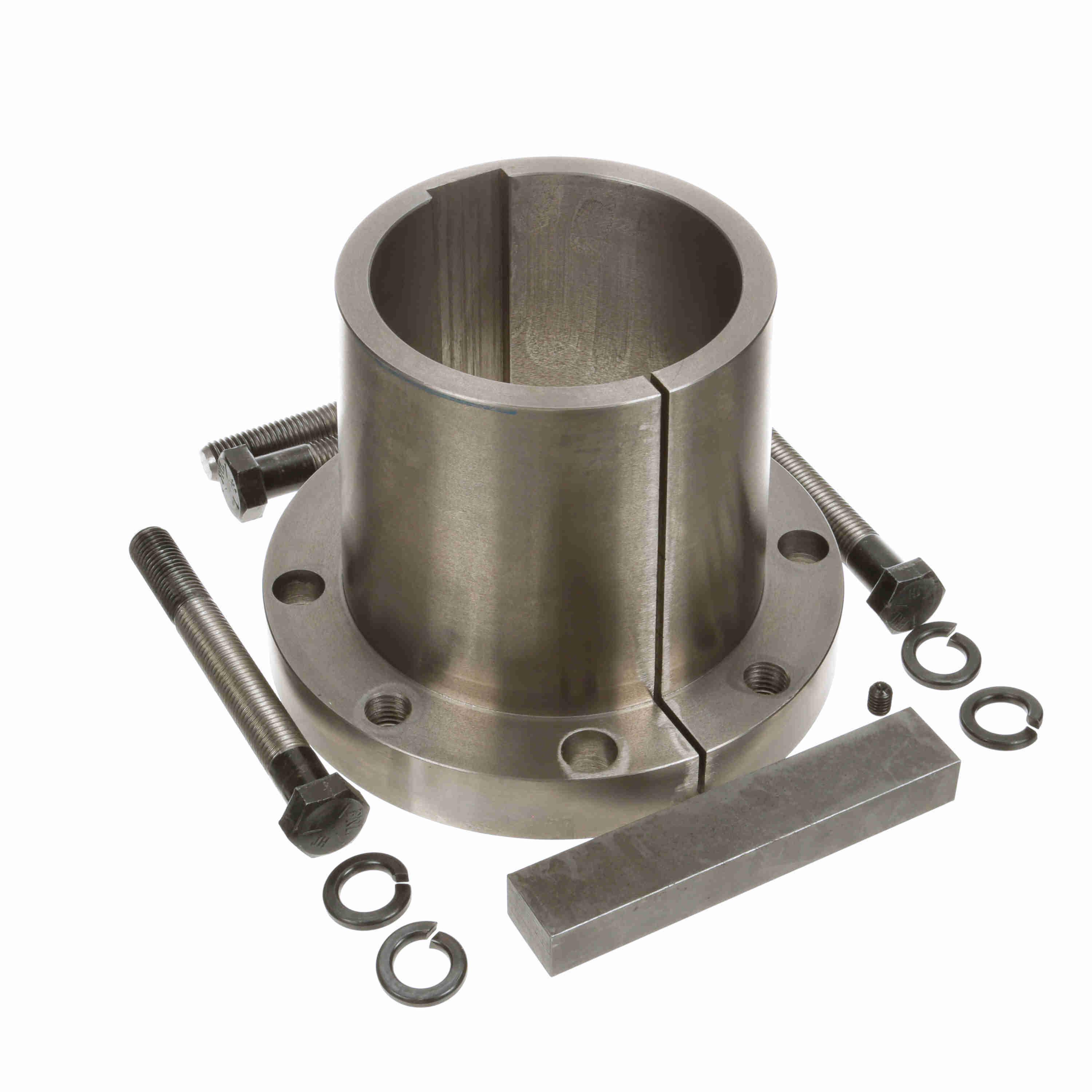

BROWNING 1075282 M 5 3/16 Q-D Bushing, Bore Type, 5-3/16 in Bore Dia, 9 in Flange Dia, 85000 in-lb Torque Rating, Type M
Get it by Tuesday, Mar 31
€1,730.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 7 7/8" |
| Bore Size | 5 3/16" |
| Bushing Series | M Series |
| Bushing Style | QD |
| Flange Dia. | 9" |
| Flange Thickness | 1 1/4" |
| For Use With | Gearbelt Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 1 1/2" x 5/8" |
| Length Thru Bore | 6 3/4" |
| Material | Cast Iron |
| No. Of Bolt Holes | 4 |
| Outside Dia. | 6 1/2" |
| Overall Length | 6 19/25" |
| Rated Torque | 85000 lbs.-in. |
| Screw Size | 3/4"-10 |
| Screw Thread Length | 6 3/4" |
| System Of Measurement | Imperial |
| Type | Type M |
Shipping Info:
| Ship weight (kg) | 12.92 |
| Ship height (cm) | 13.03 |
| Ship length (cm) | 25.73 |
| Ship width (cm) | 25.73 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Size | Keyway Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Type | Rated Torque | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1075159 | 4 3/8" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €855.79 | RFQ
|
|
1075183 | 4 9/16" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |
 |
1074772 | 2" | 1/2" x 1/4" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €768.90 | RFQ
|
|
1074814 | 2 1/4" | 1/2" x 1/4" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,730.03 | |
|
1075191 | 4 5/8" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,647.65 | |
 |
1075241 | 4 15/16" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,585.99 | |
|
1074962 | 3 3/16" | 3/4" x 3/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 |
