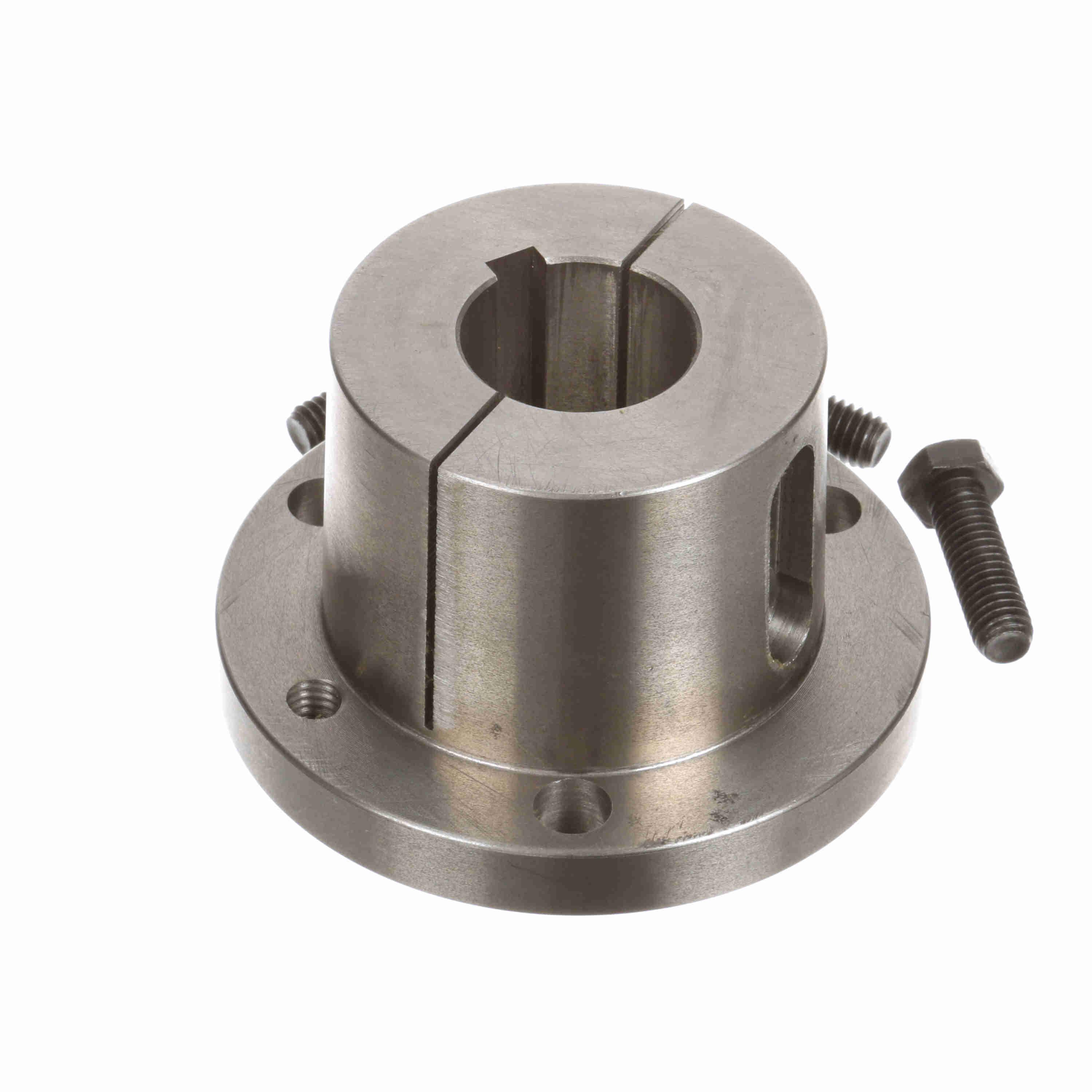

BROWNING 1078914 Q1 1 5/16 Split Taper Bushing, 1.3125 Inch Bore Size, 4.125 Inch Outer Dia., Q1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XFWModel: 1078914Cross Ref: Q1 1 5/16
7 In Stock
Ships within 2 days via
€96.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 2.7657", 2.875" |
| Bolt Circle Dia. | 3 3/8" |
| Bore Size | 1 5/16" |
| Bushing Series | Q1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 4 1/8" |
| Flange Thickness | 17/32" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway | Yes |
| Keyway Size | 5/16" x 5/32" |
| Length Thru Bore | 2 1/2" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 2 7/8" |
| Overall Length | 2 1/2" |
| Screw Size | 3/8" x 1 1/4" |
| System Of Measurement | Imperial |
| Weight | 4.15 lbs. |
Shipping Info:
| Ship weight (kg) | 1.87 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 7.32 |
Product Variants
| Product | Model | Overall Length | Flange Thickness | Bore Size | Keyway Size | Bolt Circle Dia. | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1079664 | 63.5 mm | 17/32" | 20 mm | - | 3 3/8" | 2 7/8" | - | €201.93 | |
 |
1079672 | 63.5 mm | 17/32" | 22 mm | - | 3 3/8" | - | - | €80.77 | RFQ
|
 |
1079680 | 2 1/2" | 0.531" | 24 mm | - | 3 3/8" | 2 7/8" | Type Q1 | €78.53 | RFQ
|
 |
1079698 | 63.5 mm | 17/32" | 25 mm | - | 3 3/8" | 2 7/8" | - | €80.77 | RFQ
|
 |
1079706 | 2 1/2" | 0.531" | 28 mm | - | 3 3/8" | 2 7/8" | Type Q1 | €118.06 | |
 |
1079714 | 2 1/2" | 0.531" | 30 mm | - | 3 3/8" | 2 7/8" | Type Q1 | €115.83 | |
 |
1079722 | 2 1/2" | 0.531" | 32 mm | - | 3 3/8" | 2 7/8" | Type Q1 | €80.77 | RFQ
|
