BROWNING M Type Quick Disconnect Bushings
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Bore Size | Keyway Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Type | Rated Torque | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1074814 | 2 1/4" | 1/2" x 1/4" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,730.03 | |
| A | 1074897 | 2 3/4" | 5/8" x 5/16" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,789.13 | |
| A | 1074830 | 2 3/8" | 5/8" x 5/16" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,789.13 | |
| A | 1074806 | 2 3/16" | 1/2" x 1/4" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,789.13 | |
| A | 1074871 | 2 5/8" | 5/8" x 5/16" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |
| A | 1074913 | 2 7/8" | 3/4" x 3/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €956.34 | |
| A | 1074848 | 2 7/16" | 5/8" x 5/16" | 7 7/8" | 6 19/25" | 1 1/4" | - | - | - | €1,730.03 | |
| A | 1074921 | 2 15/16" | 3/4" x 3/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,789.13 | |
| B | 1074772 | 2" | 1/2" x 1/4" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €768.90 | |
| A | 1074947 | 3 1/16" | 3/4" x 3/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |

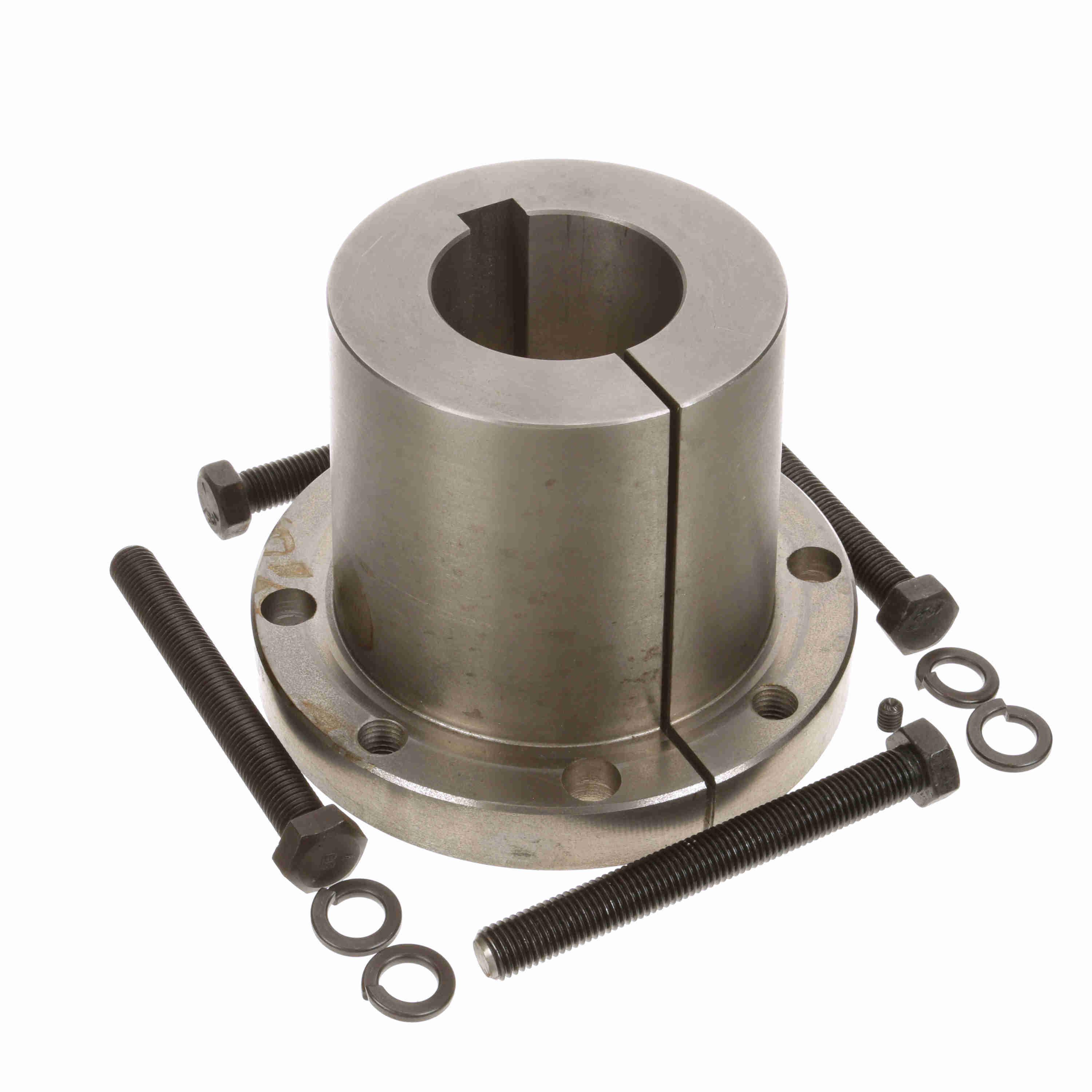

| C | 1074996 | 3 3/8" | 7/8" x 7/16" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,585.99 | |
| A | 1074962 | 3 3/16" | 3/4" x 3/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |
| A | 1074988 | 3 5/16" | 7/8" x 7/16" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |
| A | 1075076 | 3 7/8" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,730.03 | |
| D | 1075001 | 3 7/16" | 7/8" x 7/16" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,730.03 | |
| E | 1075084 | 3 15/16" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,585.99 | |
| A | 1074939 | 3" | 3/4" x 3/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,853.59 | |
| A | 1075118 | 4 1/8" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,647.65 | |
| A | 1075217 | 4 3/4" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,647.65 | |
| A | 1075159 | 4 3/8" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €855.79 | |
| A | 1075126 | 4 3/16" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |
| A | 1075191 | 4 5/8" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,647.65 | |
| A | 1075233 | 4 7/8" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,730.03 | |

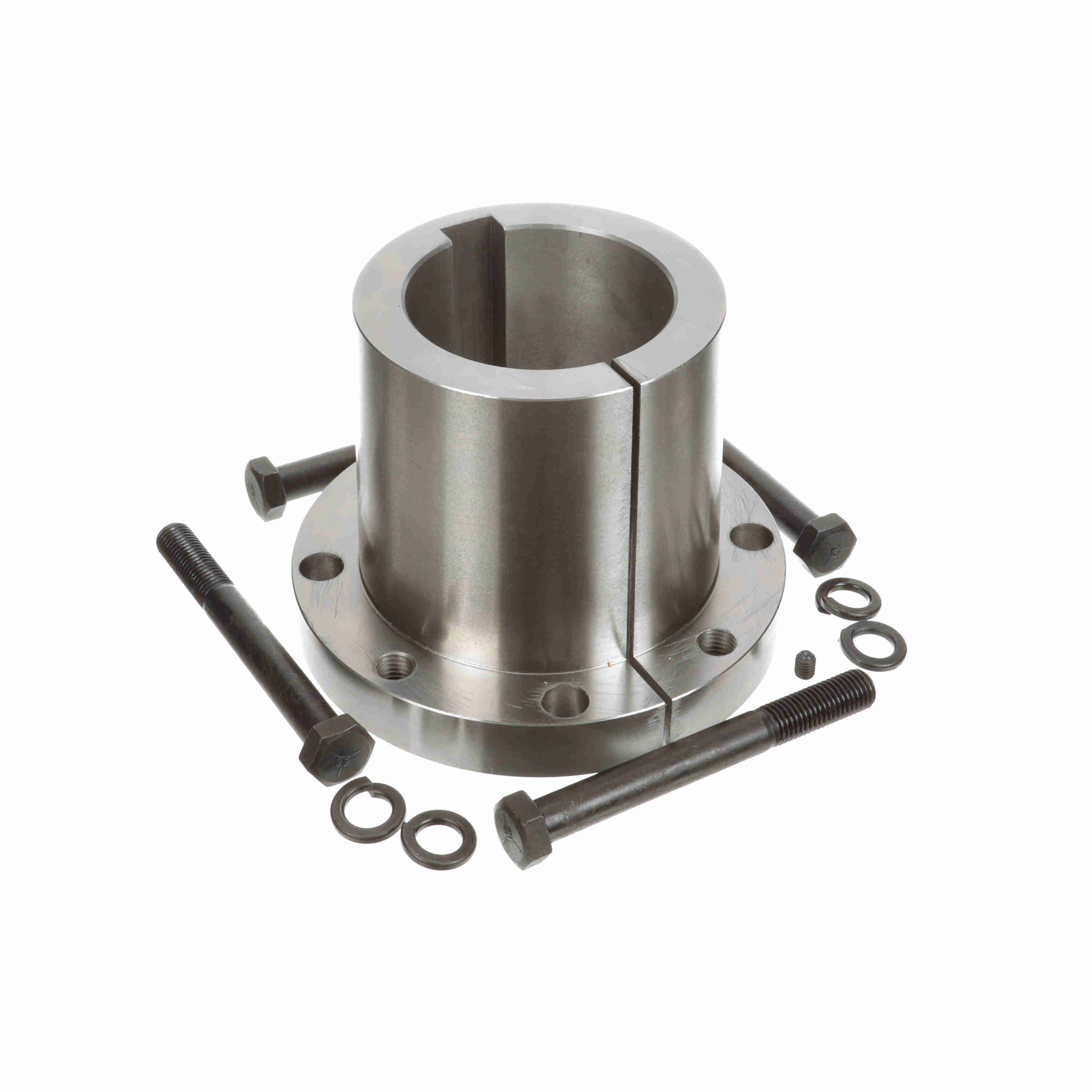

| F | 1075167 | 4 7/16" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,946.28 | |
| A | 1075183 | 4 9/16" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |
| A | 1075225 | 4 13/16" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,647.65 | |
| G | 1075241 | 4 15/16" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €1,585.99 | |

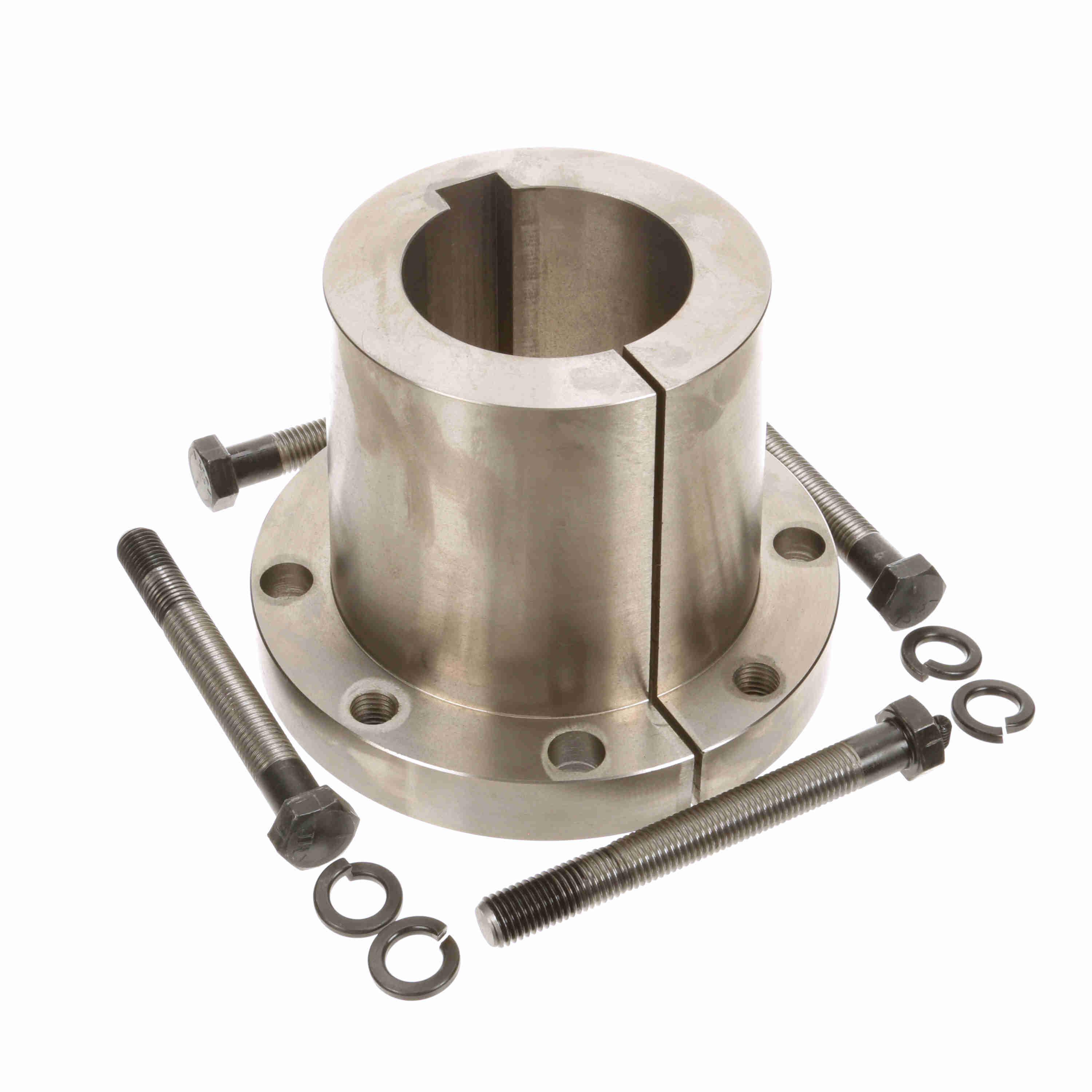

| H | 1075092 | 4" | 1" x 1/2" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €855.79 | |
| A | 1075316 | 5 3/8" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |
| I | 1075282 | 5 3/16" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,730.03 | |
| A | 1075324 | 5 7/16" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | 6 1/2" | €1,647.65 | |

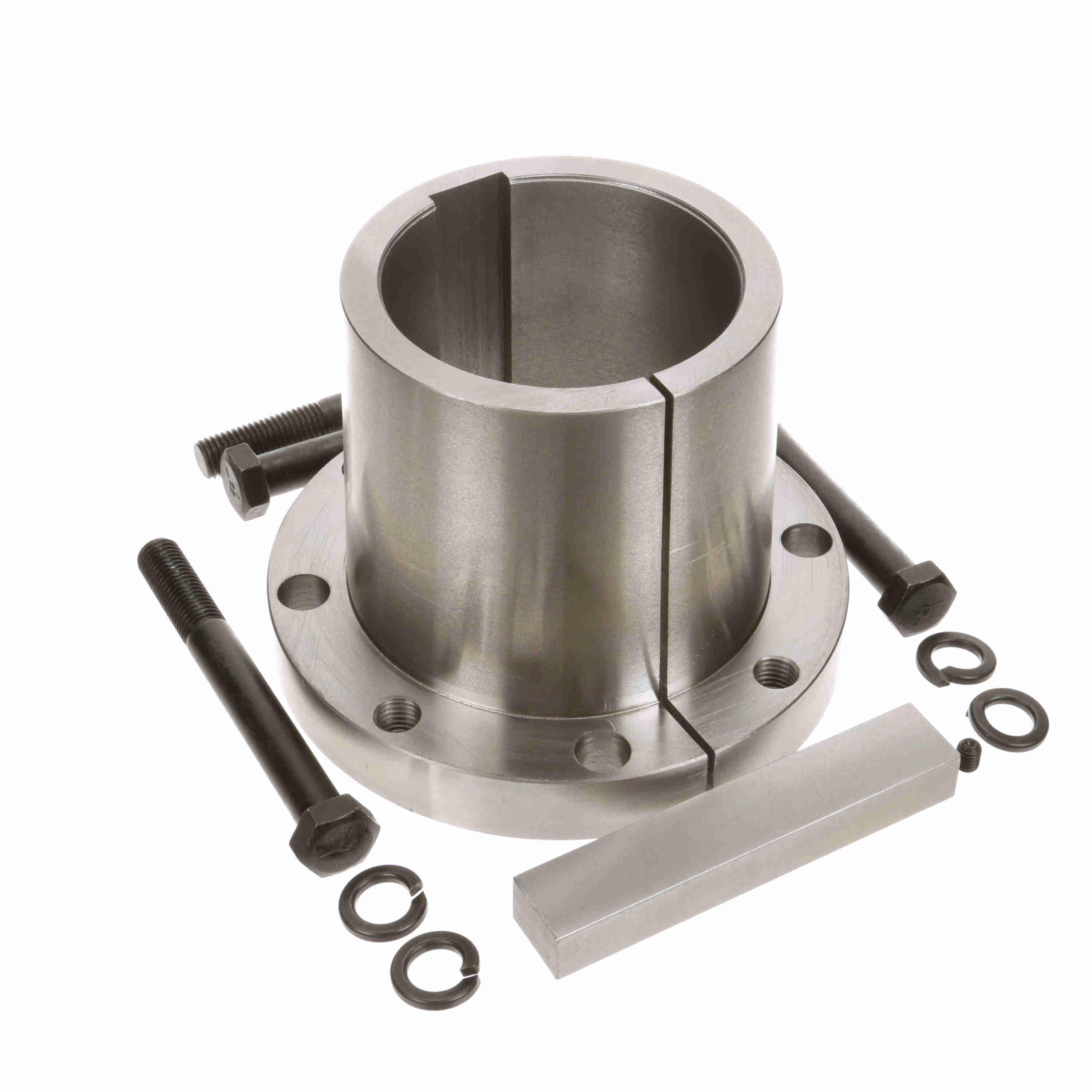

| J | 1075258 | 5" | 1 1/2" x 5/8" | 7 7/8" | 6 19/25" | 1 1/4" | Type M | 85000 lbs.-in. | - | €807.35 |
