BROWNING E Type, Quick Disconnect Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1| Style | Model | Bore Size | Keyway Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Rated Torque | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1073295 | 1 1/2" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | - | €188.64 | RFQ
|
| B | 1073238 | 1 1/4" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | - | 3.834" | - | €248.63 | |

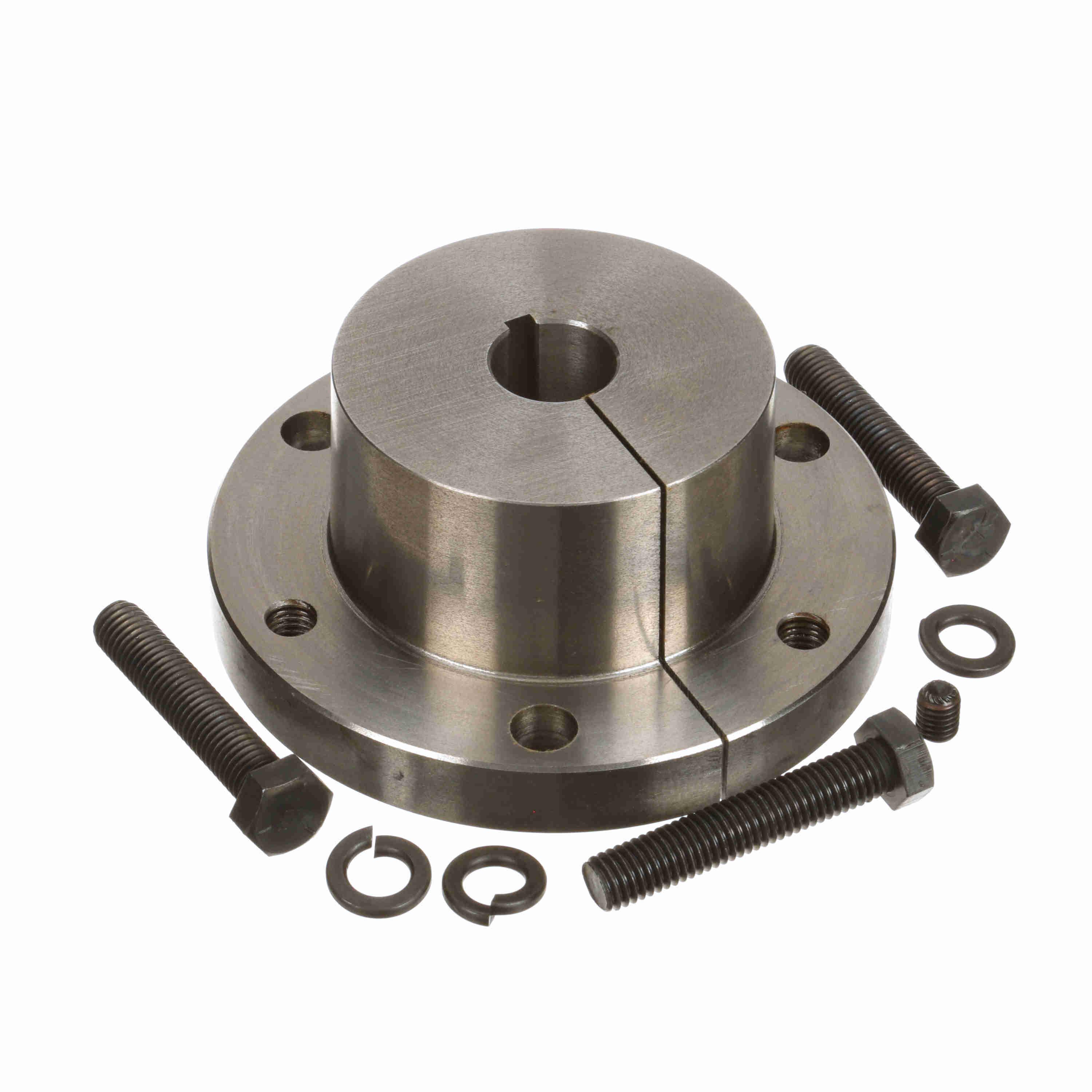

| C | 1073204 | 1 1/16" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €370.73 | |
| D | 1073337 | 1 3/4" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | - | - | €279.79 | |

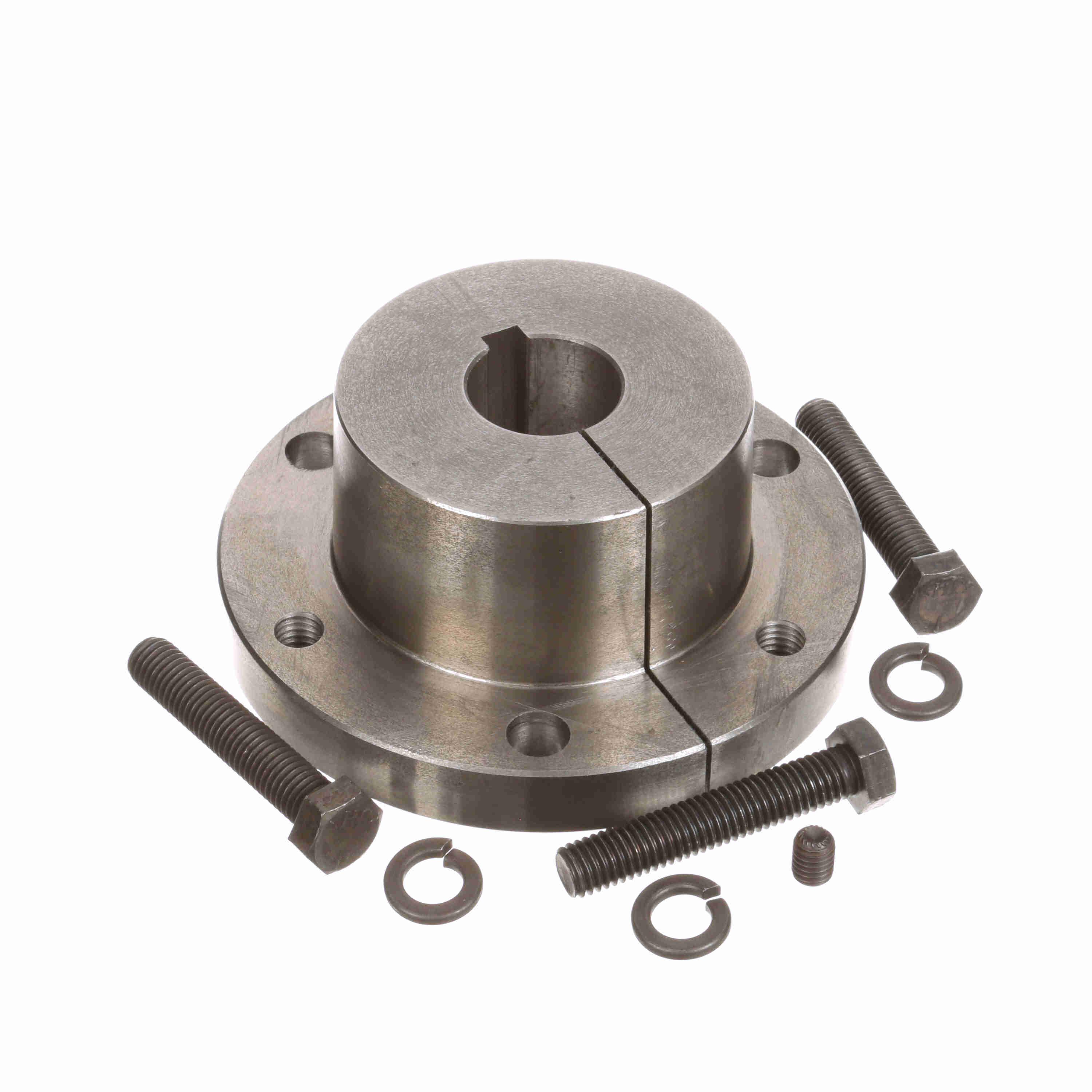

| E | 1073279 | 1 3/8" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €255.64 | |
| F | 1073220 | 1 3/16" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €248.63 | |
| G | 1073287 | 1 7/16" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €427.46 | |

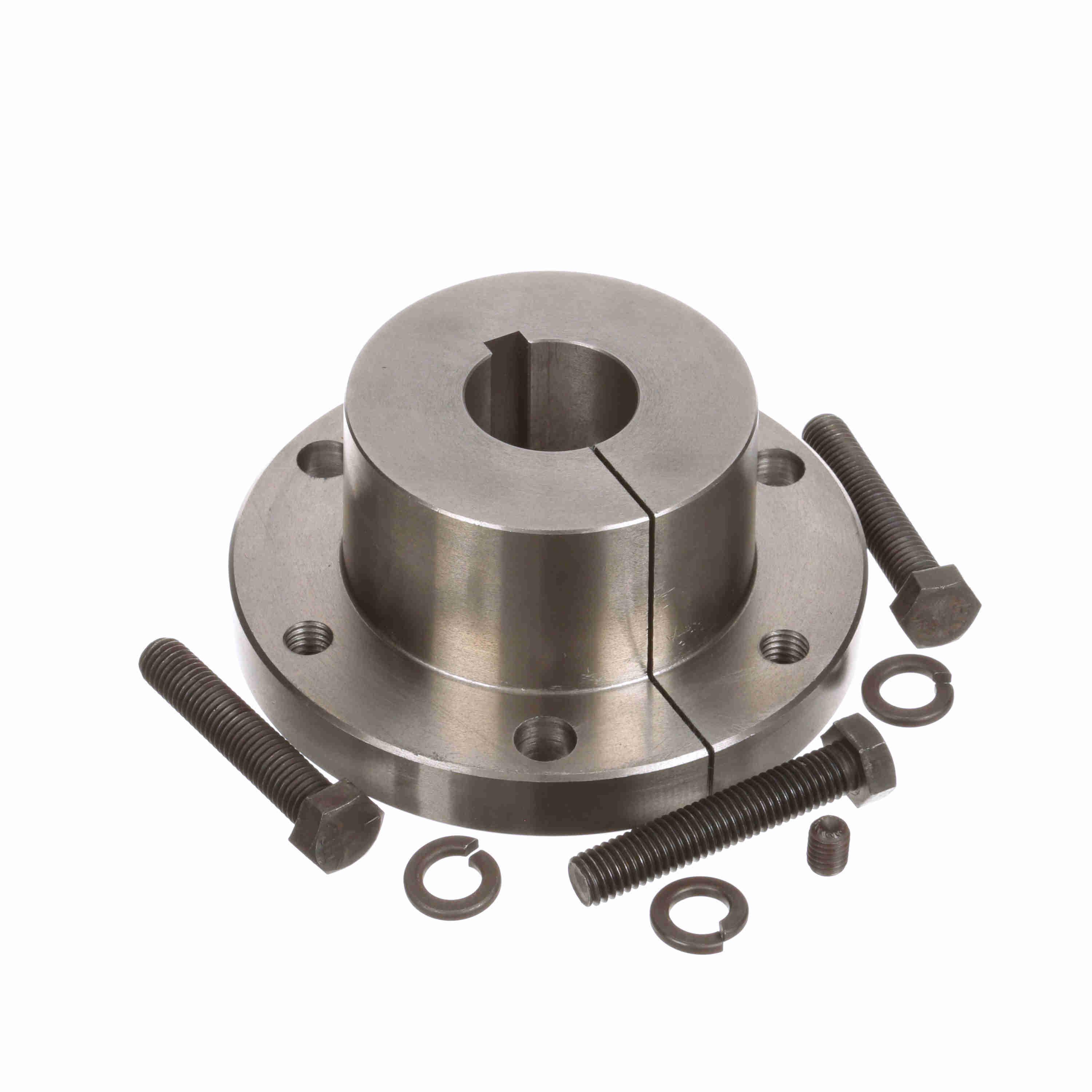

| H | 1073303 | 1 9/16" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €255.64 | |
| I | 1073329 | 1 11/16" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | - | 3.834" | - | €192.27 | RFQ
|

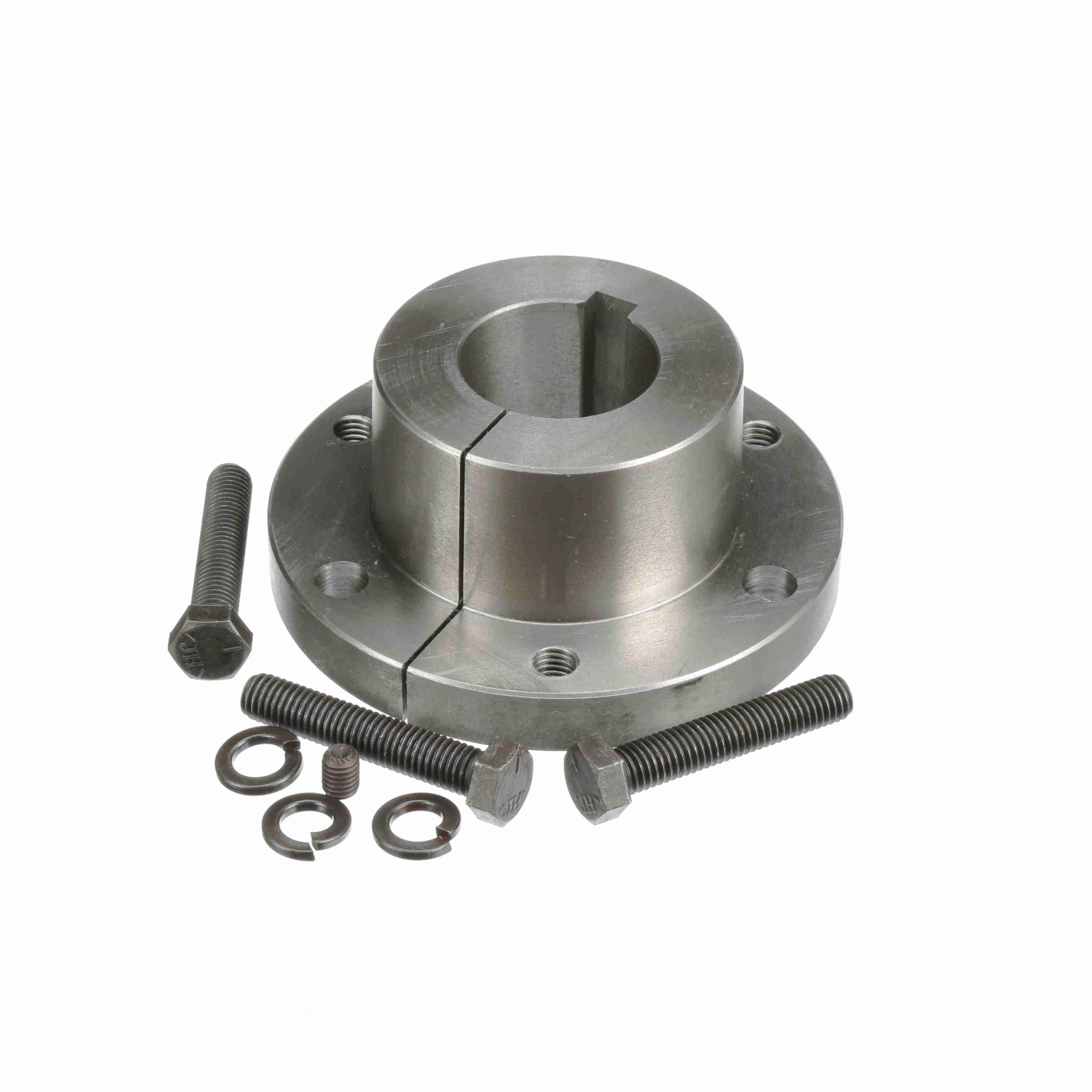

| J | 1073345 | 1 13/16" | 1/2" x 1/4" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | - | Type E | €431.87 | |
| K | 1073360 | 1 15/16" | 1/2" x 1/4" | 5" | 2 16/25" | 3/4" | - | - | - | €415.72 | |
| L | 1073196 | 1" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €197.69 | RFQ
|

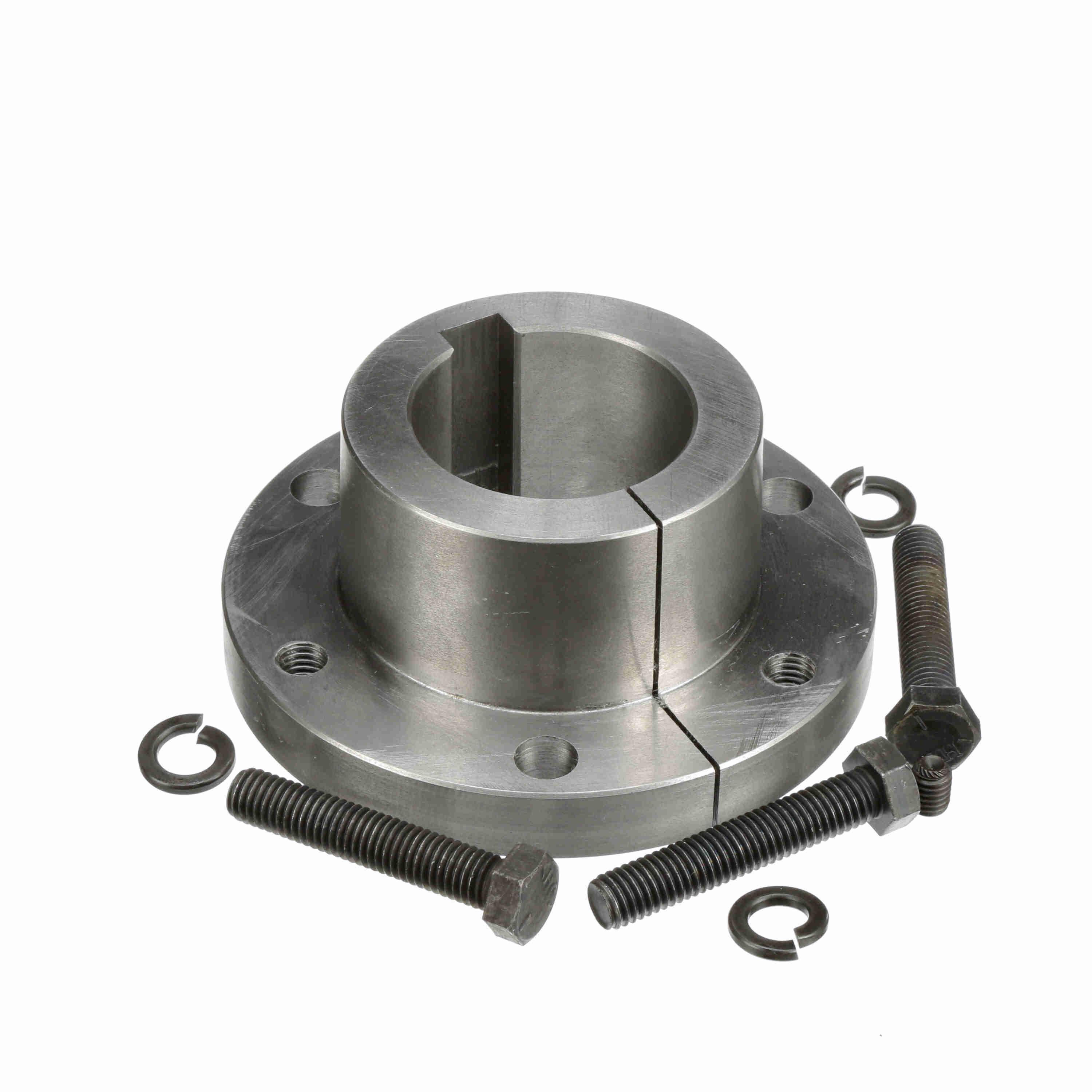

| M | 1073451 | 2 1/2" | 5/8" x 5/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | - | €297.23 | |
| N | 1073410 | 2 1/4" | 1/2" x 1/4" | 5" | 2 16/25" | 3/4" | - | - | - | €289.06 | |
| O | 1073394 | 2 1/8" | 1/2" x 1/4" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | - | Type E | €283.62 | |
| P | 1073386 | 2 1/16" | 1/2" x 1/4" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €494.28 | |
| Q | 1073493 | 2 3/4" | 5/8" x 5/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | - | €219.31 | |
| R | 1073436 | 2 3/8" | 5/8" x 5/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | - | - | €283.62 | |
| S | 1073402 | 2 3/16" | 1/2" x 1/4" | 5" | 2 16/25" | 3/4" | - | - | - | €283.62 | |

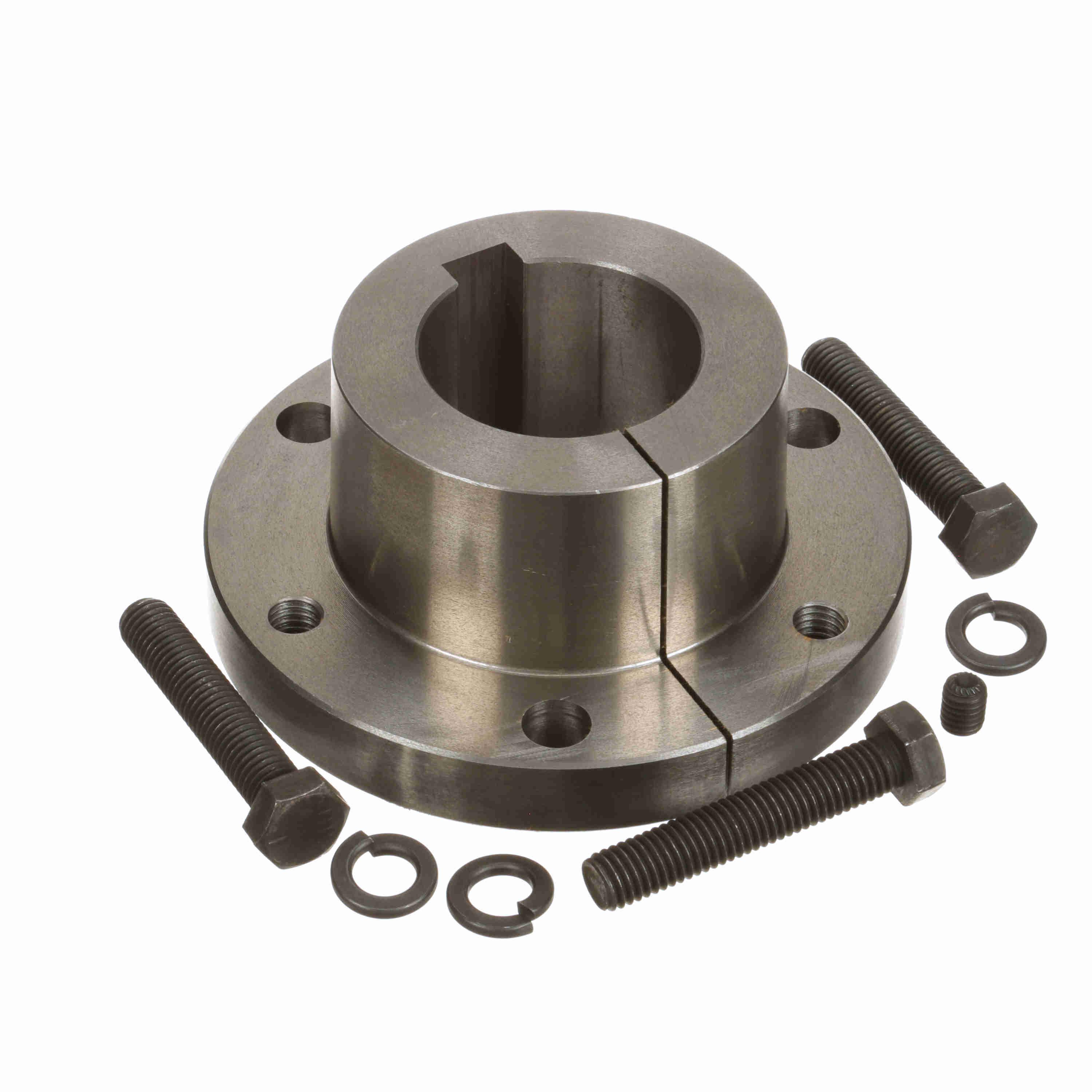

| T | 1073428 | 2 5/16" | 5/8" x 5/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | - | Type E | €255.64 | |

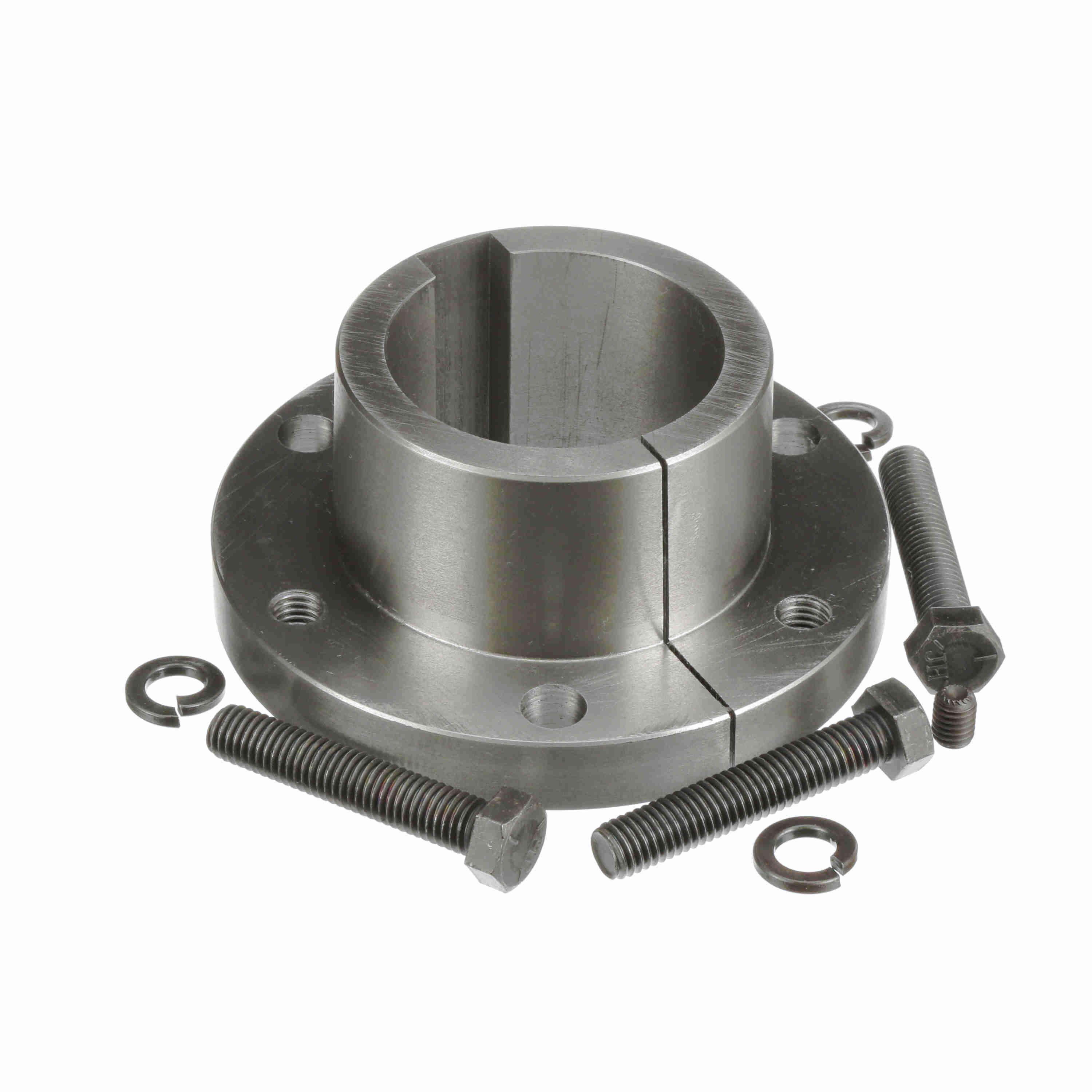

| U | 1073519 | 2 7/8" | 3/4" x 3/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | - | €283.62 | |

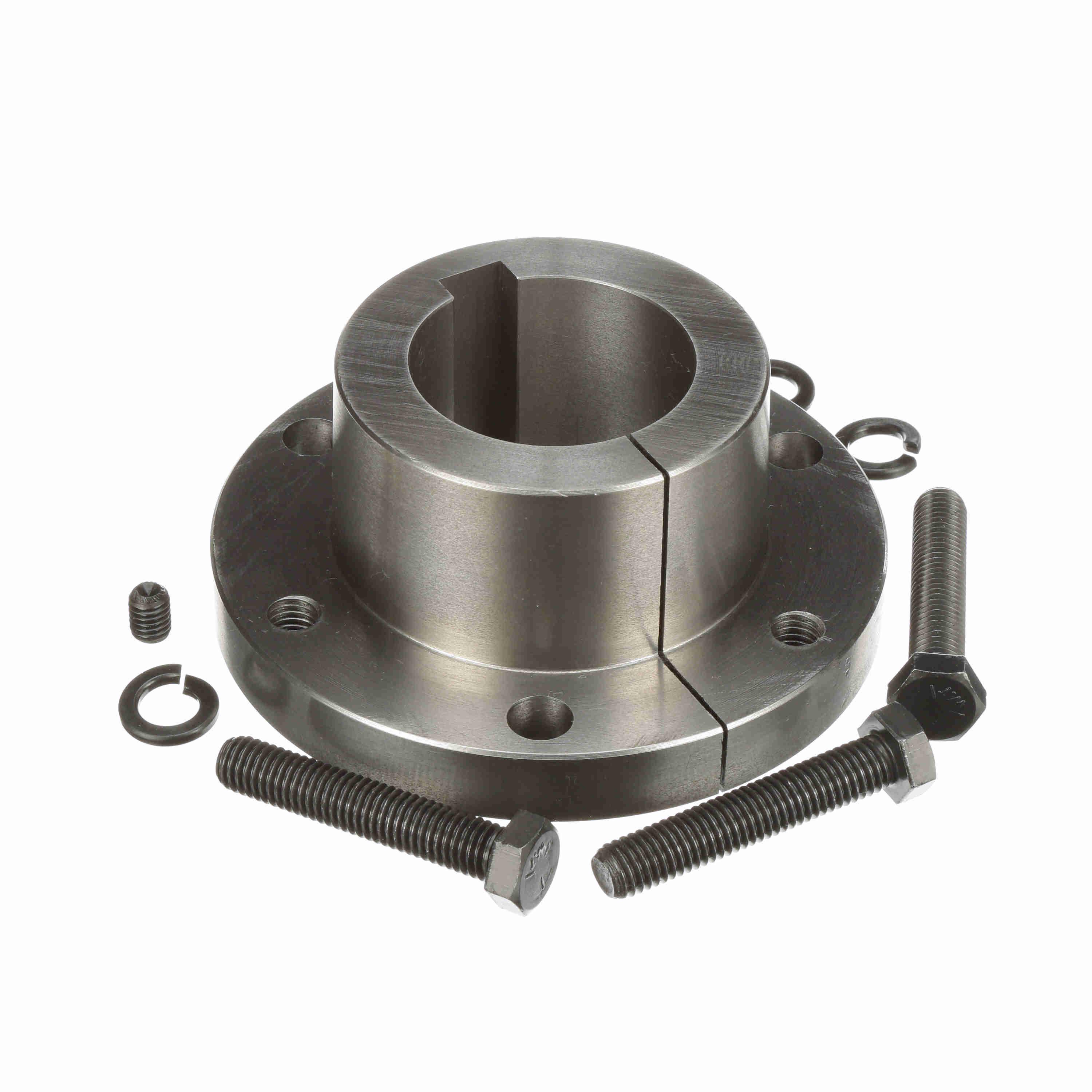

| V | 1073444 | 2 7/16" | 5/8" x 5/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | - | - | €232.16 | |
| W | 1073469 | 2 9/16" | 5/8" x 5/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €494.28 | |

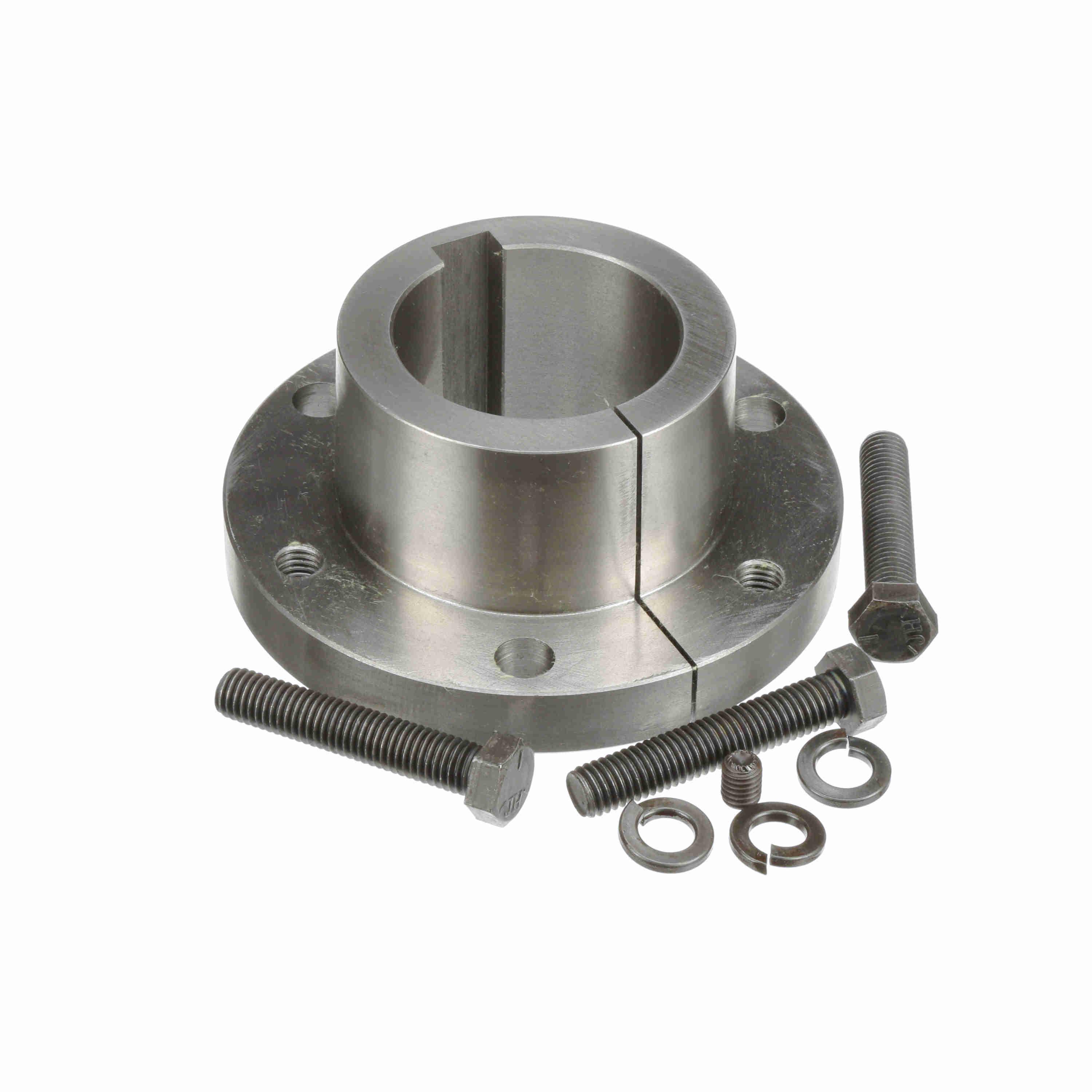

| X | 1073485 | 2 11/16" | 5/8" x 5/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €283.62 | |

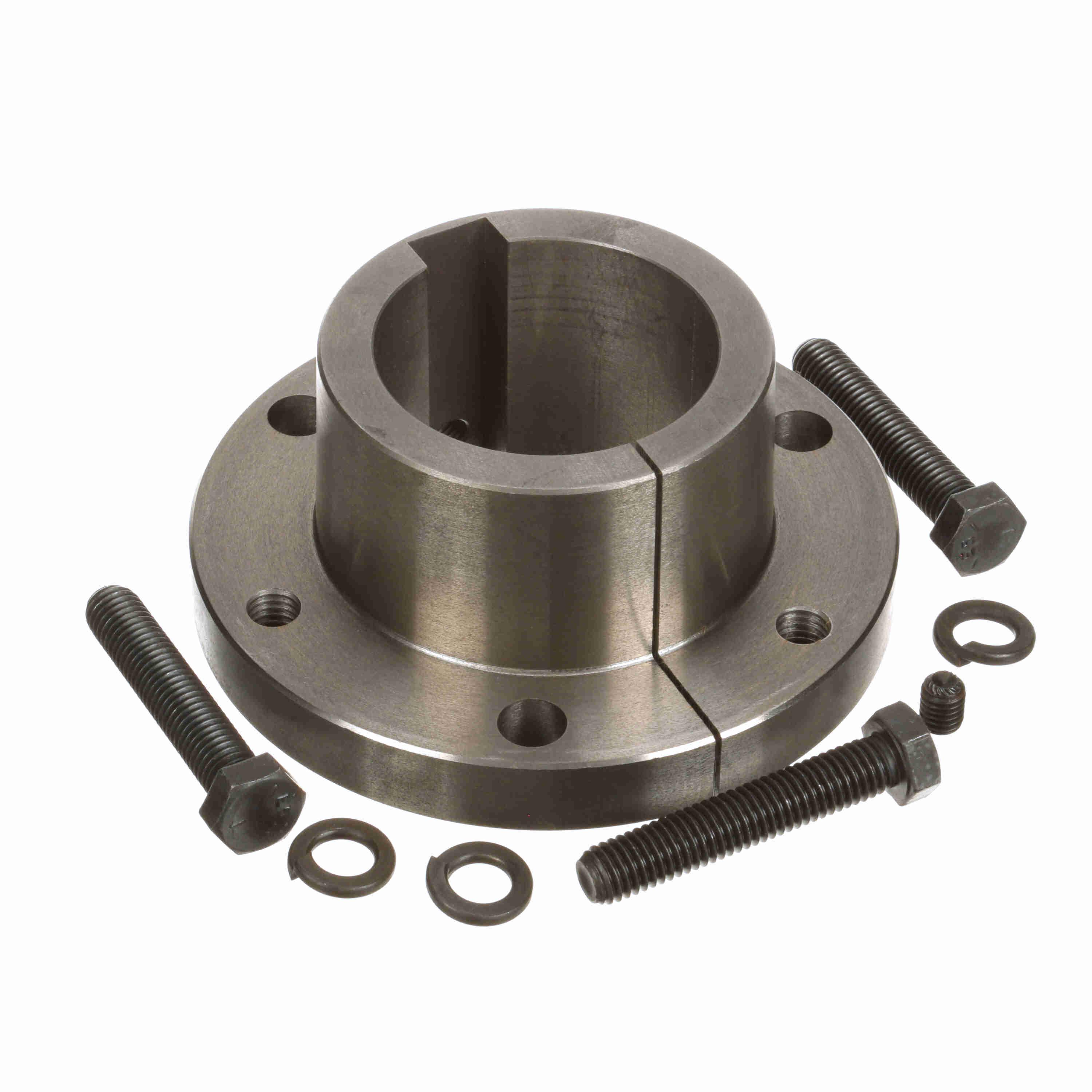

| Y | 1073501 | 2 13/16" | 3/4" x 3/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €234.56 | |

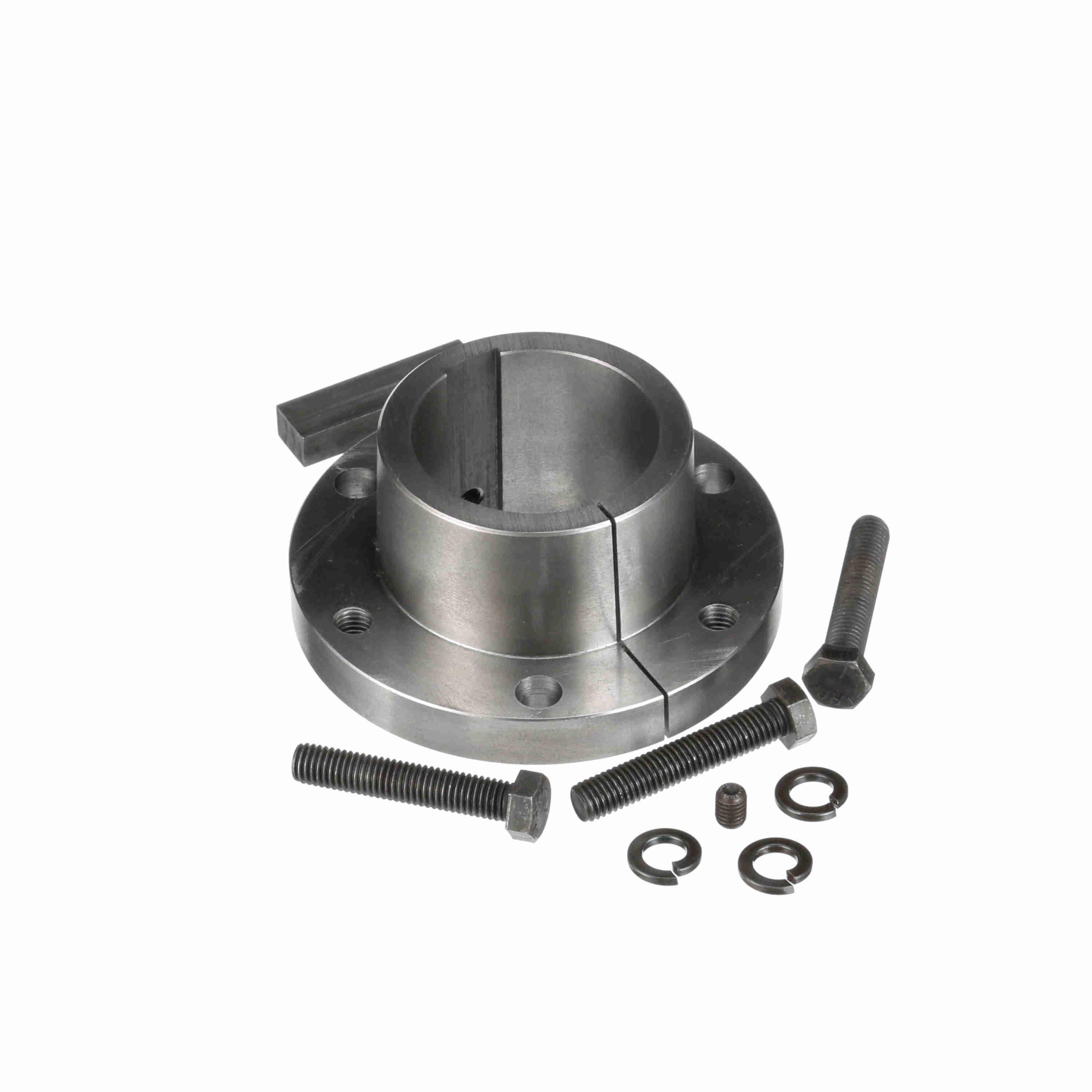

| Z | 1073527 | 2 15/16" | 3/4" x 3/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | - | €219.31 | |
| A1 | 1073378 | 2" | 1/2" x 1/4" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | - | €415.72 | |

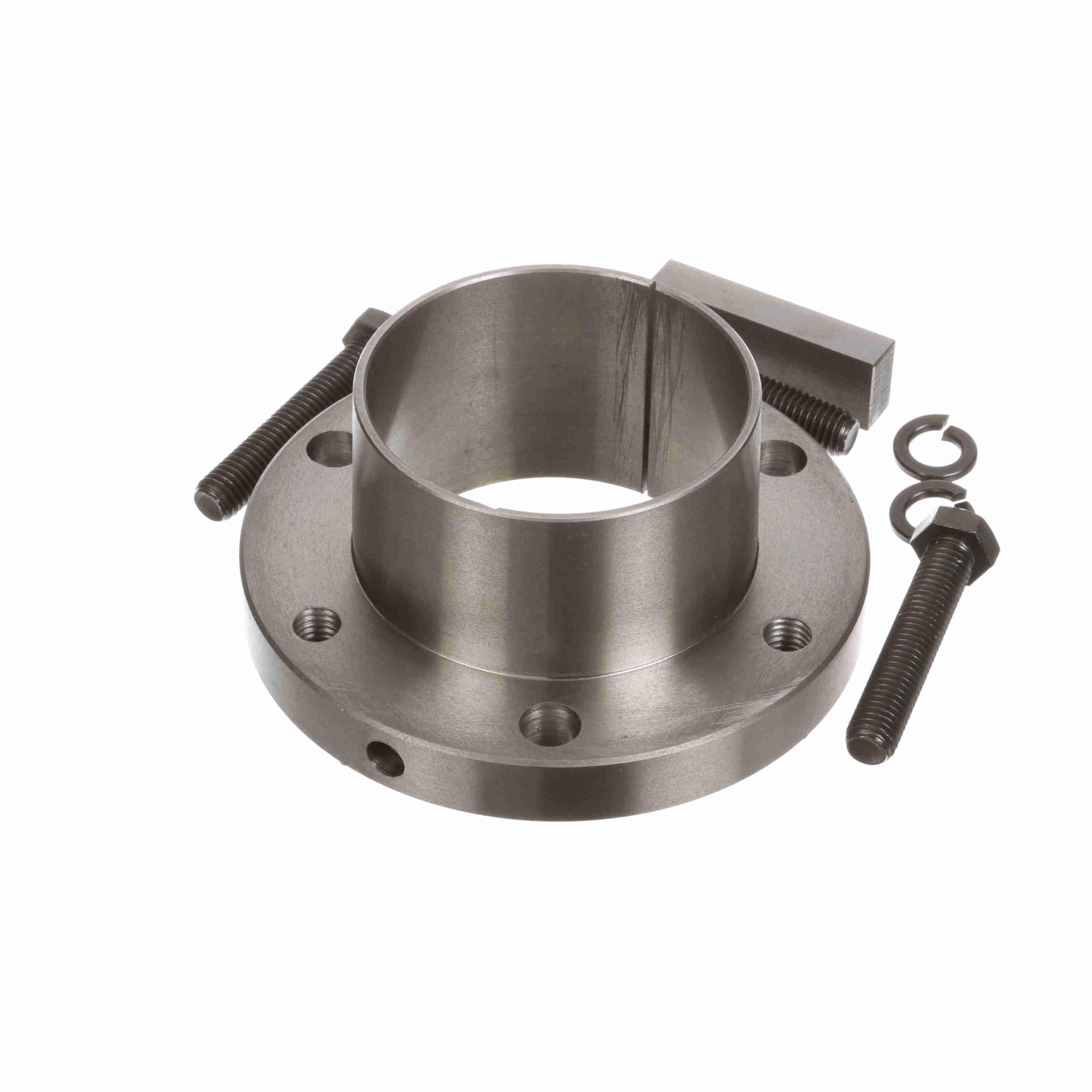

| B1 | 1073618 | 3 1/2" | 7/8" x 7/16" | 5" | 2 16/25" | 3/4" | - | 3.834" | - | €370.73 | |
| C1 | 1073576 | 3 1/4" | 3/4" x 3/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €427.46 | |

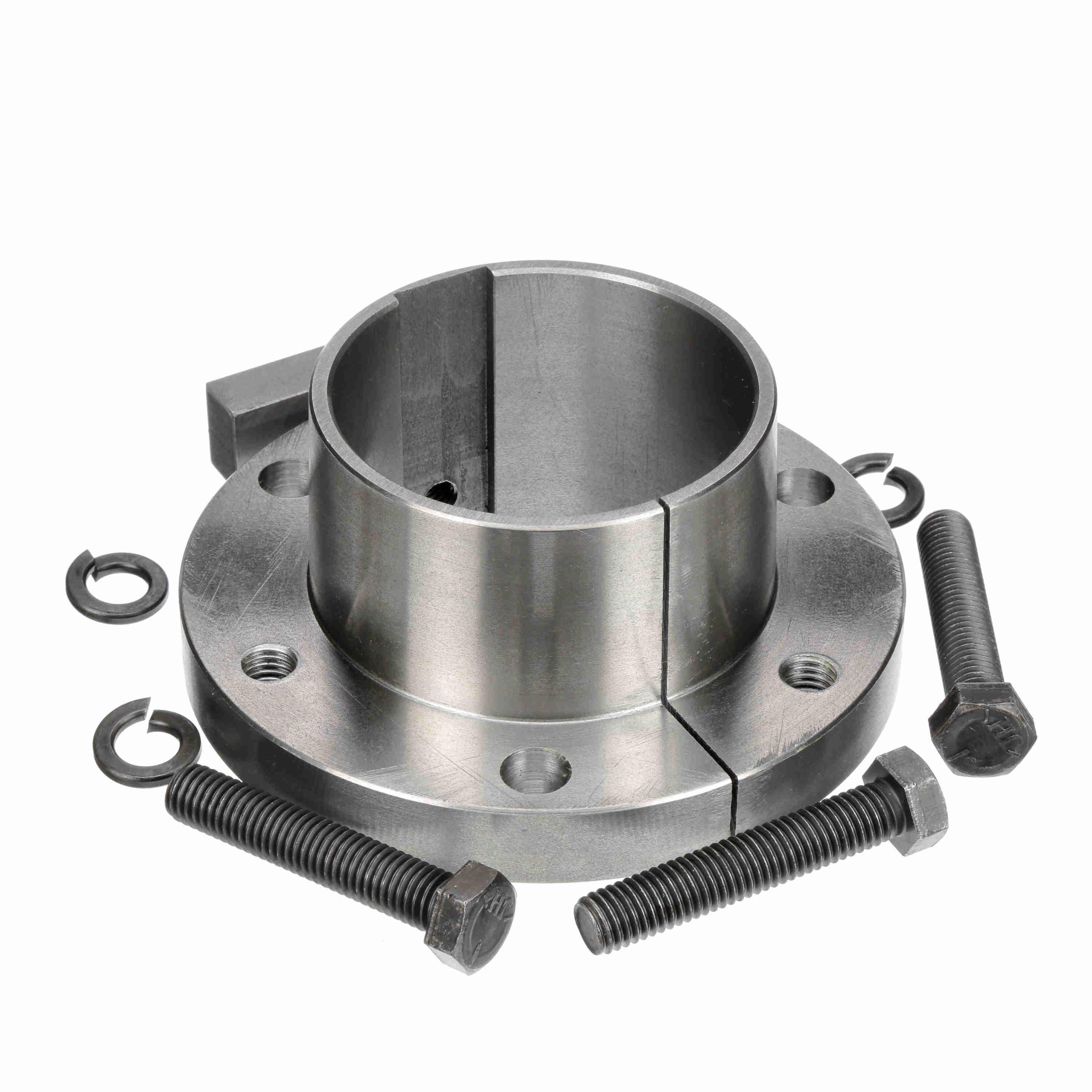

| D1 | 1073592 | 3 3/8" | 7/8" x 7/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €283.62 | |

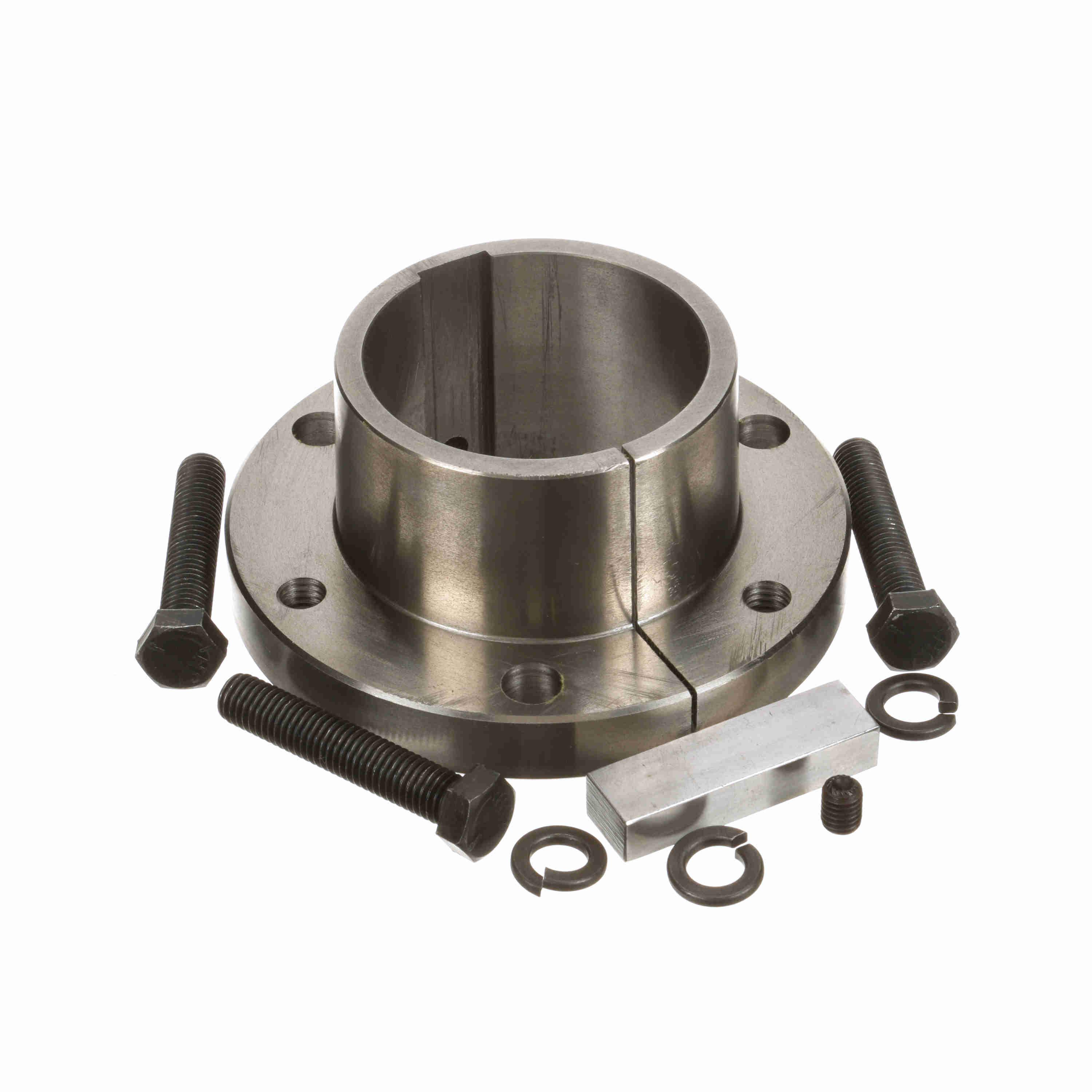

| E1 | 1073568 | 3 3/16" | 3/4" x 3/8" | 5" | 2 16/25" | 3/4" | - | 3.834" | - | €480.67 | |

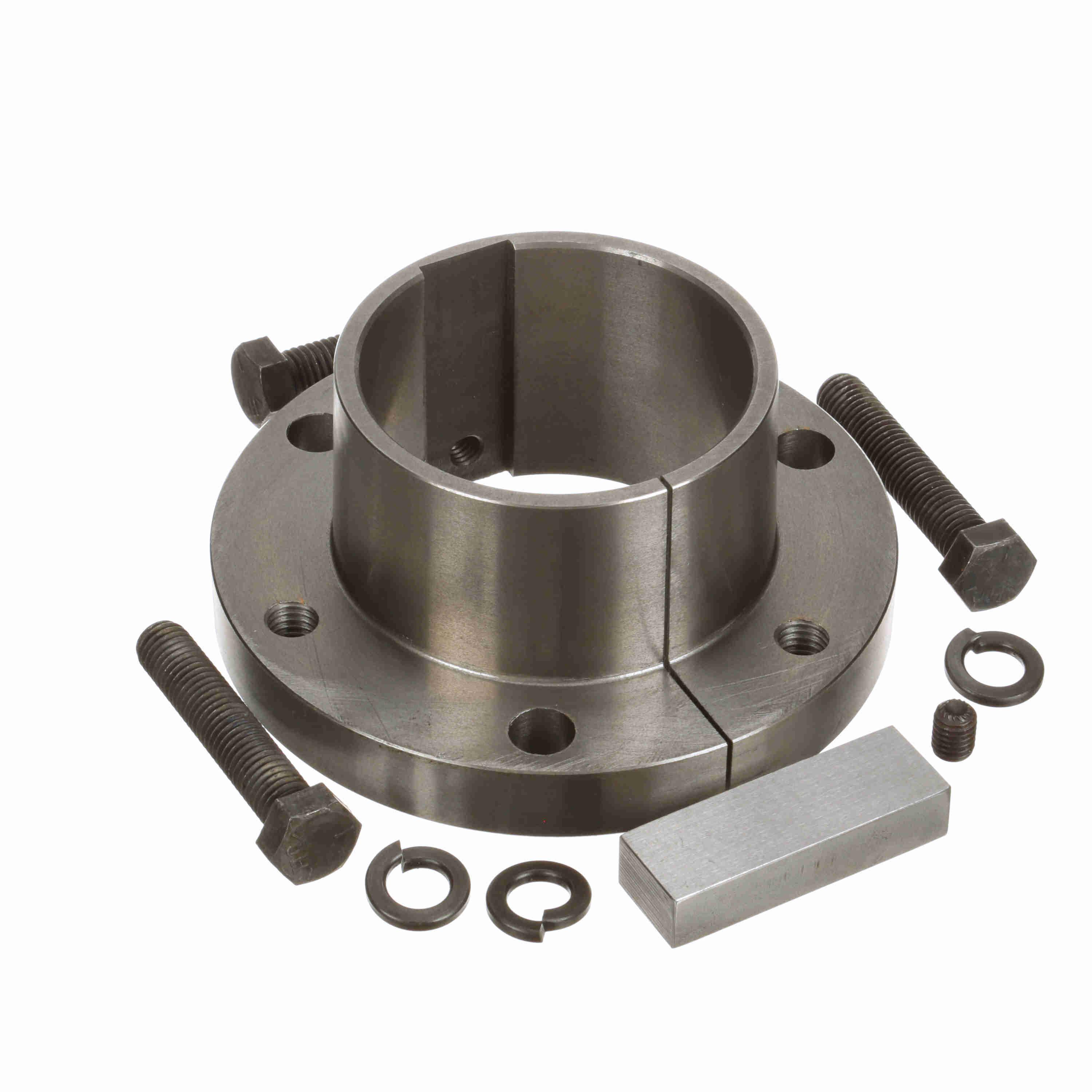

| F1 | 1073584 | 3 5/16" | 7/8" x 7/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €197.69 | RFQ
|

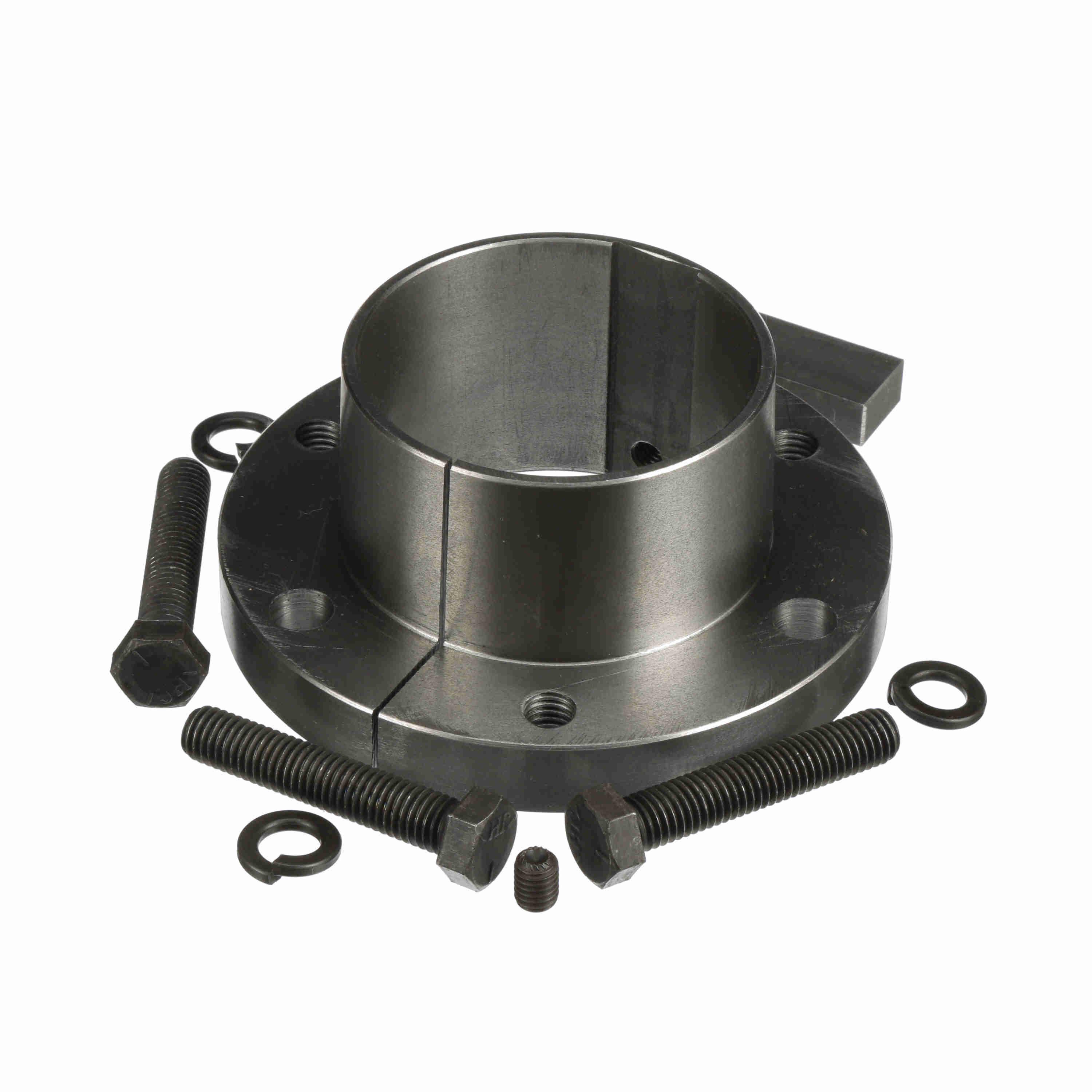

| G1 | 1073600 | 3 7/16" | 7/8" x 7/16" | 5" | 2 16/25" | 3/4" | - | 3.834" | - | €283.62 | |
| H1 | 1073535 | 3" | 3/4" x 3/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €415.72 | |

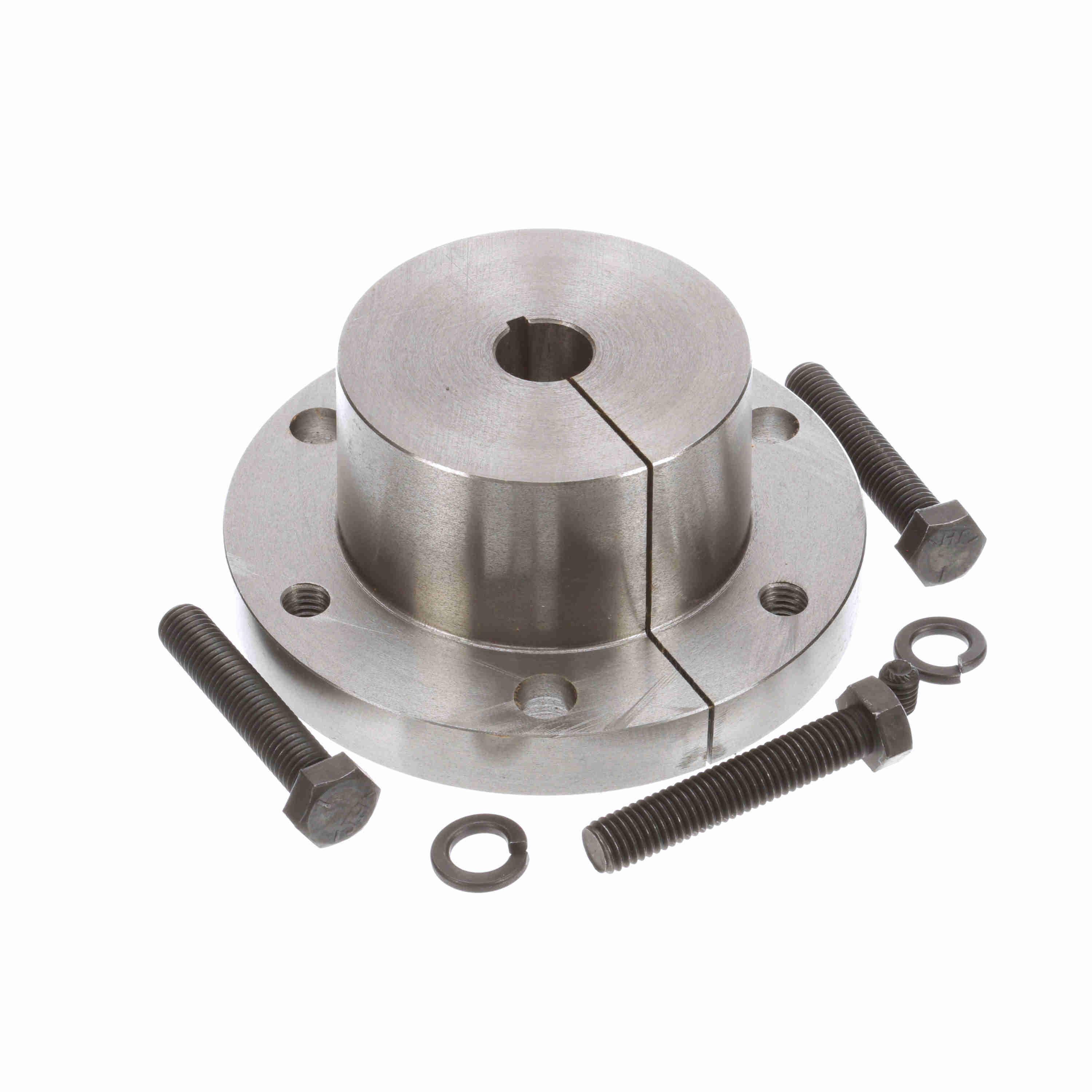

| I1 | 1073170 | 7/8" | 3/16" x 3/32" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | - | Type E | €255.64 | |

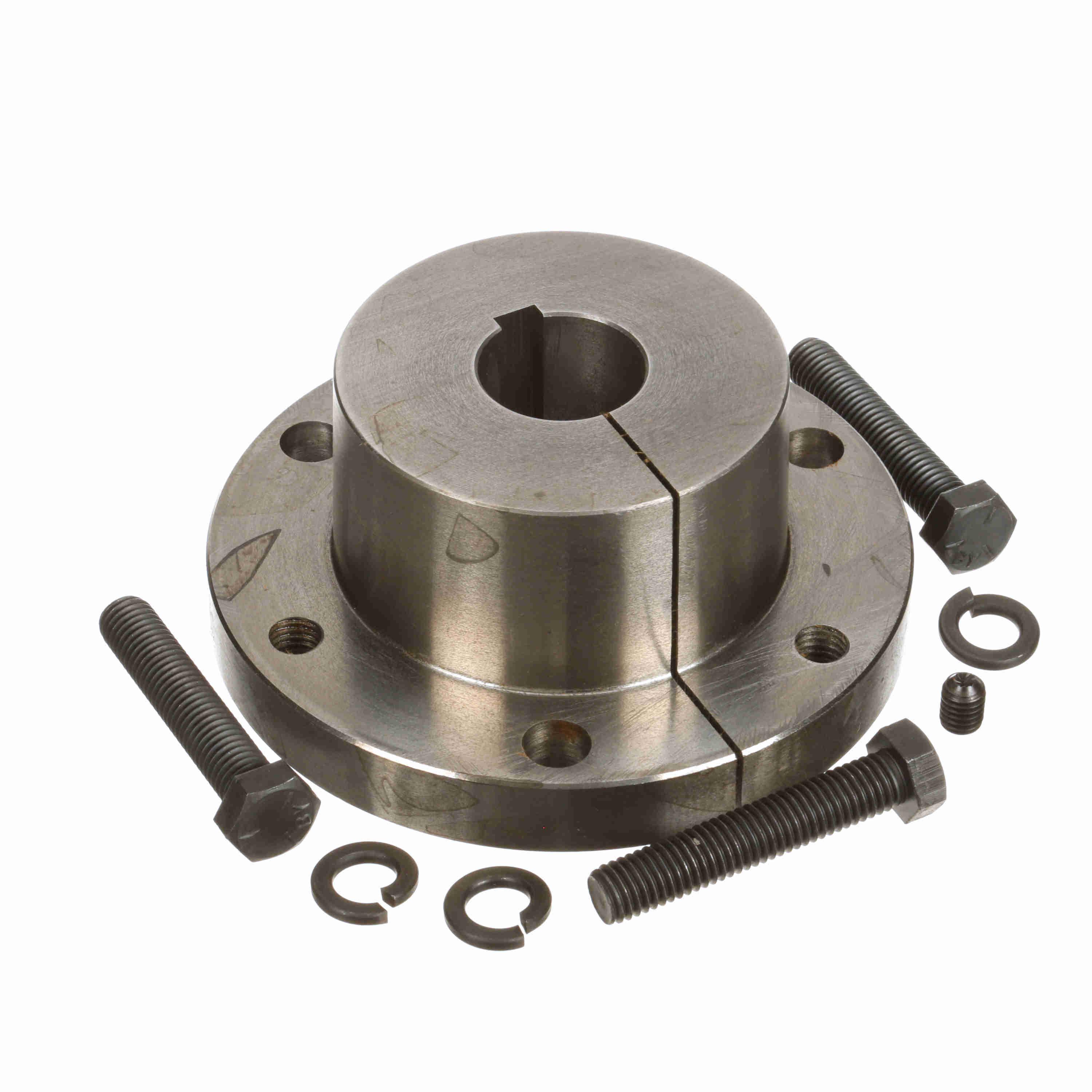

| J1 | 3208451 | 35 mm | 10 mm x 4 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €241.02 | |

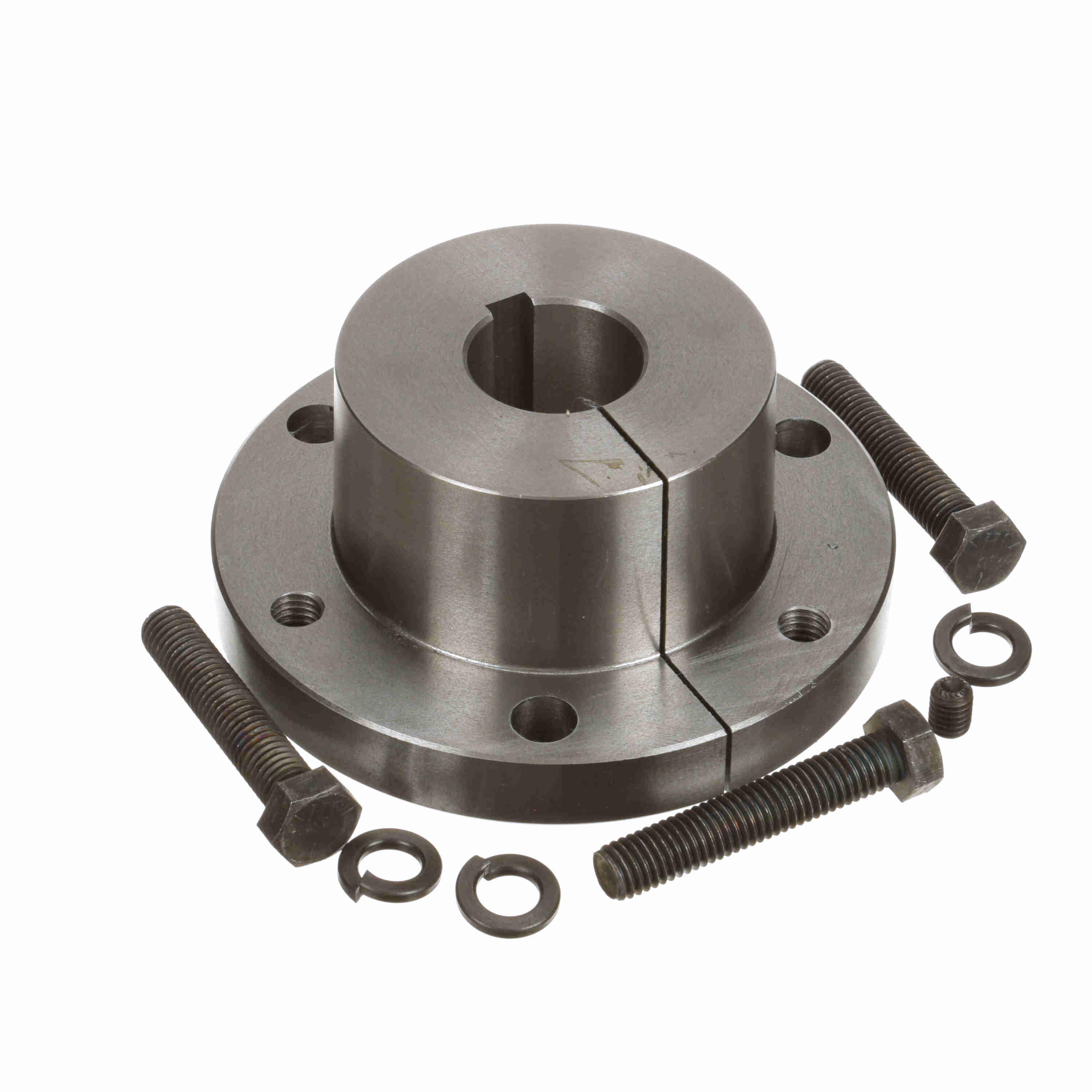

| K1 | 3208469 | 38 mm | 10 mm x 4 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €241.02 | |

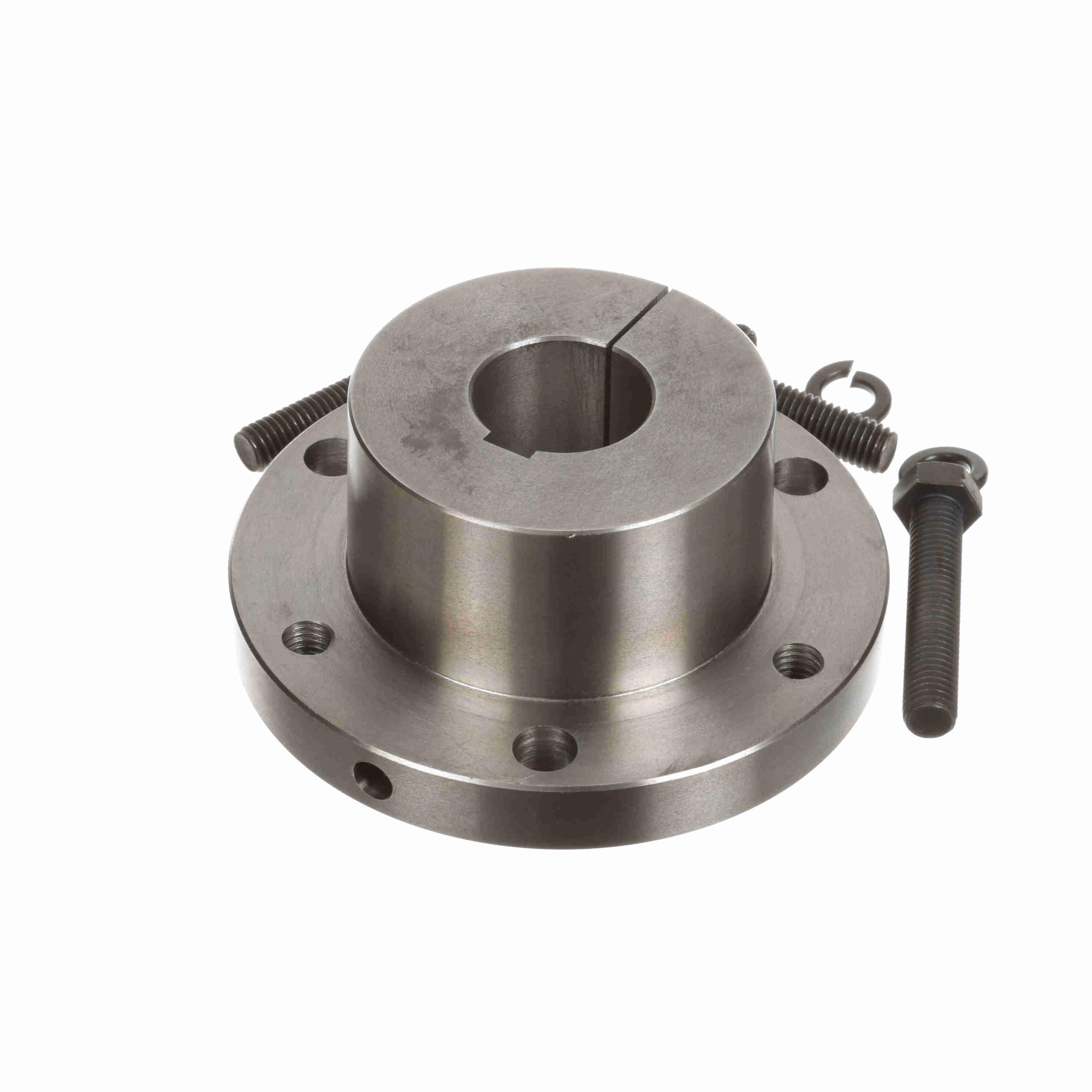

| L1 | 3208477 | 40 mm | 10 mm x 4 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €262.69 | |

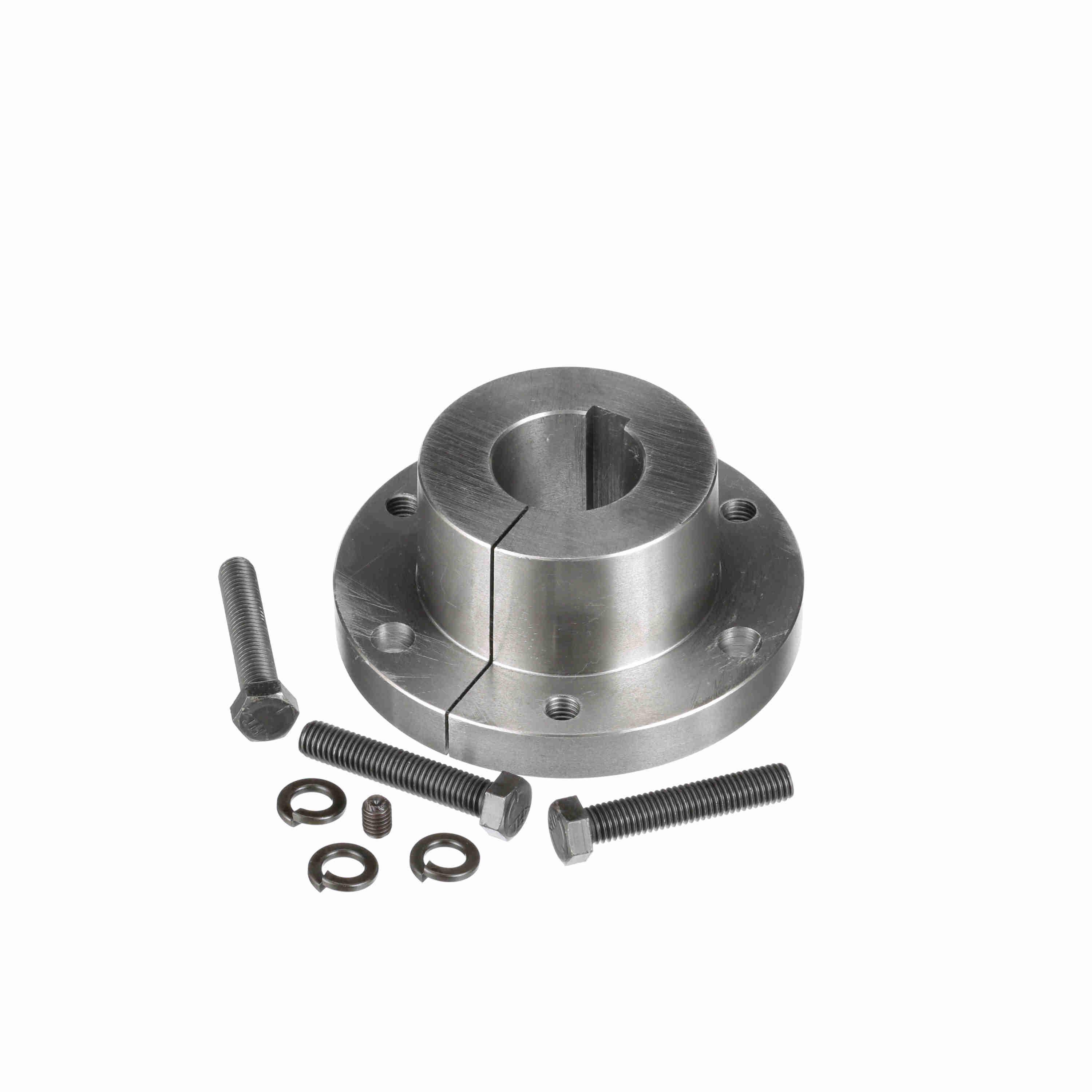

| M1 | 3208485 | 42 mm | 10 mm x 4 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €241.02 | |
| N1 | 3208493 | 45 mm | 14 mm x 4.5 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €465.96 | |
| M1 | 3208501 | 48 mm | 14 mm x 4.5 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €262.69 | |

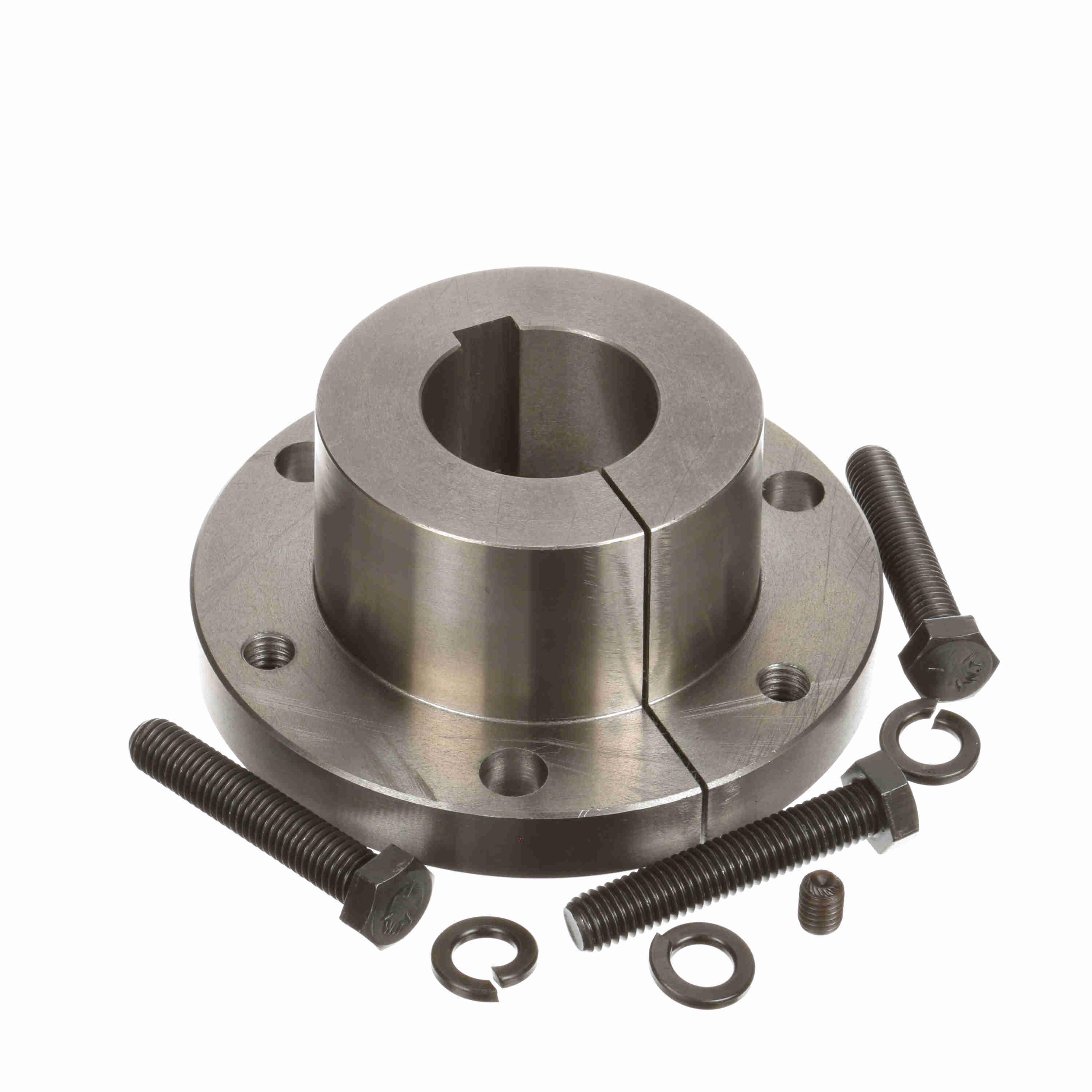

| O1 | 3208519 | 50 mm | 14 mm x 4.5 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €262.69 | |

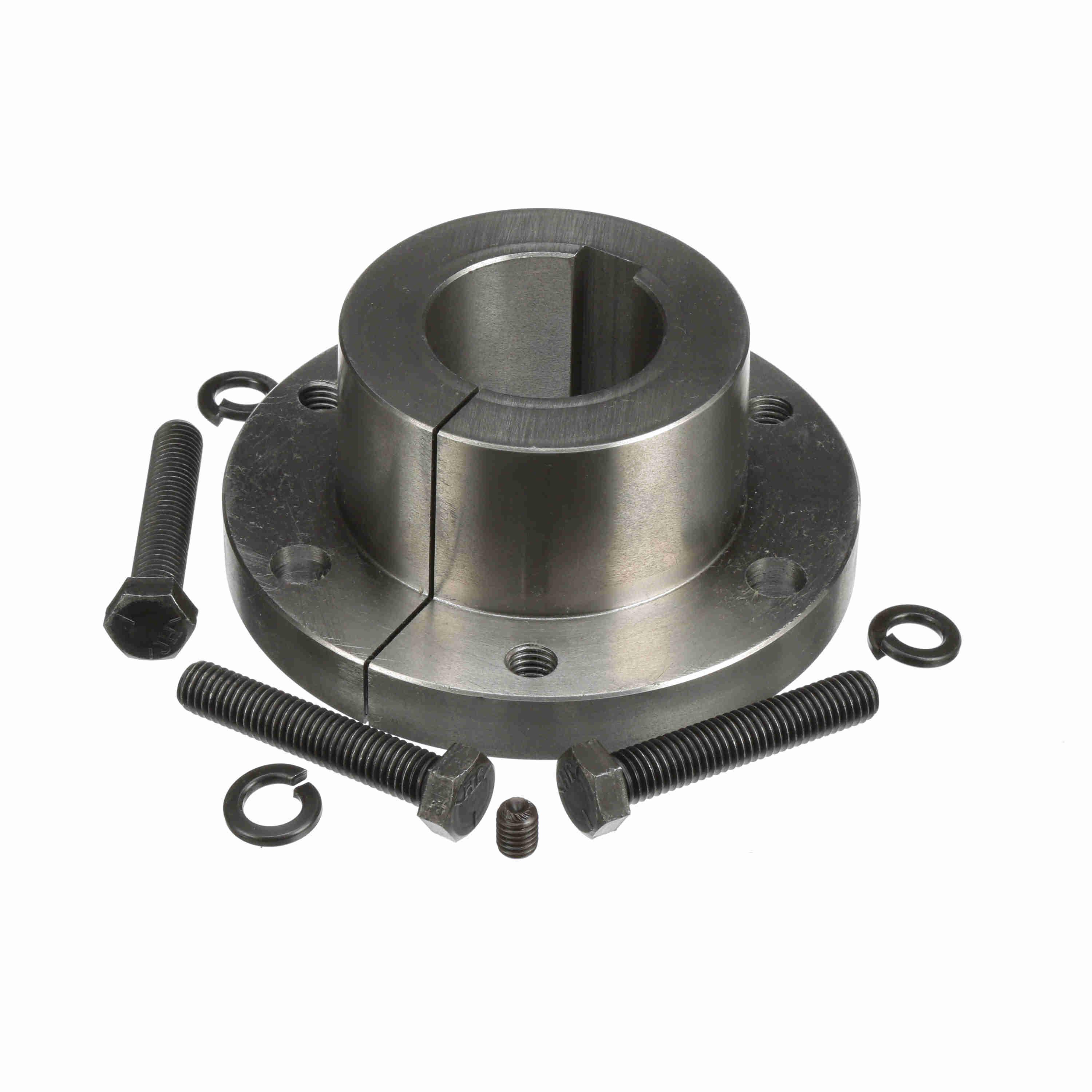

| P1 | 3208527 | 55 mm | 16 mm x 5 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €262.69 | |

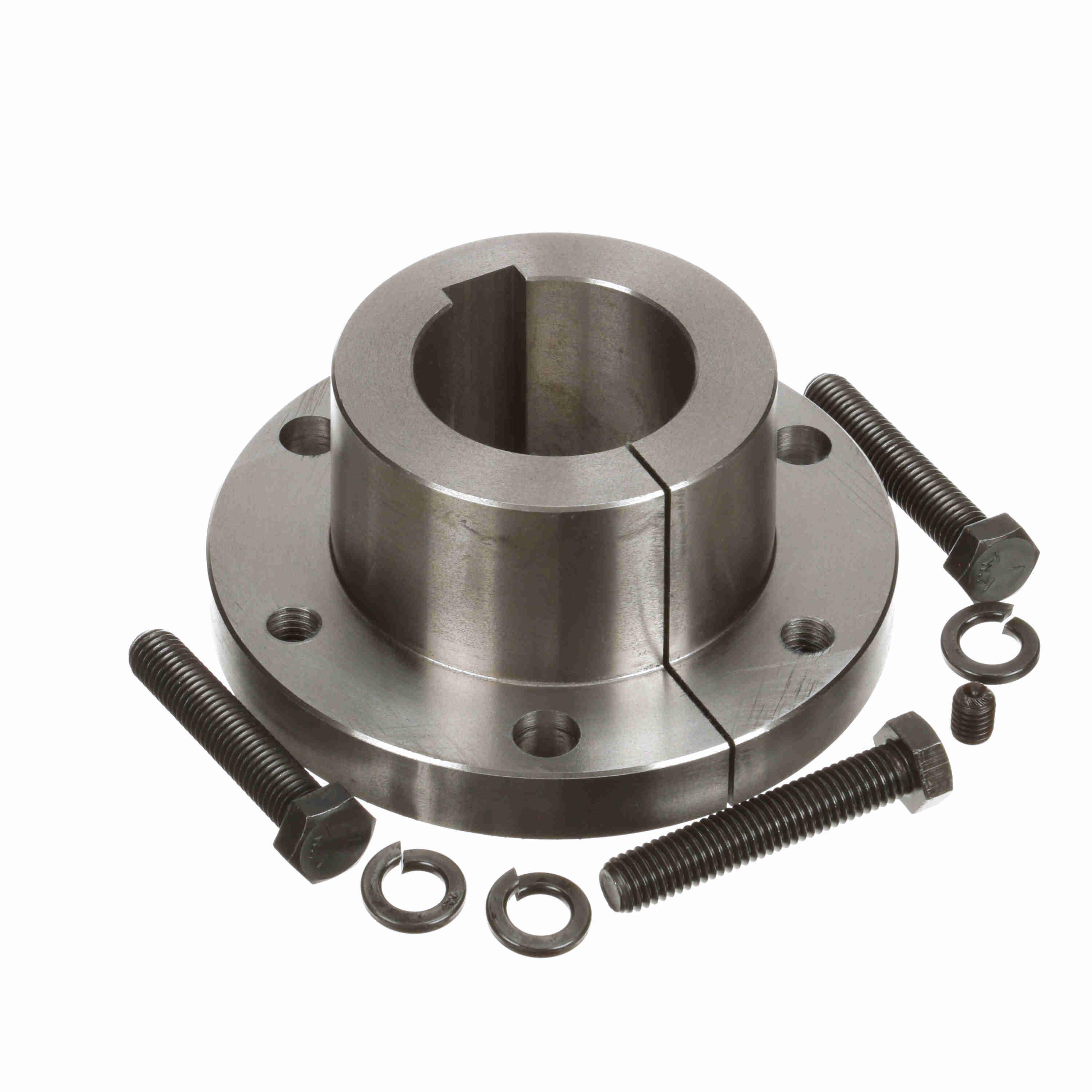

| Q1 | 3208535 | 60 mm | 18 mm x 5.5 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €439.23 | |

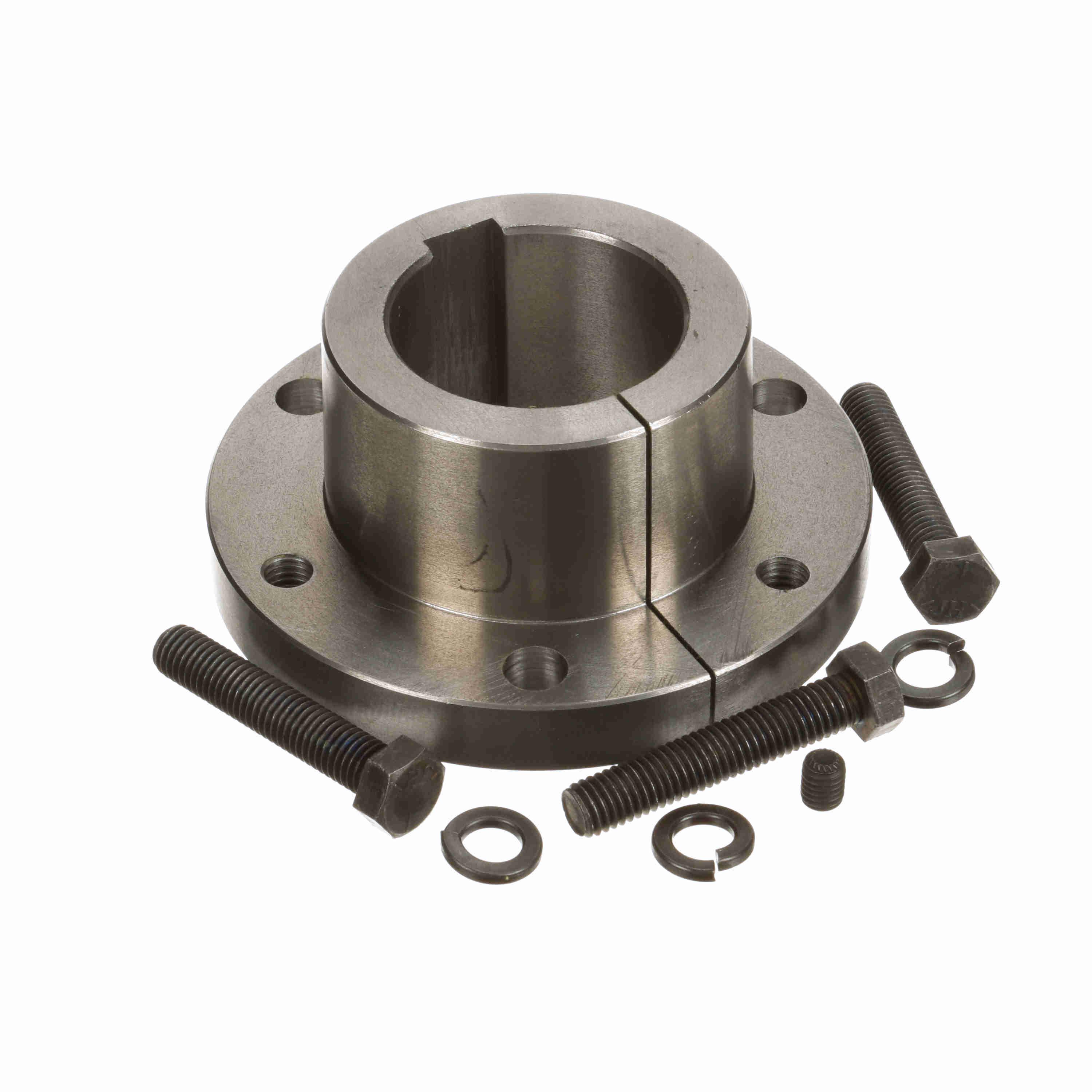

| R1 | 3208543 | 65 mm | 18 mm x 5.5 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €435.84 | |

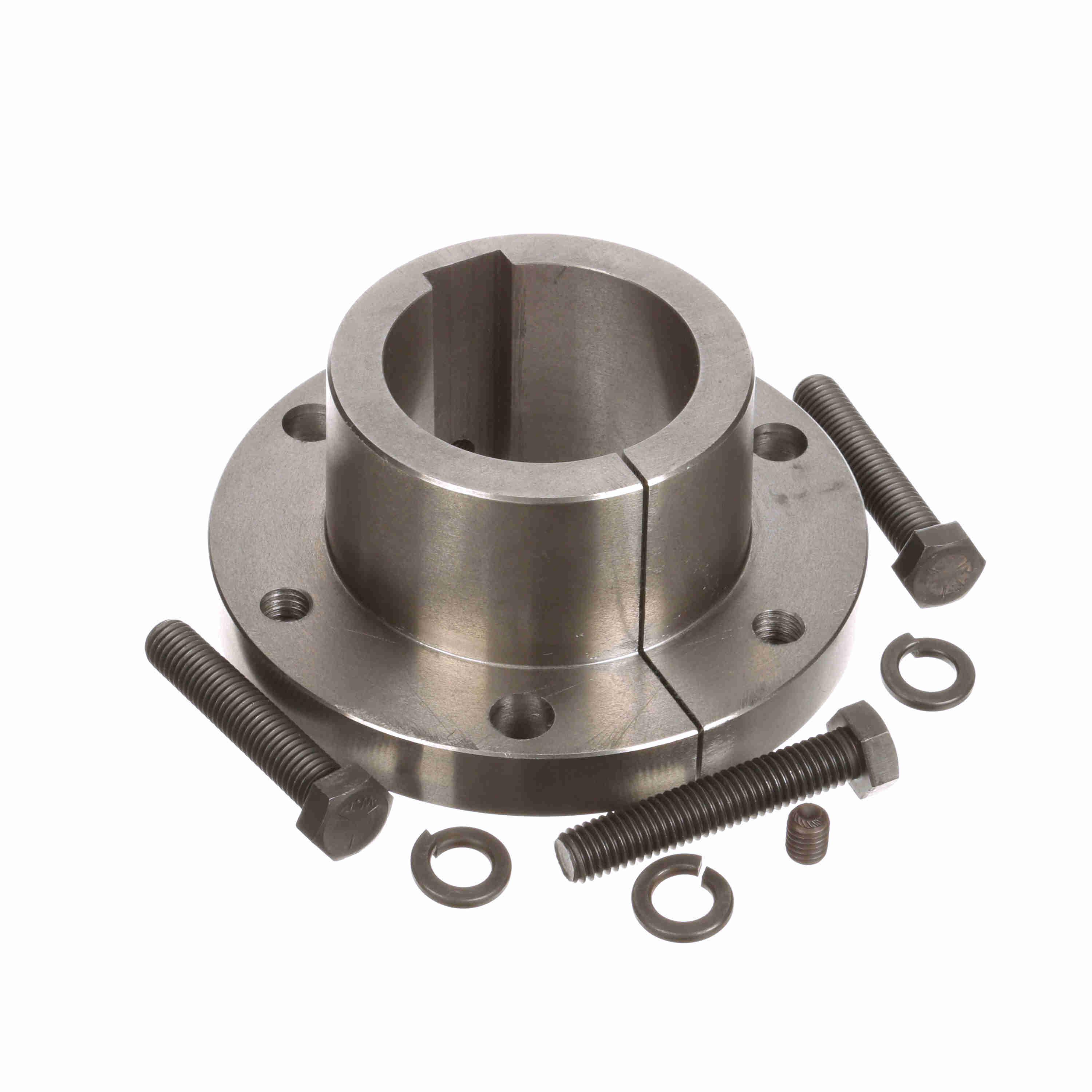

| S1 | 3208550 | 70 mm | 20 mm x 6 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €255.47 | |

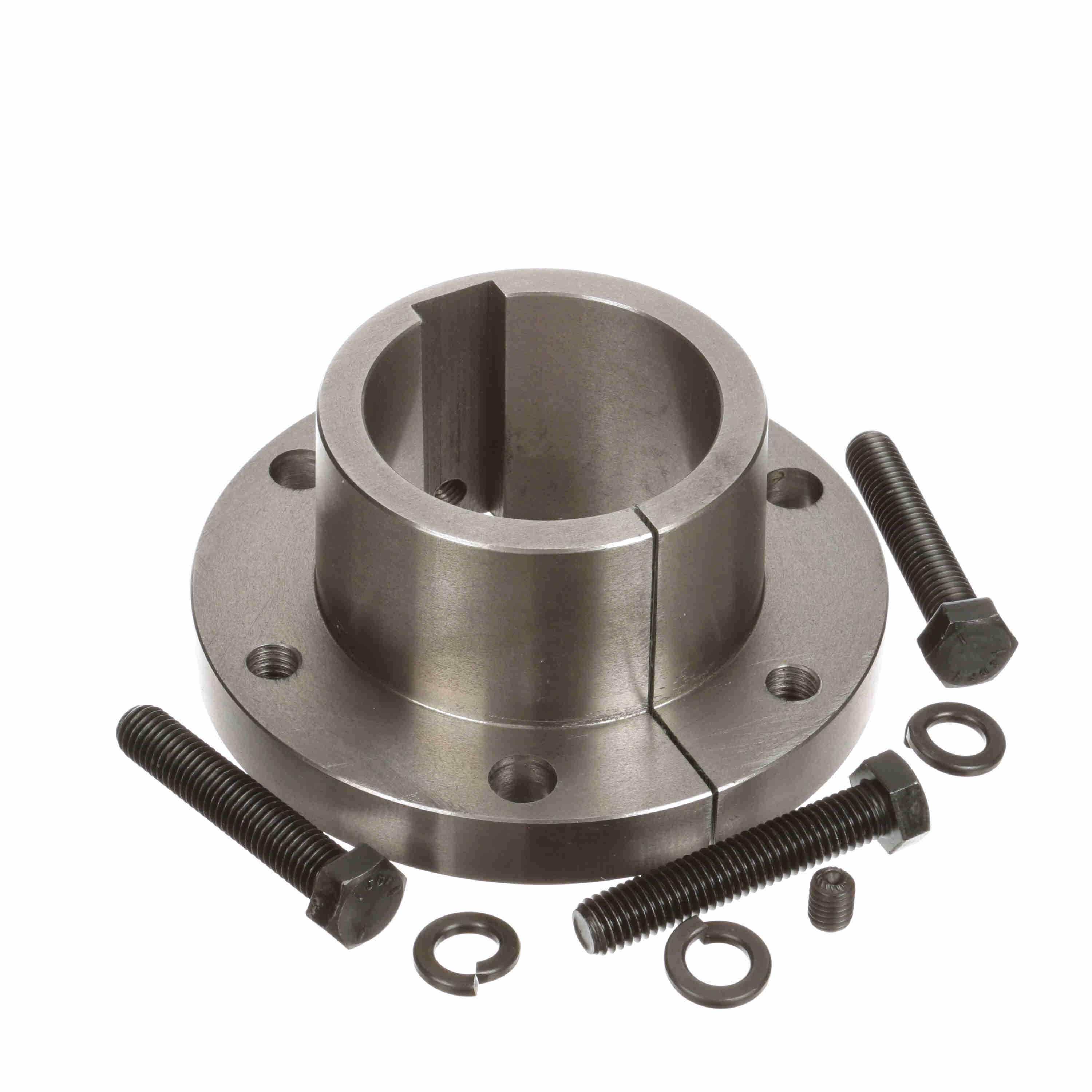

| T1 | 3208568 | 75 mm | 20 mm x 6 mm | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €262.69 |
