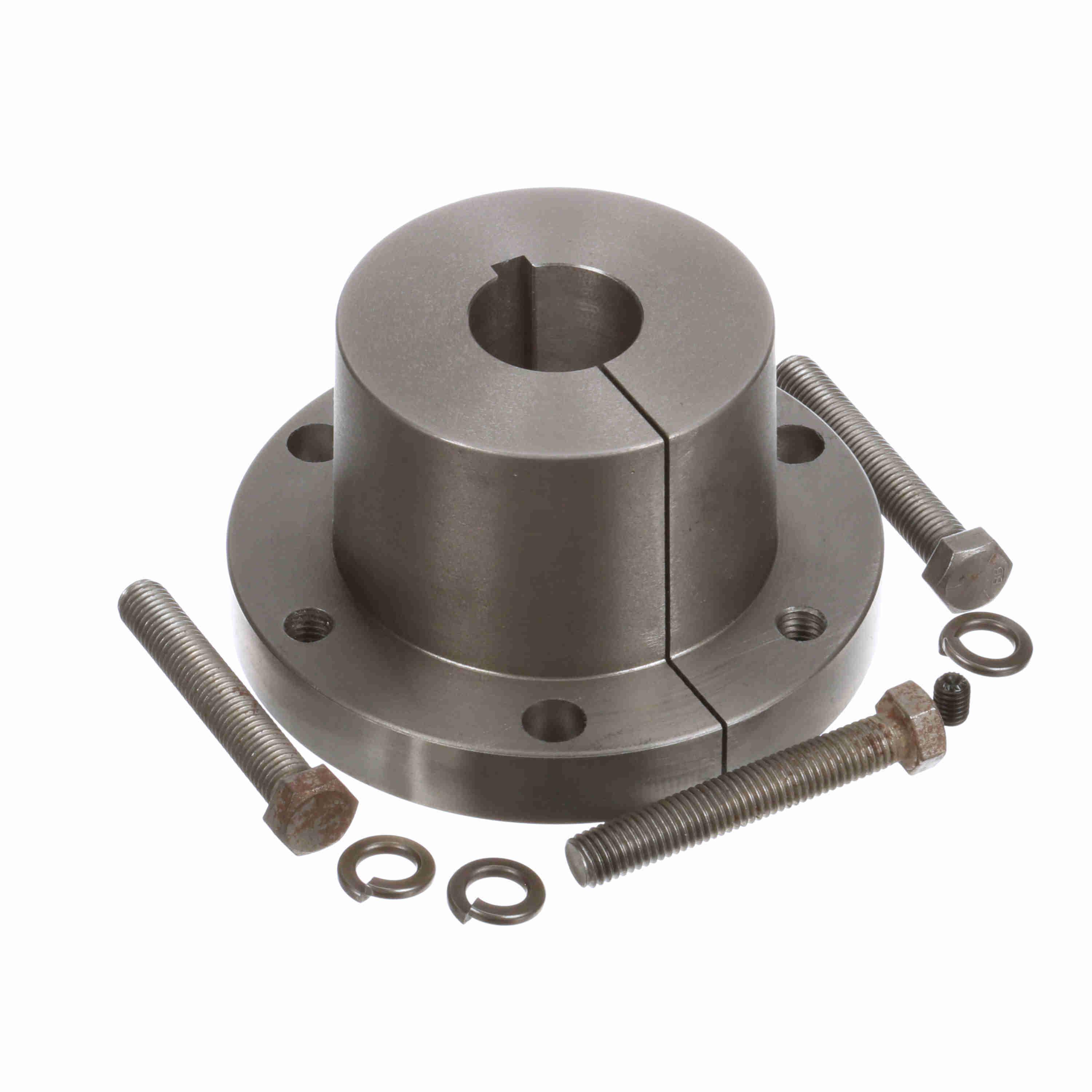

BROWNING 1073758 F 1 11/16 Q-D Bushing, Bore Type
Get it by Tuesday, Dec 23
€605.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 5 5/8" |
| Bore Size | 1 11/16" |
| Bushing Series | F Series |
| Bushing Style | QD |
| Flange Dia. | 6 5/8" |
| Flange Thickness | 15/16" |
| For Use With | Gearbelt Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 3/4" x 3/16" |
| Length Thru Bore | 3 5/8" |
| Material | Cast Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 4.438" |
| Overall Length | 3 17/25" |
| Rated Torque | 30000 lbs.-in. |
| Screw Size | 9/16"-12 |
| Screw Thread Length | 3 5/8" |
| System Of Measurement | Imperial |
| Type | Type F |
| Weight | 17.84 lbs. |
Shipping Info:
| Ship weight (kg) | 8.03 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 18.26 |
| Ship width (cm) | 18.26 |
Product Variants
| Product | Model | Keyway Size | Bore Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Rated Torque | Type | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1073741 | 3/4" x 3/16" | 1 5/8" | 5 5/8" | 3 17/25" | 15/16" | 30000 lbs.-in. | Type F | 4.438" | €576.83 | |
 |
1073766 | 3/4" x 3/16" | 1 3/4" | 5 5/8" | 3 17/25" | 15/16" | 30000 lbs.-in. | Type F | 4.438" | €641.98 | |
 |
1073782 | 1/2" x 1/4" | 1 7/8" | 5 5/8" | 3 17/25" | 15/16" | 30000 lbs.-in. | Type F | 4.438" | €308.09 | RFQ
|
 |
1073790 | 1/2" x 1/4" | 1 15/16" | 5 5/8" | 3 17/25" | 15/16" | 30000 lbs.-in. | Type F | 4.438" | €308.09 | RFQ
|
 |
1073808 | 1/2" x 1/4" | 2" | 5 5/8" | 3 17/25" | 15/16" | 30000 lbs.-in. | Type F | 4.438" | €299.58 | |
 |
1073832 | 1/2" x 1/4" | 2 3/16" | 5 5/8" | 3 17/25" | 15/16" | 30000 lbs.-in. | Type F | 4.438" | €740.29 | |
 |
1073840 | 1/2" x 1/4" | 2 1/4" | 5 5/8" | 3 17/25" | 15/16" | 30000 lbs.-in. | Type F | - | €308.09 | RFQ
|
