BROWNING P1 Type, Split Taper Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1| Style | Model | Overall Length | Flange Thickness | Bolt Circle Dia. | Bore Size | Keyway Size | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

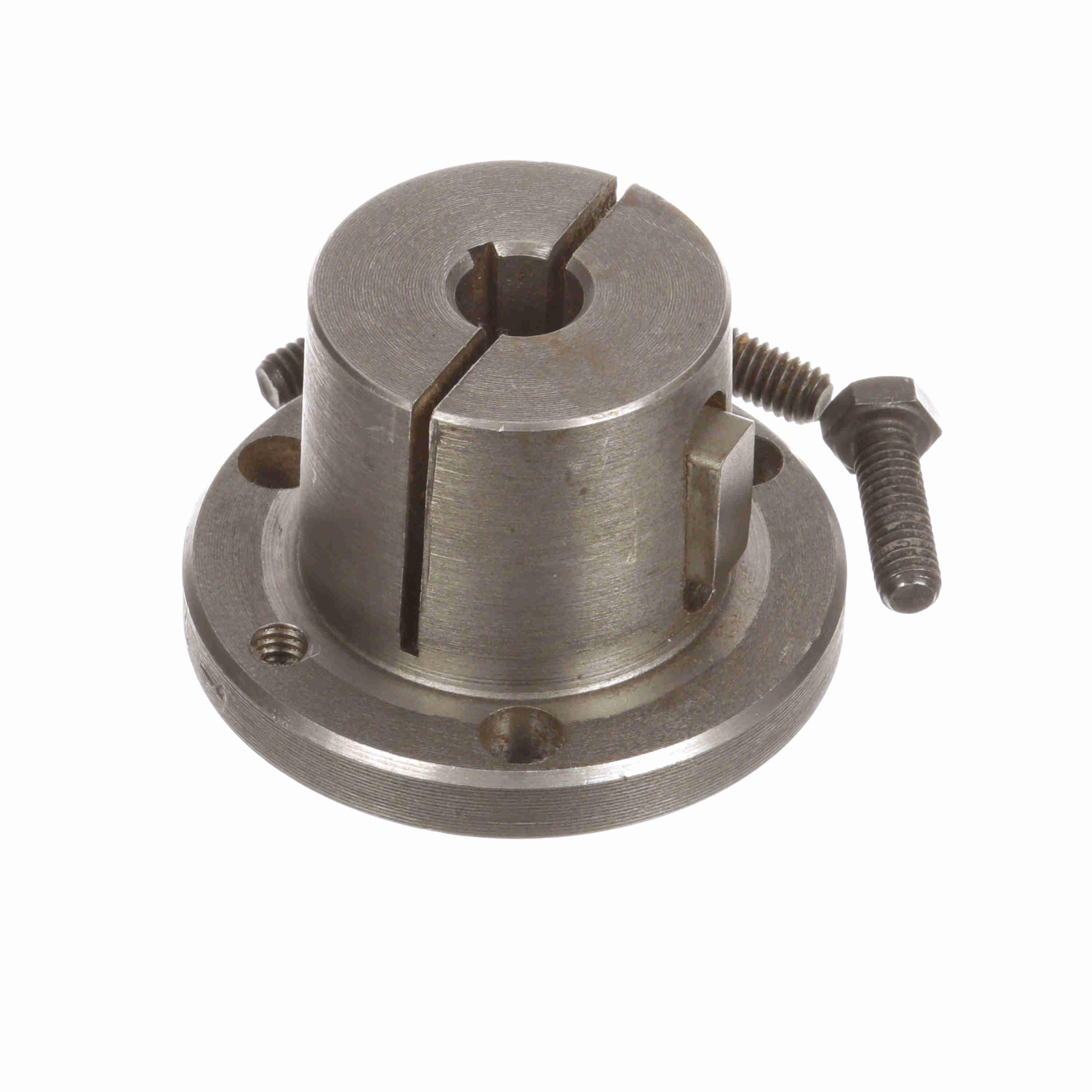

| A | 1069301 | 1 15/16" | 13/32" | 2 7/16" | 9/16" | 1/8" x 1/16" | 1.938" | - | €51.72 | |

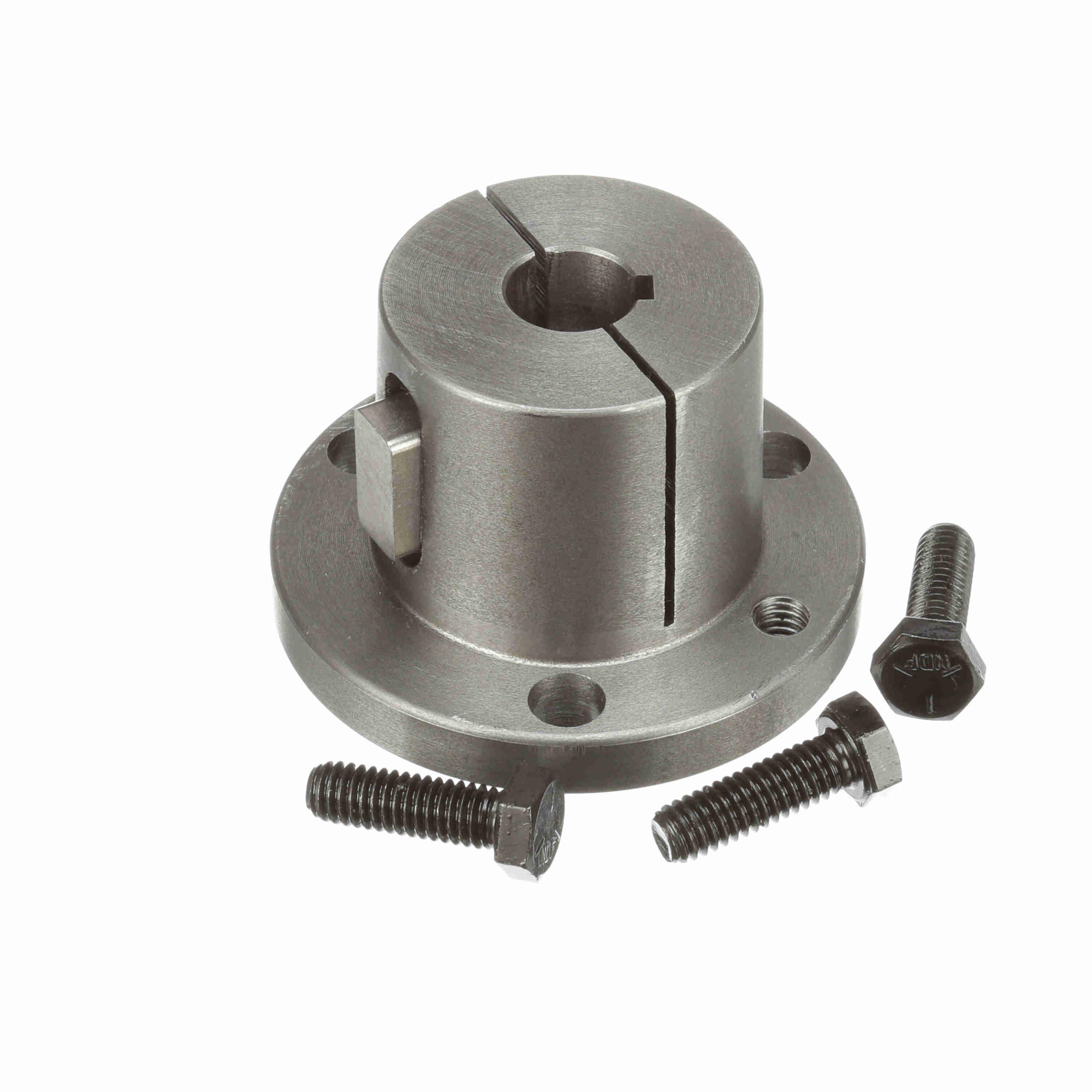

| B | 1069319 | 1 15/16" | 13/32" | 2 7/16" | 5/8" | 3/16" x 3/32" | 1.938" | - | €56.53 | |
| C | 1726074 | 1 15/16" | 13/32" | 2 7/16" | 1 3/8" | 5/16" x 5/32" | 1.938" | - | €72.60 | |

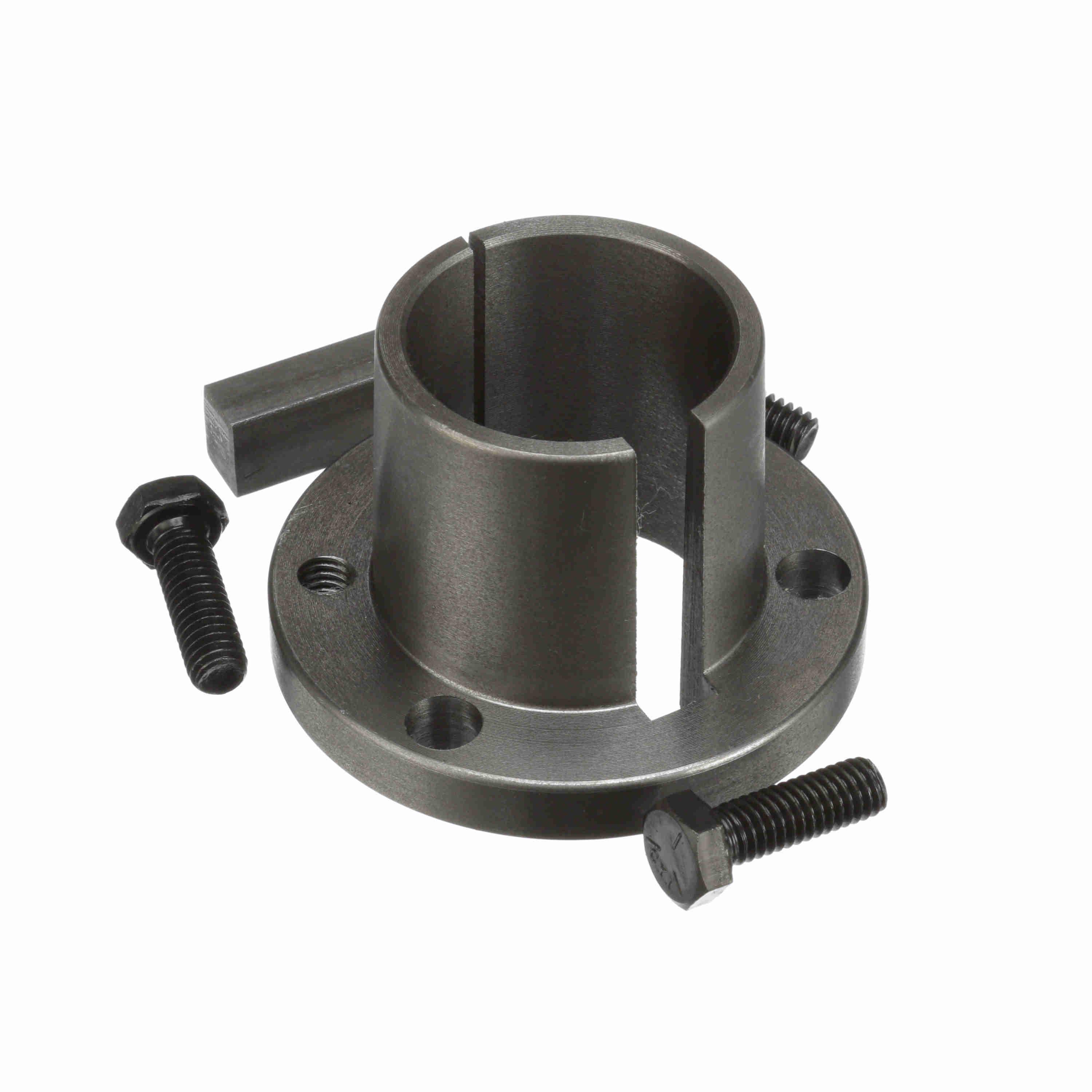

| D | 1069509 | 1 15/16" | 13/32" | 2 7/16" | 1 9/16" | 3/4" x 3/16" | 1.938" | - | €57.34 | |
| E | 1069434 | 1 15/16" | 13/32" | 2 7/16" | 1 3/16" | 1/4" x 1/8" | 1.938" | - | €44.35 | |

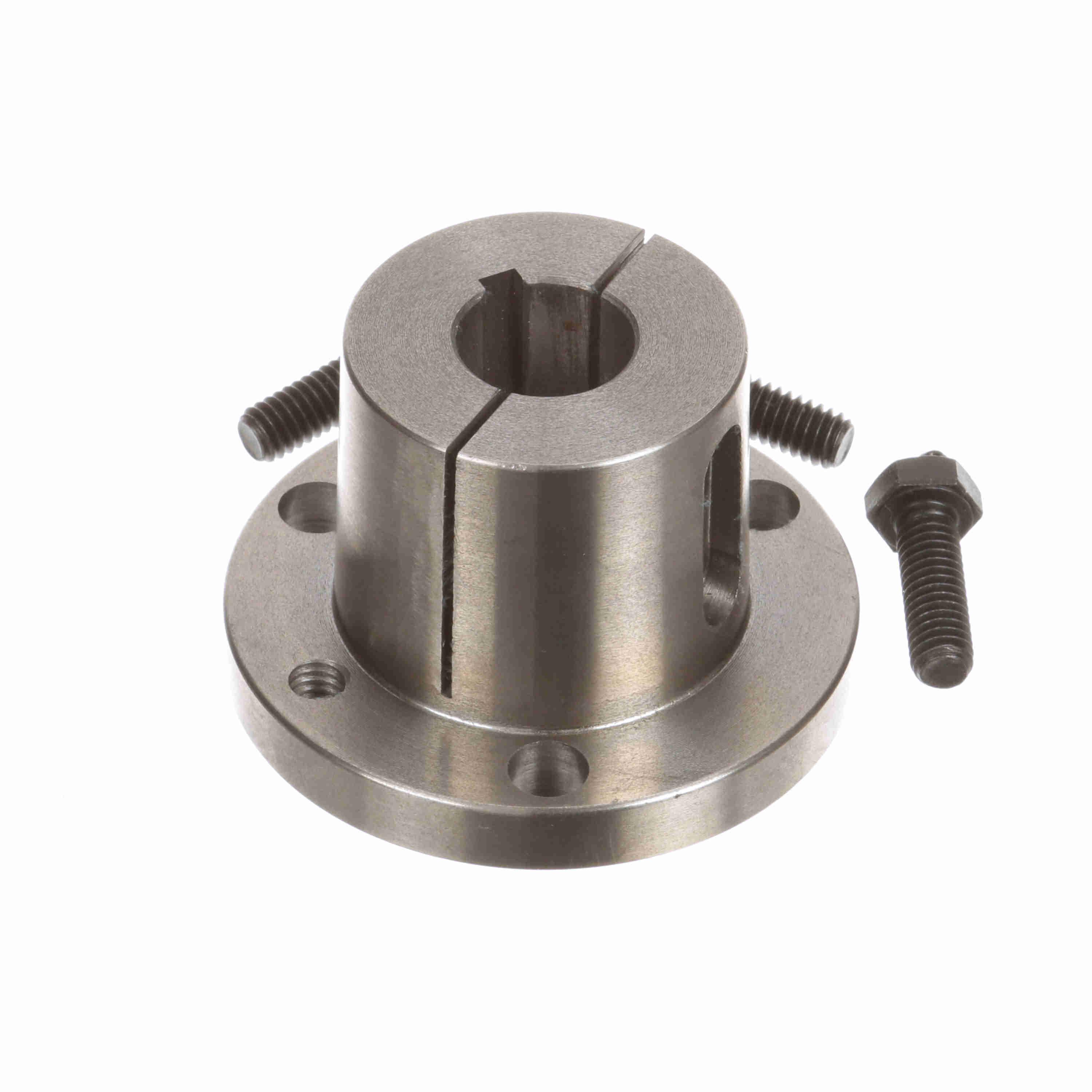

| F | 1069368 | 1 15/16" | 13/32" | 2 7/16" | 13/16" | 3/16" x 3/32" | 1.938" | - | €51.72 | |

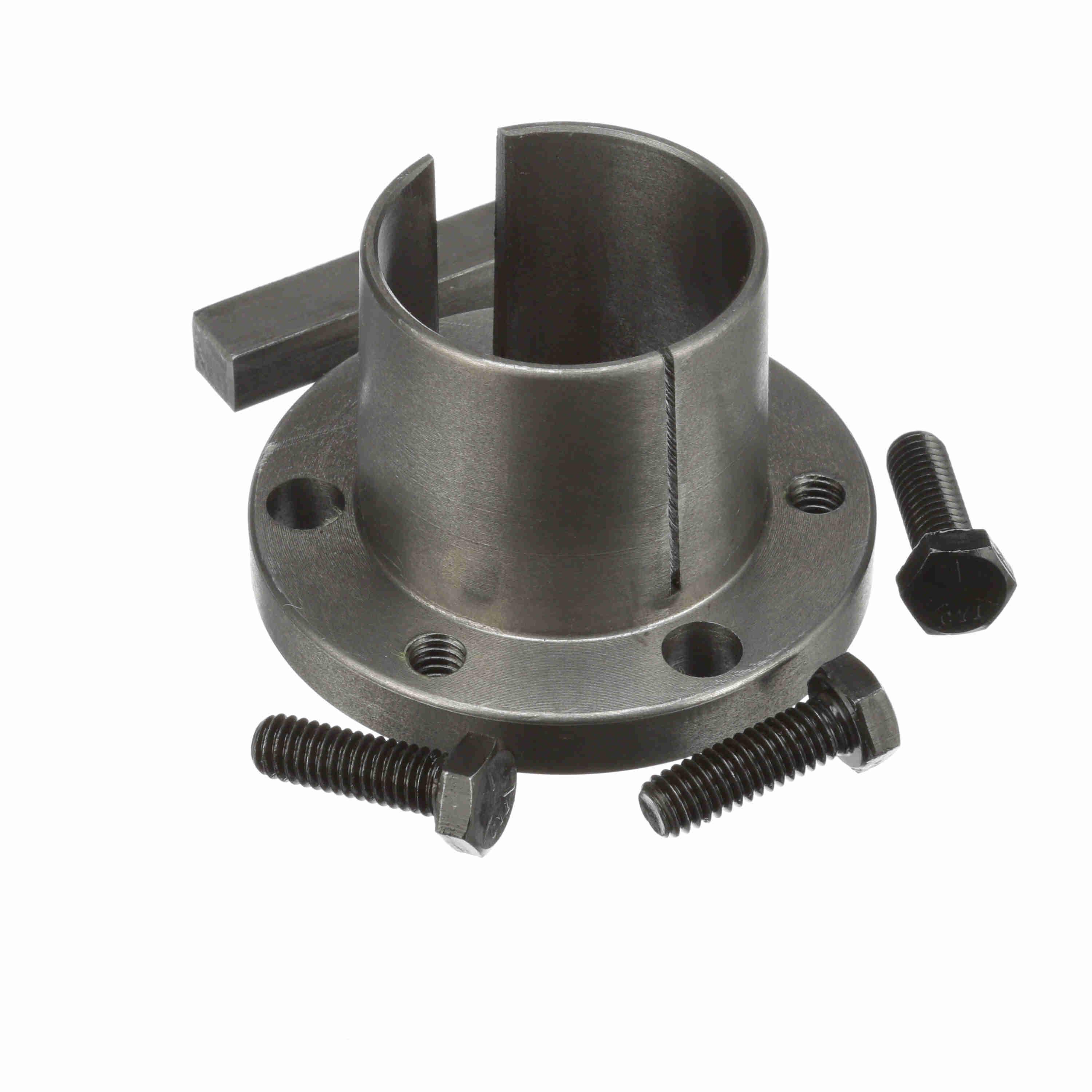

| G | 1069525 | 1 15/16" | 13/32" | - | 1 11/16" | 3/4" x 3/16" | 1.938" | - | €44.35 | |

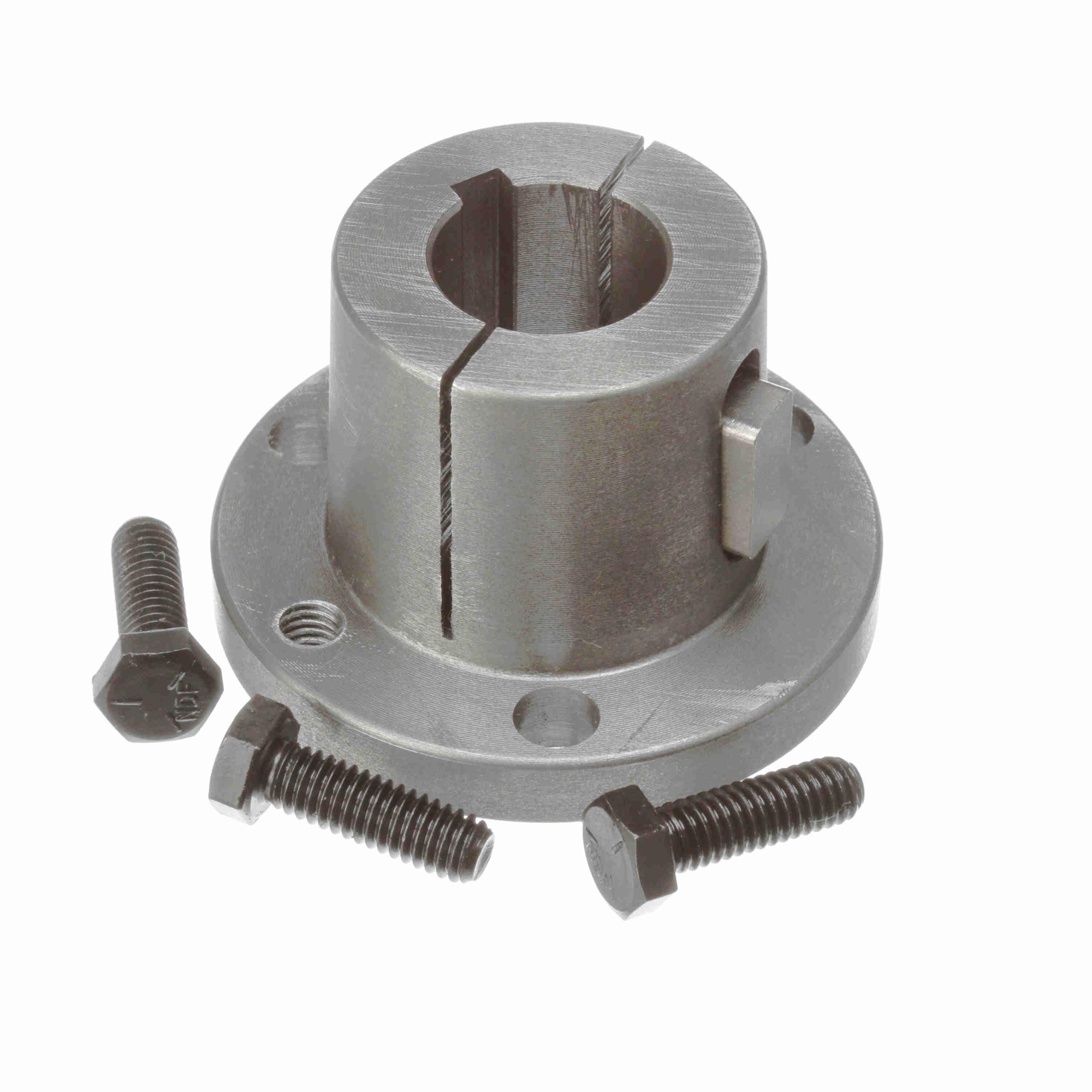

| H | 1069384 | 1 15/16" | 13/32" | 2 7/16" | 15/16" | 1/4" x 1/8" | 1.938" | - | €72.89 | |
| I | 1069517 | 1 15/16" | 13/32" | 2 7/16" | 1 5/8" | 3/4" x 3/16" | 1.938" | - | €44.35 | |

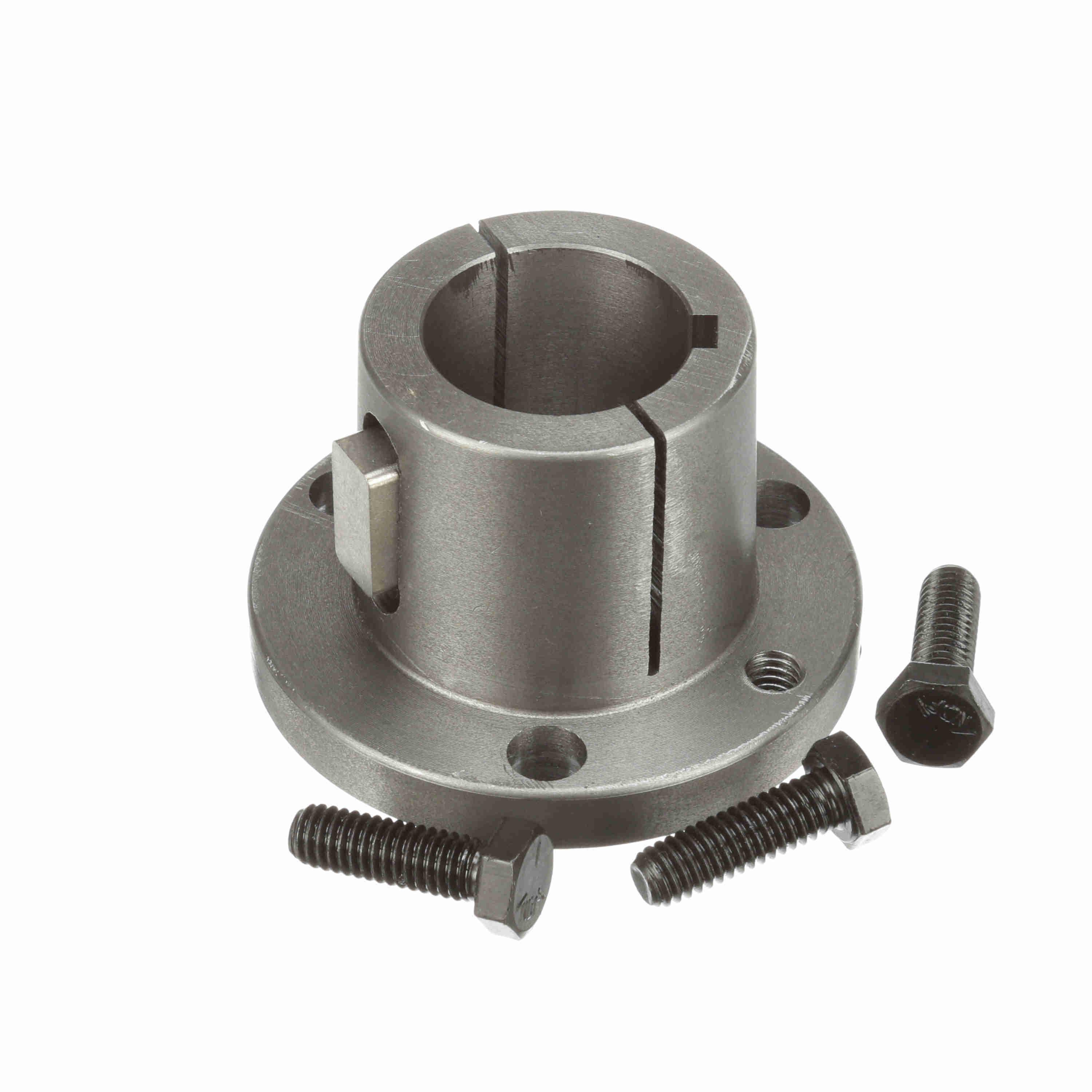

| J | 1069442 | 1 15/16" | 13/32" | 2 7/16" | 1 1/4" | 1/4" x 1/8" | 1.938" | - | €44.35 | |

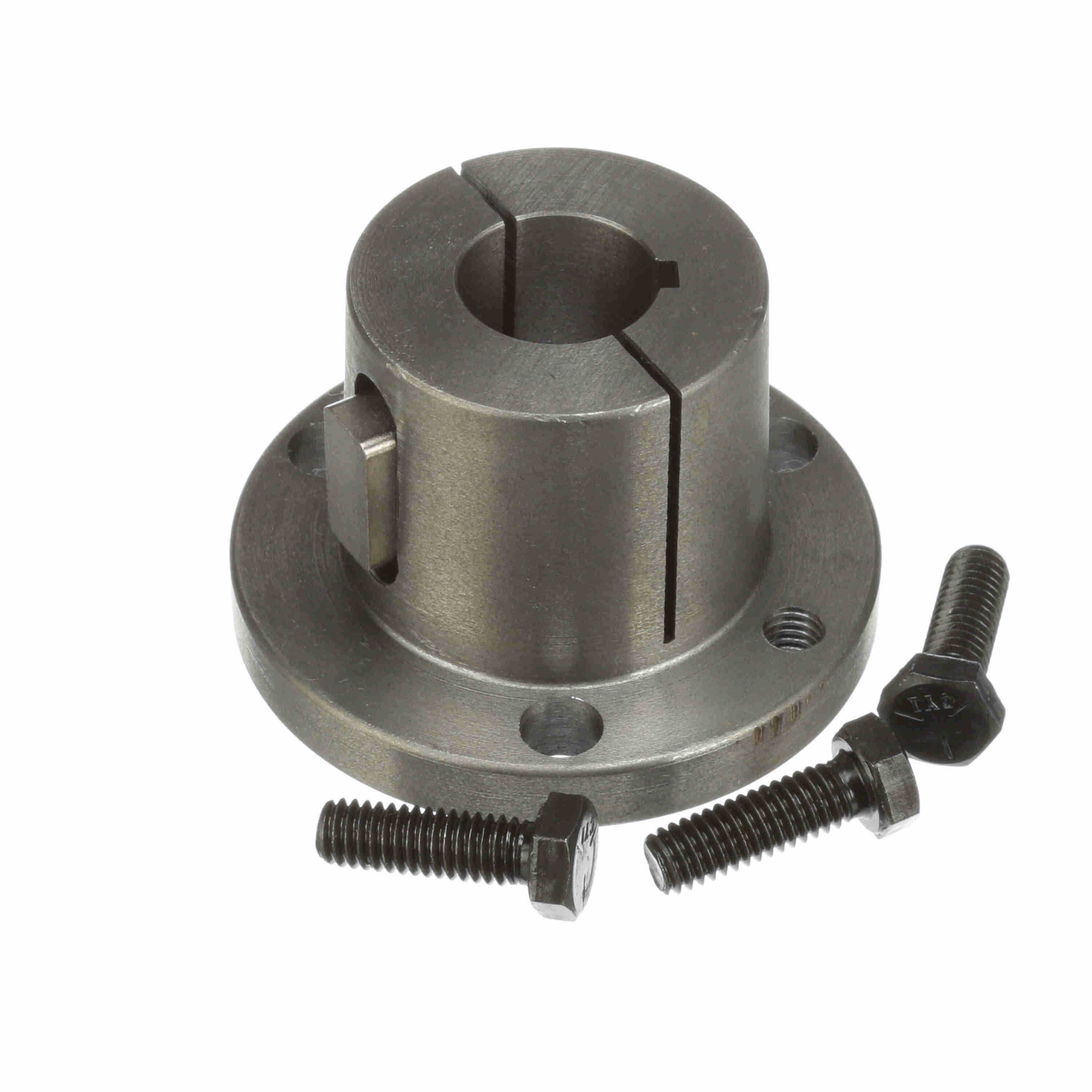

| K | 1069376 | 1 15/16" | 13/32" | 2 7/16" | 7/8" | 3/16" x 3/32" | 1.938" | - | €44.35 | |

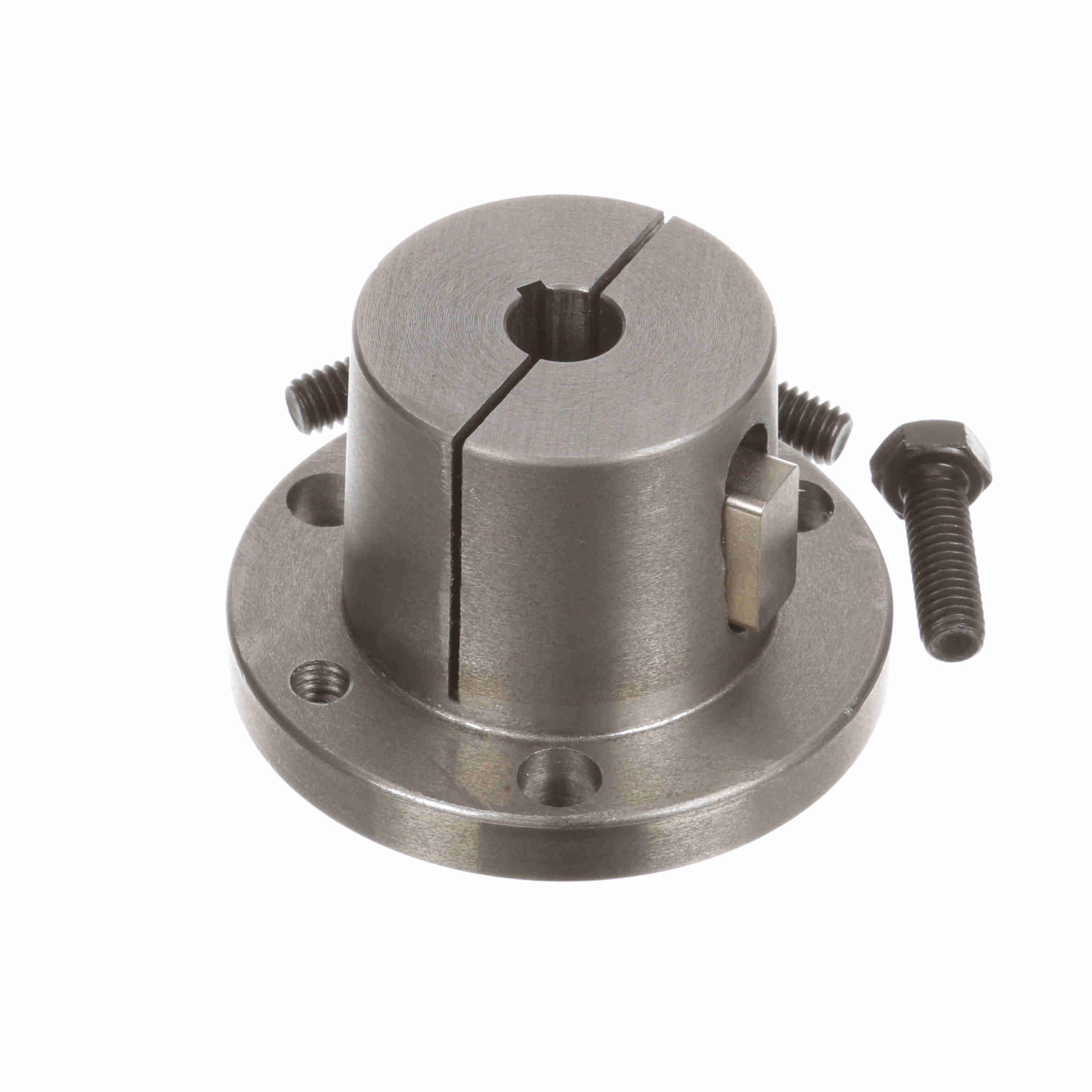

| L | 1069293 | 1 15/16" | 13/32" | 2 7/16" | 1/2" | 1/8" x 1/16" | 1.938" | - | €82.00 | |

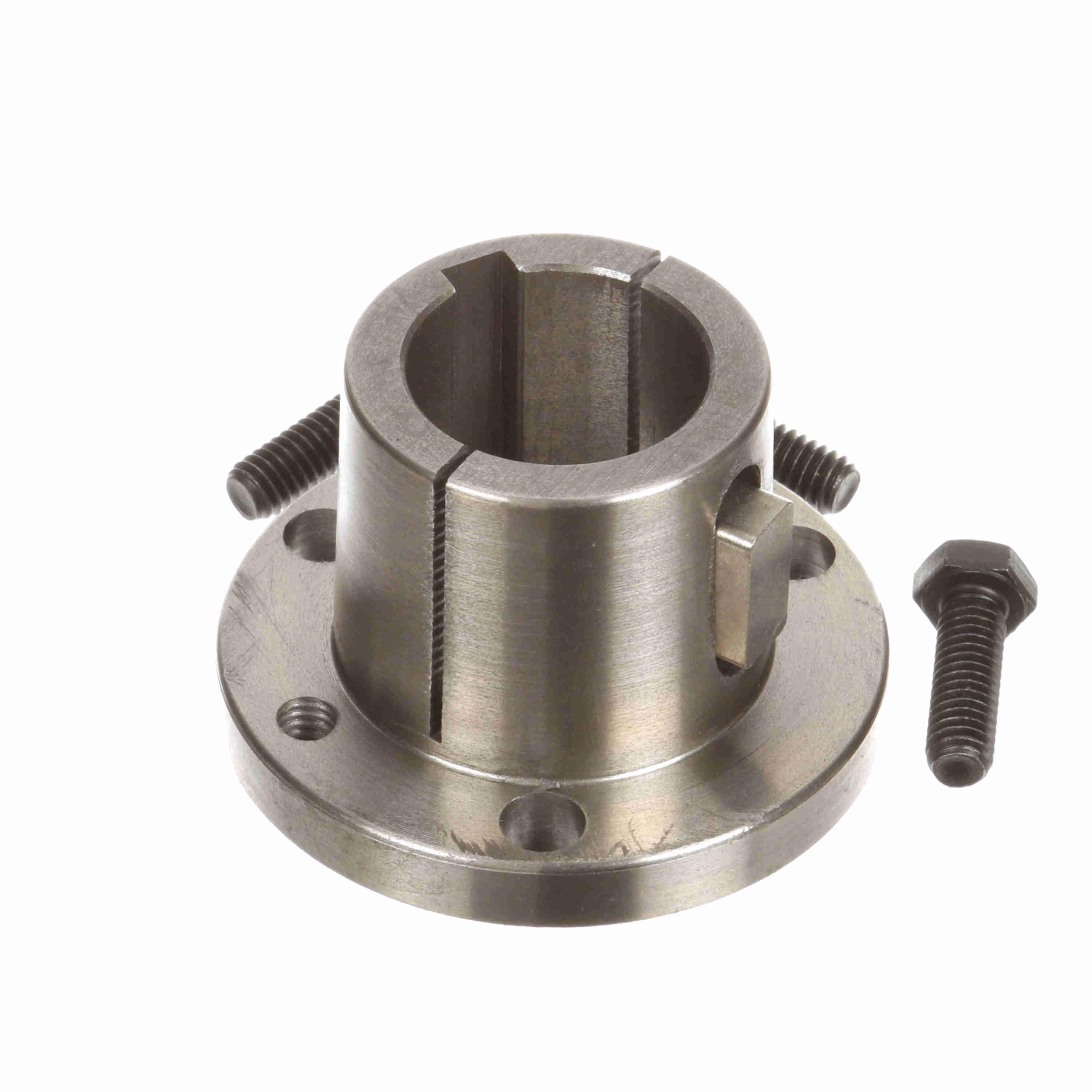

| M | 1069459 | 1 15/16" | 13/32" | 2 7/16" | 1 5/16" | 5/16" x 5/32" | - | - | €38.88 | RFQ
|

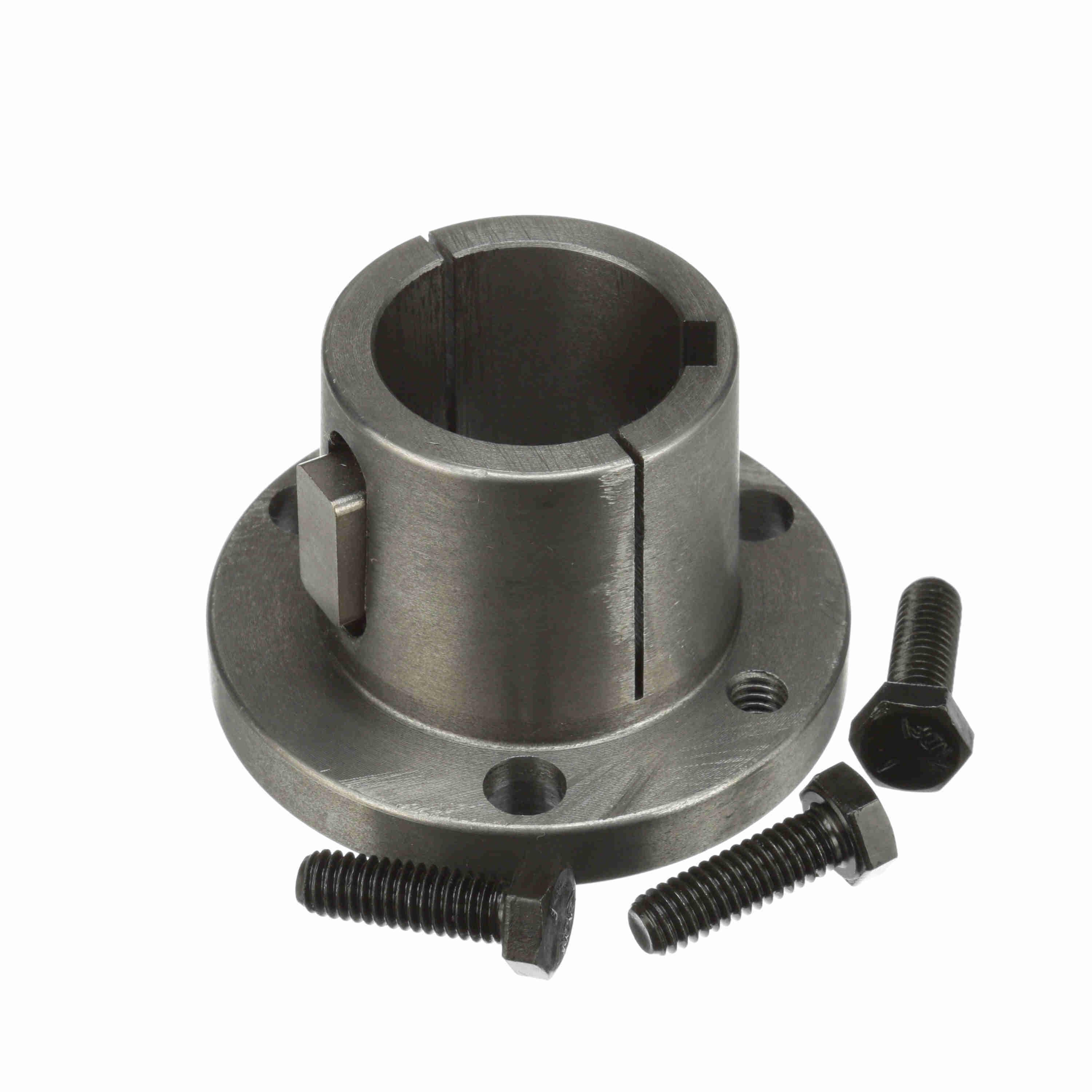

| N | 1069475 | 1 15/16" | 13/32" | 2 7/16" | 1 3/8" | 5/16" x 5/32" | 1.938" | - | €44.35 | |
| O | 1069400 | 1 15/16" | 13/32" | 2 7/16" | 1" | 1/4" x 1/8" | 1.938" | - | €44.35 | |

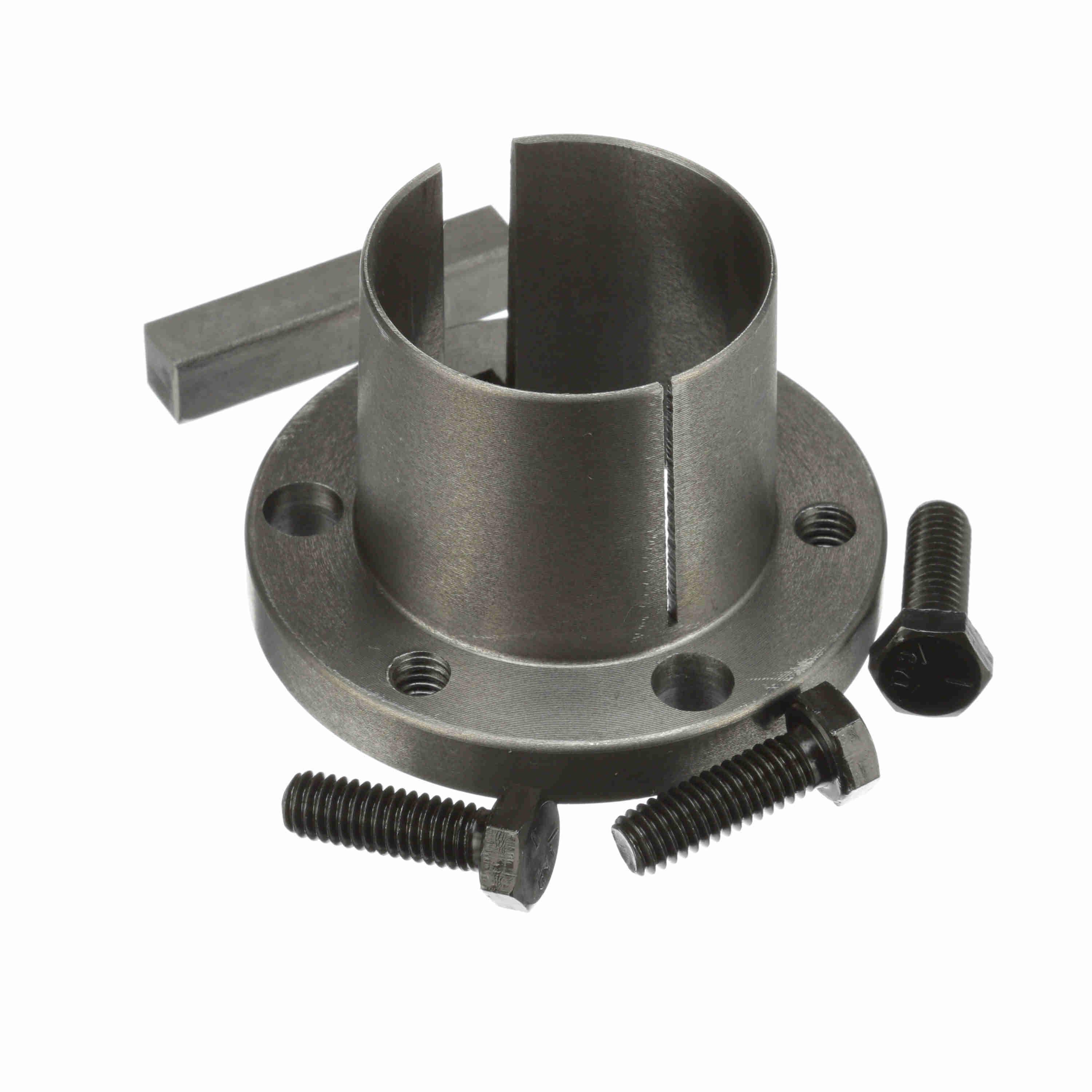

| P | 1069533 | 1 15/16" | 13/32" | 2 7/16" | 1 3/4" | 3/4" x 3/16" | 1.938" | - | €47.74 | |

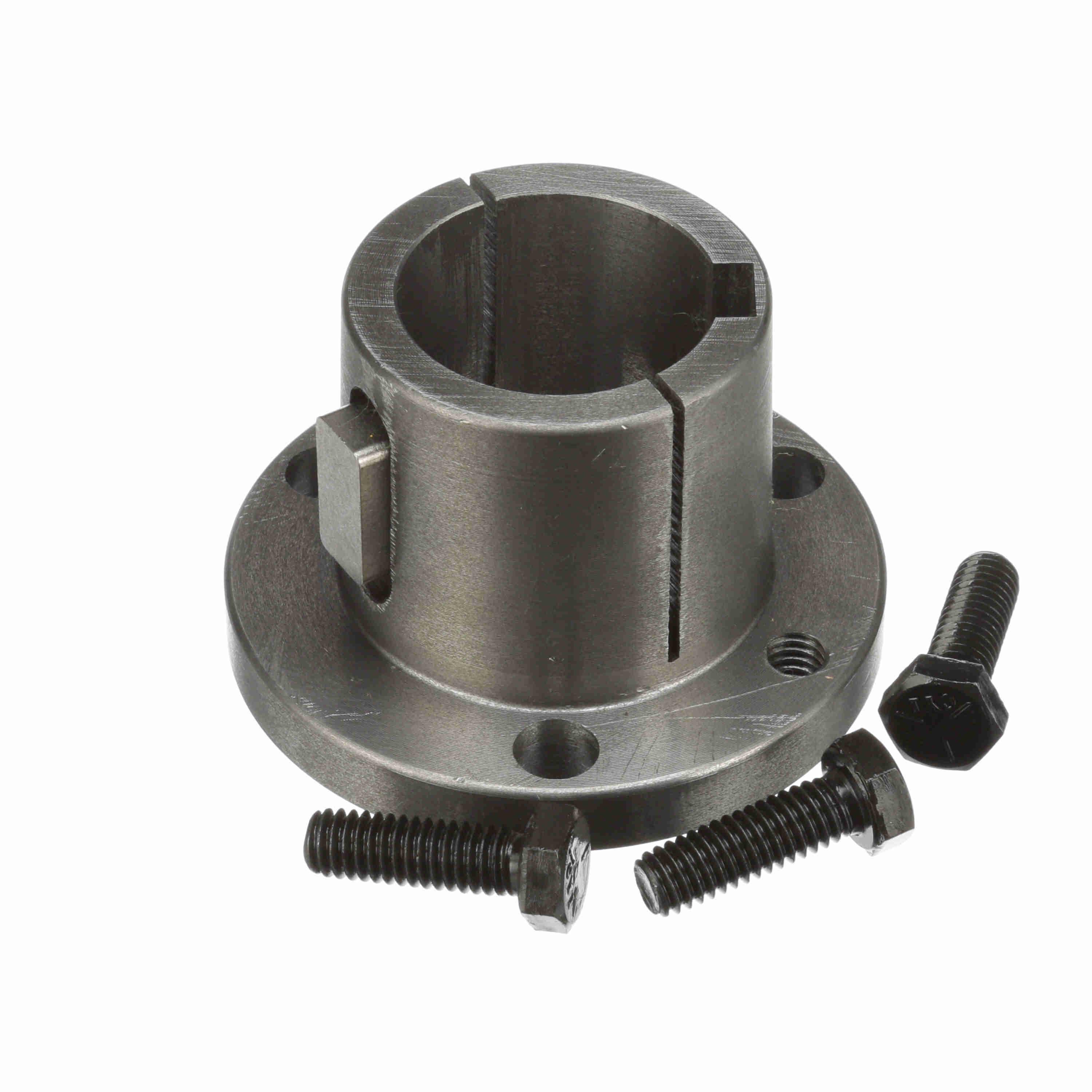

| Q | 1069467 | 1 15/16" | 13/32" | 2 7/16" | 1 3/8" | 3/4" x 3/16" | - | - | €65.93 | |

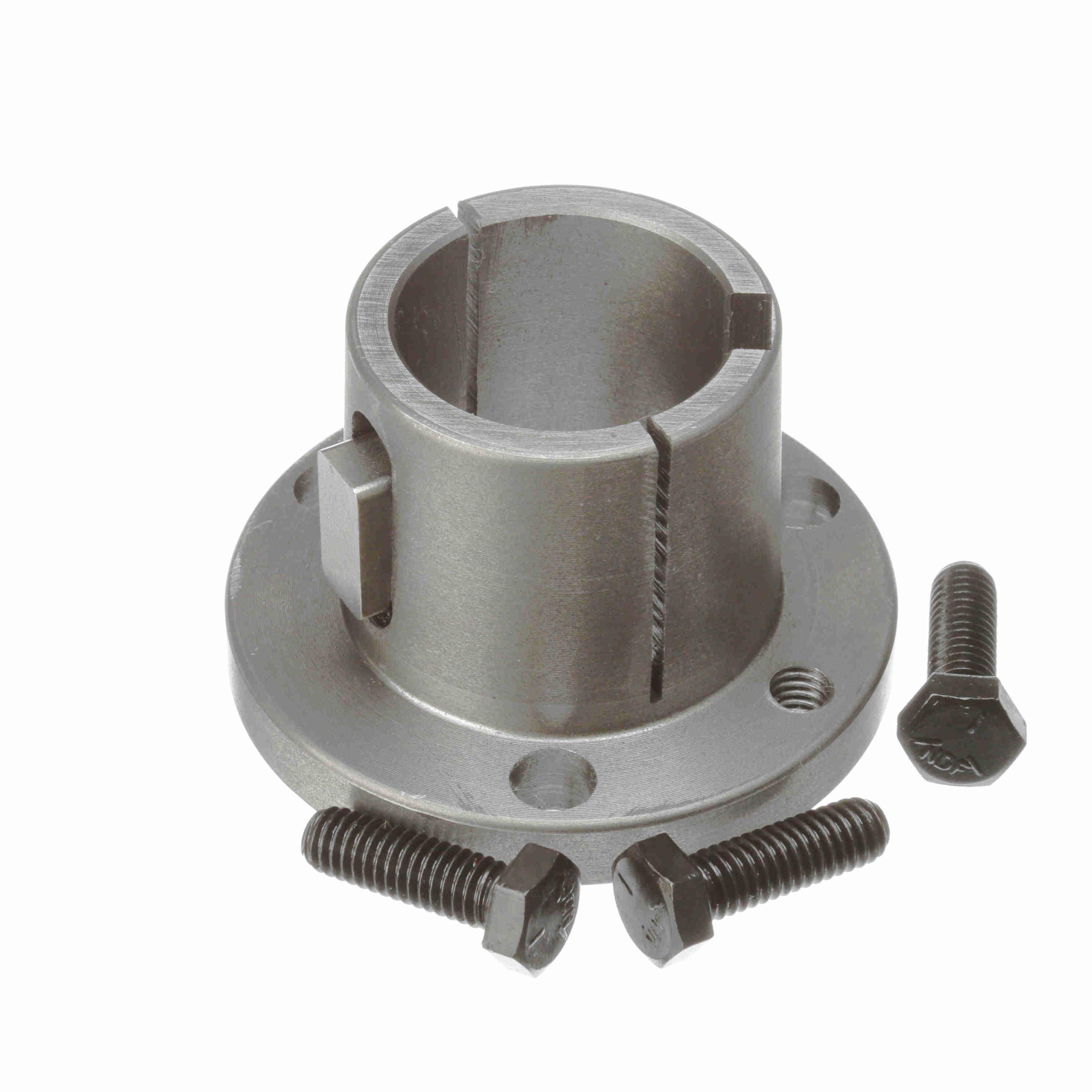

| R | 1069483 | 1 15/16" | 13/32" | 2 7/16" | 1 7/16" | 3/4" x 3/16" | 1.938" | - | €44.35 | |
| H | 1069418 | 1 15/16" | 13/32" | 2 7/16" | 1 1/16" | 1/4" x 1/8" | 1.938" | - | €72.89 | |

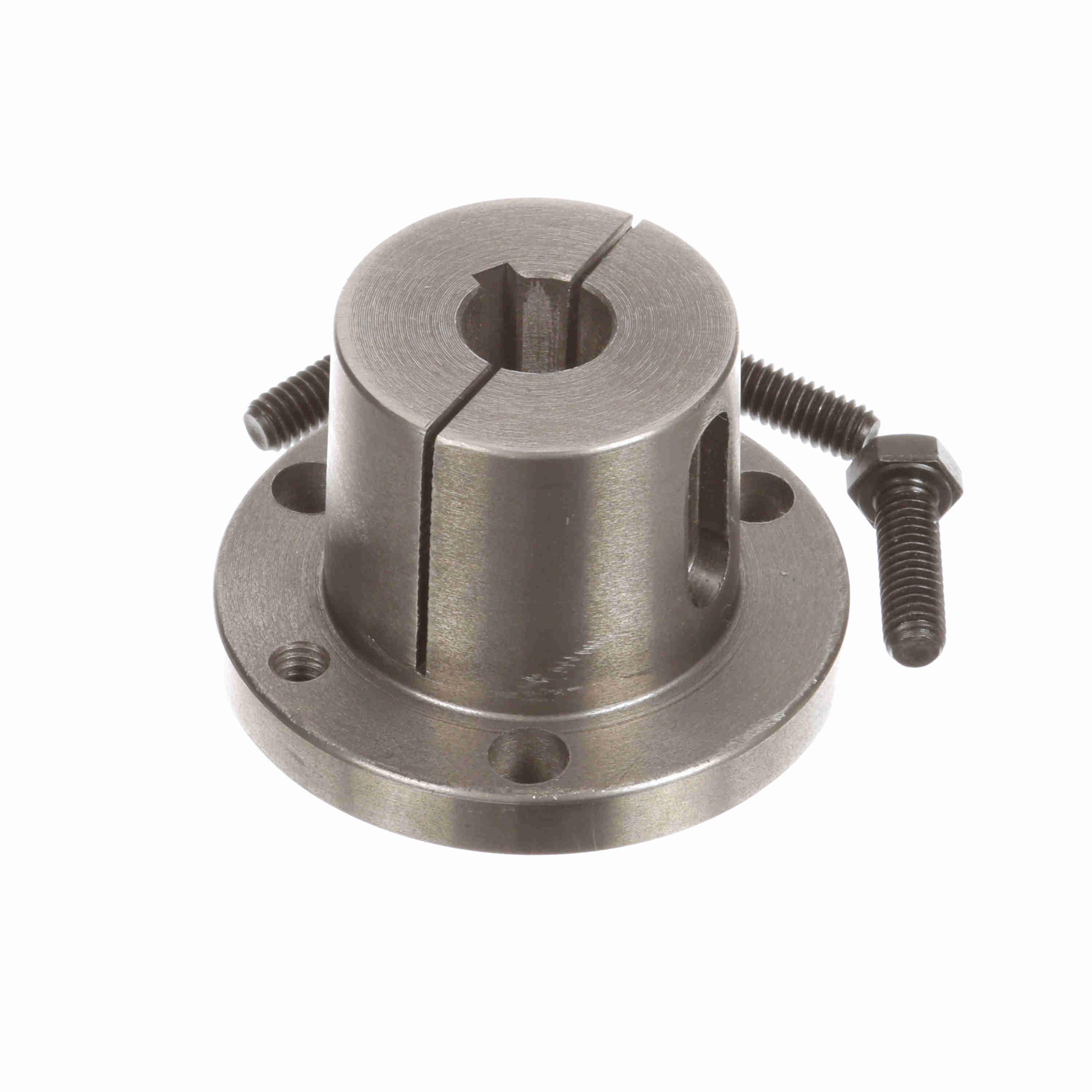

| S | 1069335 | 1 15/16" | 13/32" | 2 7/16" | 11/16" | 3/16" x 3/32" | 1.938" | - | €84.05 | |

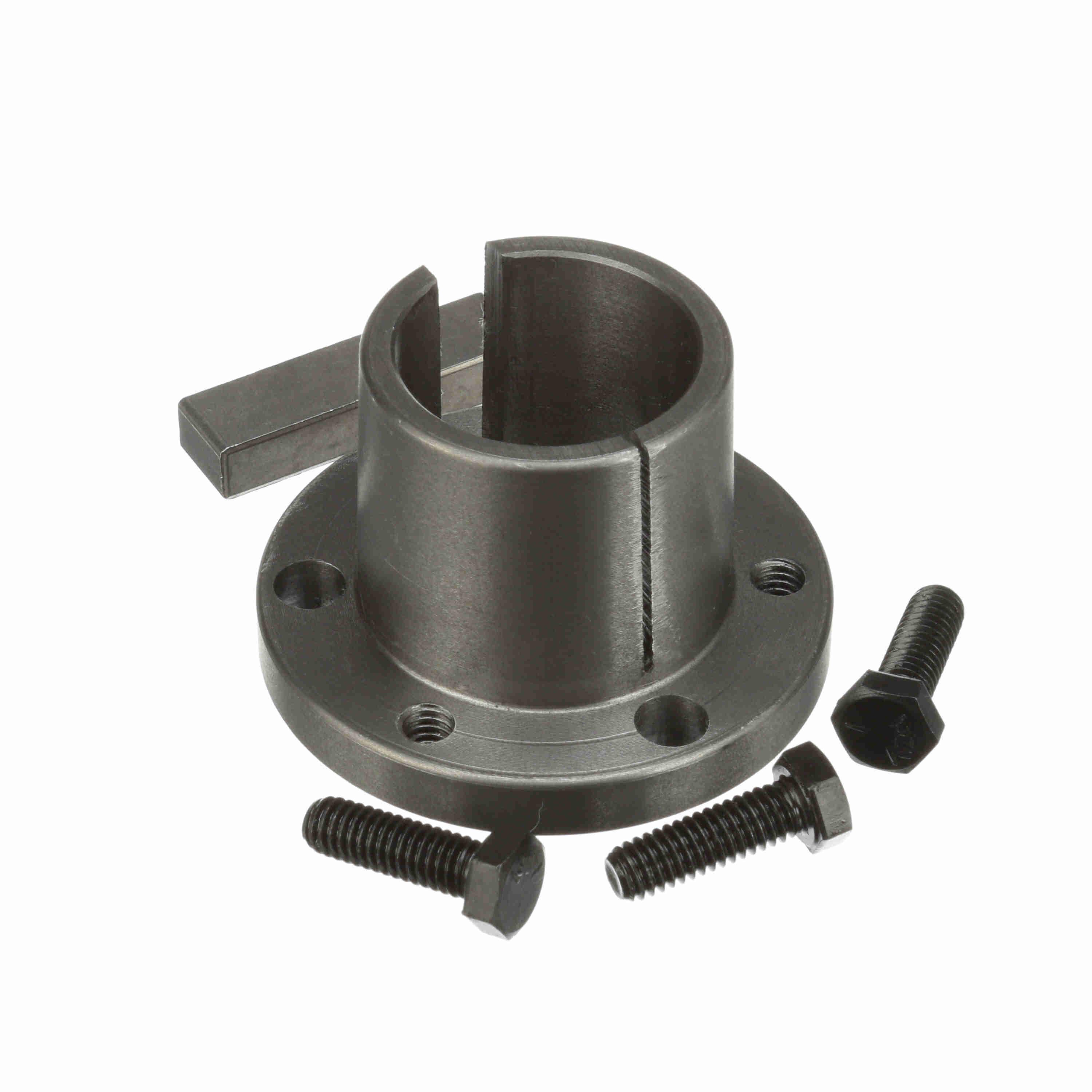

| T | 1069491 | 1 15/16" | 13/32" | 2 7/16" | 1 1/2" | 3/4" x 3/16" | 1.938" | - | €44.35 | |

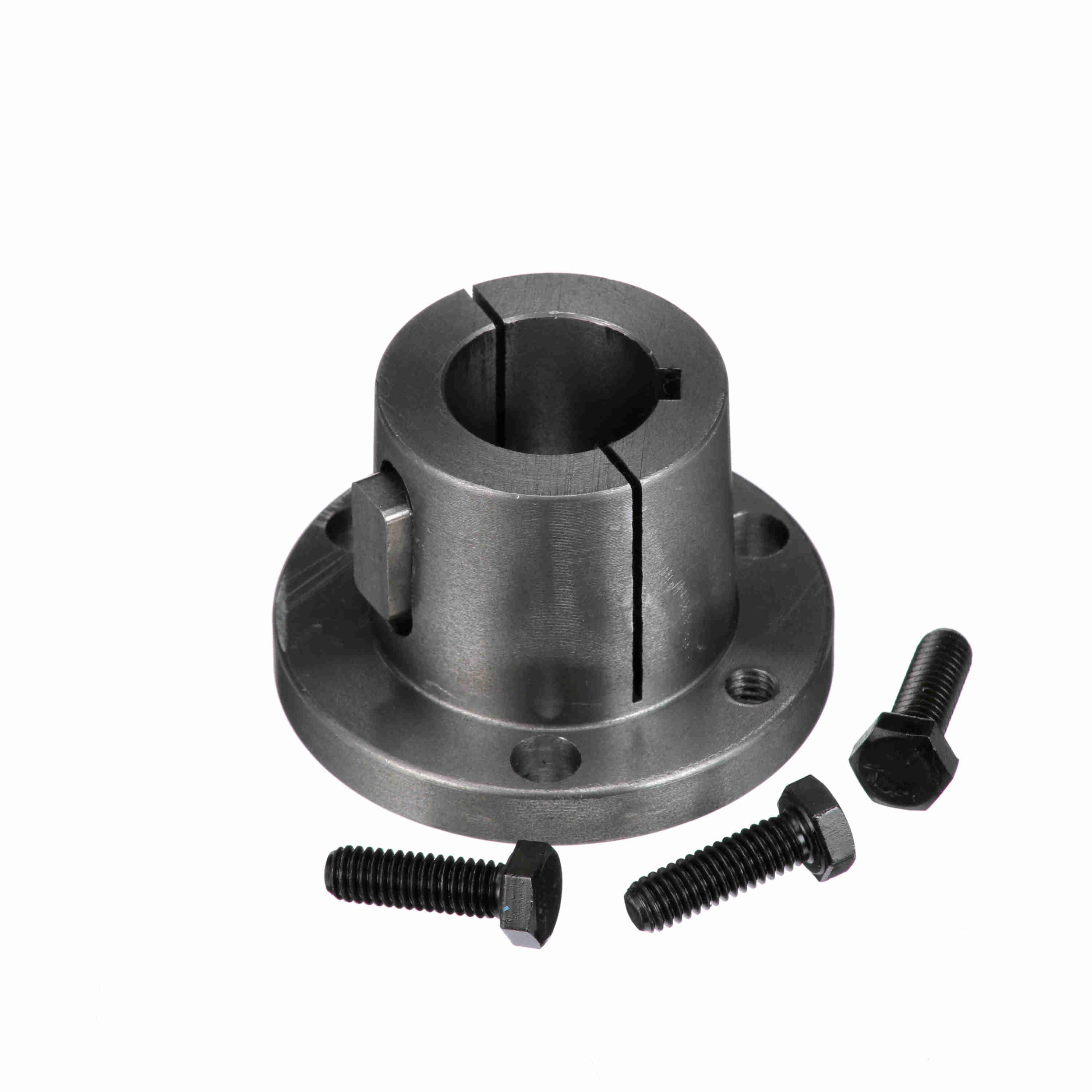

| U | 1069426 | 1 15/16" | 13/32" | 2 7/16" | 1 1/8" | 1/4" x 1/8" | 1.938" | - | €44.35 | |

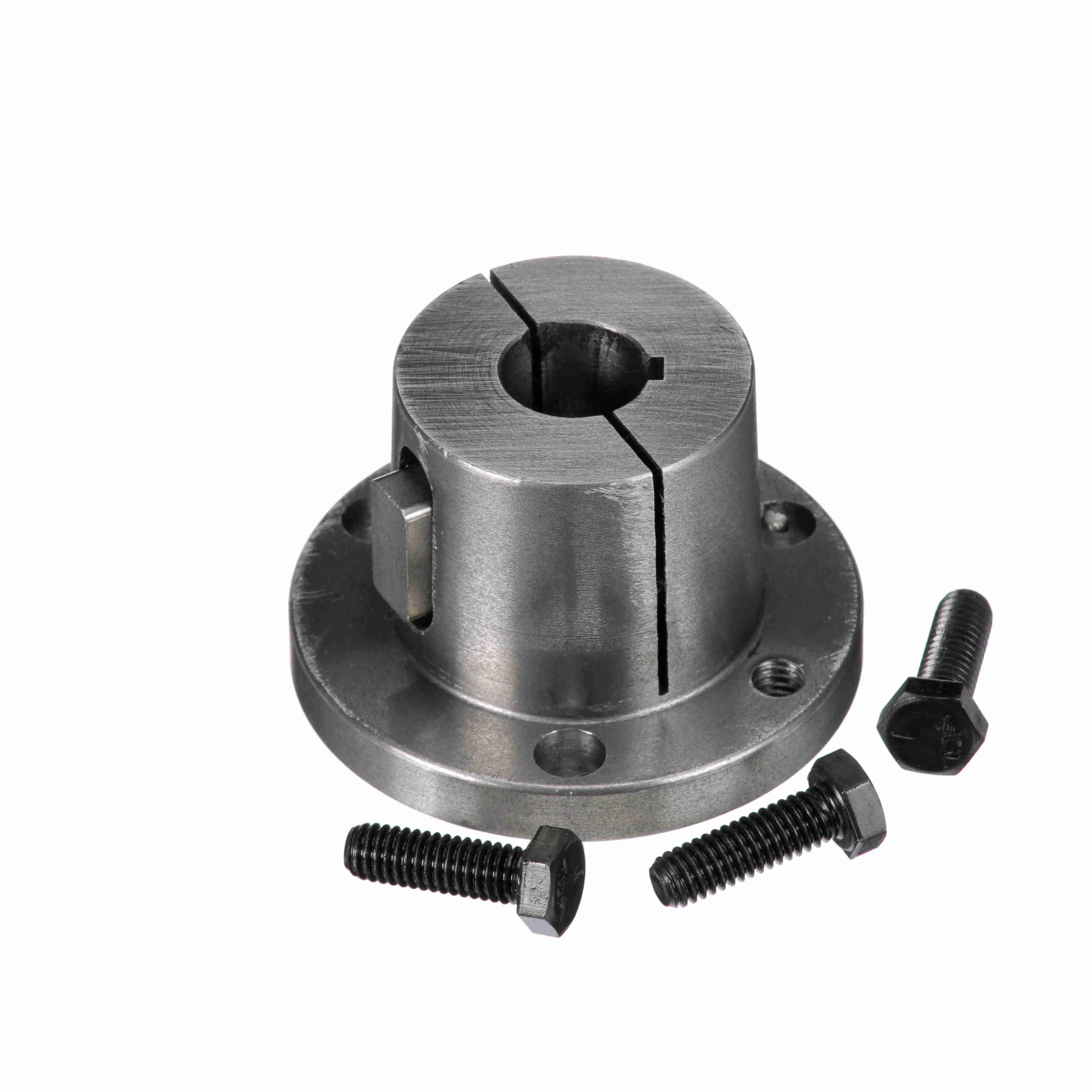

| V | 1069343 | 1 15/16" | 13/32" | 2 7/16" | 3/4" | 3/16" x 3/32" | 1.938" | - | €56.53 | |
| W | 1069939 | 1.938" | 3/8" | 2.438" | 42 mm | - | 1.938" | Type P1 | €58.92 | |
| X | 1726025 | 1.938" | 3/8" | 2.438" | 7/8" | - | 1.938" | Type P1 | €72.60 | |
| Y | 1726017 | 1.938" | 3/8" | 2.438" | 3/4" | - | 1.938" | Type P1 | €51.36 | RFQ
|
| Z | 1726058 | 1.938" | 3/8" | 2.438" | 1 3/16" | - | 1.938" | Type P1 | €63.38 | |
| A1 | 1726033 | 1.938" | 3/8" | 2.438" | 1" | - | 1.938" | Type P1 | €49.95 | RFQ
|
| B1 | 1069764 | 1.938" | 3/8" | 2.438" | 14 mm | - | - | Type P1 | €53.12 | |

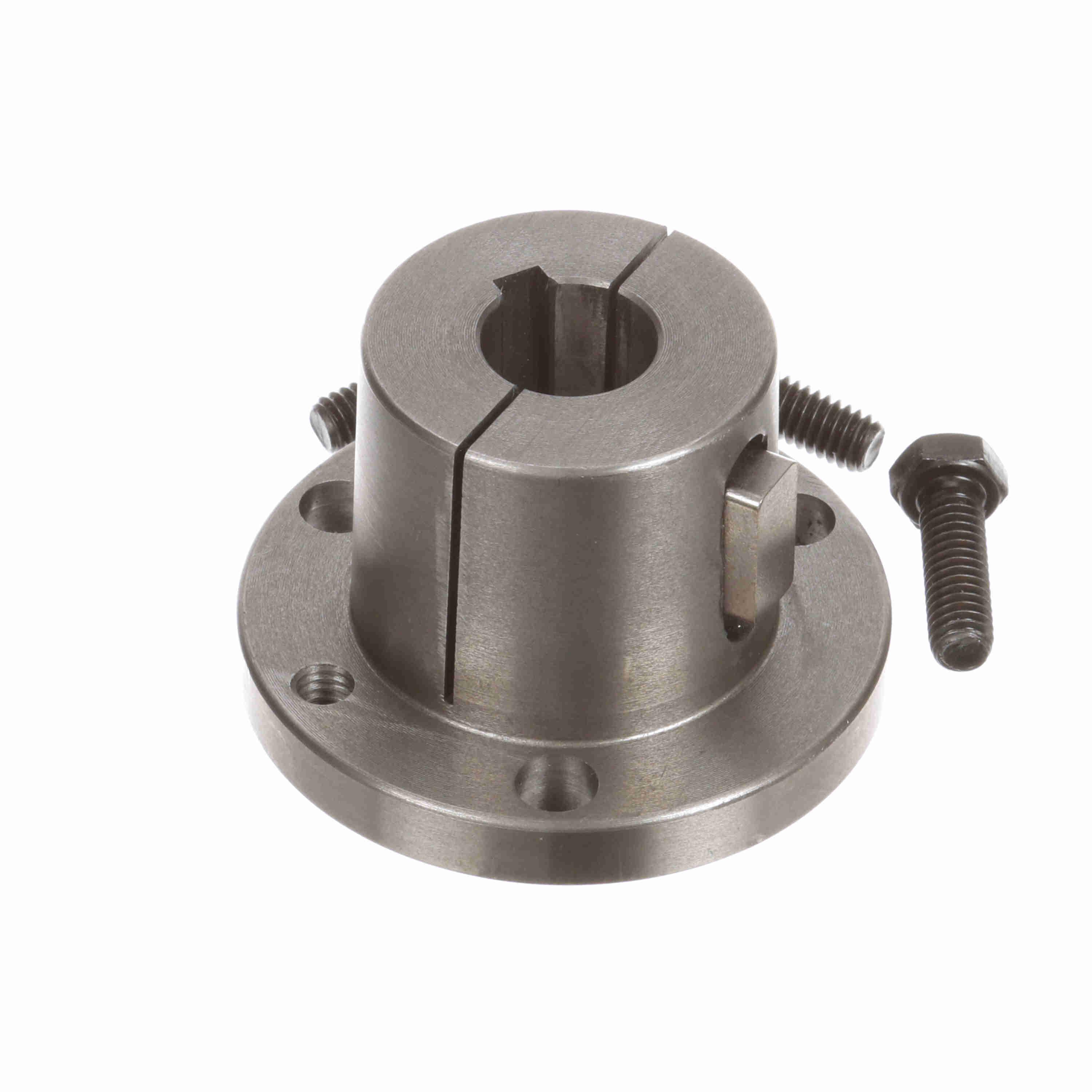

| C1 | 1069814 | 49.2125 mm | 13/32" | 2 7/16" | 20 mm | - | 1.938" | - | €41.08 | RFQ
|
| D1 | 1069848 | 49.2125 mm | 13/32" | 2 7/16" | 25 mm | - | 1.938" | - | €58.09 | |
| E1 | 1069921 | 49.2125 mm | 13/32" | 2 7/16" | 40 mm | - | 1.938" | - | €84.77 | |
| F1 | 1069889 | 49.2125 mm | 13/32" | 2 7/16" | 35 mm | - | - | - | €50.70 | |
| G1 | 1069855 | 49.2125 mm | 13/32" | 2 7/16" | 28 mm | - | 1.938" | - | €58.92 | |

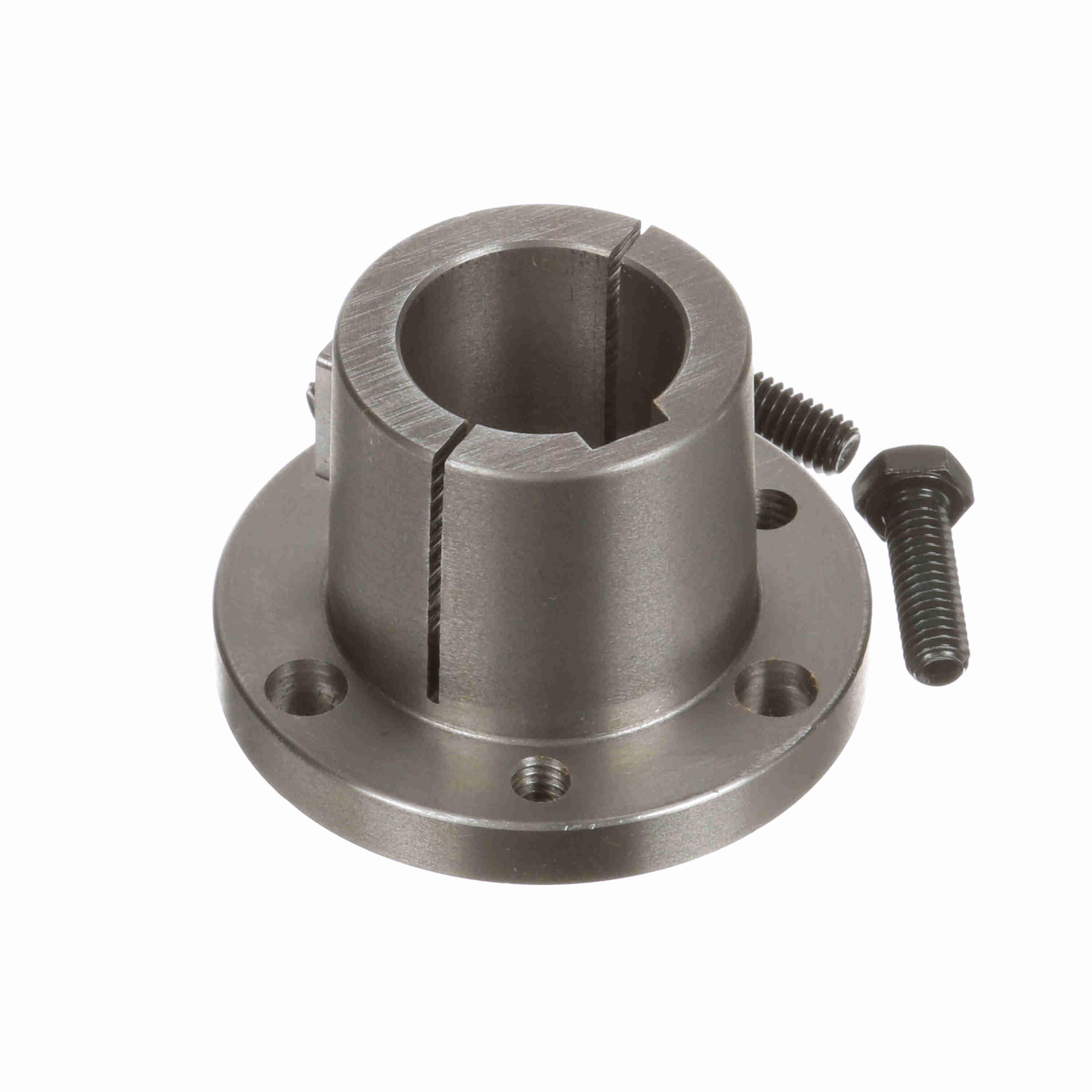

| H1 | 1069871 | 49.2125 mm | 13/32" | 2 7/16" | 32 mm | - | 1.938" | - | €74.96 | |
| I1 | 1069905 | 49.2125 mm | 13/32" | 2 7/16" | 38 mm | - | 1.938" | - | €81.53 | |
| J1 | 1069863 | 49.2125 mm | 13/32" | 2 7/16" | 30 mm | - | 1.938" | - | €74.96 | |
| K1 | 1069830 | 49.2125 mm | 13/32" | 2 7/16" | 24 mm | - | - | - | €60.07 |
