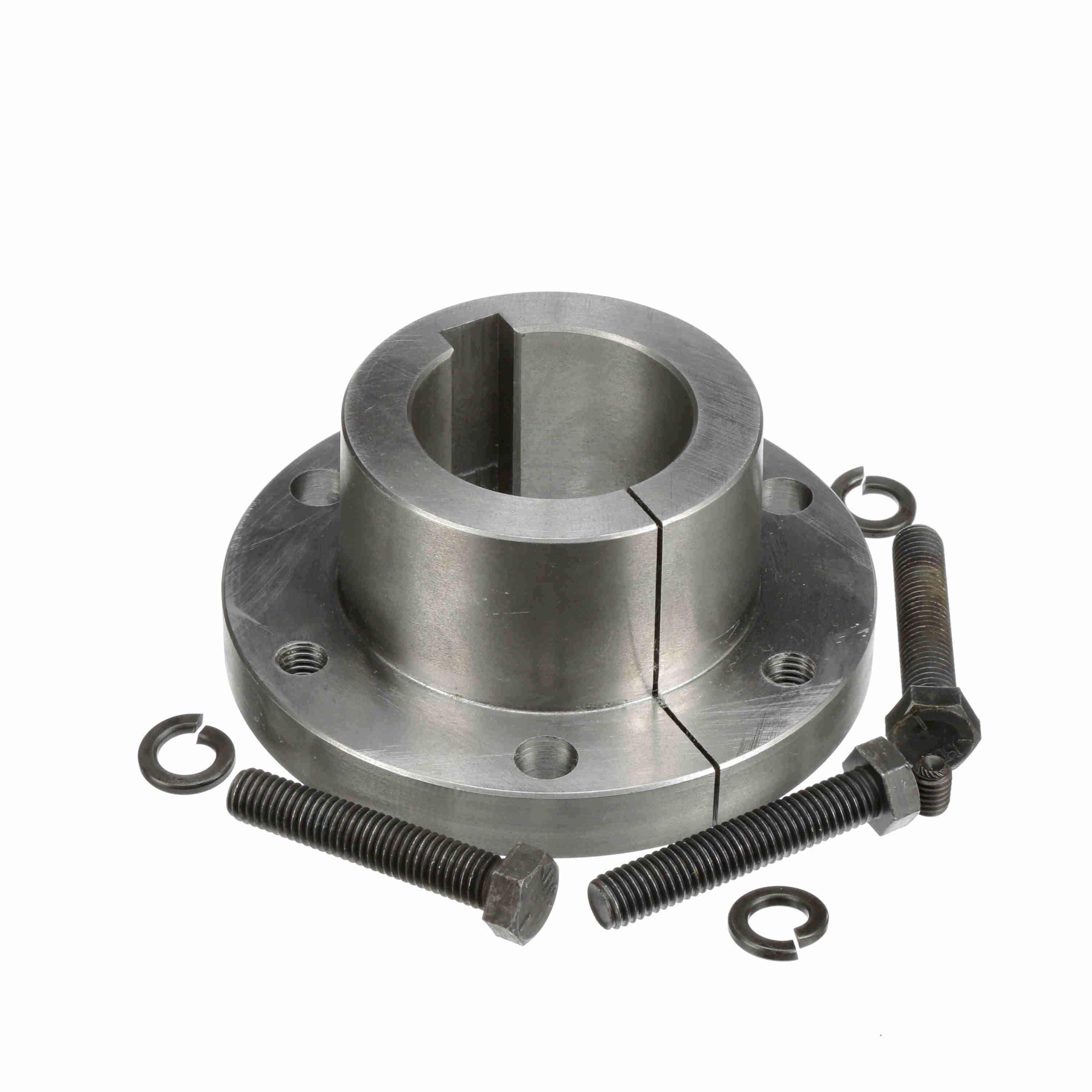

BROWNING 1073451 E 2 1/2 Q-D Bushing, 2.5 Inch Bore Size, 6 Inch Outer Diameter, E Bushing, Ductile Iron-Grade 65-45-31
Item: AJ9RCNModel: 1073451Cross Ref: E 2 1/2
7 In Stock
Ships within 2 days via
€297.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 5" |
| Bore Size | 2 1/2" |
| Bushing Series | E Series |
| Bushing Style | QD |
| Flange Dia. | 6" |
| Flange Thickness | 3/4" |
| For Use With | Browning Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 5/8" x 5/16" |
| Length Thru Bore | 2 5/8" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 3.834" |
| Overall Length | 2 16/25" |
| Rated Torque | 20000 lbs.-in. |
| Screw Size | 1/2"-13 |
| Screw Thread Length | 2 3/4" |
| System Of Measurement | Imperial |
| Weight | 7.85 lbs. |
Shipping Info:
| Ship weight (kg) | 3.53 |
| Ship height (cm) | 9.73 |
| Ship length (cm) | 6.71 |
| Ship width (cm) | 9.73 |
Product Variants
| Product | Model | Bore Size | Keyway Size | Bolt Circle Dia. | Overall Length | Flange Thickness | Rated Torque | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1073196 | 1" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €197.69 | RFQ
|
 |
1073204 | 1 1/16" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €370.73 | |
 |
1073220 | 1 3/16" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €248.63 | |
 |
1073238 | 1 1/4" | 1/4" x 1/8" | 5" | 2 16/25" | 3/4" | - | 3.834" | - | €248.63 | |
 |
1073287 | 1 7/16" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | Type E | €427.46 | |
 |
1073295 | 1 1/2" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | 20000 lbs.-in. | 3.834" | - | €188.64 | RFQ
|
 |
1073329 | 1 11/16" | 3/4" x 3/16" | 5" | 2 16/25" | 3/4" | - | 3.834" | - | €192.27 | RFQ
|
