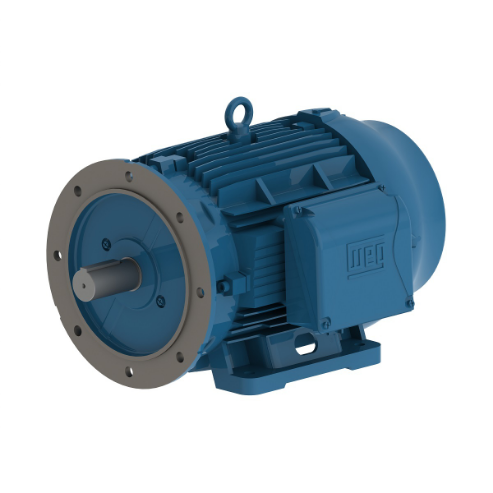

WEG 01118ET3Y160MFF-W22 11717642 Electric Motor, 11Hp, 60/50Hz, 1800 Rpm
Get it by Thursday, Dec 18
€2,130.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Break-down Torque | 330% |
| Cold Locked Rotor Time | 28 sec. |
| Connection Cables Quantity | 6 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 82% |
| Efficiency At 50 % | 63% |
| Efficiency At 75 % | 75% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | FF |
| Frame | 160M |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 16 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 155A |
| Locked Rotor Torque | 300% |
| Lrc | 8.5 |
| Main Terminal Box Hole Size | M40 x 1.5 |
| Moment Of Inertia | 2.38 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1780 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 9.08A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 64 dBA |
| Output | 15 hp |
| Output Rating | 15 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 92.4 |
| Power Factor At 50 % | 89.5 |
| Power Factor At 75 % | 91.7 |
| Rated Current | 18.2A |
| Rated Torque | 44.3 lbs.-ft. |
| Rated Voltage | 460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 380-415/460V |
Shipping Info:
| Ship weight (kg) | 136.8 |
| Ship height (cm) | 51.46 |
| Ship length (cm) | 76.71 |
| Ship width (cm) | 57.07 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Nameplate Rpm | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 460V AC | 50 Hz | 1 | 2 hp | 2.8A | 1755 RPM | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 460V AC | 60 Hz | 1 | 3 hp | 4.1A | 1750 RPM | Rigid Base | 100L | €1,095.12 | |
| 00518ET3Y132S-W22 | 380-415/460V | 60 Hz | 1 | 7 1/2 hp | 9.1A | 1775 RPM | Rigid Base | 132S | €1,613.01 | |
| 00712ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 10 hp | 13.8A | 1180 RPM | Rigid Base | 160M | €3,888.09 | |
| 00718ET3Y132M-W22 | 380-415/460V | 50 Hz | 1 | 10 hp | 12.2A | 1770 RPM | Rigid Base | 132M | €1,918.09 | |
| 01112ET3Y160L-W22 | 380-415/460V | 60 Hz | 1 | 15 hp | 18.8A | 1180 RPM | Rigid Base | 160L | €5,328.38 | |
| 01118ET3Y160M-W22 | 380-415/460V | 60 Hz | 1 | 15 hp | 18.2A | 1775 RPM | Rigid Base | 160M | €2,908.96 |
