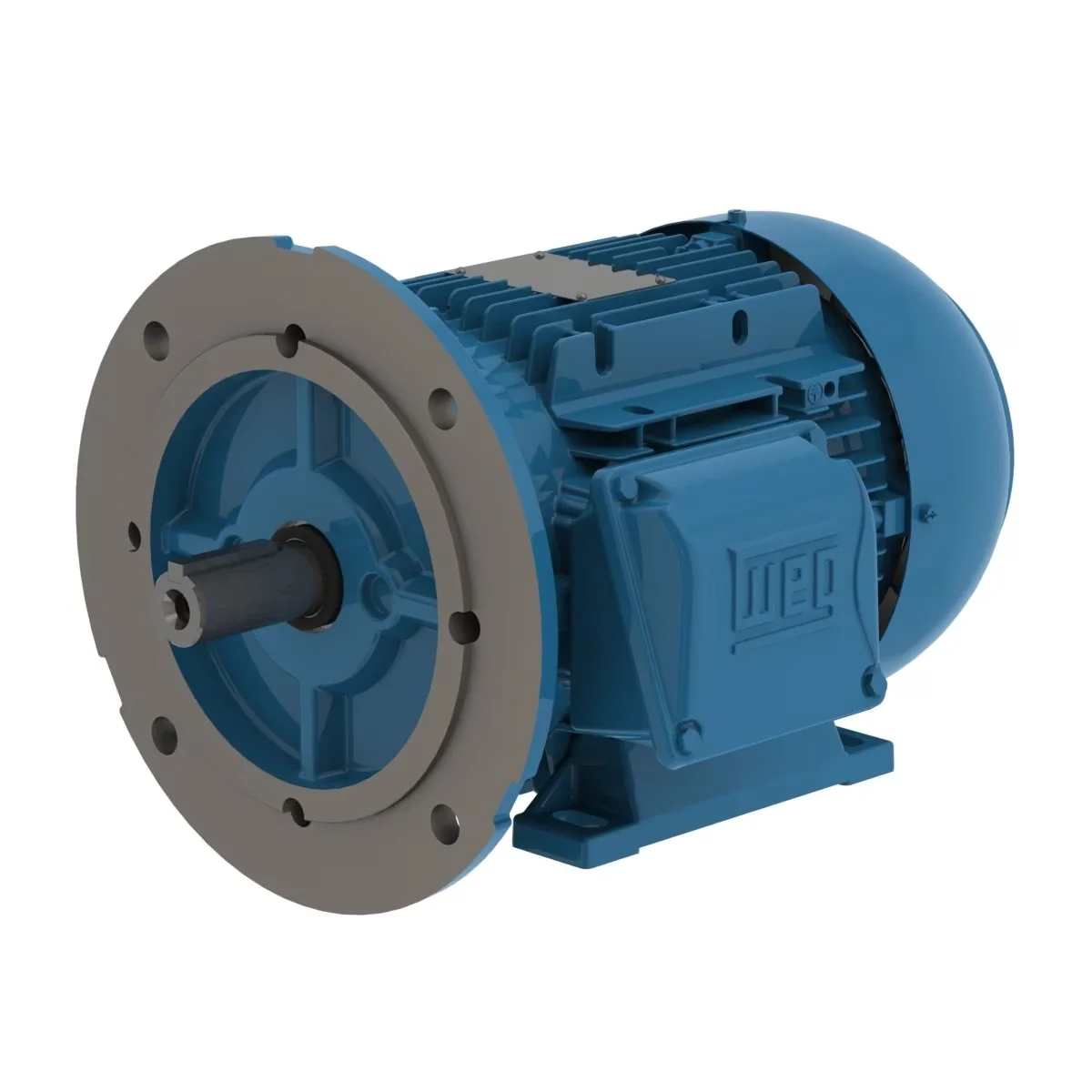

WEG 00152ET3WAL100LFF-W2 14056488 General Purpose Motor, Aluminum L100L Frame, 2 HP, 1165 RPM, 460V, B35L(E) Mounting
1200 rpm
2 hp
100LFF
460/220/240/380/415V
Get it by Friday, Aug 21
€1,052.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.63/6.28A , 6.28/3.63A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | No |
| Break Down Torque | 250% |
| Cold Locked Rotor Time | 0 sec. , 72 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 56% , 82% |
| Efficiency 75% | 82.5% |
| Efficiency @ 1 % | 76% |
| Efficiency @ 100% | 82.5% |
| Efficiency @ 75 % | 69% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | FF |
| Flange Type | FF |
| Frame | L100L |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 0 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 18.9/32.7A , 32.7/18.9A |
| Locked Rotor Time(hot) | 40 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 5.2 |
| Main Terminal Box Hole | 2 x M25 x 1.5 |
| Main Terminal Box Hole Size | M25 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 0.4176 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4176 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 950 RPM |
| Mounting | B35L , Foot Mounted |
| Nde Bearing Seal | V Ring |
| No Load Amps | 1.91/3.3A , 3.3/1.91A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 6 |
| Noise Level | 48 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.76 |
| Power Factor 50% | 0.56 |
| Power Factor 75% | 0.69 |
| Power Factor @ 1 % | 82.5 |
| Power Factor @ 50 % | 82 |
| Power Factor @ 75 % | 82.5 |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 5% |
| Speed | 1100-1200 RPM , 950 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Torque | 11.1 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 220/380V , 220/380V AC , 460/220-240/380-415V , 460/220-240/380-415V AC |
Shipping Info:
| Ship weight (kg) | 39.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Frame | Ambient Temp. | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00712ET3Y160M-W22 | 460V | 60 Hz | 1 | 10 hp | 13.8A | 160M | 40°C | Class F | €3,888.09 | |
| 01112ET3Y160L-W22 | 460V | 60 Hz | 1 | 15 hp | 18.8A | 160L | 40°C | Class F | €5,328.38 | |
| 01118ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 18.2A | 160M | 40°C | Class F | €2,908.96 | |
| 01136ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 17.9A | 160M | 40°C | Class F | €3,544.04 | |
| 01512ET3Y180L-W22 | 460V | 60 Hz | 1 | 20 hp | 24.7A | 180L | 40°C | Class F | €6,547.52 | |
| 01518ET3Y160L-W22 | 460V | 60 Hz | 1 | 20 hp | 25A | 160L | 40°C | Class F | €3,570.52 | |
| 01536ET3Y160M-W22 | 460V | 60 Hz | 1 | 20 hp | 24.4A | 160M | 40°C | Class F | €4,068.57 |
