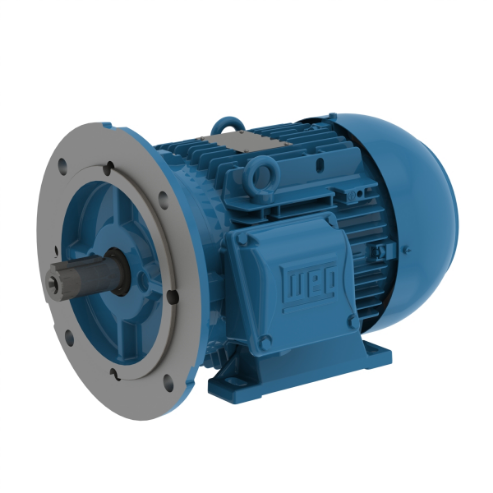

WEG 00418ET3YAL112MFF-W2 14052064 General Purpose Motor, Aluminum 112M Frame, 5.5 HP, 1755 RPM, 460 V With Bearing Cap
1800 rpm
5.4 hp
112MFF
460/380-415/660-690V
Get it by Tuesday, Aug 25
€893.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 7.28A , 8.47A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 270% , 350% |
| Cold Locked Rotor Time | 34 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 58% , 89.3% |
| Efficiency 75% | 89% |
| Efficiency @ 1 % | 77% |
| Efficiency @ 100% | 88.6% |
| Efficiency @ 75 % | 70% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | FF |
| Flange Type | FF |
| Frame | 112M |
| Frame Material | Aluminum |
| Frequency | 50 Hz , 50/60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 19 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 58.2A , 59.3A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 15 sec. , 19 sec. |
| Locked Rotor Torque | 200% , 250% |
| Lrc | 8 |
| Main Terminal Box Hole | 2 x M32 x 1.5 |
| Main Terminal Box Hole Size | M32 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia (j) | 0.4312 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1755 RPM |
| Mounting | B35L , Foot Mounted |
| Nde Bearing Seal | V Ring |
| No Load Amps | 4.15A , 4.25A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output | 5 1/2 hp |
| Output Rating | 5 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.65 |
| Power Factor 75% | 0.76 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 87.5 |
| Power Factor @ 75 % | 89.5 |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% , 3.67% |
| Speed | 1445 RPM , 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Torque | 16.5 lbs.-ft. , 20 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380-415/460V , 460V AC |
Shipping Info:
| Ship weight (kg) | 44.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Frame | Ambient Temp. | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00712ET3Y160M-W22 | 460V | 60 Hz | 1 | 10 hp | 13.8A | 160M | 40°C | Class F | €3,888.09 | |
| 01112ET3Y160L-W22 | 460V | 60 Hz | 1 | 15 hp | 18.8A | 160L | 40°C | Class F | €5,328.38 | |
| 01118ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 18.2A | 160M | 40°C | Class F | €2,908.96 | |
| 01136ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 17.9A | 160M | 40°C | Class F | €3,544.04 | |
| 01512ET3Y180L-W22 | 460V | 60 Hz | 1 | 20 hp | 24.7A | 180L | 40°C | Class F | €6,547.52 | |
| 01518ET3Y160L-W22 | 460V | 60 Hz | 1 | 20 hp | 25A | 160L | 40°C | Class F | €3,570.52 | |
| 01536ET3Y160M-W22 | 460V | 60 Hz | 1 | 20 hp | 24.4A | 160M | 40°C | Class F | €4,068.57 |
