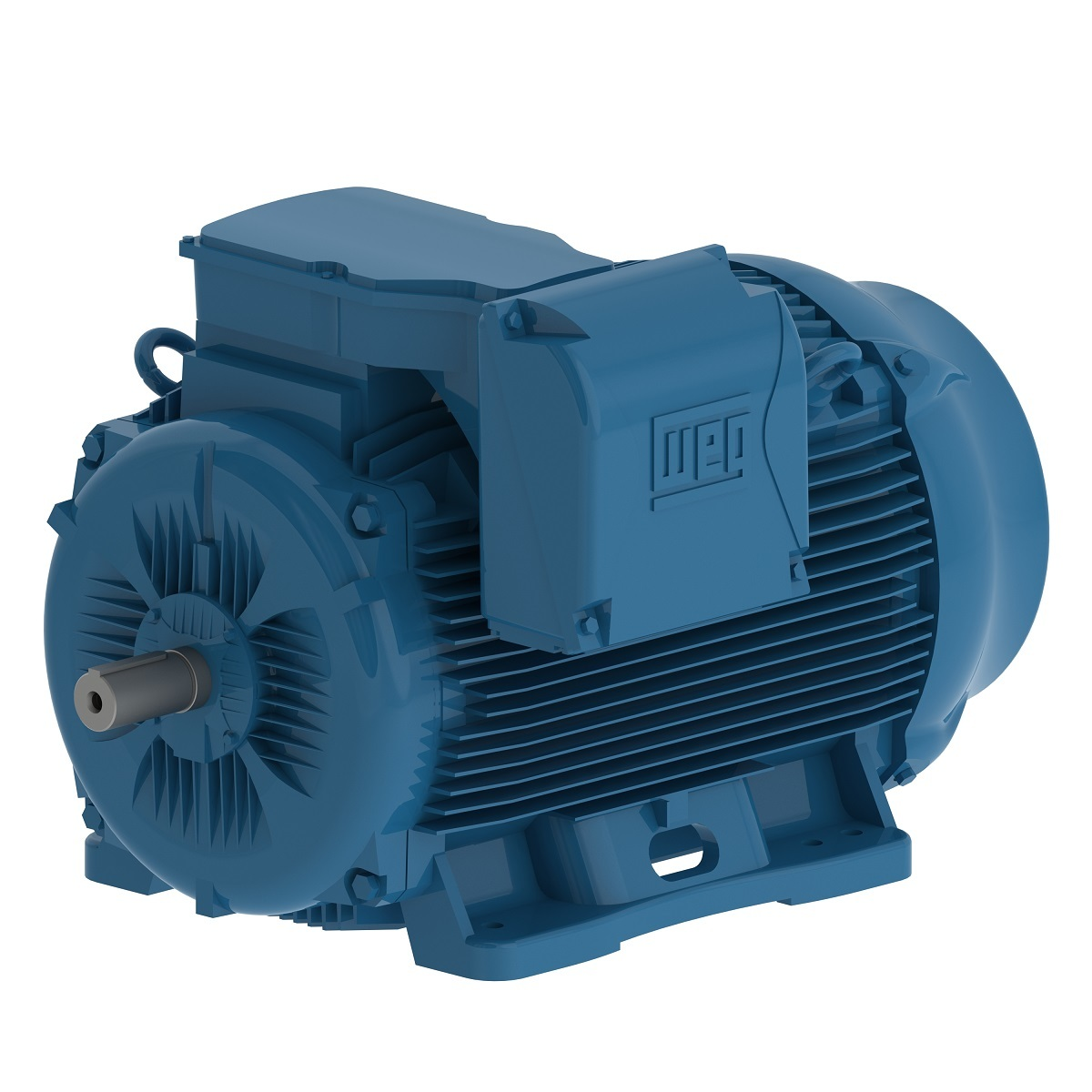

WEG 22012ET3Y355M/L-W22 14069298 General Purpose Motor, Cast Iron 355M/L Frame, 300 HP, 1195 RPM, 460 V
1200 rpm
300 hp
355M/L
460/380-415/660-690V
Get it by Thursday, Aug 20
€53,065.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 244/424A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 210% |
| Cold Locked Rotor Time | 90 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 95.7% |
| Efficiency 75% | 96.1% |
| Efficiency @ 100% | 96.2% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 355 M/L |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 50/60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hp | 300 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 1586/2756A , 2775A |
| Locked Rotor Time (cold) | 64 sec. |
| Locked Rotor Time(hot) | 36 sec. , 50 sec. |
| Locked Rotor Torque | 190% |
| Main Terminal Box Hole | 2 x M63 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia (j) | 318 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | B3L , Foot Mounted |
| Nde Bearing Seal | Yes |
| No Load Amps | 97.9/170A |
| No. Of Pins | 6 |
| No. Of Poles | 6 |
| Noise Level | 73 dBA |
| Output Rating | 300 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.82 |
| Power Factor 50% | 0.68 |
| Power Factor 75% | 0.78 |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 0.7% |
| Speed | 1100-1200 RPM , 993 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Torque | 1590 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380/660V , 460/380-415/660-690V , 460/380-415/660-690V AC |
Shipping Info:
| Ship weight (kg) | 2028.15 |
| Ship height (cm) | 51.46 |
| Ship length (cm) | 76.71 |
| Ship width (cm) | 57.07 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Frame | Ambient Temp. | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00712ET3Y160M-W22 | 460V | 60 Hz | 1 | 10 hp | 13.8A | 160M | 40°C | Class F | €3,888.09 | |
| 01112ET3Y160L-W22 | 460V | 60 Hz | 1 | 15 hp | 18.8A | 160L | 40°C | Class F | €5,328.38 | |
| 01118ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 18.2A | 160M | 40°C | Class F | €2,908.96 | |
| 01136ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 17.9A | 160M | 40°C | Class F | €3,544.04 | |
| 01512ET3Y180L-W22 | 460V | 60 Hz | 1 | 20 hp | 24.7A | 180L | 40°C | Class F | €6,547.52 | |
| 01518ET3Y160L-W22 | 460V | 60 Hz | 1 | 20 hp | 25A | 160L | 40°C | Class F | €3,570.52 | |
| 01536ET3Y160M-W22 | 460V | 60 Hz | 1 | 20 hp | 24.4A | 160M | 40°C | Class F | €4,068.57 |
