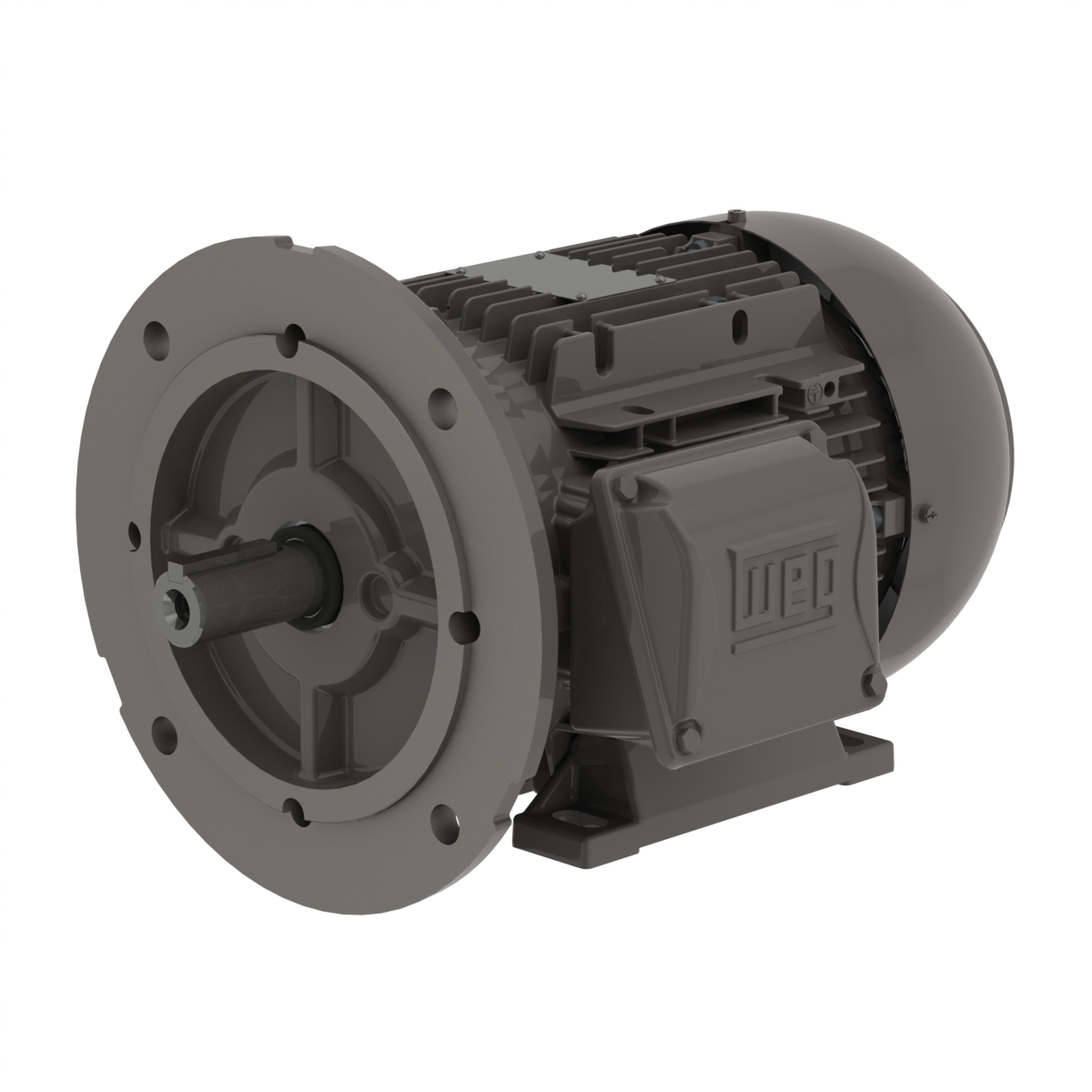

WEG .3718EP3EAL71FF-W22 14056443 General Purpose Motor, Aluminum 71 Frame, 0.5 HP, 1710 RPM, 230/460 V
1800 rpm
0.5 hp
71FF
208/230/460V
Get it by Friday, Aug 21
€405.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.13A , 2.12/1.06A |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Break Down Torque | 210% , 290% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | Oil Seal |
| Degree Of Protection | IP55 |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 38% , 68% |
| Efficiency 75% | 71% |
| Efficiency @ 1 % | 60% |
| Efficiency @ 100% | 73% |
| Efficiency @ 75 % | 51% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | FF |
| Flange Type | FF |
| Frame | 71 |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 15 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 11.7/5.83A , 6.22A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 210% , 280% |
| Lrc | 5.5 |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.0187 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0187 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1710 RPM |
| Mounting | B35L , Foot Mounted |
| Nde Bearing Seal | Oil Seal |
| No Load Amps | 0.8A , 1.6/0.8A |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 43 dBA , 47 dBA |
| Output | 1/2 hp |
| Output Rating | 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL7022 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.68 |
| Power Factor 50% | 0.45 |
| Power Factor 75% | 0.58 |
| Power Factor @ 1 % | 73 |
| Power Factor @ 50 % | 65 |
| Power Factor @ 75 % | 71 |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 5% , 8.67% |
| Speed | 1370 RPM , 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Torque | 1.54 lbs.-ft. , 1.92 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/380-415/460V , 230/460/380-415V AC , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Full Load Amps | Frame | Ambient Temp. | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00712ET3Y160M-W22 | 460V | 60 Hz | 1 | 10 hp | 13.8A | 160M | 40°C | Class F | €3,888.09 | |
| 01112ET3Y160L-W22 | 460V | 60 Hz | 1 | 15 hp | 18.8A | 160L | 40°C | Class F | €5,328.38 | |
| 01118ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 18.2A | 160M | 40°C | Class F | €2,908.96 | |
| 01136ET3Y160M-W22 | 460V | 60 Hz | 1 | 15 hp | 17.9A | 160M | 40°C | Class F | €3,544.04 | |
| 01512ET3Y180L-W22 | 460V | 60 Hz | 1 | 20 hp | 24.7A | 180L | 40°C | Class F | €6,547.52 | |
| 01518ET3Y160L-W22 | 460V | 60 Hz | 1 | 20 hp | 25A | 160L | 40°C | Class F | €3,570.52 | |
| 01536ET3Y160M-W22 | 460V | 60 Hz | 1 | 20 hp | 24.4A | 160M | 40°C | Class F | €4,068.57 |
