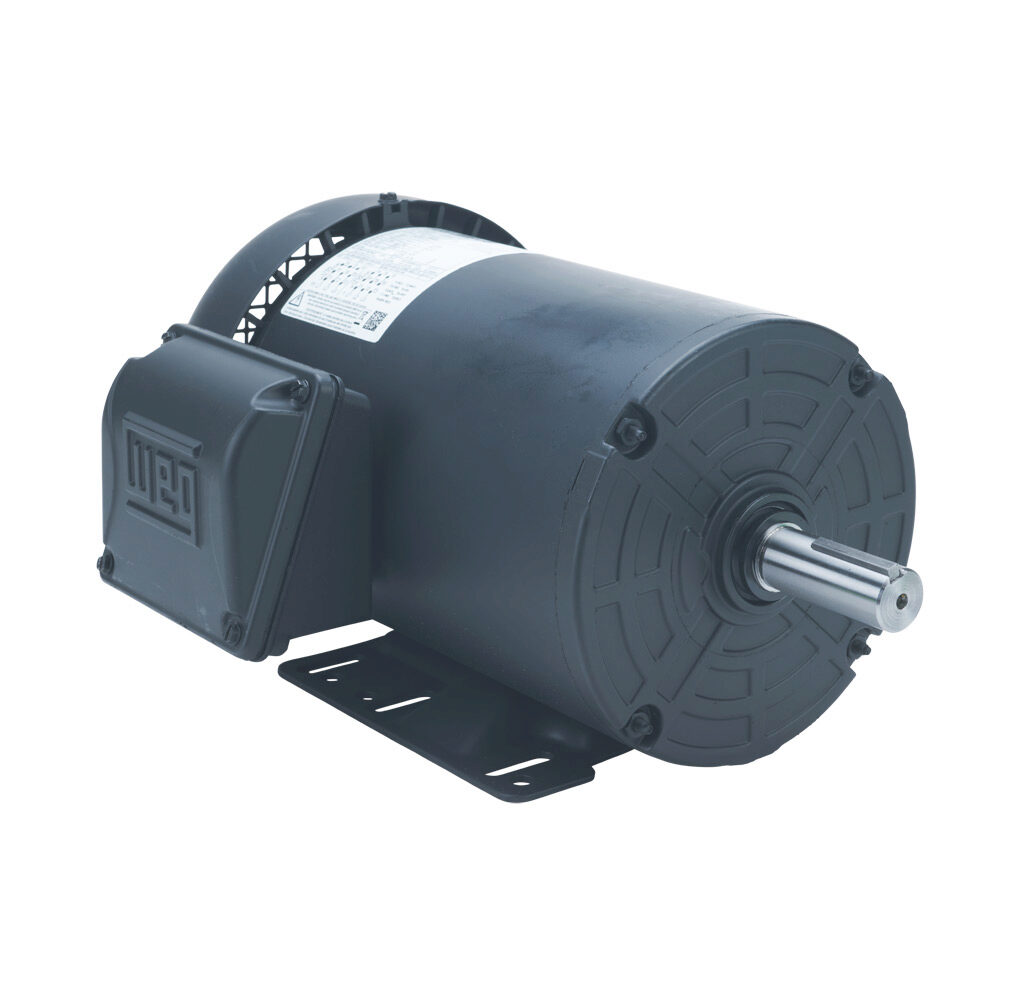

WEG 00236ET3E145T-S 14802734 General Purpose Motor, TEAO/TEFC RolLED Steel 143/5T Frame, 2 HP, 2900 RPM, 415 V
Get it by Wednesday, Feb 18
€838.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 23 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency At 1 % | 89% |
| Efficiency At 50 % | 73% |
| Efficiency At 75 % | 83% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frame Size | 145T |
| Frequency | 50/60 Hz |
| Grade | Grade 1045 |
| Grounding Lugs | Single |
| Horsepower | 2 hp |
| Hot Locked Rotor Time | 13 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| L. R. Amps | 48.9/24.5A |
| Locked Rotor Torque | 250% |
| Lrc | 9.9X(Code L) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1279 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3520 RPM |
| Motor Type | Induction |
| Mounting | Foot Mounted |
| Mounting Orientation | Horizontal |
| Nameplate Rpm | 3520 RPM |
| No Load Amps | 2.13/1.06A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Number Of Phases | 3 |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 85.5 |
| Power Factor At 50 % | 82.5 |
| Power Factor At 75 % | 85.5 |
| Product Datasheet | weg-00236et3e145t-s.pdf |
| Rated Current | 4.94/2.47A |
| Rated Torque | 2.98 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Diameter | 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 18.76 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 115.06 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Service Factor | Hp | Frequency | Motor Enclosure Design | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 380-415/460V | 1.25 | 25 hp | 50 Hz | Totally Enclosed Fan Cooled | 29.9A | 3550 RPM | - | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 380-415/460V | 1.25 | 50 hp | 60 Hz | Totally Enclosed Fan Cooled | 59.8A | 3570 RPM | - | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 1.25 | 75 hp | 50/60 Hz | Totally Enclosed Fan Cooled | 80.3A | 3600 RPM | - | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 1.25 | 1 1/2 hp | 60 Hz | Totally Enclosed Fan Cooled | 1.57A | 3480 RPM | Three Phase | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 1.25 | 2 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.05A | 3475 RPM | Three Phase | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 1 | 3 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.9A | 3515 RPM | Three Phase | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 1.25 | 5 hp | 60 Hz | Totally Enclosed Fan Cooled | 4.72A | 3485 RPM | Three Phase | €1,251.50 |
