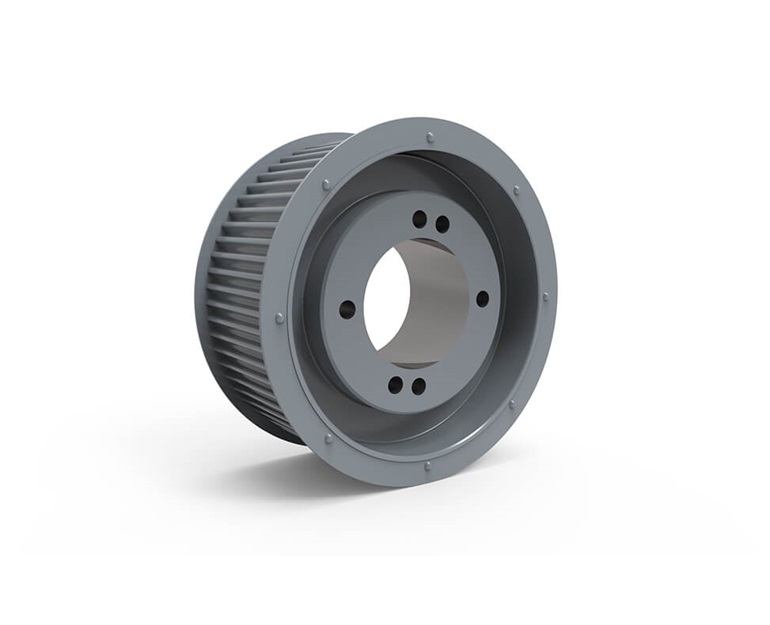

TB WOODS P6820M170 Synchronous Plus Belt Sprocket, Cast Iron, 10.5 inch Hub Dia., 170mm Belt Width
68
10.5"
170 mm
Get it by Friday, Dec 19
€4,935.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bushing | M |
| Bushing Series | M |
| Construction | Webbed |
| Dimension L | 6 3/4" |
| Hub Location | 1 1/2" |
| Material | Cast Iron |
| Max. Rpm | 1490 RPM |
| Outside Dia. | 16.87" |
| Pitch Dia. | 17.044" |
| Rpm High | 1490 RPM |
| Rpm High | 1,490 rpm |
Shipping Info:
| Ship weight (kg) | 84.29 |
| Ship height (cm) | 42.85 |
| Ship length (cm) | 42.85 |
| Ship width (cm) | 16.99 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Pitch Length | Rpm High | Max. Rpm | Bushing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
315014M85 | 225 | - | - | 85 mm | 3150 mm | - | - | - | €1,060.72 | |
 |
P2814M40 | 28 | 4.912" | 4 4/5" | - | - | 5210 RPM | 5210 RPM | - | €234.31 | |
|
P2814M55 | 28 | 4.912" | 4 4/5" | 55 mm | - | 5210 RPM | 5210 RPM | SK R | €275.67 | |
|
P2914M40 | - | 5.088" | 4.98" | 40 mm | - | 5030 RPM | 5030 RPM | SK R | €278.68 | |
|
P2914M55 | 29 | 5.088" | 4.98" | 55 mm | - | 5030 RPM | 5030 RPM | SK R | €311.08 | |
 |
P3014M40 | 30 | 5.263" | 5.15" | 40 mm | - | 4860 RPM | 4860 RPM | SK | €256.36 | |
|
P3014M55 | 30 | 5.263" | 5.15" | 55 mm | - | 4860 RPM | 4860 RPM | SK | €297.71 |
