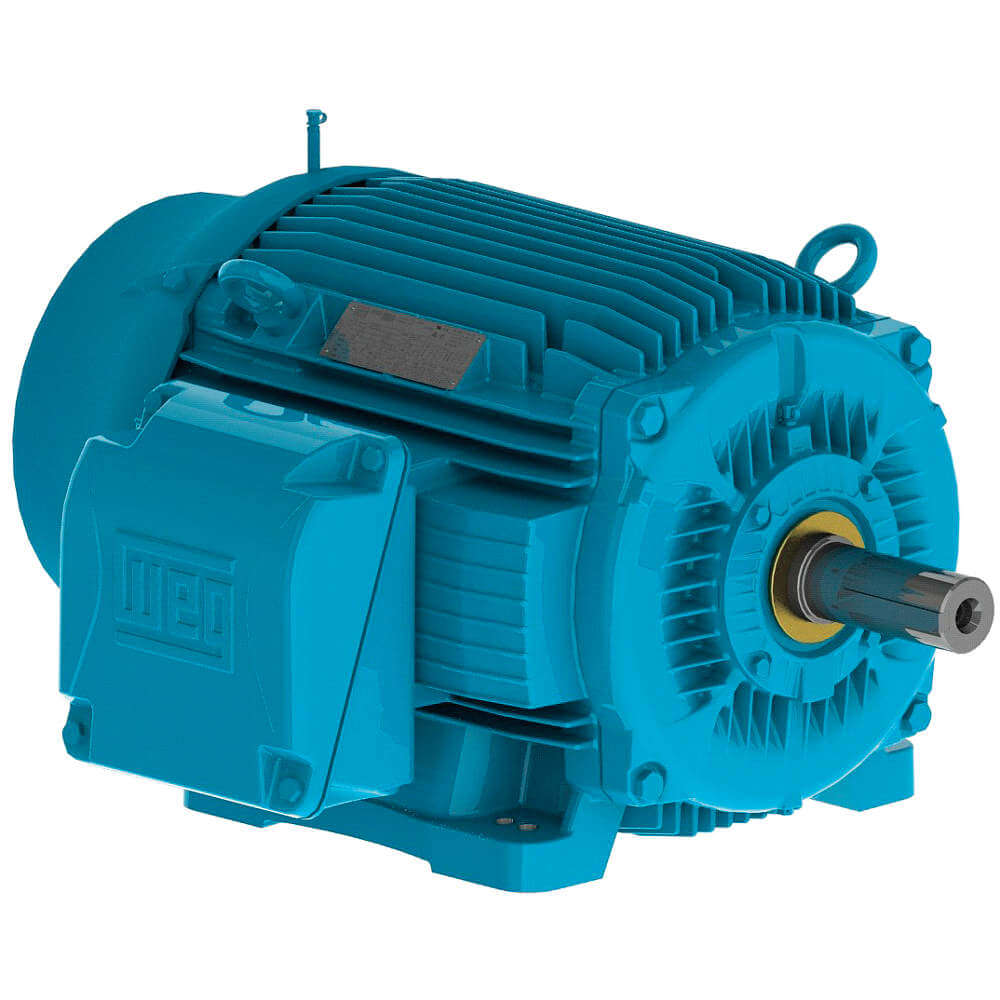

WEG 45018ST3QIERB449T-W2 Motor, 3 Phase, 450 Hp, 1790 460V, 447/9t Eff 96.2
Get it by Tuesday, Feb 24
5.00% off
€83,533.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | IEEE 841 Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Duty Cycle | Continuous |
| Efficiency | 96.2% |
| Efficiency Group | Premium |
| Enclosure Type | Tefc |
| Frame | 447/9T |
| Frame Material | Cast Iron |
| Frame Size | L449T |
| Frequency | 60 Hz |
| Full Load Amps | 501A |
| Hp | 450 hp |
| Insulation Class | Class F |
| Length Less Shaft | 46 11/16" |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Application | IEEE Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 96.2% |
| Number | Cc029A |
| Overall Length | 57 3/16" |
| Phase | 3 |
| Removable Base | Regreasable Bearings |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 3 3/8" |
| Shaft Length | 8 1/2" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 460V |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 1610.1 |
| Ship height (cm) | 94.74 |
| Ship length (cm) | 145.03 |
| Ship width (cm) | 107.19 |
| HS code | 8501538040 |
| Country of Origin | BR |
Product Variants
| Model | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | 1700-1800 RPM | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | 1700-1800 RPM | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | 1700-1800 RPM | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | 25 hp | 30.6A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | 30 hp | 36A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €5,926.53 |
